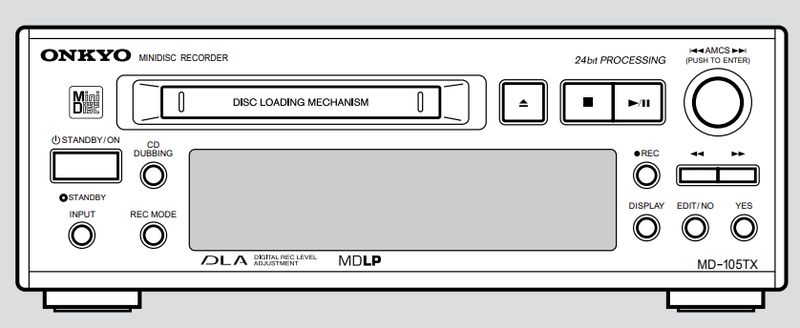

Onkyo MD-105TX
| Name | MD-105TX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2001/06 |
| Device type | deck |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 205 x 286 x 76 mm |
| Weight | 2.4kg |
| ATRAC ver | Type-S |
| Power cable | AC |
| Price (launch) | |
| ¥41 000 | |
| - | |

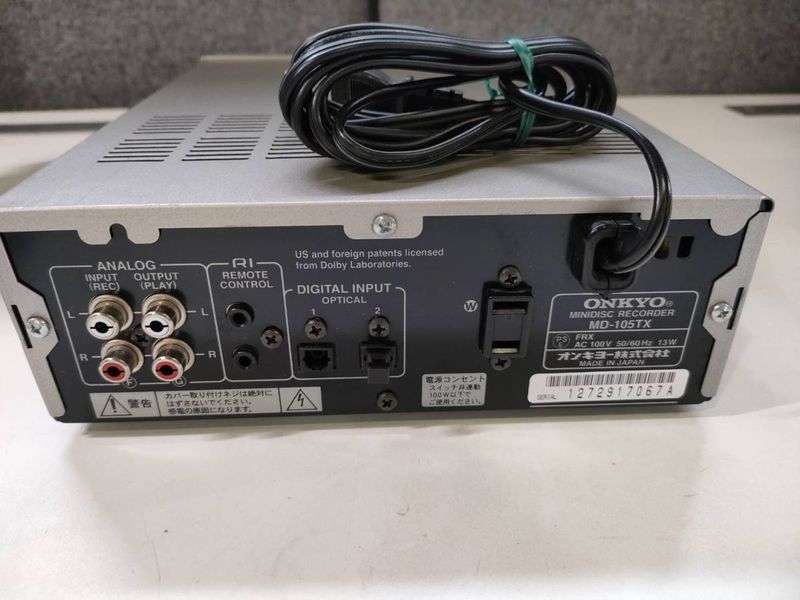

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out |
| Control |
Revision of the MD-105. Finally adds MDLP support. Supplied with RC-409MD remote.

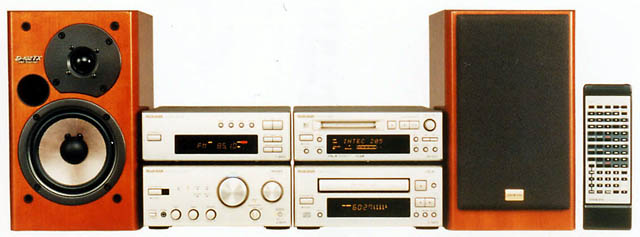

Was included in systems such as the INTEC TX7MD (175,000 yen) and the INTEC TX5MD (145,000 yen)
Main Features:
- Direct Digital Path
- 4-Recording mode (MONO/SP/LP2/LP4)
- 32kHz/44.1kHz/48kHz Sampling Rate Converter
- 24-Bit A/D and D/A Converters
- Digital Rec Level Adjustment
- Rec Volume Control for Analog and Digital Inputs
- Album Dubbing and Fade Out Control
- One-Touch Dubbing
- Signal Synchro Recording
Onkyo recommends using the separately supplied RC-410MD remote [*] RC-410MD remote (MiniDisc Wiki mirror) [*] (3,465 Yen) when using the deck on its own.
This deck uses the CXD2664R ATRAC IC, and the KMS-260 Pickup.
Content adapted from: Onkyo Press Release [*] Onkyo Press Release (MiniDisc Wiki mirror) [*] Onkyo Press Release 2 [*] Onkyo Press Release 2 (MiniDisc Wiki mirror) [*] av.watch [*], Manuals phileweb.com [*]
Manuals
MD-105TX User Manual
MD mechanism appears to be identical to the one used in the Sony MDS-JE480, so it's service manual may be useful.

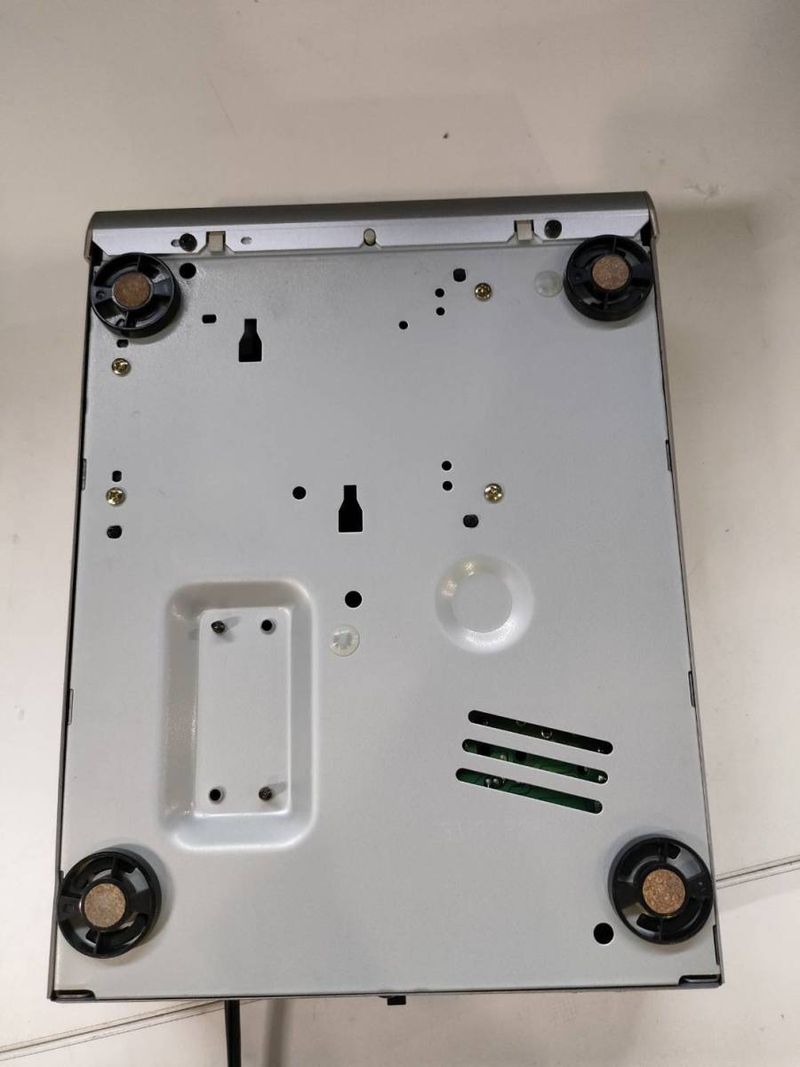

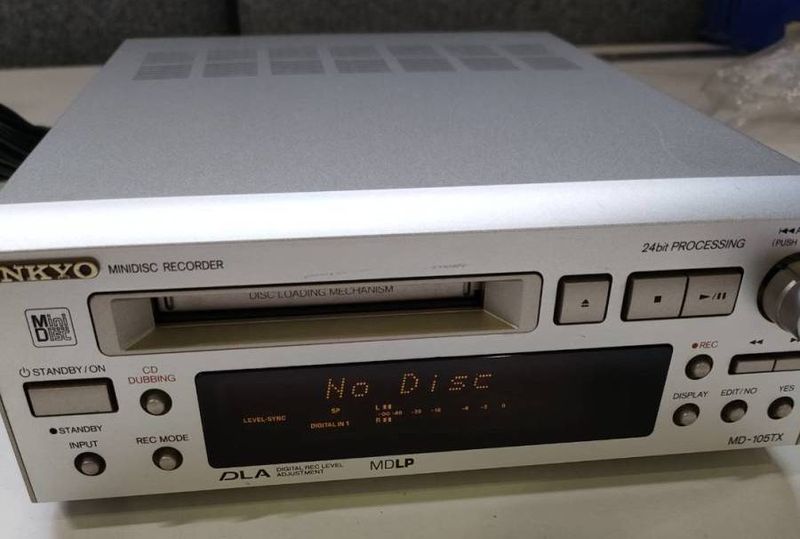

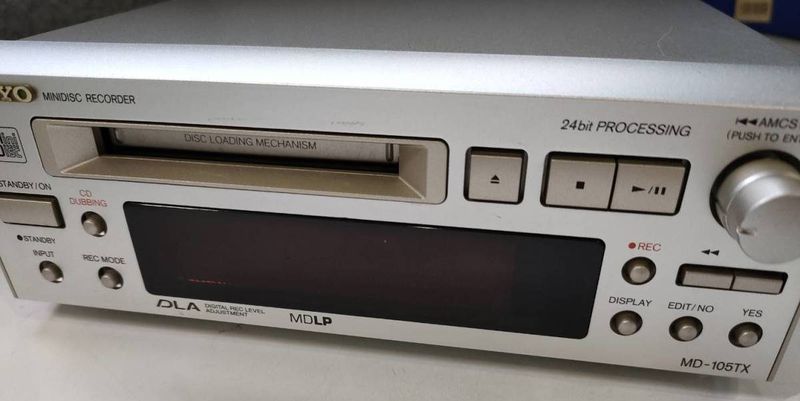

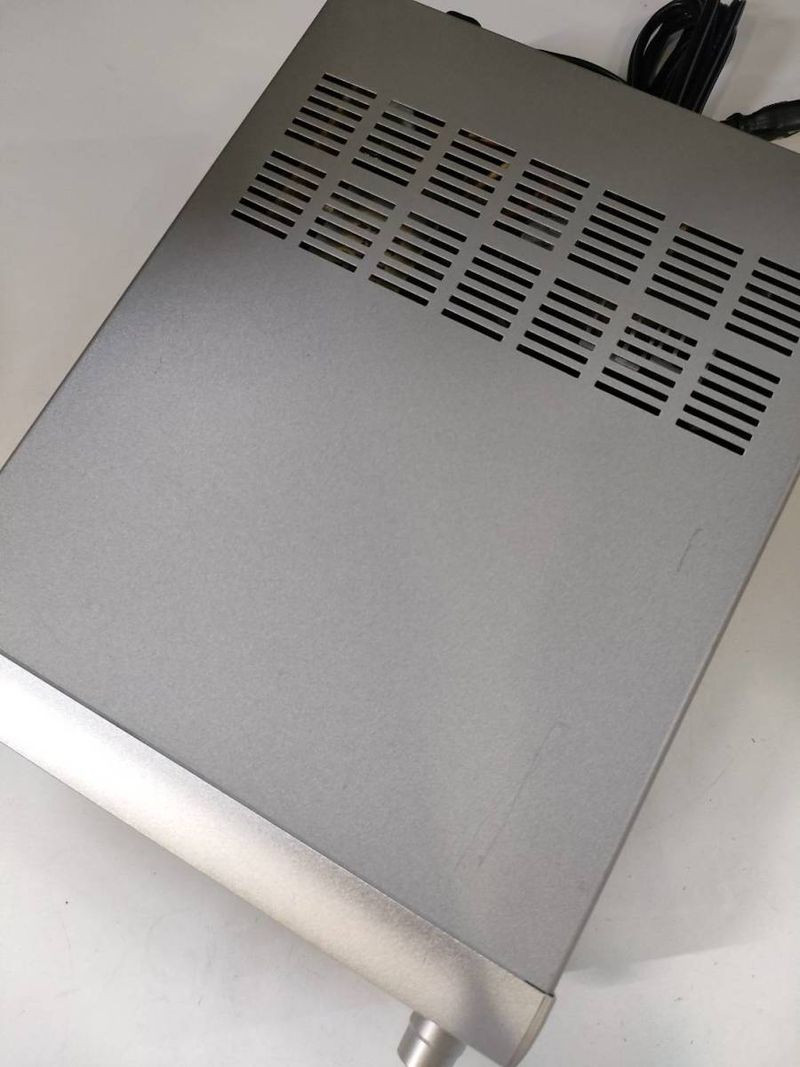

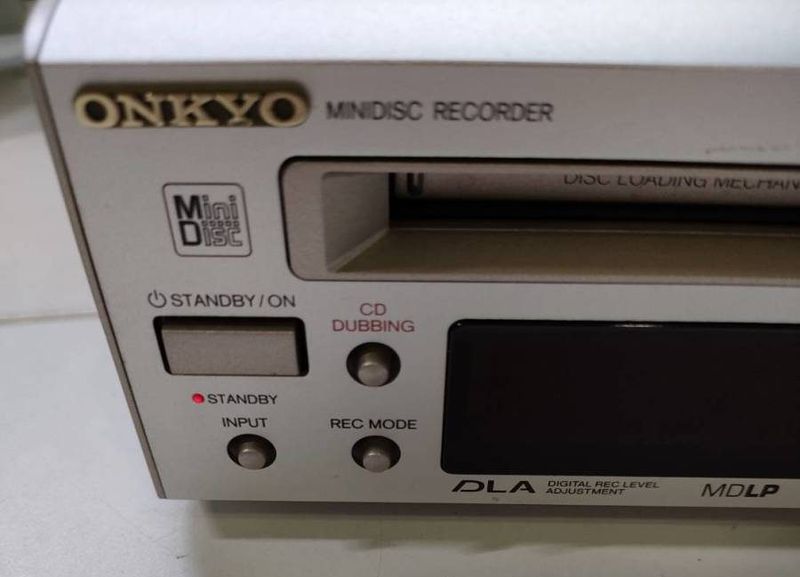

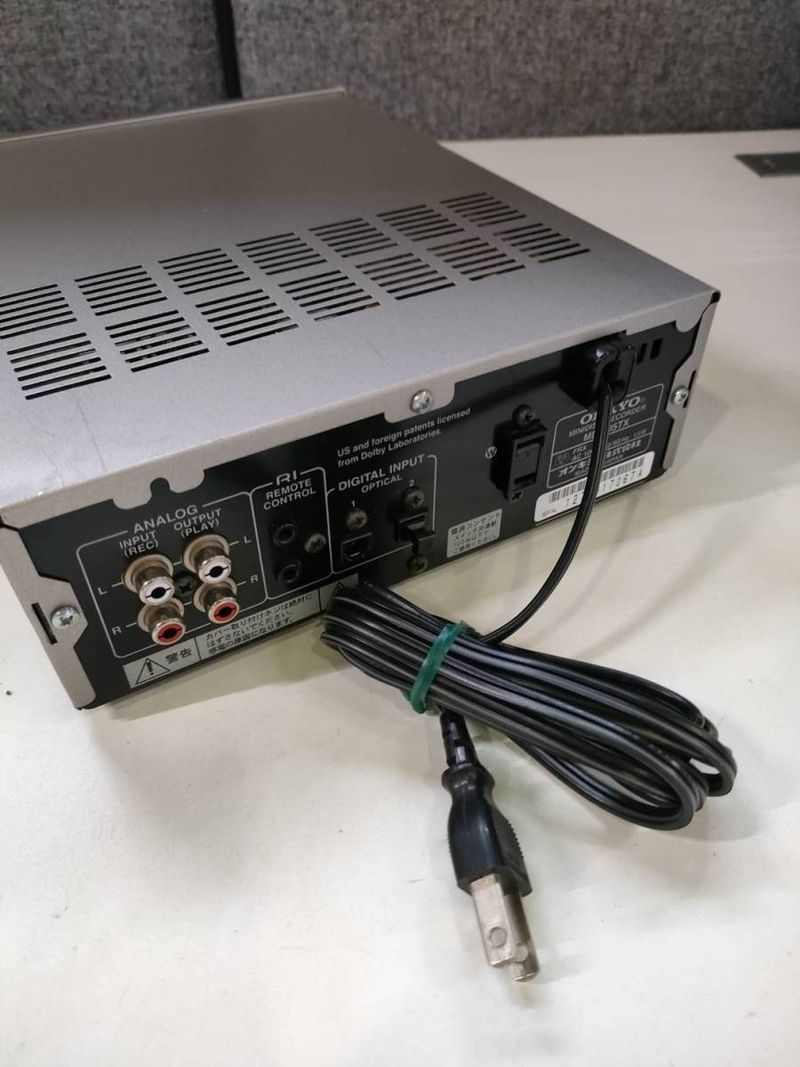

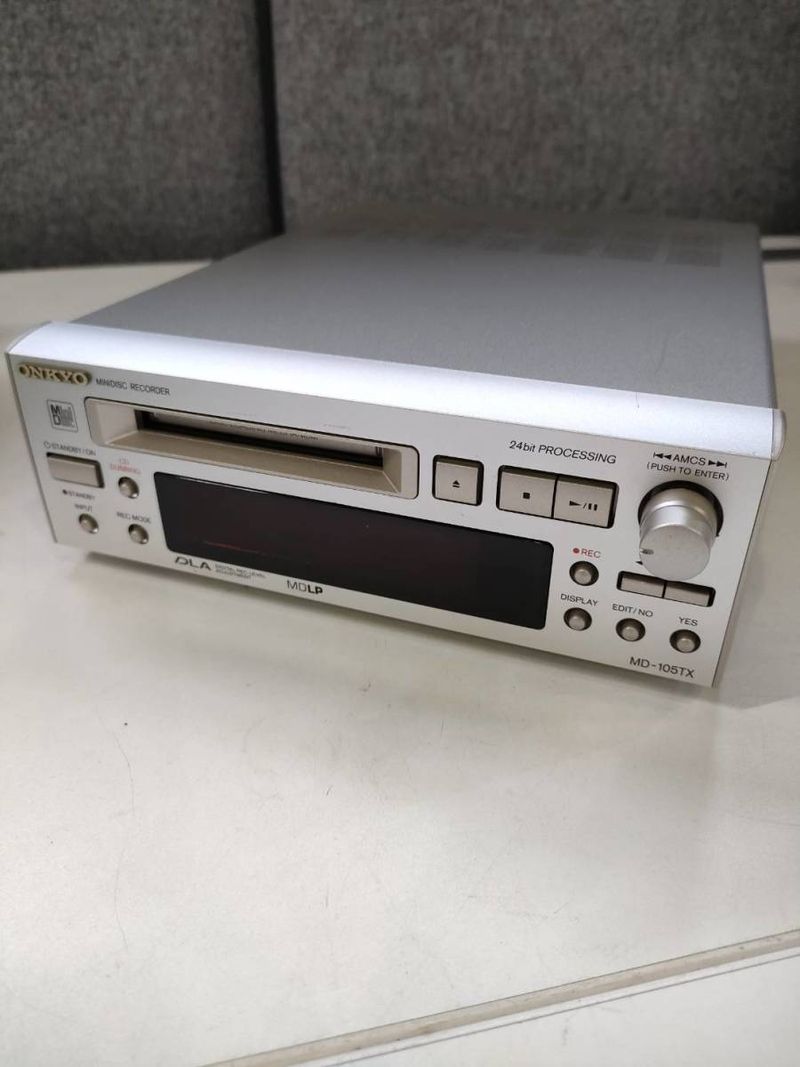

Photos
