Onkyo X-N7XX
| Name | X-N7XX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2012/06 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 215 x 349 x 142 mm |
| Weight | 5100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥47 000 | |
| - | |

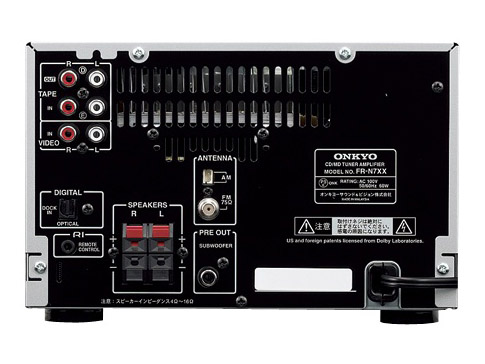

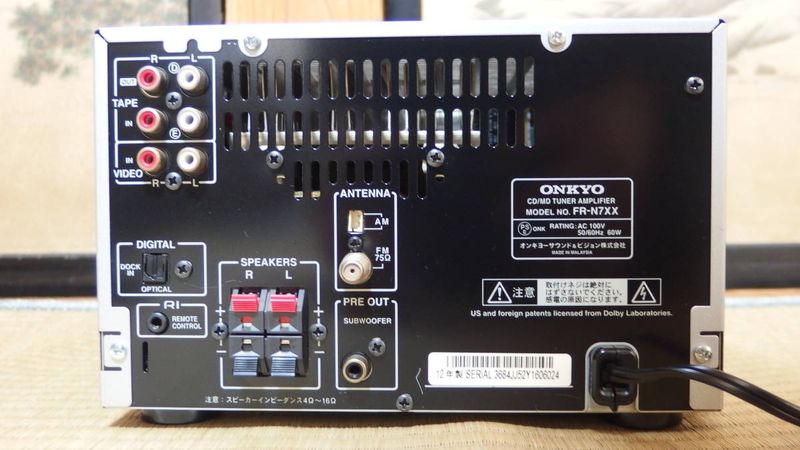

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | 3.5mm headphone, RCA out |
| Control |
Onkyo X-N7XX / FR-N7XX
- Playback of music CDs and MP3 / WMA discs is possible

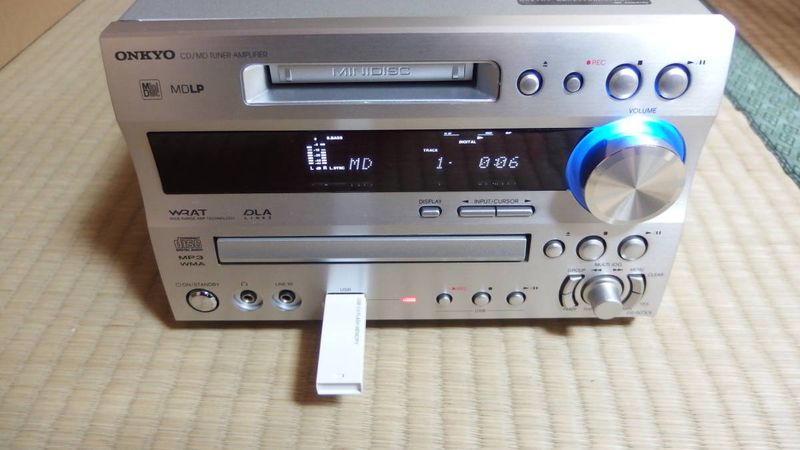

- MP3 / WMA files on USB memory can be played
- Various recording modes with MDLP support SP, LP2, LP4, Mono
- CD → MD, CD → USB, MD → USB, USB → MD dubbing function (CD → MD can record at 4x speed)
- Music CD → MD / USB simultaneous recording function
- MD group function to organize many songs
- DLA Link (Digital Rec Level Adjustment) function that automatically sets the recording level from CD to MD
- Equipped with a digital recording volume that can adjust the level during digital recording to MD
- Equipped with FM / AM tuner capable of 30 stations memory (FM can be auto-preset)
- WRAT (Wide Range Amplifier Technology), an ultra-wide range amplifier technology that brings out the power of media
- S.BASS function that can adjust deep bass, TONE function that can adjust bass and treble
- Full external input / output terminals [VIDEO input, TAPE input / output, LINE input (front mini jack)]
- Equipped with optical digital terminal [input x 1]

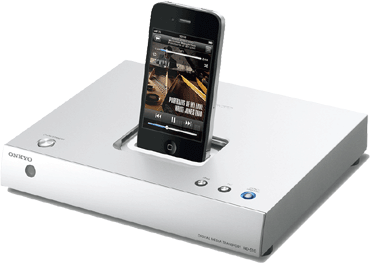

-If you connect an optional dock, you can operate the iPod with the remote control that comes with this unit.

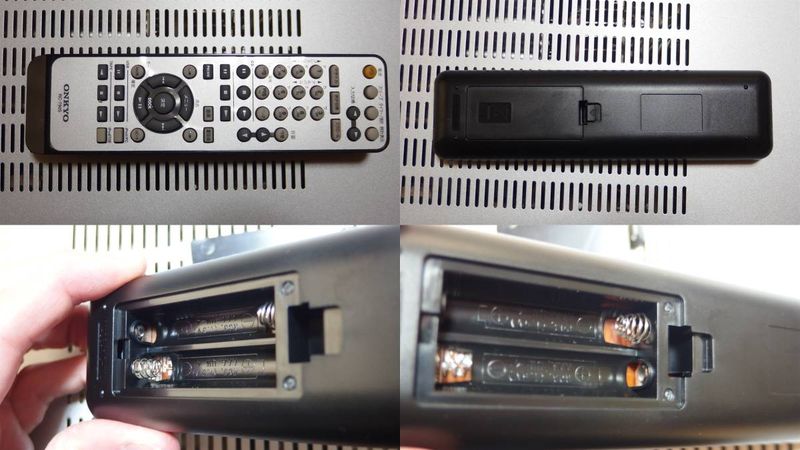

Remote: RC-790S
Content adapted from: Onkyo X-N7XX Press Release Onkyo Announcement Page [*] Onkyo Announcement Page (MiniDisc Wiki mirror) [*] av.watch [*] Phileweb.com [*] Onkyo landing page [*]
Manuals
Onkyo X-N7XX FR-N7XX User Manual JP
Repair

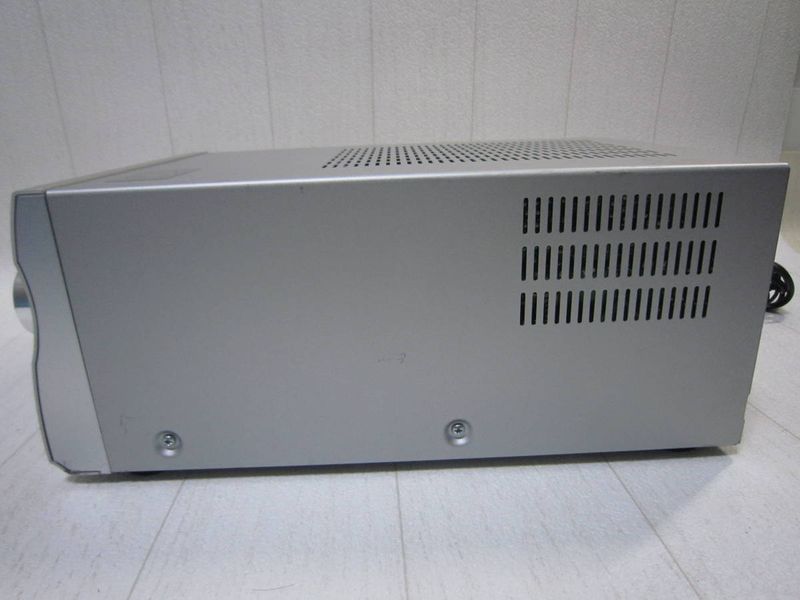

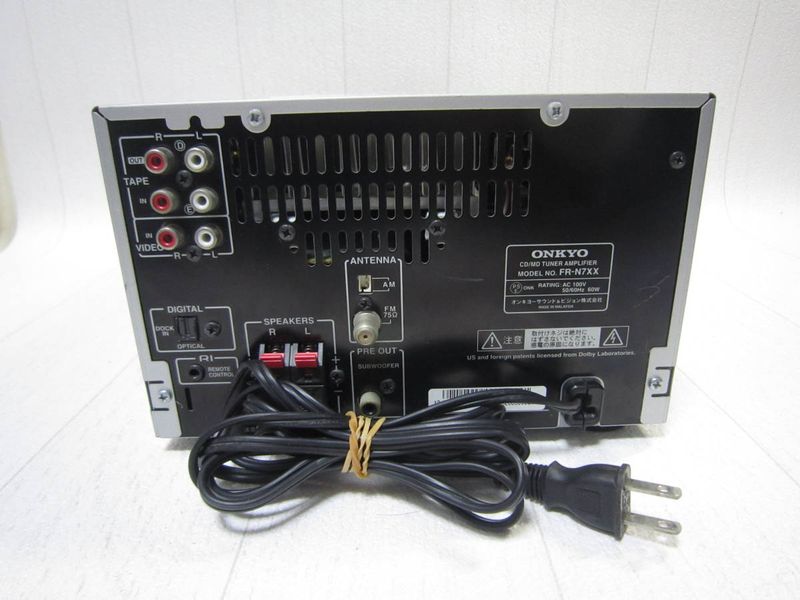

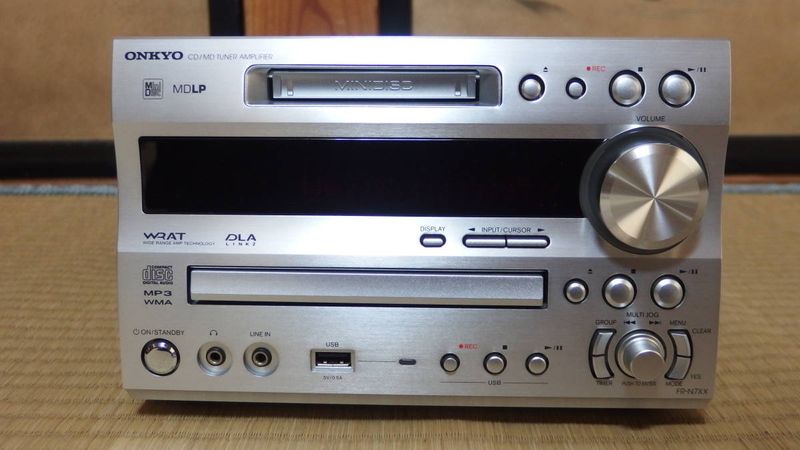

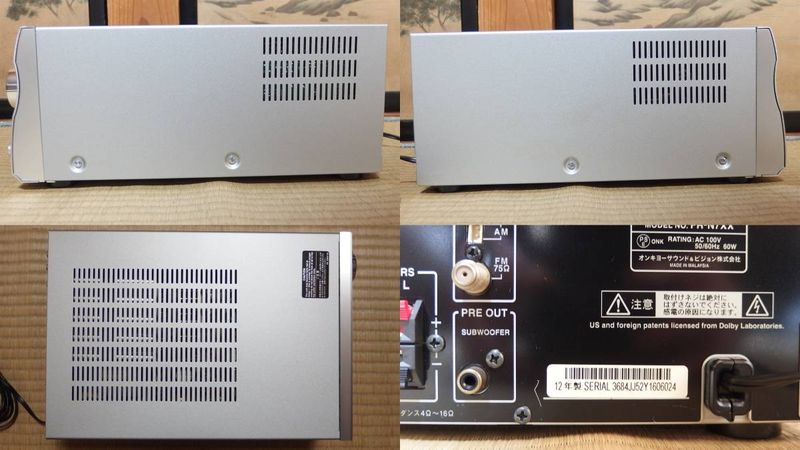

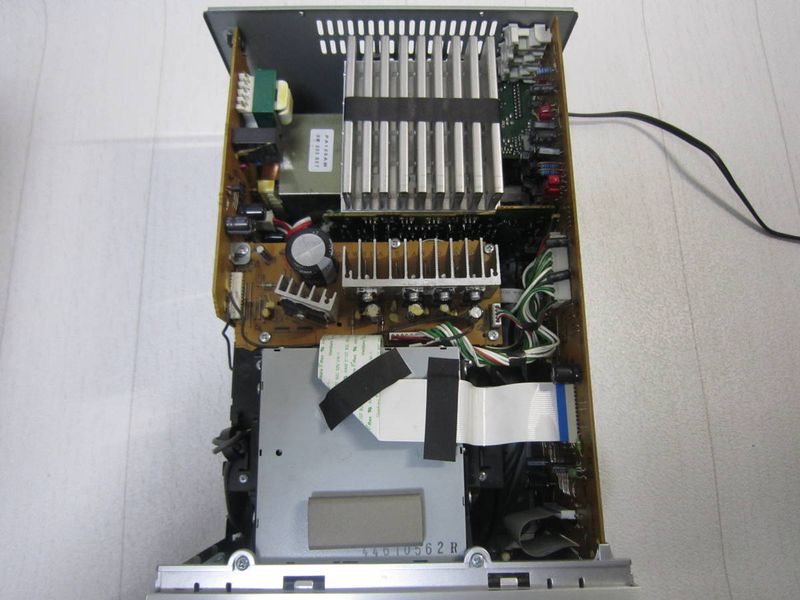

Photos

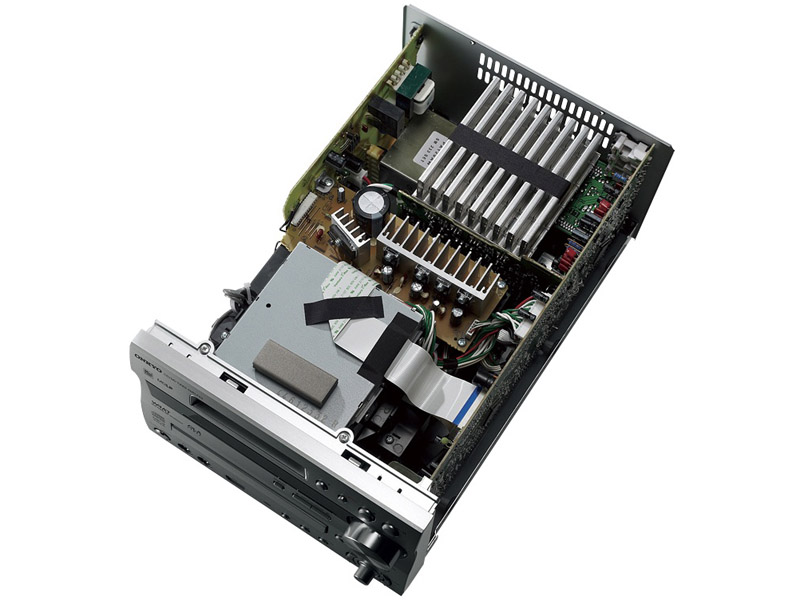

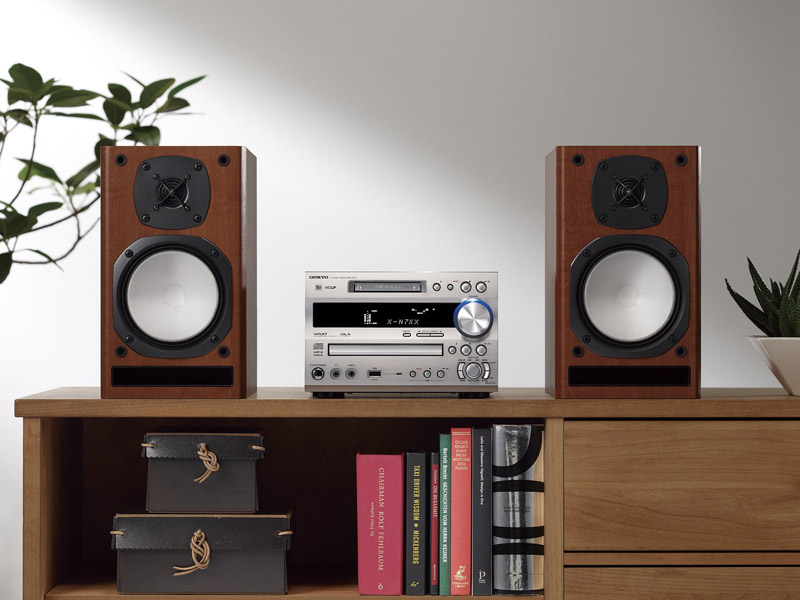

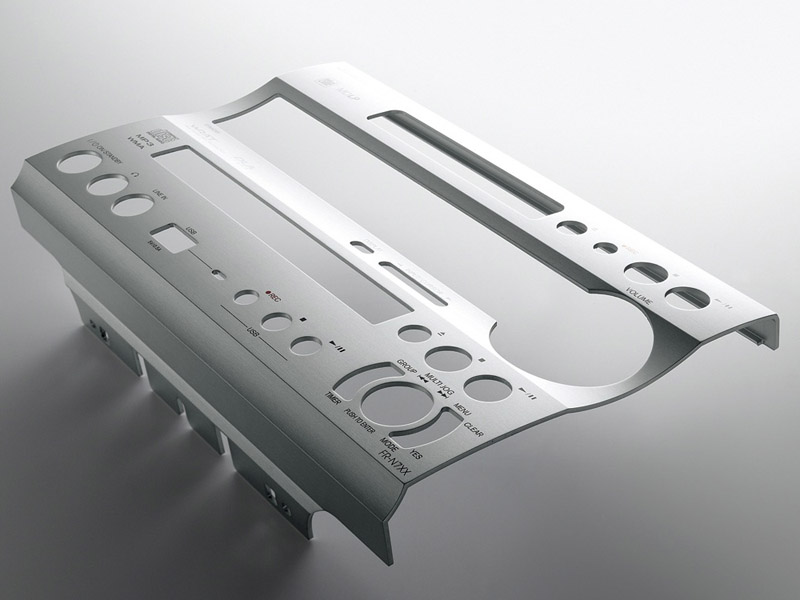

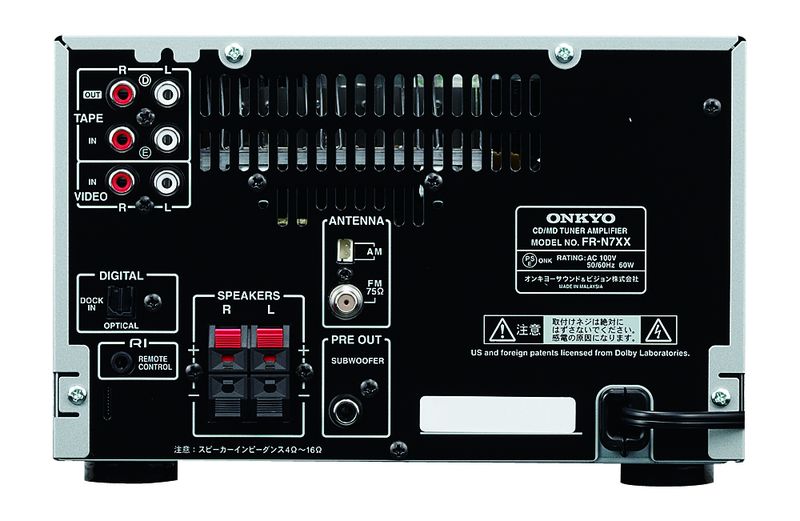

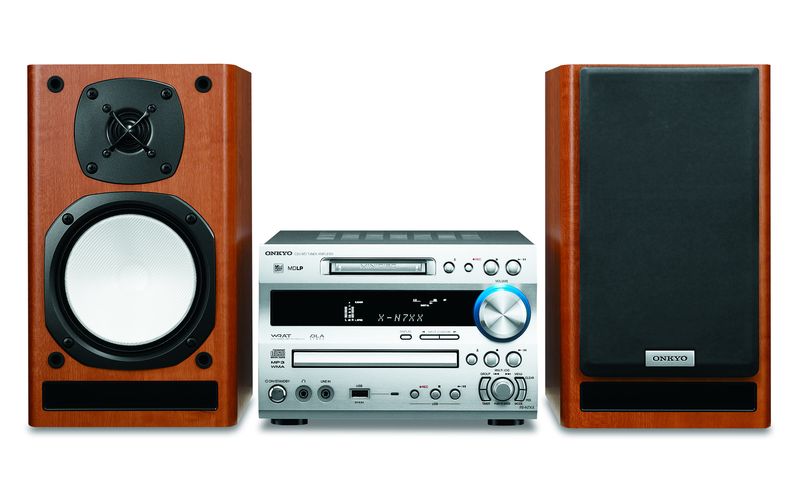

HQ Press Photos:
