Onkyo FR-X9A
| Name | FR-X9A |
|---|---|
| Manufacturer | Onkyo |
| Released | 2003/03 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 205(W)×154(H)×354(D) mm |
| Weight | 5.7kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥55 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control |
FR-SX9A = system with speakers: MSRP 75,000 Yen
FR-X9A = just the main CD/MD/AMP: MSRP 55,000 Yen
- Practical maximum output: 26 W + 26 W (4 Ω EIAJ)
- Rated output: 19 W + 19 W (4 Ω), 16 W + 16 W (6 Ω))
- Input sensitivity/input impedance: 150mV/50kΩ (LINE, TAPE, CDR)
- Power consumption: 55 W
FM: 76.0～108.0MHz
Content adapted from: Onkyo Press Release [*] Onkyo Press Release (MiniDisc Wiki mirror) [*] av.watch [*]
Manuals
Onkyo FR-SX9A / FR-X9A User Manual JP
Repair

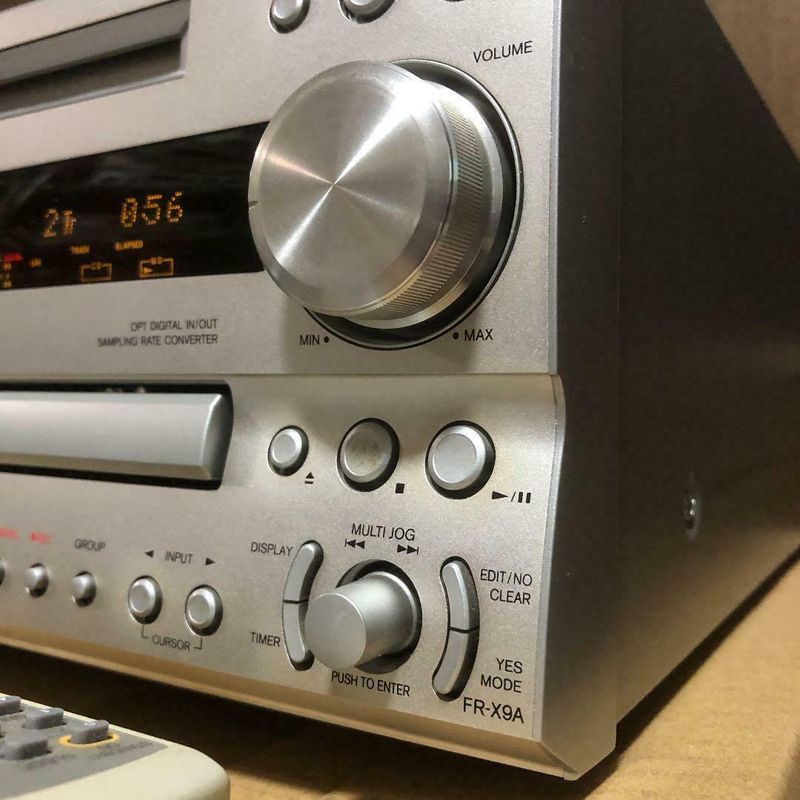

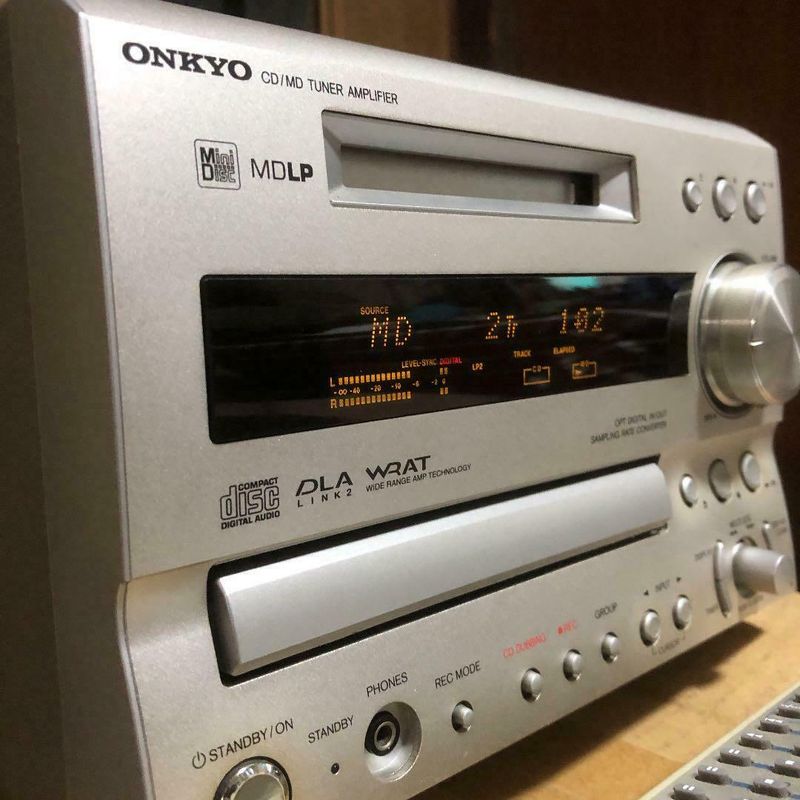

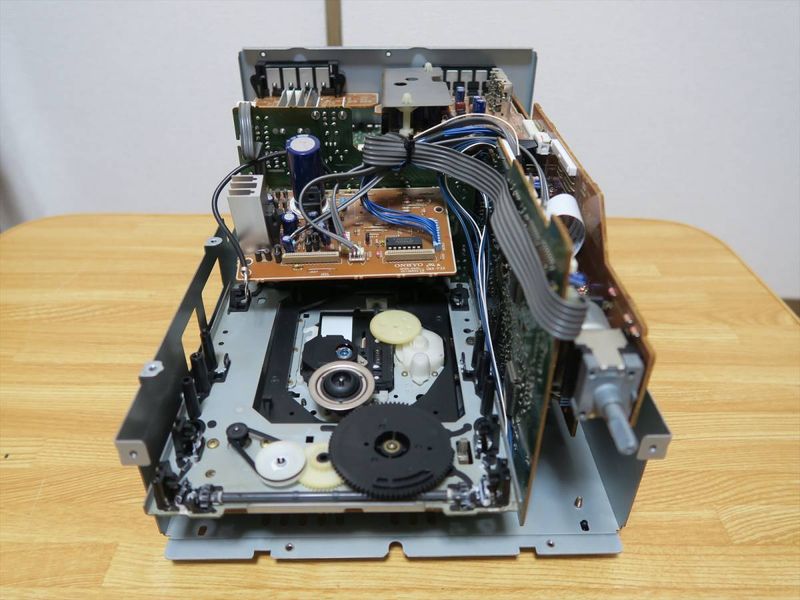

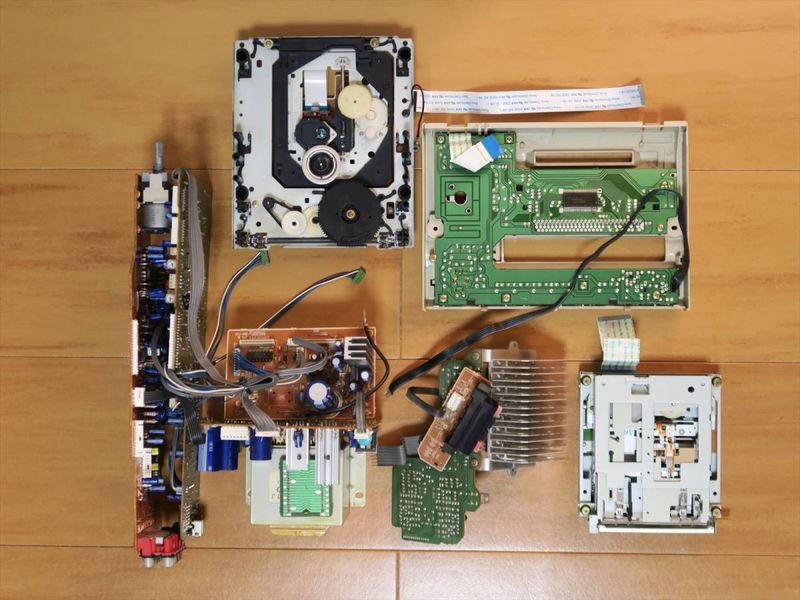

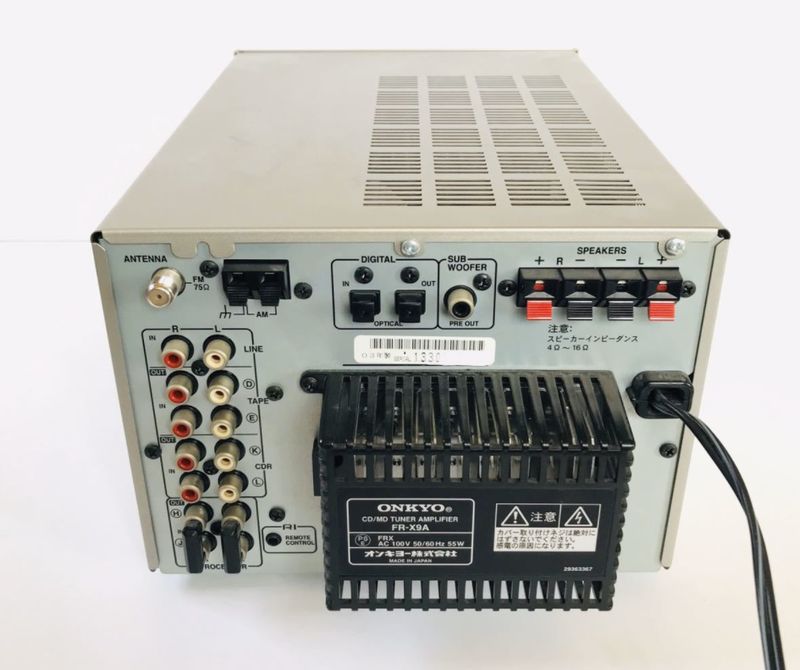

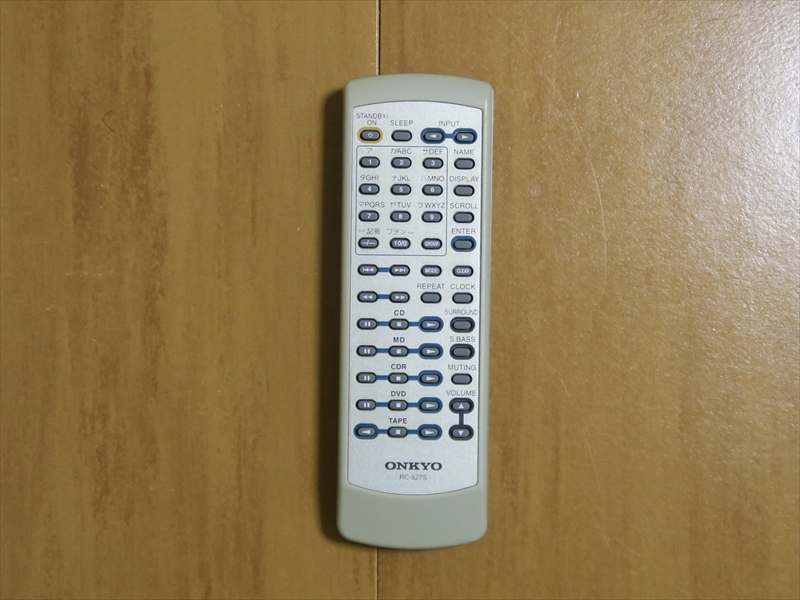

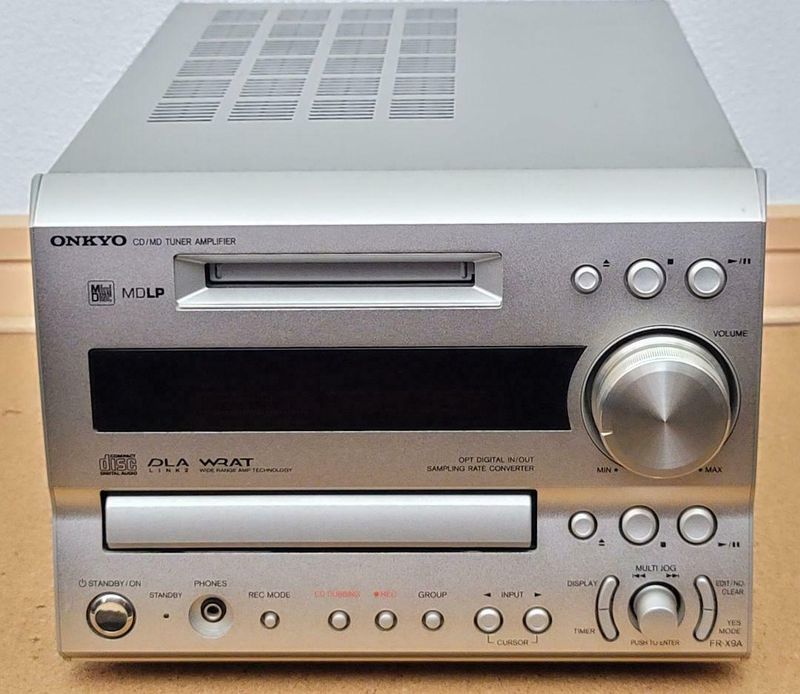

Photos
