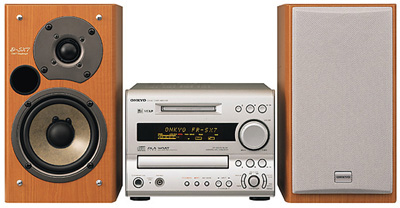

Onkyo FR-SX7
| Name | FR-SX7 |
|---|---|
| Manufacturer | Onkyo |
| Released | 2001/10 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W 205 × H 154 × D 354mm |
| Weight | 5300 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥65 000 | |
| - | |

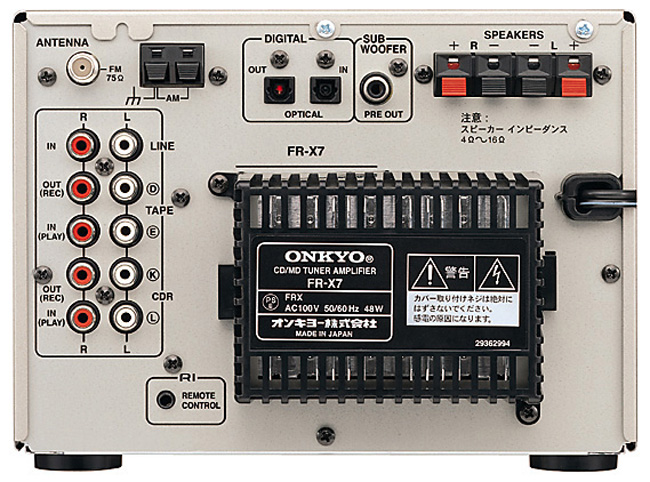

| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control |
Offered in FR-SX7(Y) and FR-SX7(W). FR-X7 is on the main body.
2X CD → MD dubbing
<Amplifier part>
- Practical maximum output 20W+20W (4Ω, JEITA)
- Rated output 14W+14W (4Ω) 12W+12W (6Ω)
- Input sensitivity/input impedance 150mV/50kΩ (LINE, TAPE, CDR)
- Frequency characteristic 10Hz to 100kHz/±3dB (CD)
<Tuner part>
- Receiving frequency FM 76.00-108.00MHz ( * ) AM 522-1629kHz
- Frequency characteristic 30Hz to 15kHz (±1.5dB)
power consumption: 48W
Optional K-SX7 Cassette Deck msrp: 20,000 yen
Content adapted from: Onkyo FR-SX7(W) Press Release [*] Onkyo FR-SX7(W) Press Release (MiniDisc Wiki mirror) [*] FR-SX7(Y) Press Release [*] FR-SX7(Y) Press Release (MiniDisc Wiki mirror) [*] Minidisc.org [*] av.watch [*] Phileweb news [*] Phileweb product database [*]
Manuals
Onkyo FR-SX7 User Manual JP
Repair
Photos
