Onkyo FR-S7GXDV/FR-7GXDV
| Name | FR-S7GXDV |
|---|---|
| Manufacturer | Onkyo |
| Released | 2004/05 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | W 205 x H 154 x D 351mm |
| Weight | 5700 |
| ATRAC ver | Type-S |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥84 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control |

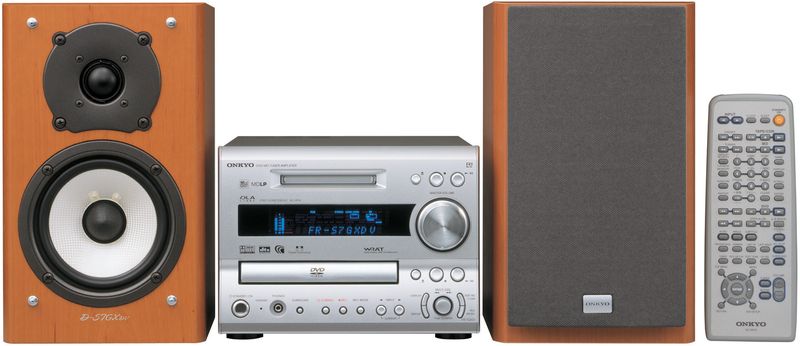

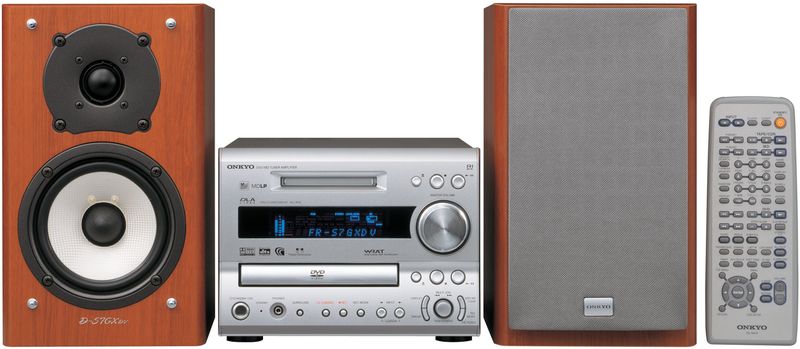

- FR-S7GXDV includes the speakers (D-S7GXDV) whereas FR-7GXDV does not
- Practical maximum output: 25 W + 25 W (4 Ω, JEITA)
- Rated output: 17 W + 17 W (4 Ω)
- Input sensitivity/input impedance: 150 mV/50 kΩ (LINE/TV, TAPE/CDR) ) Audio Input Sensitivity/Impedance: 150mV/50kΩ (LINE/TV, TAPE/CDR) Frequency Response: 10Hz - 100kHz/±3dB (LINE/TV) <Tuner> Receiving Frequency: FM76.00 - 108.00MHz, AM522～1629kHz
- Frequency characteristics: 30Hz～15kHz (±1.5dB)
<MD part>
- Recording/playback time: Maximum approx. 320 minutes (80 minutes) When using a disc/LP4 mode)
- Frequency characteristics: 10Hz to 20kHz (±3.0dB, during playback)
- (Overall) Power consumption: 65W
<DVD part>
- Signal system: Japan and US standard NTSC color vision system
- Horizontal resolution: about 500 lines
- Video output/impedance: 1Vp-p/75Ω (composite Signal) 1Vp-p/75Ω (Y signal) 0.286Vp-p/75Ω (C signal) 0.7Vp-p/75Ω (Pb signal, Pr signal) Audio frequency characteristics (digital audio): DVD linear audio = 4Hz to 22kHz (48kHz/JEITA), 4Hz to 44kHz (96kHz/JEITA) Wow flutter: below the measurement limit (±0.001% (W.PEAK) JEITA)
ATRAC Chip: CXD2664R
Optical Pick-up: KMS-260E
MD Mechanism Type: KMK-260EE0
Content adapted from: Onkyo Press Release [*] Onkyo Press Release (MiniDisc Wiki mirror) [*] av.watch [*]
