Onkyo FR-N9NX
| Name | FR-N9NX |
|---|---|
| Manufacturer | Onkyo |
| Released | 2011/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 215 x 142 x 359 mm |
| Weight | 5.2kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥45 000 | |
| - | |
| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Radio recording |
| Outputs | RCA out, Speaker amplifier |
| Control | USB Type-A |

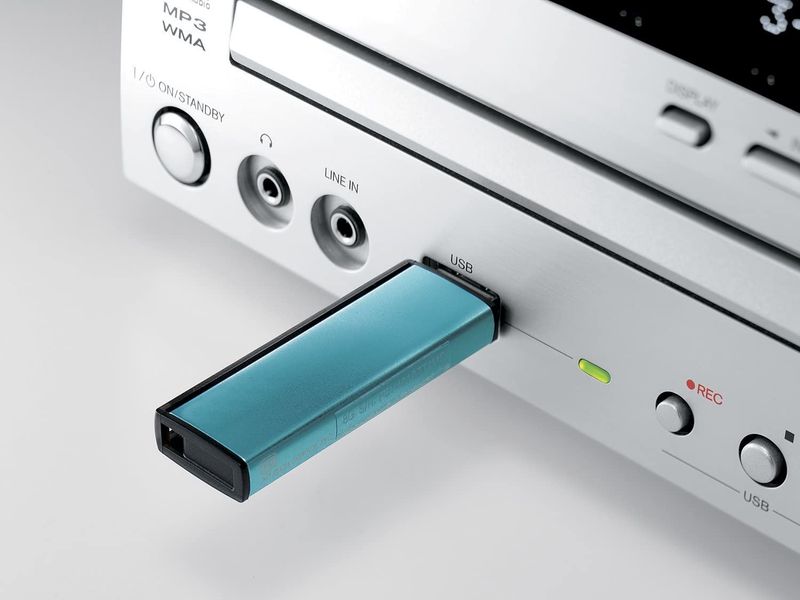

Supports “USB Direct Play”

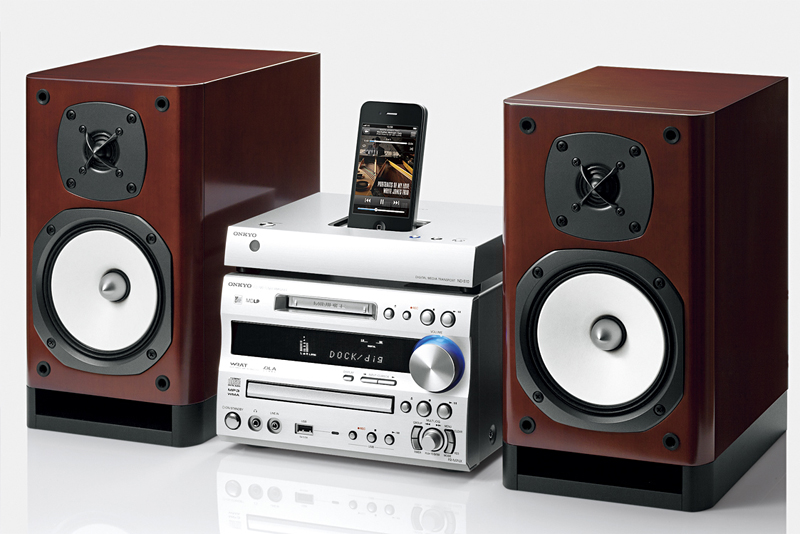

If you stock music files (MP3, WMA) recorded on your PC in a USB memory and insert them into the main unit, you can play and select songs with one-touch operation using the main unit or remote control. You can also record from a CD, MD, FM / AM radio, or an external device to a USB memory, so you can enjoy many recorded sound sources like a music server without changing media, or via a USB memory. You can also add it to your PC's library. You can use it in various ways according to each music style. Supports ipod and iphone with the ND-S10 dock that can mount on top of the unit.
- Rated output: 19W + 19W (4Ω, 1kHz, 0.4% or less THD)
- Practical maximum output: 26W + 26W (4Ω, JEITA)
- Total harmonic distortion of the amplifier: 0.4% (at rated output)
- Amplifier frequency characteristics: 10Hz-100kHz (TAPE, ± 3dB)
- Amplifier section SN ratio: 100dB (LINE, IHF-A)
- Maximum change in tone control ± 8dB / 80Hz (BASS)
- ± 10dB / 10kHz (TREBLE)
- + 3dB / 80Hz (S.BASS1)
- + 7dB / 80Hz (S.BASS2)
- CD frequency characteristics 10Hz-20kHz
- MD part voice frequency characteristics 10Hz-20kHz
- MD recording / playback time Up to about 5 hours and 20 minutes (80 minutes disc use, LP4 mode)
- Tuner section reception range: FM 76.0-90.0MHz, AM522-1629kHz
- Speaker adaptive impedance 4-16Ω
- power consumption: 60W (Technical Standards for Electrical Appliance and Material Safety Law)
- Power consumption when there is no sound: 20W
- Standby power 0.2W

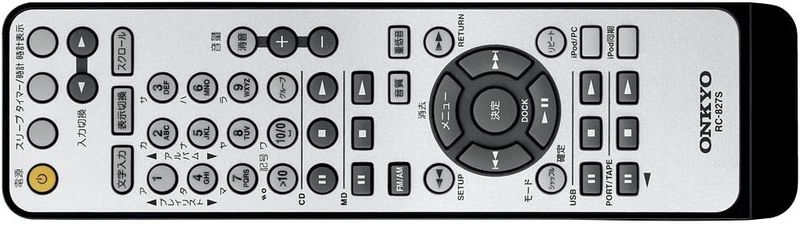

accessories: System remote control (RC-827S), FM indoor antenna, AM indoor antenna, etc.

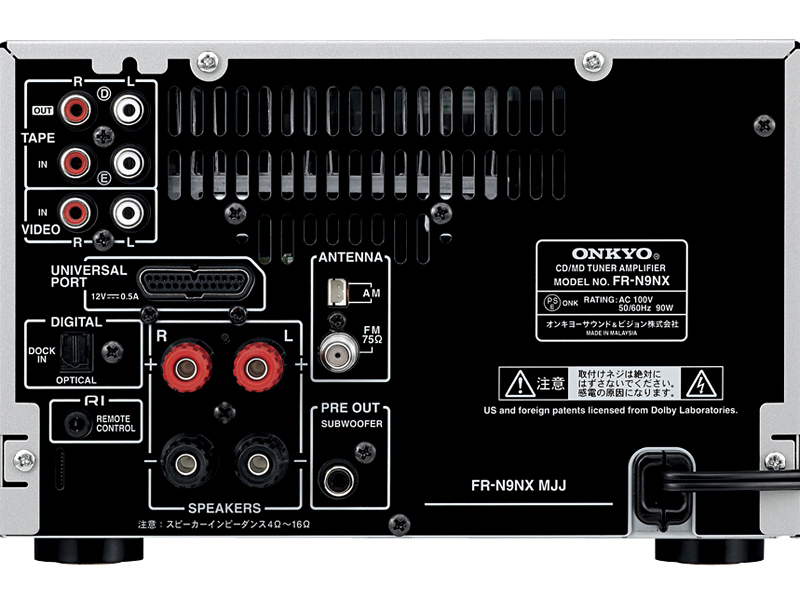

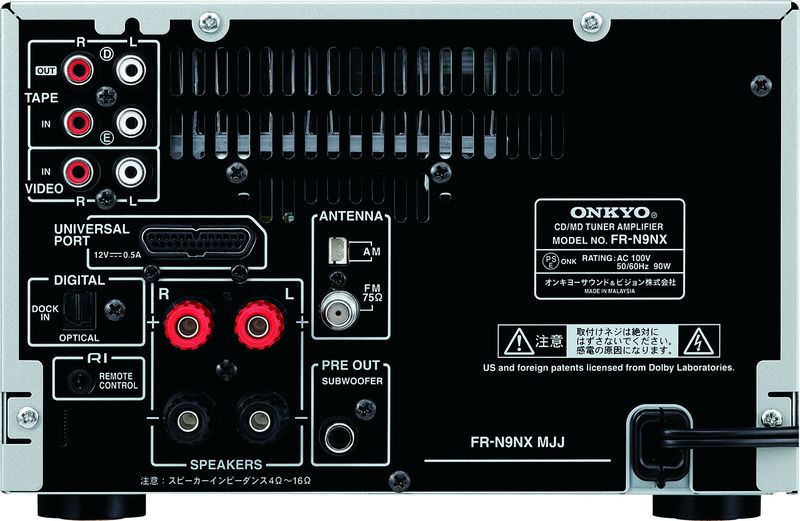

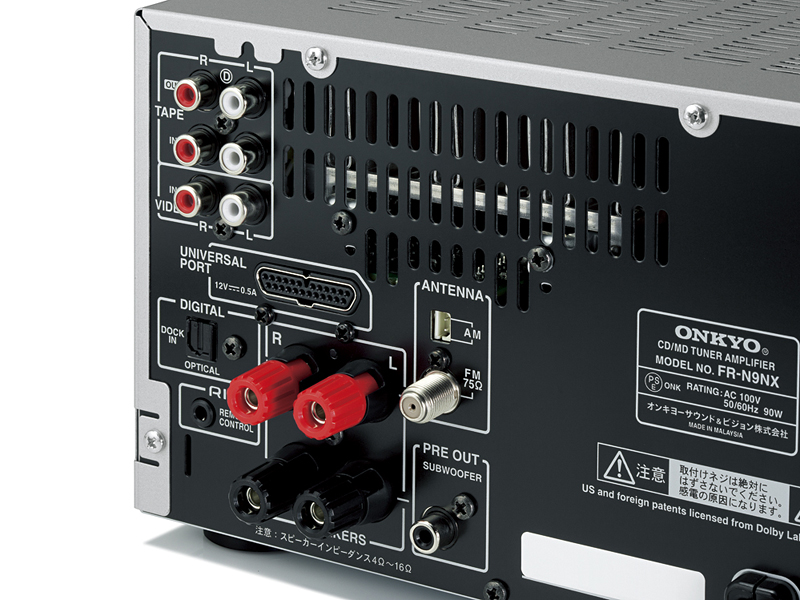

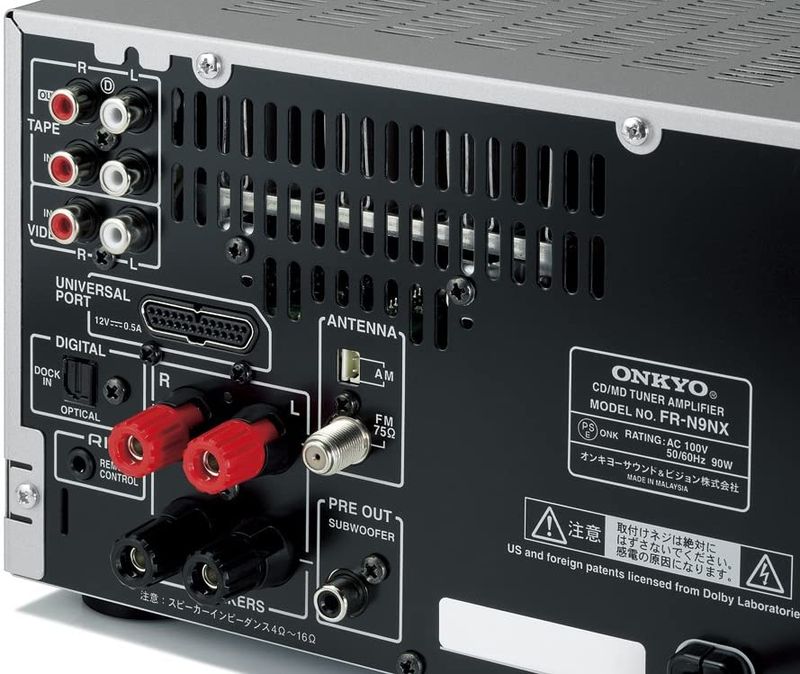

■ INTERFACE
- Audio input terminal Digital x 1 (optical, PCM signal only), analog x 2
- Audio output terminal Analog x 1, Subwoofer pre-out x 1
- USB terminal (front part) * 1 (Playback: MP3 / WMA, Recording: MP3)
- Stereo mini terminal (front part) Input x 1
The price is “open” but a rough street price of 45,000 yen.
Content adapted from: Onkyo website [*] av.watch [*] Press Release PDF
