Onkyo FR-N7X/X-N7X
| Name | FR-N7X |
|---|---|
| Manufacturer | Onkyo |
| Released | 2006/04 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | Yes |
| Radio | No |
| Dimensions | 167w x 290h x 246d mm |
| Weight | 3.9kg |
| ATRAC ver | Hi-MD |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥84 000 | |
| - | |

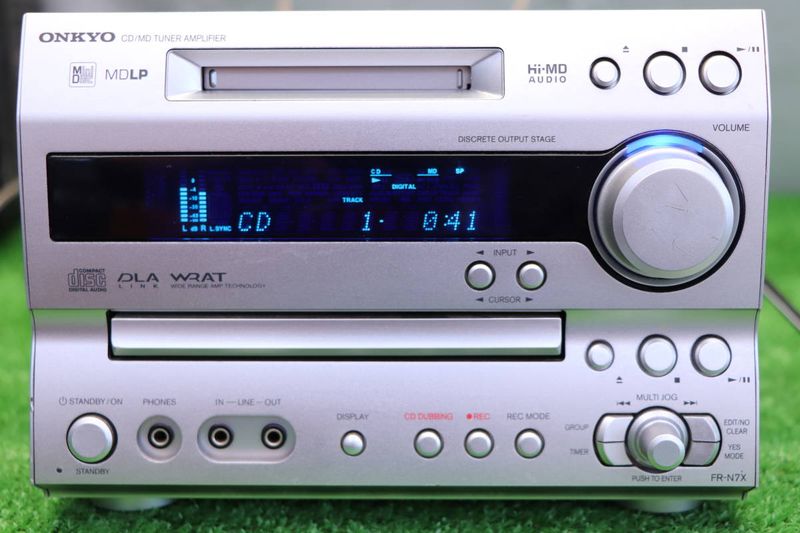

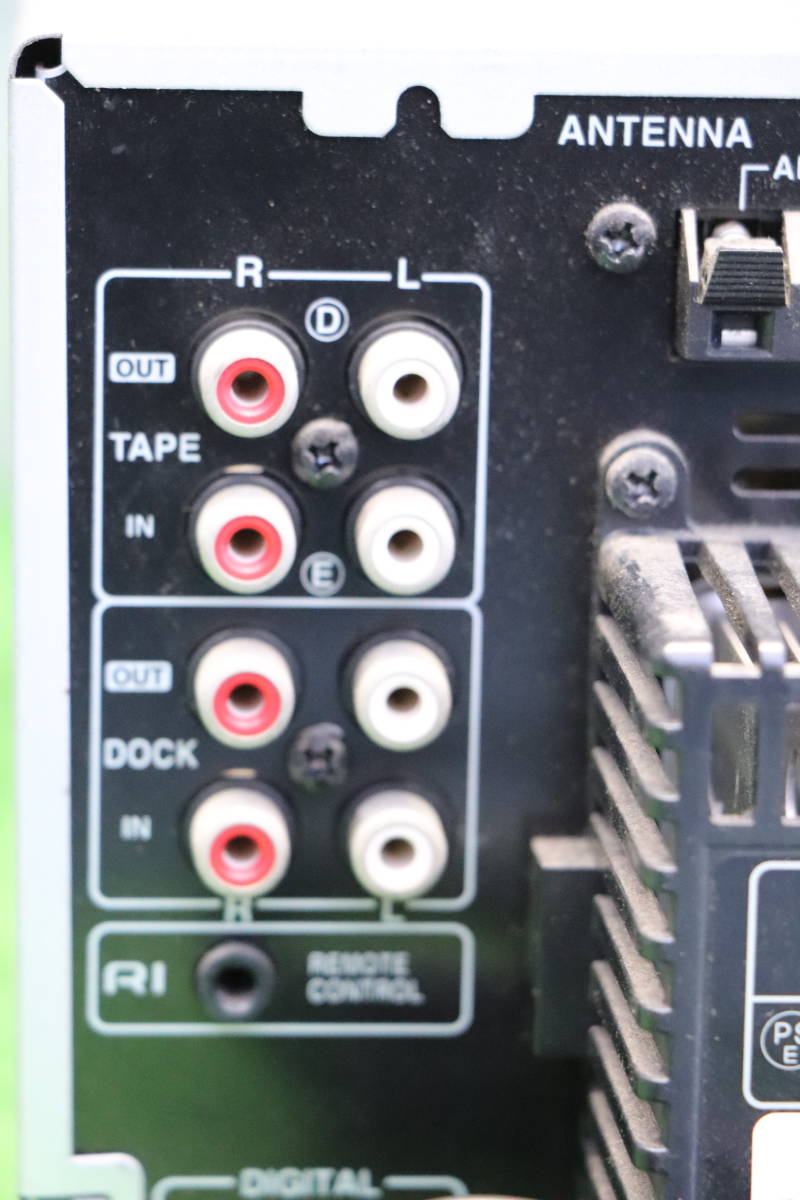

| Inputs | 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD |

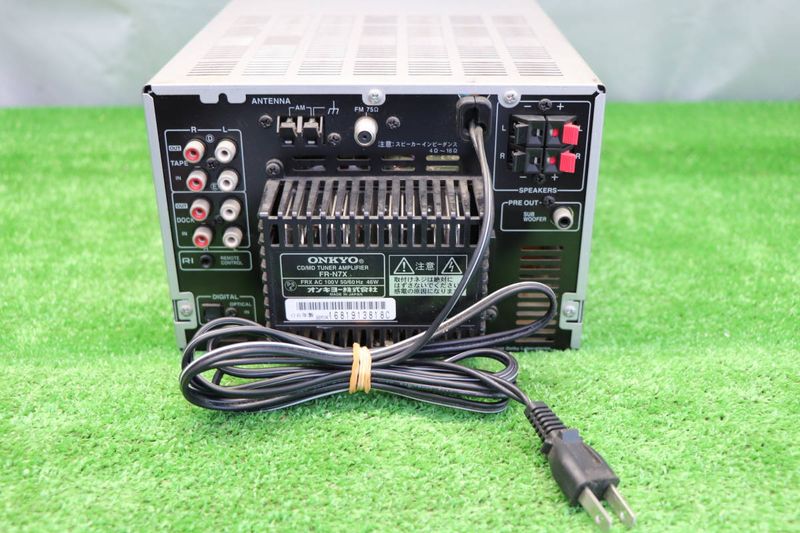

| Outputs | 3.5mm line out (analog-only), 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control |

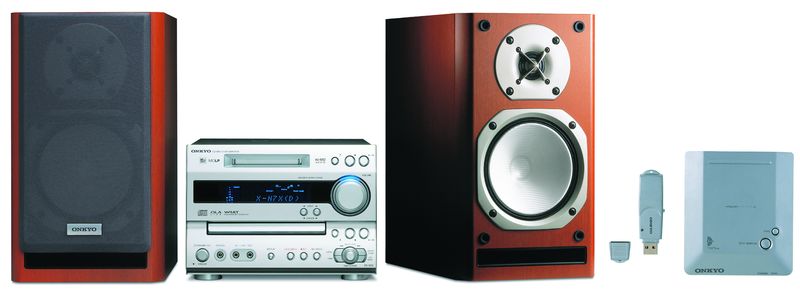

The FR-N7X is a refreshed variant of the FR-N7. Compared with the FR-N9X, it loses optical inputs and the metal volume knob. Compared with its predecessor the FR-N7 it loses an RCA input, but gains a 3.5mm line in and line out on the front panel. It was sold exclusively in Japan as the X-N7X, bundled with large, front bass ported faux wood-grain veneer speakers.
This was also sold as the X-N7UWX with speakers and bundled UWL-1 USB wireless audio dongle.
Rumored to be able to transfer audio from MD to USB, this hasn't been confirmed.
ATRAC IC: CXD2686
Content adapted from
Onkyo Press Release [*]
Onkyo Press Release (MiniDisc Wiki mirror) [*]
minidisc.org [*]
ks19561005.sakura.ne.jp [*]
av.watch [*]
phileweb.com [*]
the April 2006 Onkyo FR Series Flyer [*]
the April 2006 Onkyo FR Series Flyer (MiniDisc Wiki mirror) [*] (Internet Archive link), as well as from Yahoo! Auctions photographs.
Manuals
FR-N7X User Manual
