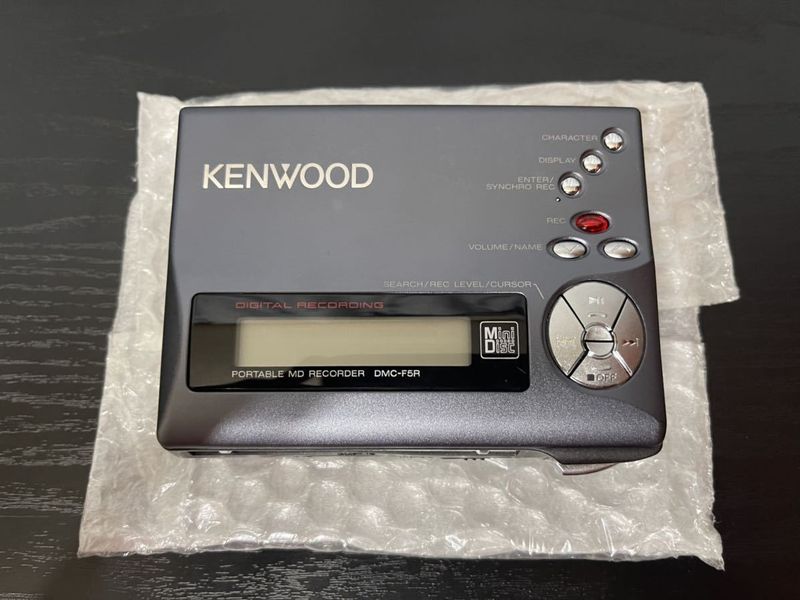

Kenwood DMC-F5R
| Name | DMC-F5R |
|---|---|
| Manufacturer | Kenwood |
| Released | 1995/12 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 109.2x30.5x81.3mm |
| Weight | 275g |
| ATRAC ver | Sharp 3 |
| Battery | 1x NB-L5 |
| Battery notes | |
| Sidecar (depr) | Other |
| Voltage | 3.6, 5 |
| Power cable | Center positive |
| Price (launch) | |
| ¥49 000 | |
| - | |

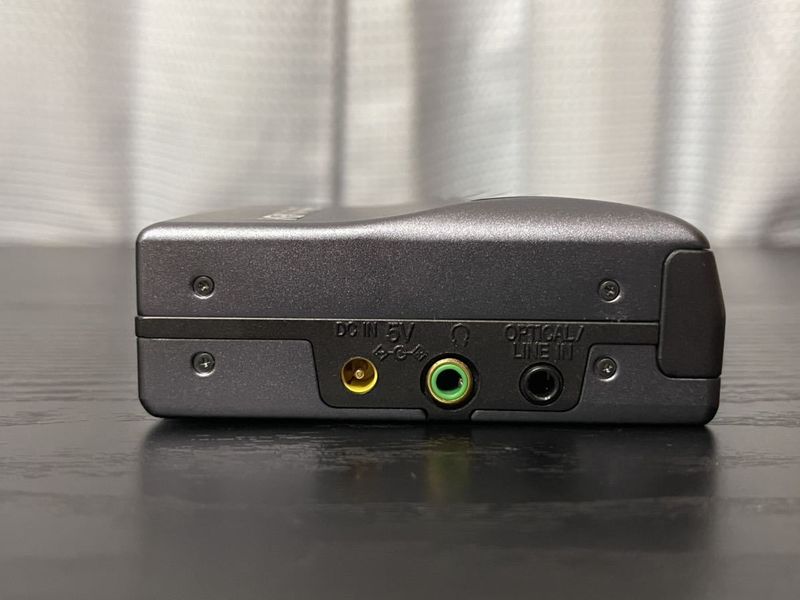

| Inputs | 3.5mm line in (optical multi), 3.5mm microphone |
| Outputs | 3.5mm headphone |
| Control | Remote (Sharp) |
See also Denon DMP-R50, Sharp MD-100EX, Sharp MD-MS100, Pioneer PMD-R1

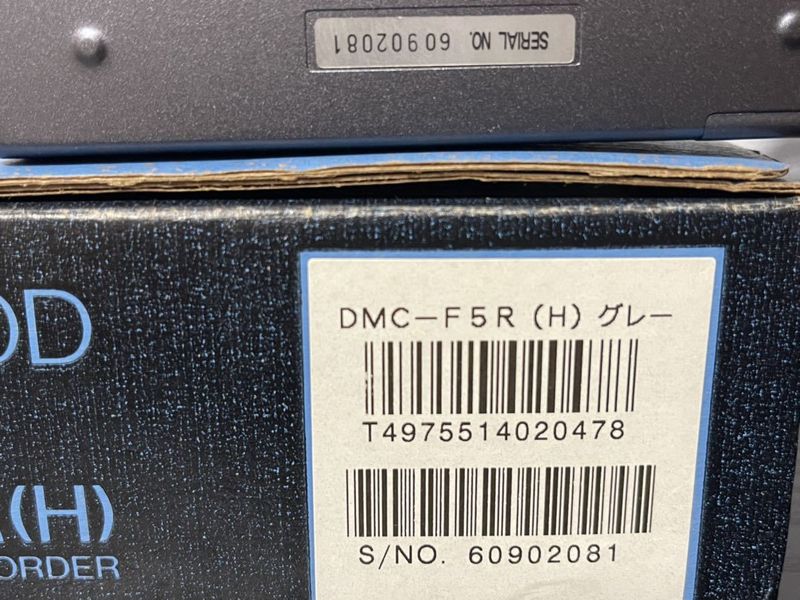

Offered in (H) gray and (L) blue
Features:
- Sharp ATRAC 3.

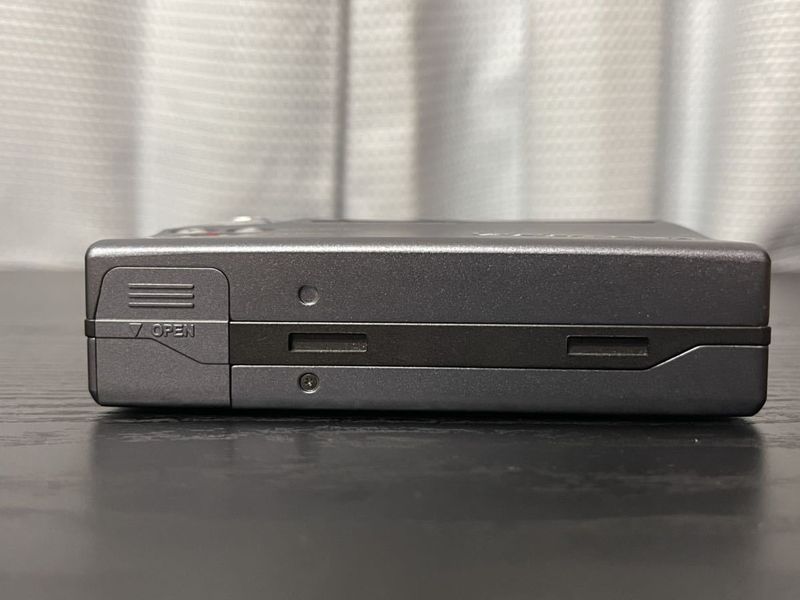

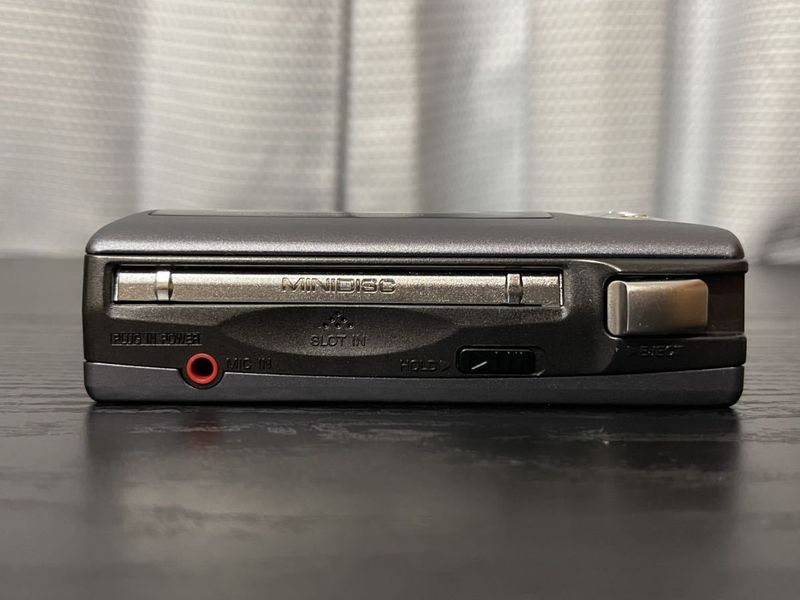

- “slot-in” (non-clamshell) disc insert/eject [easier to manage when you're on the go]
- stereo/mono recording
- track move/ divide/ combine/ erase
- random play
- sound-synchro recording [starts recording when audio appears on the input, automatically truncates between track silence exceeding 4 seconds], auto marker

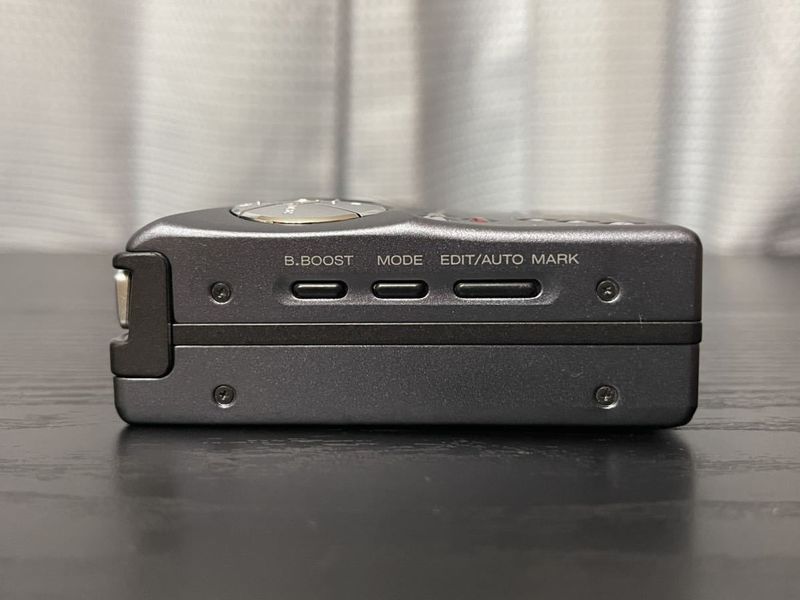

- remote on headphone cord (volume, track select/position, stop/ pause/ play, bass boost)
- katakana/roman alphabet input/display.
- Line out uses the headphone connector.

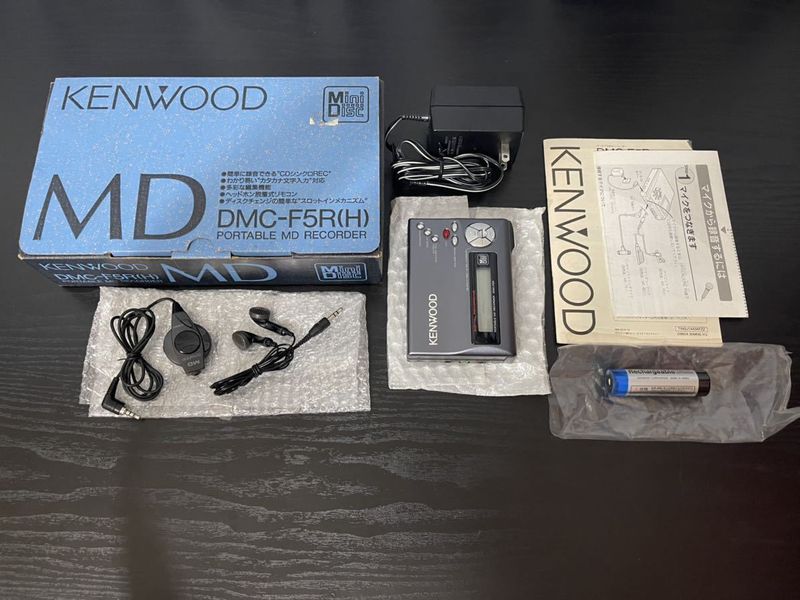

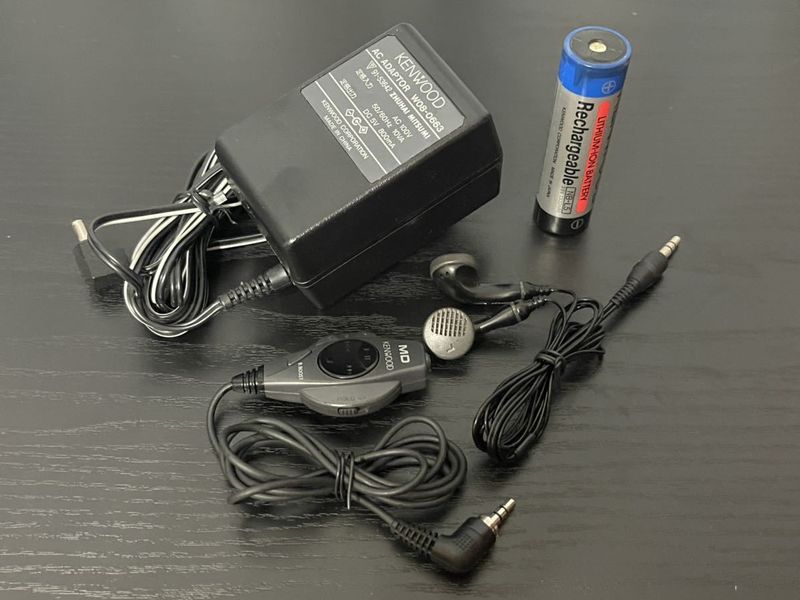

Comes with: headphones, remote control, lithium ion rechargeable battery, AC adapter, analog line cord, carrying case. Playback time 4.5 hours, recording 3.5. Recording time about 12 hours with separately available battery case (AD-MS10BC)
Content adapted from: Kenwood Product Page [*] Kenwood Product Page (MiniDisc Wiki mirror) [*] Minidisc.org page [*]

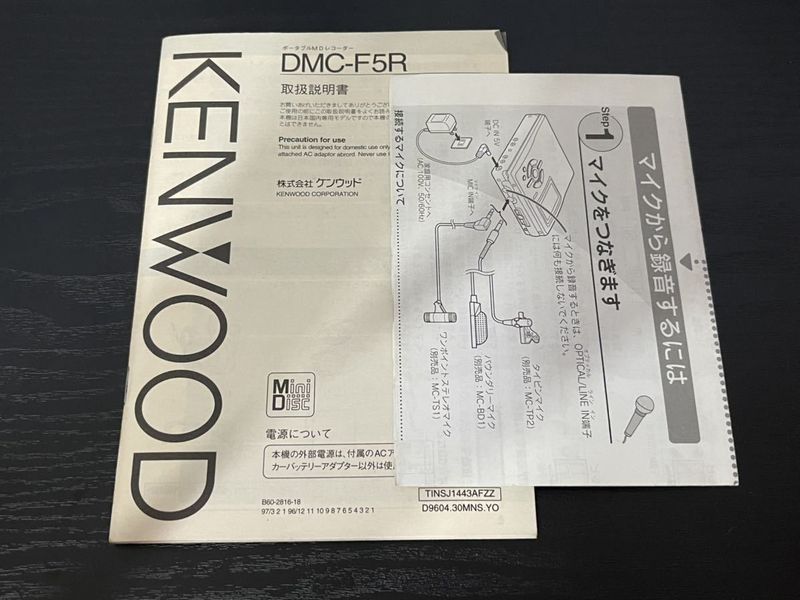

Manuals
