Kenwood MDX-L1
| Name | MDX-L1 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 360x150x220mm |
| Weight | 3.8kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |

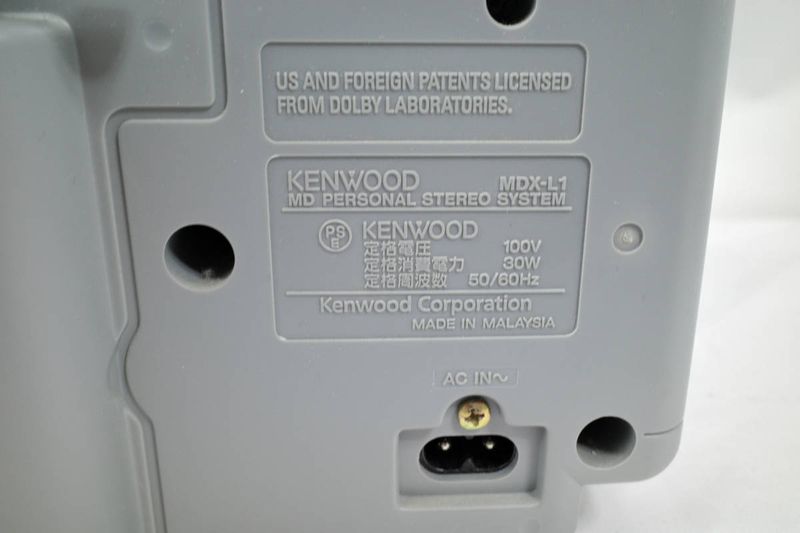

| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| ¥31 500 | |
| - | |

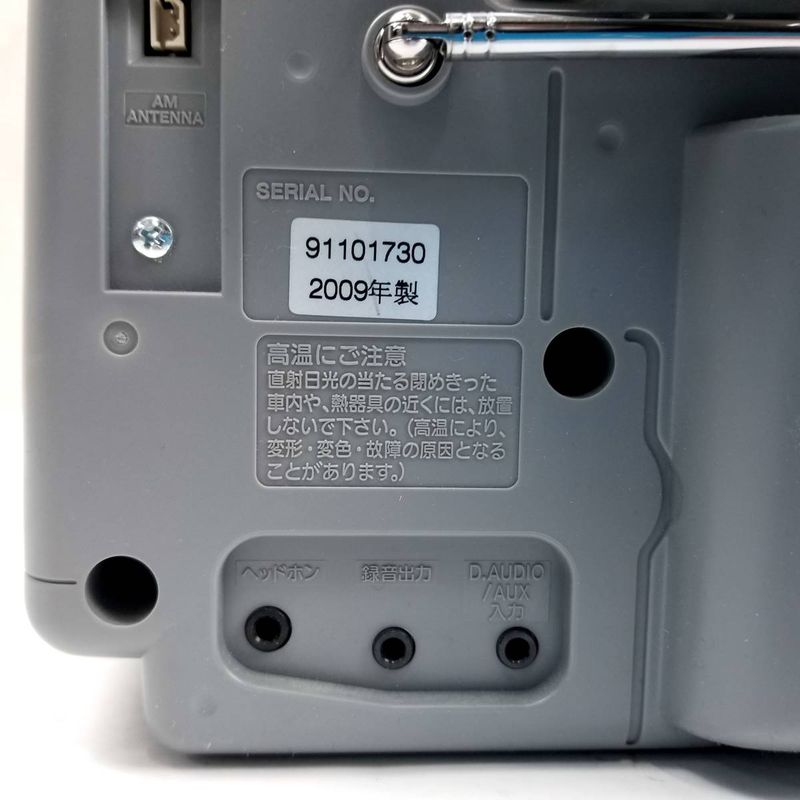

| Inputs | 3.5mm line in (analog-only) |
| Outputs | 3.5mm line out (analog-only) |
| Control |

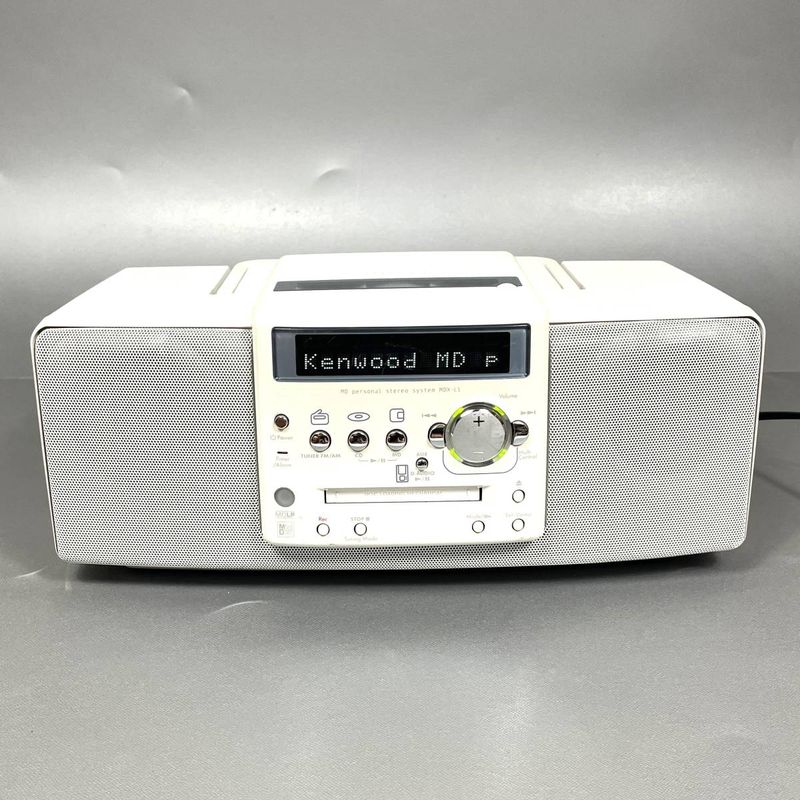

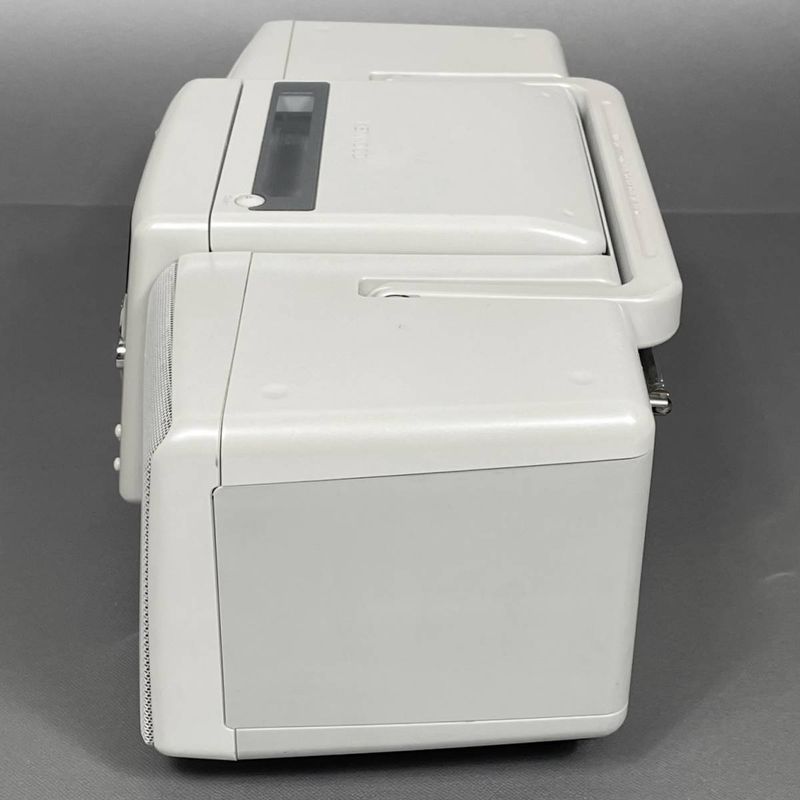

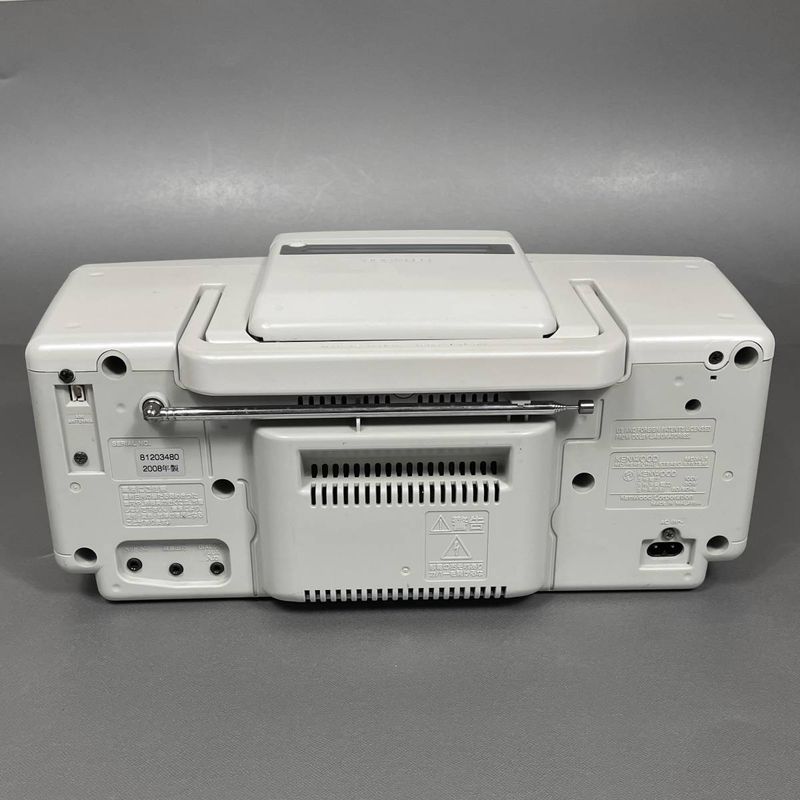

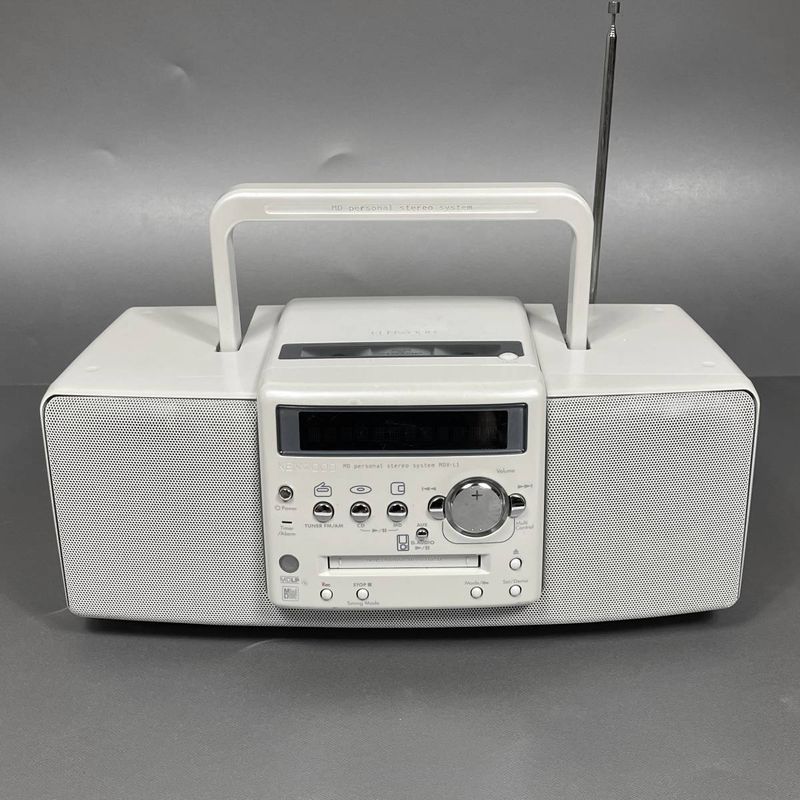

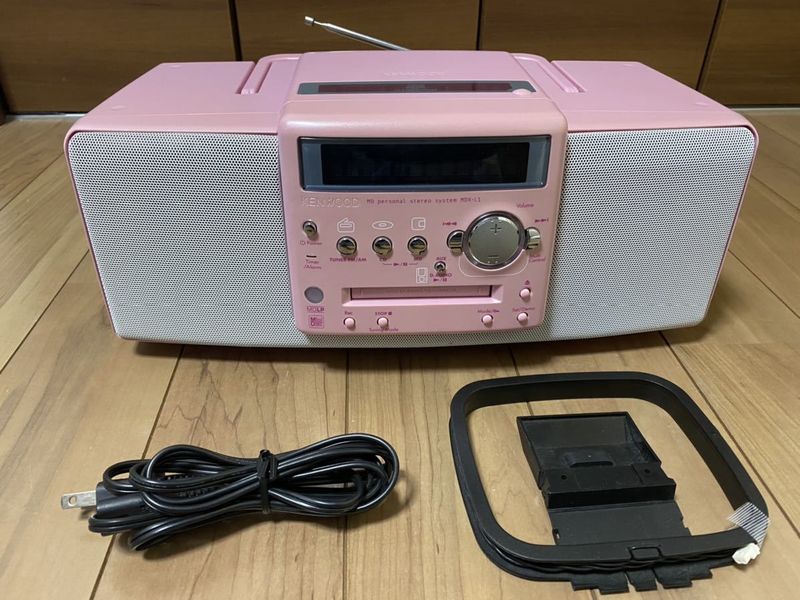

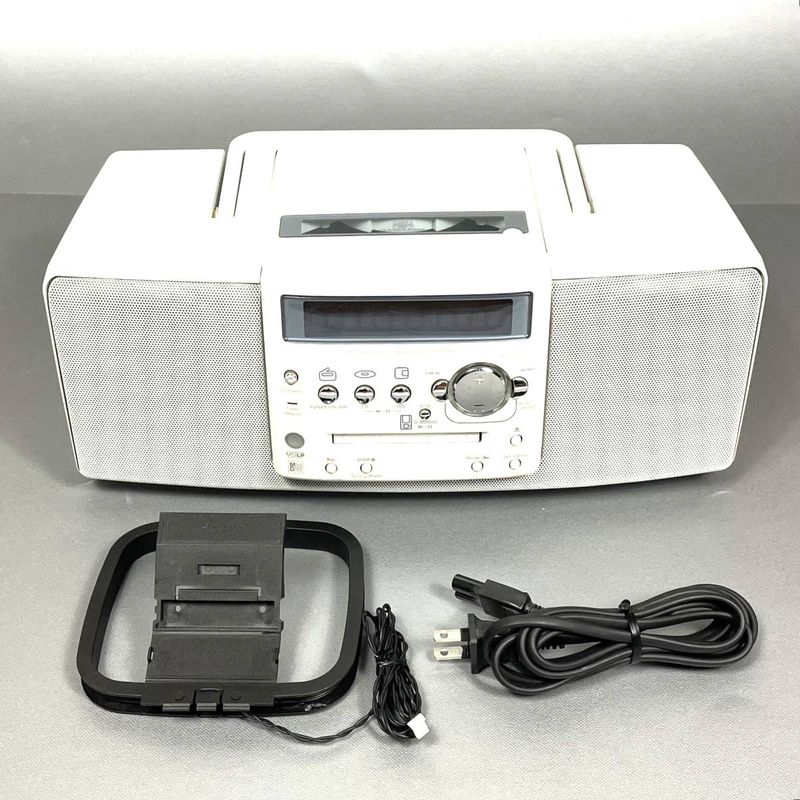

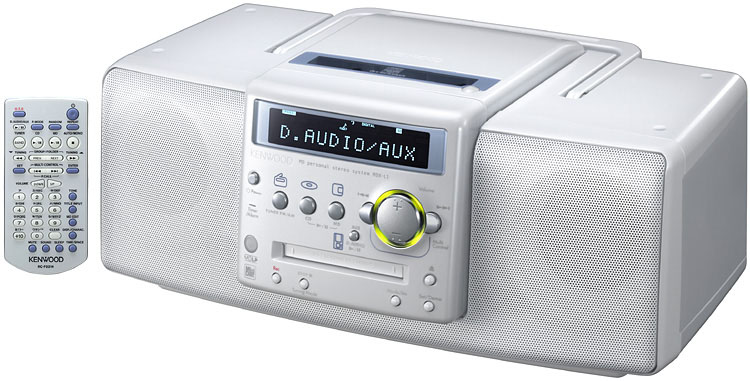

The MDX-L1 comes in 3 colors: white (W),gray (H), and pink (P).
It can connect to the Kenwood HD20GA7 [*] Kenwood HD20GA7 (MiniDisc Wiki mirror) [*] and portable memory audio players M1GB5 [*] M1GB5 (MiniDisc Wiki mirror) [*] and M512B5 [*] M512B5 (MiniDisc Wiki mirror) [*] using the PNC-150 cable.
- CD → MD double speed recording
- Supports MDLP and Folder groups
- Supports playback of CD-R/ W discs recorded in CD-DA
- Supports CD Text
- Plays a melody at the end of a recording
Amplifier section: Practical maximum output: 4W + 4W (JEITA 4Ω)
Output terminal (level/impedance): Recording output …950 mV / 1 kΩ
Input terminal (sensitivity/impedance) Digital audio D.AUDIO/AUX input …700mV / 10kΩ
Content adapted from: Kenwood News Release Page [*] Kenwood News Release Page (MiniDisc Wiki mirror) [*] av.watch [*]
Manuals
Kenwood MDX-L1 User Manual
Repair

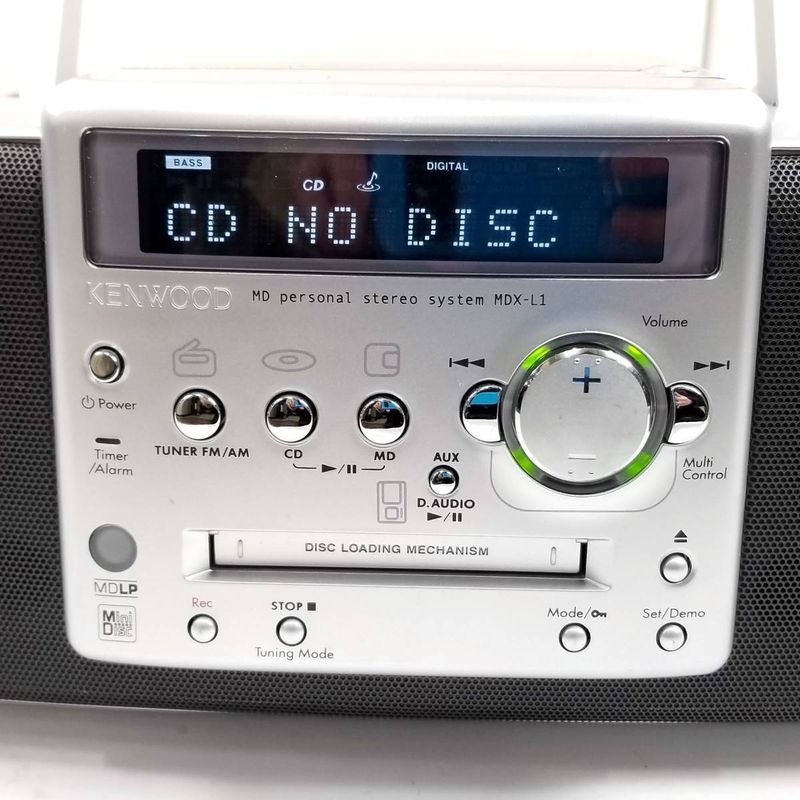

Photos
