Kenwood MDX-G3
| Name | MDX-G3 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2001/02 |
| Device type | boombox |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 409 x 172 x 225 mm |
| Weight | 5.6kg |
| ATRAC ver | Type-R |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD, Radio recording, Tape deck |
| Outputs | 3.5mm headphone, Speaker amplifier, Tape deck, Built-in speaker |
| Control |
Available in MDX-G3-S (silver) MDX-G3-R (red) MDX-G3-L (blue)
Features: MD/CD/Cassette/Tuner. MDLP compatible, 2X CD-to-MD recording speed. One-Touch CD-to-MD recording, CD-TEXT, 30 FM radio presets, timer record function, treble and bass adjustment, bass boost.
Specs: 4W x 2 output. 8cm full-range speakers. World-band FM tuner (76MHz to 108MHz).

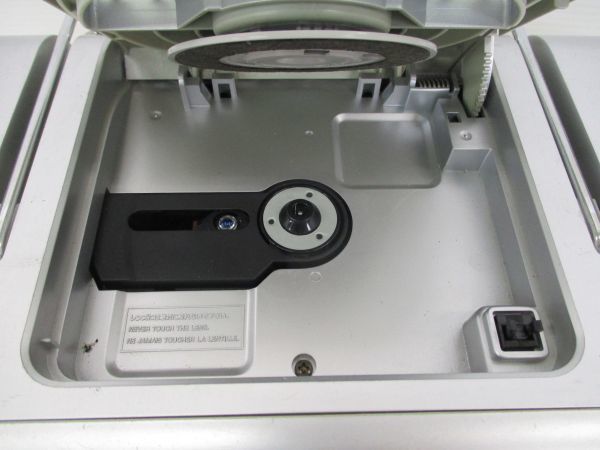

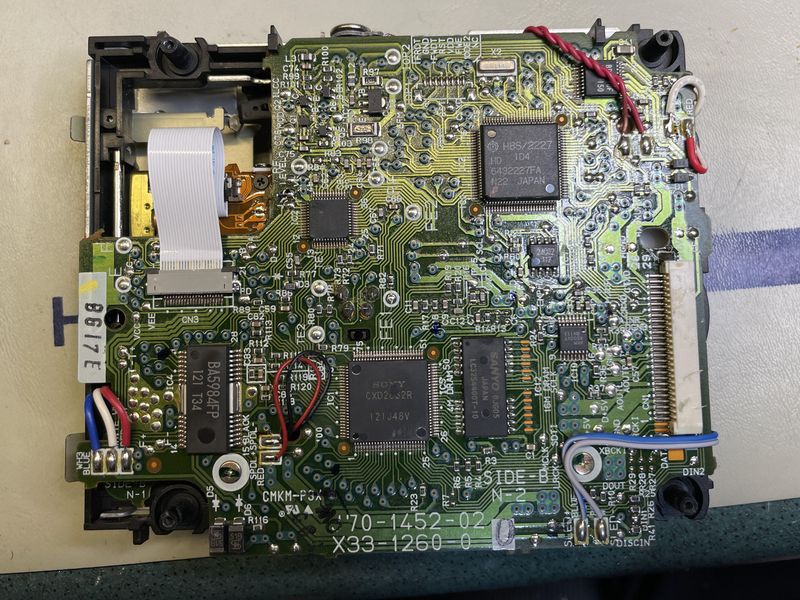

Optical Pickup: KMS-260B ATRAC IC: CXD2662R
Content adapted from: Minidisc.org Page [*] Kenwood Press Release [*] Kenwood Press Release (MiniDisc Wiki mirror) [*] phileweb [*]
Manuals
English User Manual
Japanese User Manual
Service Manual
Repair

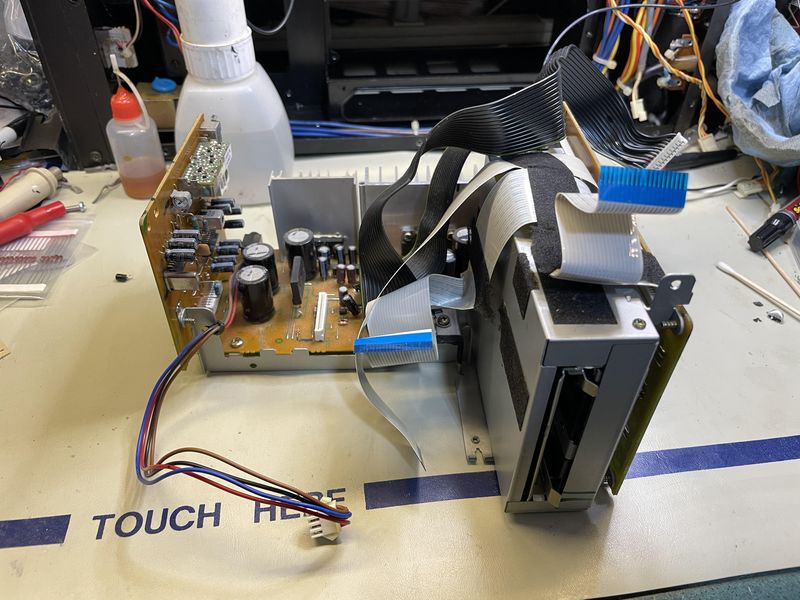

Photos
