Kenwood SV-3MD
| Name | SV-3MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 180x255x336mm |
| Weight | 5.5kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| - | |
| Inputs | N/A, 3.5mm line in (analog-only), RCA in, Digital optical (TOSLINK), CD, Tape deck |
| Outputs | 3.5mm line out (analog-only) |
| Control |

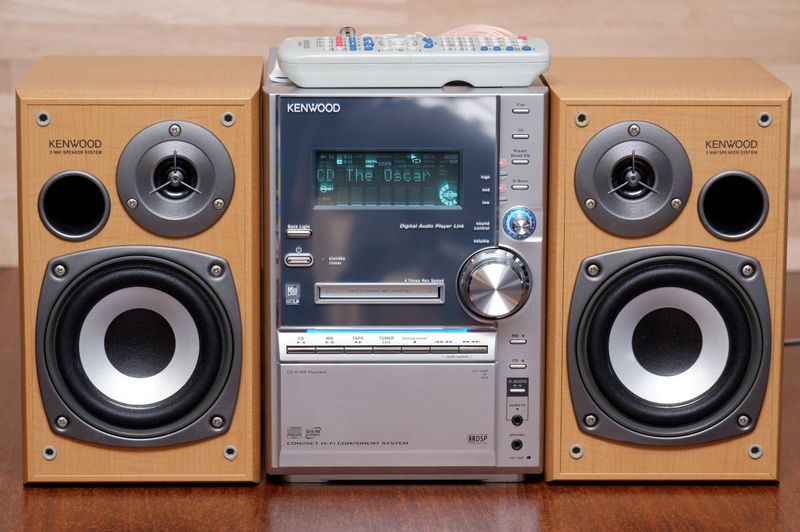

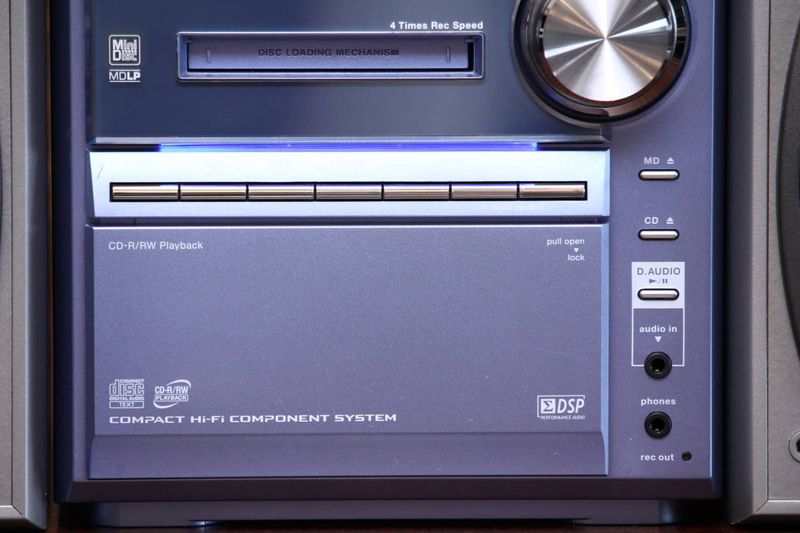

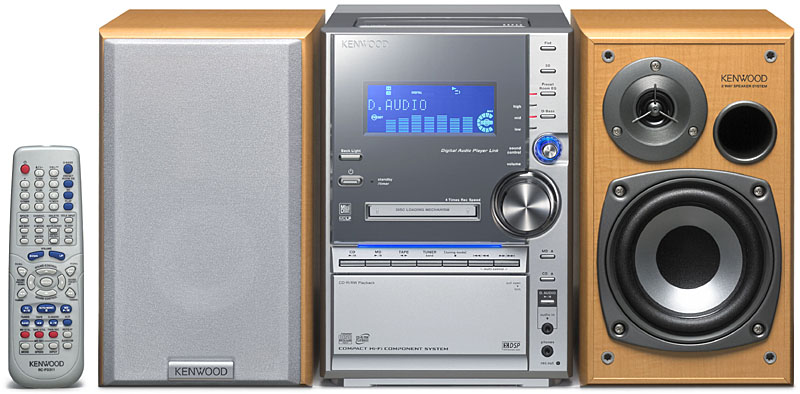

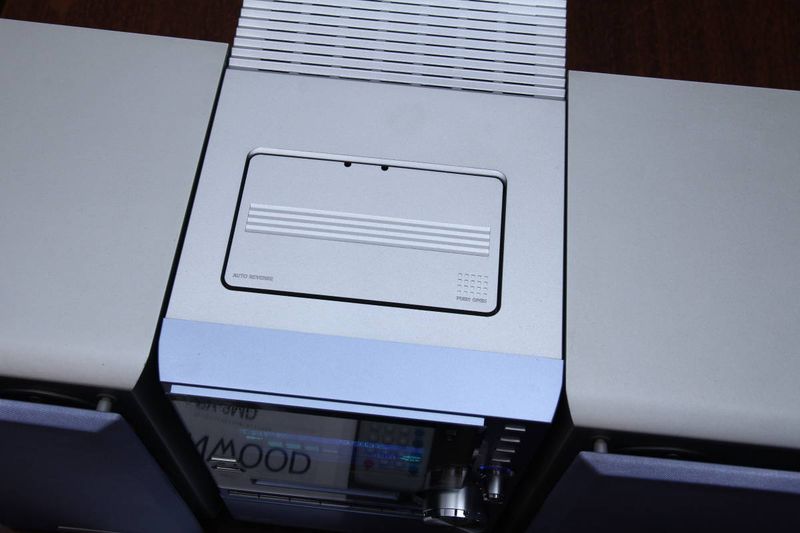

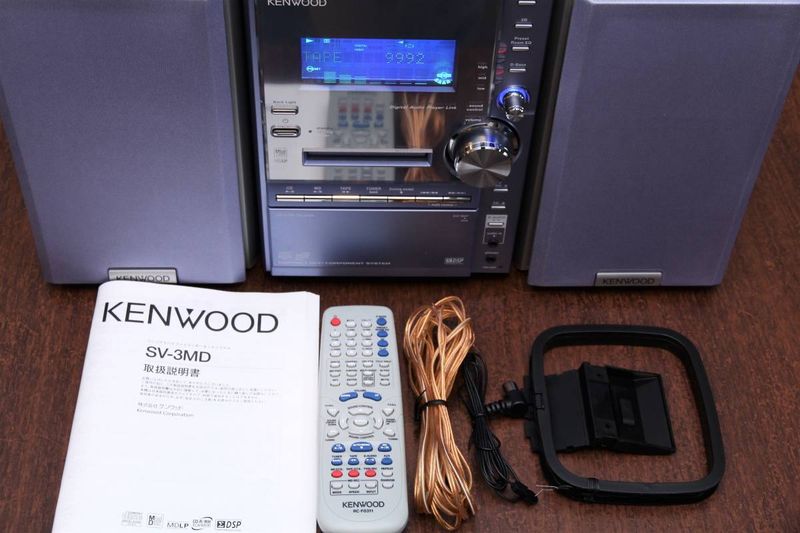

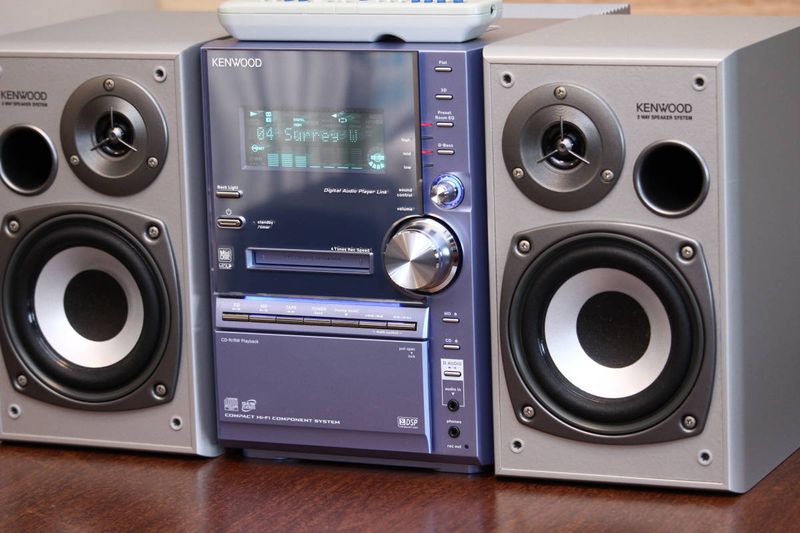

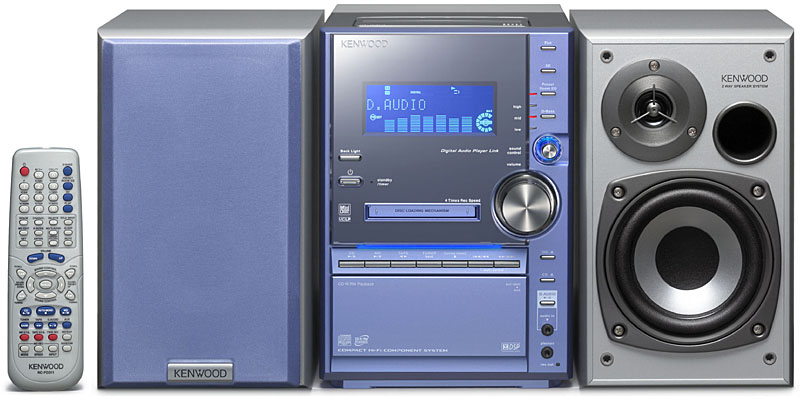

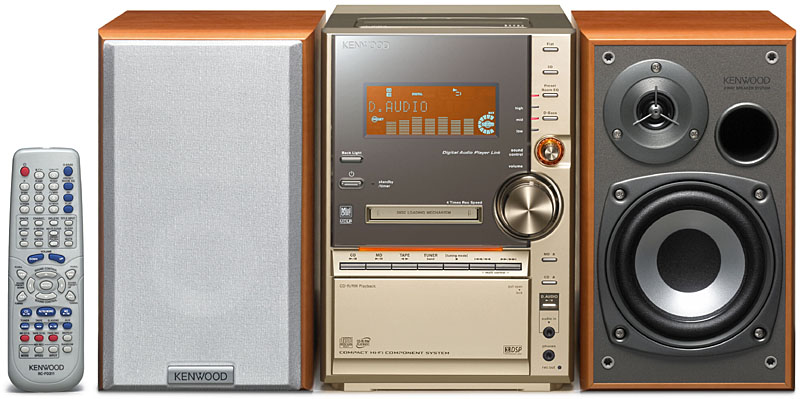

The SV-3MD comes in 3 colors, silver (S), gold (N), and blue (L). RXD-SV3MD is stamped on the main body. The blue variant was a limited special edition.

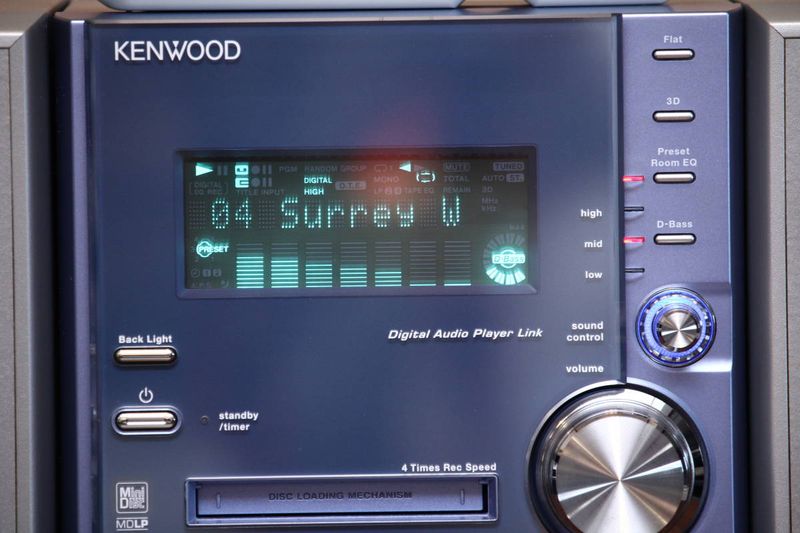

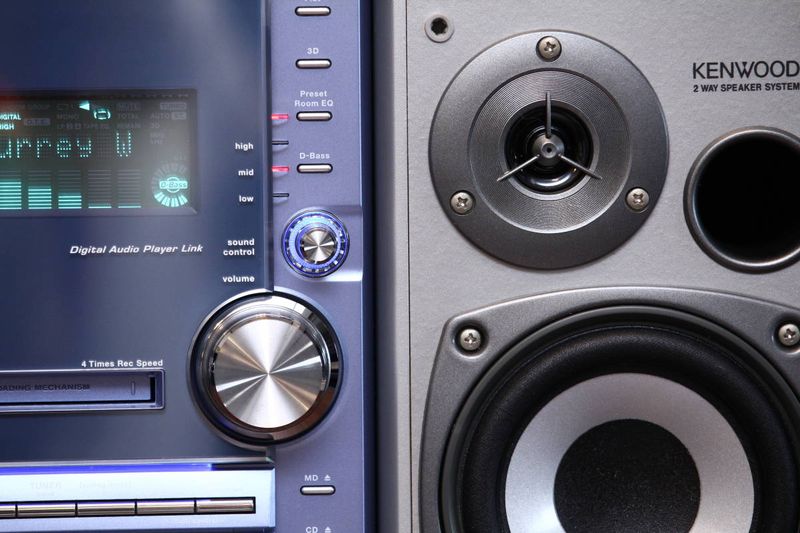

It is the successor to the SL-3MD and equipped with D-BASS II and Preset Room EQ that allows you to select the optimum sound effect based on the configuration of the room.
It can also connect to the Kenwood HD20GA7 [*] Kenwood HD20GA7 (MiniDisc Wiki mirror) [*], a 20GB MP3 player connected using the PNC-150 link cable. By connecting to the dedicated input terminal equipped on the front of the main unit, you can control the play/pause, FF/Reverse, and folder skip operations with the HD20GA7.
- CD → MD 4x speed recording
- Twin REC (CD can be recorded on MD and tape at the same time)
- MDLP & group function
- CD-R/RW playback
- CD text display
- FM：76.0～90.0MHz
- AM：531～1629kHz
Content adapted from: Kenwood Press Release [*] Kenwood Product Page [*] av.watch [*]
Manuals
SV-3MD User Manual JP
Repair
Photos
