Kenwood SK-7PRO
| Name | SK-7PRO |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/08 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W220 x H145 x D356mm |
| Weight | 6600 |
| ATRAC ver | Type-S |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100 |
| Power cable | |
| Price (launch) | |
| - | |

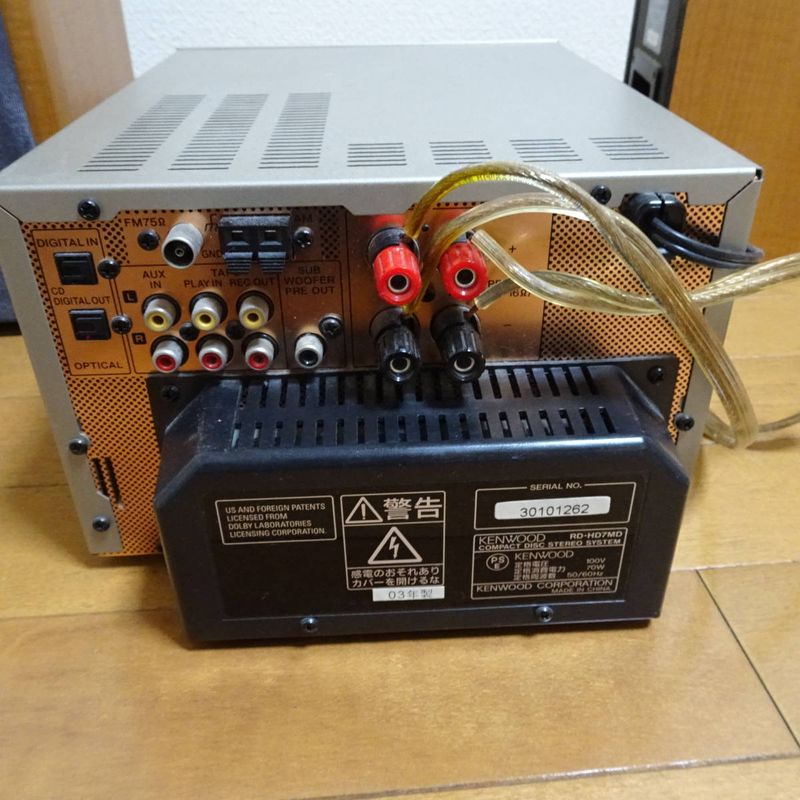

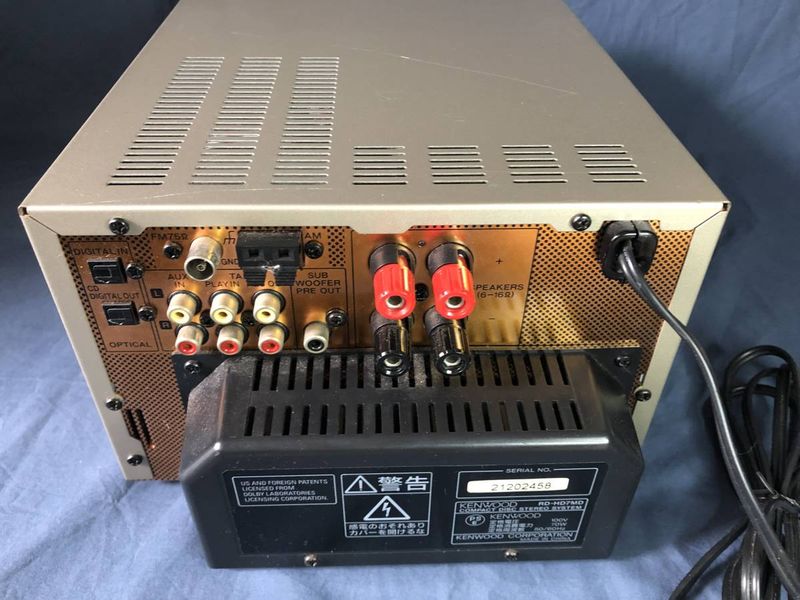

| Inputs | RCA in, Digital optical (TOSLINK), CD |

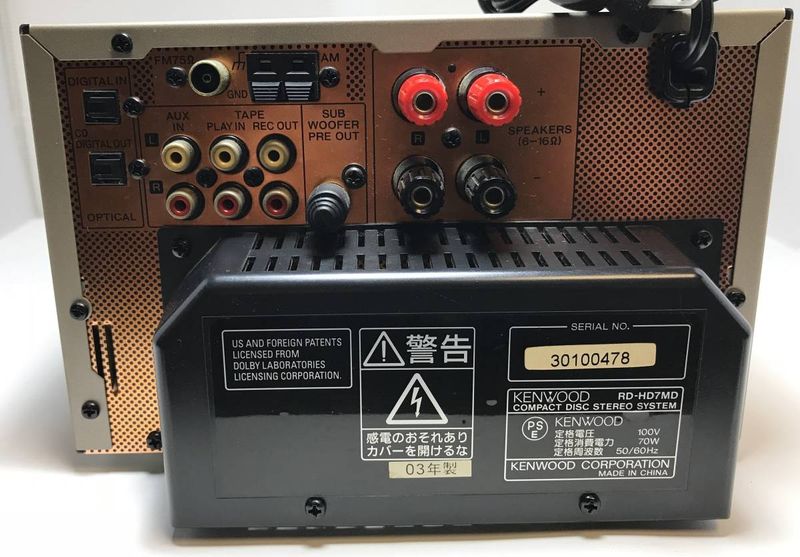

| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK) |
| Control |

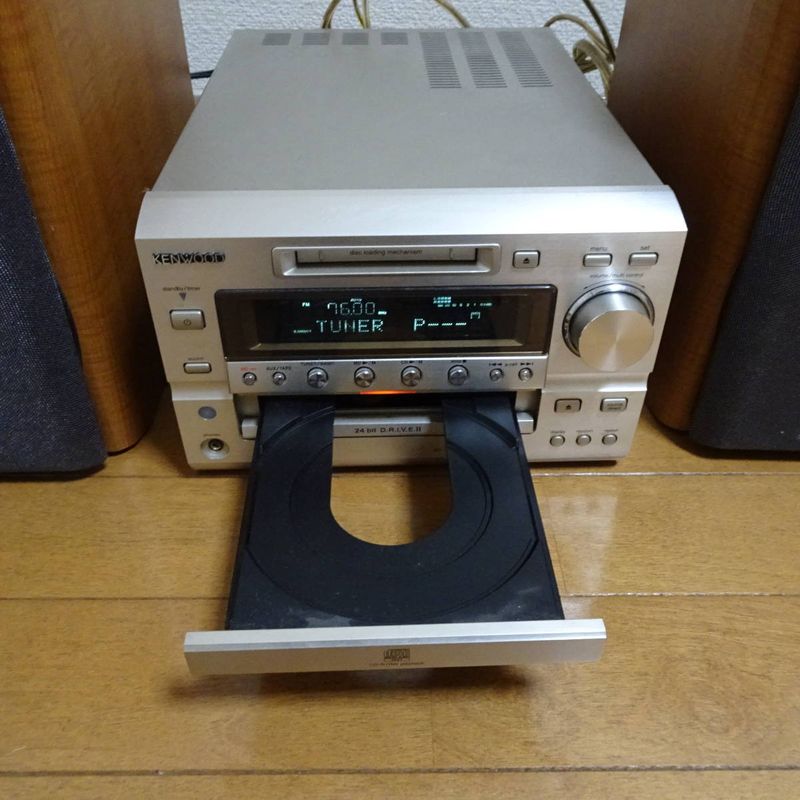

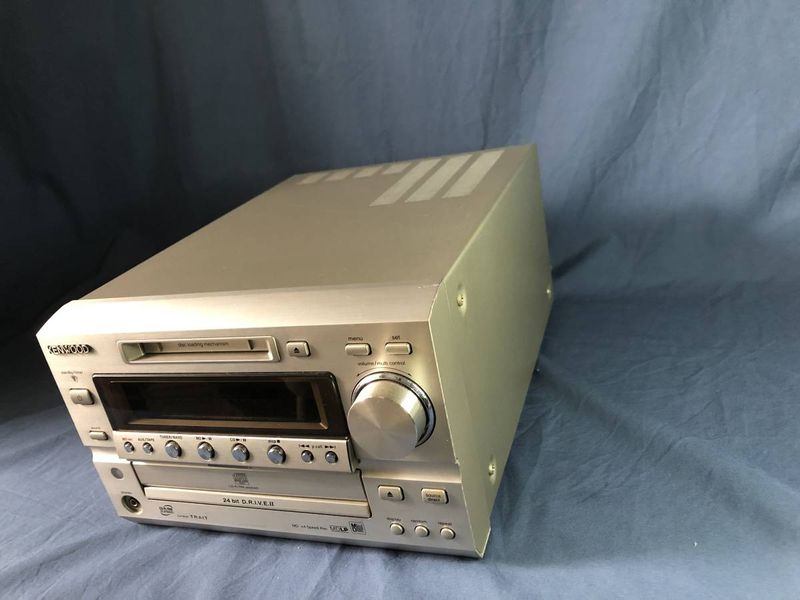

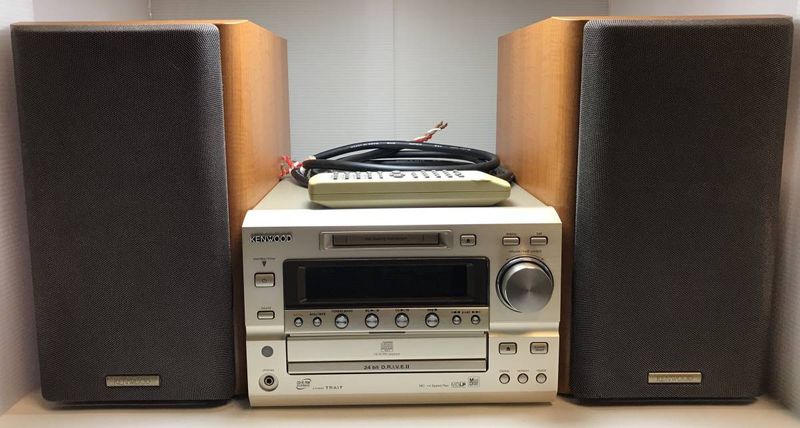

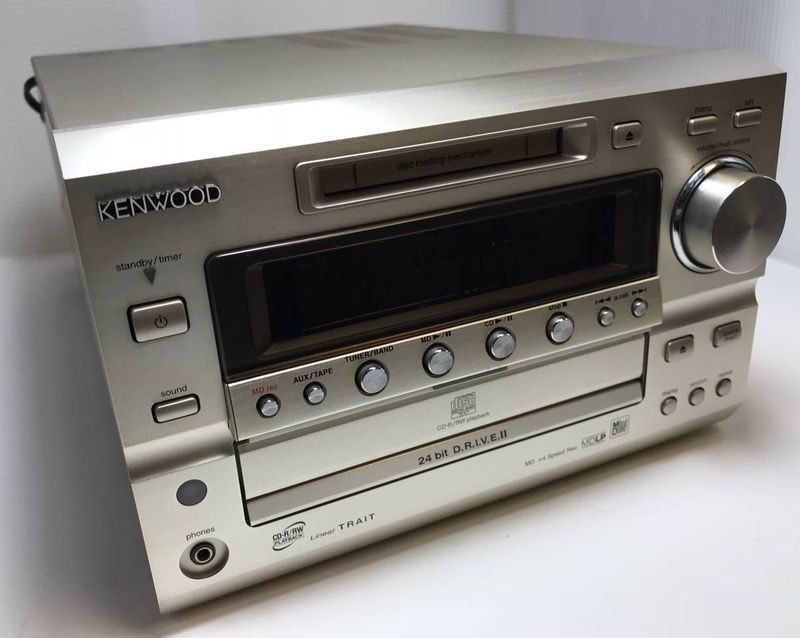

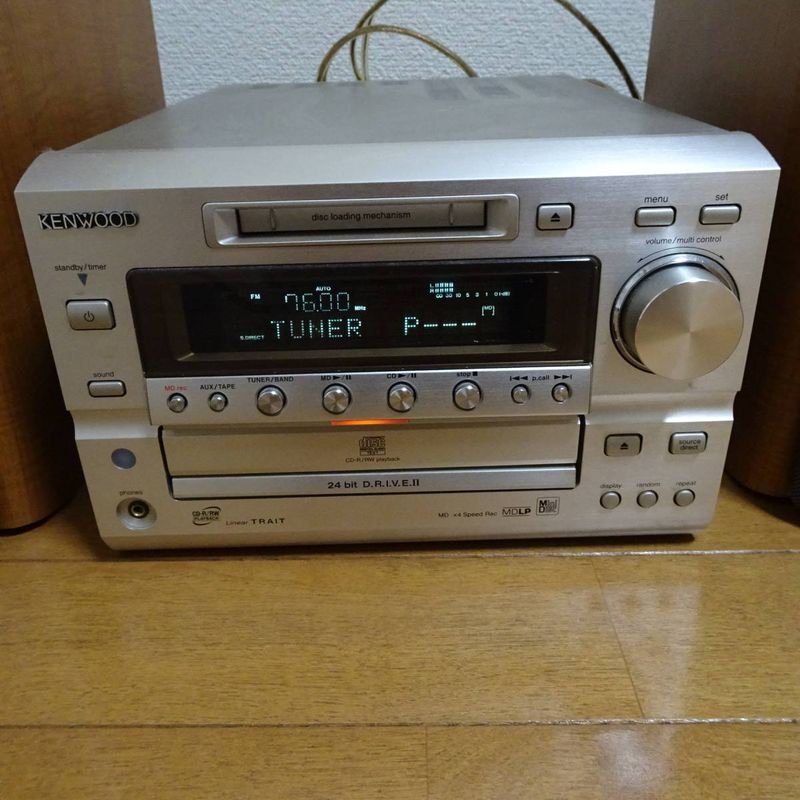

Kenwood Avino SK-7PRO. The main unit has a part# of RD-HD7MD.
- CD → MD digital 4x speed recording
- Tone control
- CD/R-RW reproduction
- Supports CD-TEXT display
- Dimmer control
- FM broadcast station name preset by prefecture
- CD / MD section 32 songs for each program
- Built-in timer (program 1,2 / sleep)
- Subwoofer output terminal
Adopts high-performance 24-bit DRIVE II Equipped with a 24-bit DRIVE? U that finely digitally processes 16-bit CD information with a 24-bit amount of information. In the past, it had a great effect on the quantization distortion of the part where the volume change was small, and it was effective even when the volume change was large. By removing unnecessary quantization distortion and converting it into a signal closer to the original sound, the audibility, lingering sound, localization, and presence are greatly improved.
Optical Pickup: KMS-260B
ATRAC IC: CXD2664R
Content adapted from: Kenwood Press Release [*] Kenwood Press Release (MiniDisc Wiki mirror) [*]

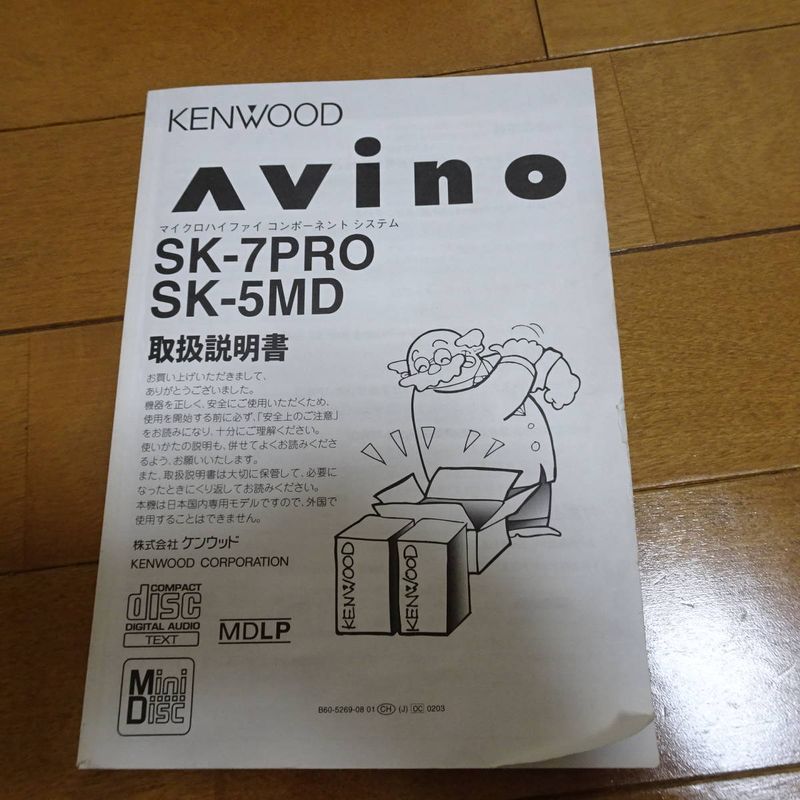

Manuals
Kenwood RD-HD5MD RD-HD7MD Service Manual
Repair

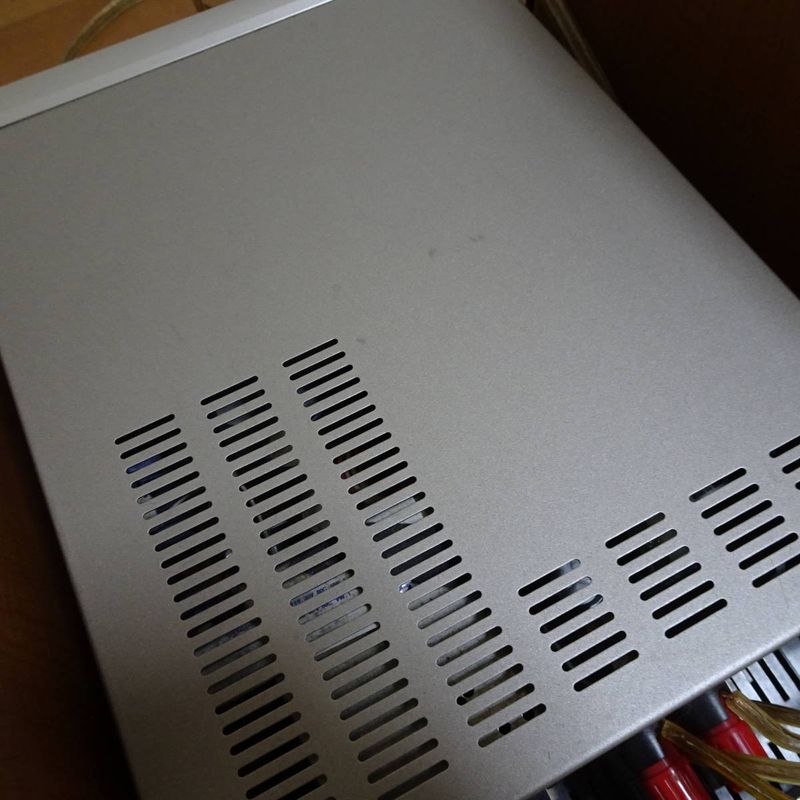

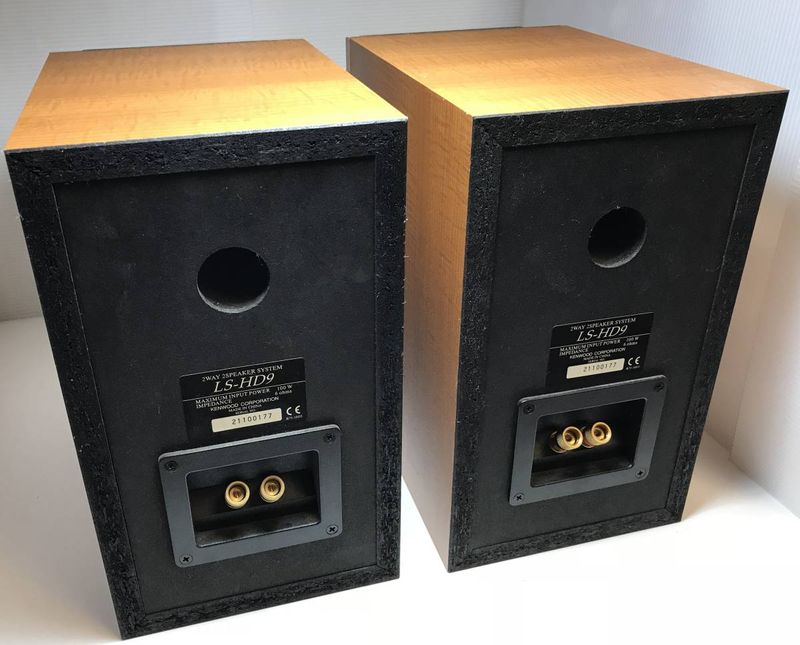

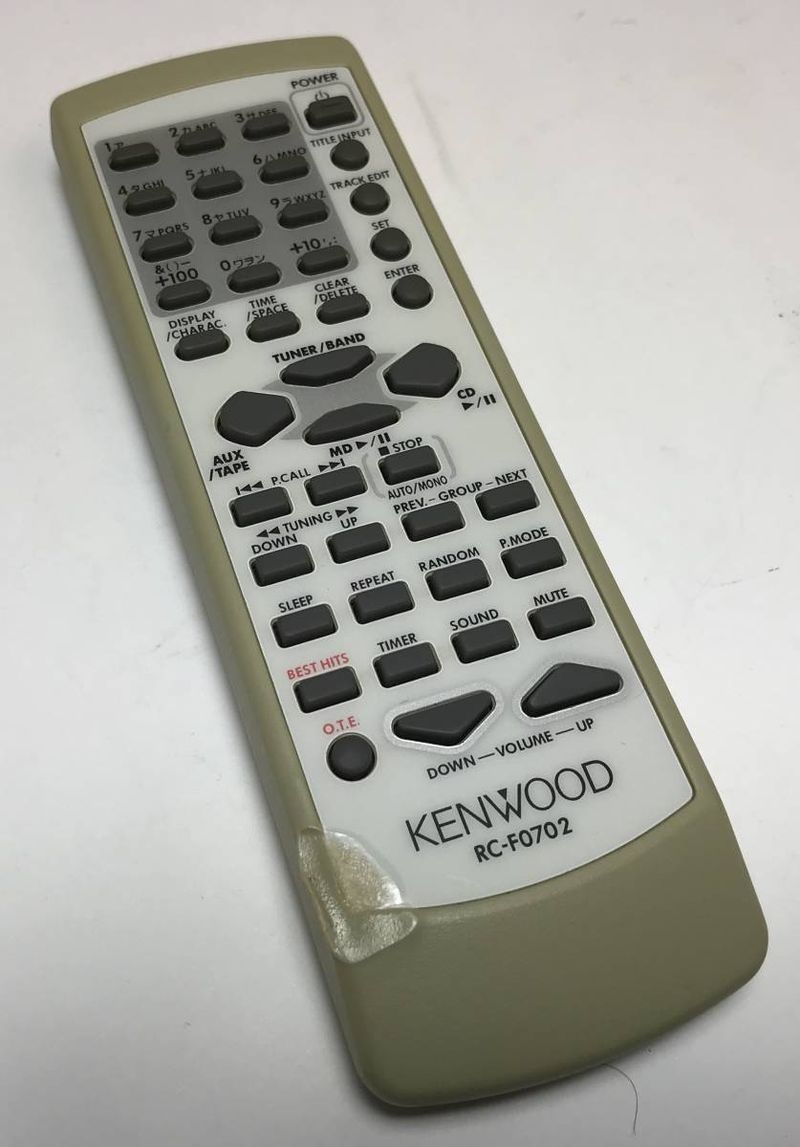

Photos
