Kenwood RXD-M32MD
| Name | RXD-M32MD |
|---|---|
| Manufacturer | Kenwood |
| Released | |
| Device type | bookshelf |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 88-108MHz |
| Dimensions | mian unit: W 180 x H 239 x D 305 mm |
| Weight | main unit: 5.7kg speakers: 2.4kg each |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | |
| Power cable | |
| Price (launch) | |
| - | |
| Inputs | RCA in, CD, Tape deck |
| Outputs | 3.5mm headphone, Speaker amplifier |
| Control |
Kenwood RXD-M32MD (system) HM-382MD (main body). Released sometime in 2000 based on the service manual publication date.
Amplifier section: (For U.K. and Europe)
Effective output power: 1 kHz, 10 % T.H.D., at 6 Ω: 20 W + 20 W
Rated output power: 1 kHz, 0.7 % T.H.D., at 6 Ω: 15 W + 15 W
(For other countries)
Rated output power during STEREO operation 1 kHz, 10 % T.H.D., at 6 Ω: 20 W + 20 W
Frequency response AUX: 50 Hz~50 kHz (0 dB ~ -3dB)
MD MECHANISM (MDM-99D) (part# D40-1677-05)
PICKUP ASSY RCTRH8198AFZZ (part# T25-0099-08 )
ATRAC IC: LR376484F
Content adapted from:
Manuals
Kenwood RXD-M32MD Instruction Manual
Kenwood RXD-M32MD Service Manual
Repair
Photos

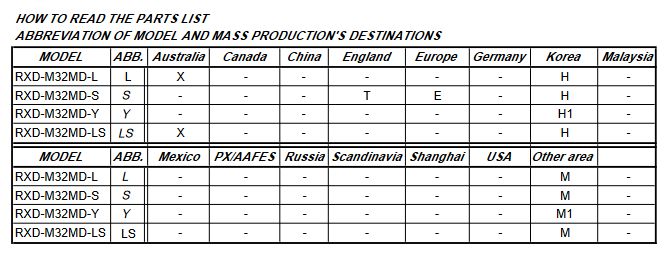

Regions this unit was released with model#'s from the service manual: \
