Kenwood AX-D7
| Name | AX-D7 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 270x101x347mm |
| Weight | 5kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| - | |

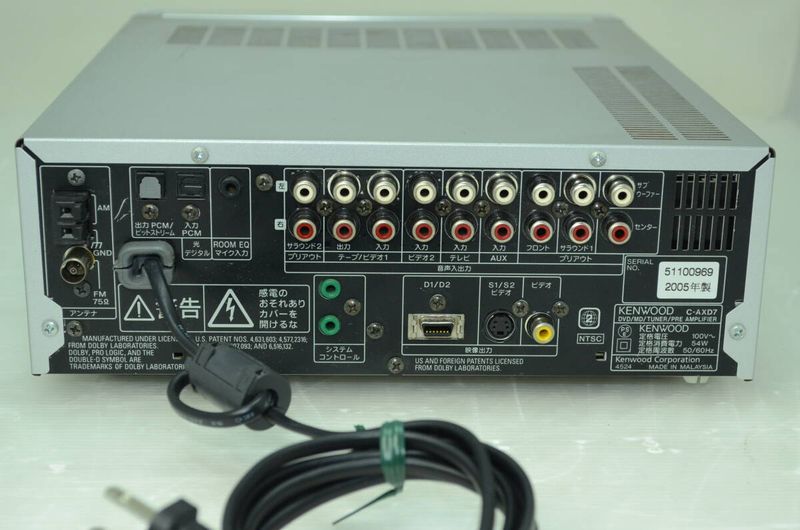

| Inputs | 3.5mm line in (analog-only), 3.5mm line in (optical multi), CD |
| Outputs | 3.5mm line out (optical multi), Digital optical (TOSLINK), Speaker amplifier |
| Control |

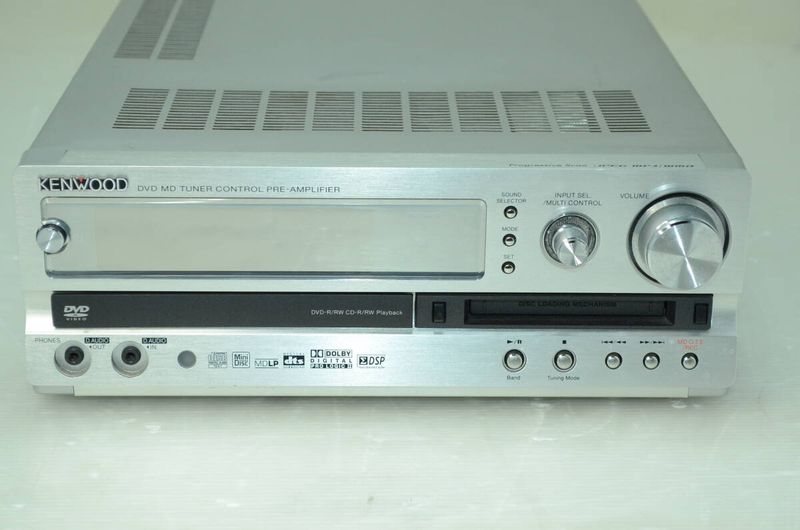

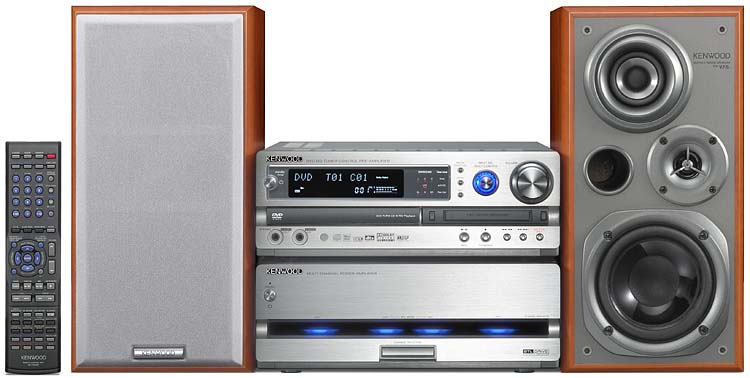

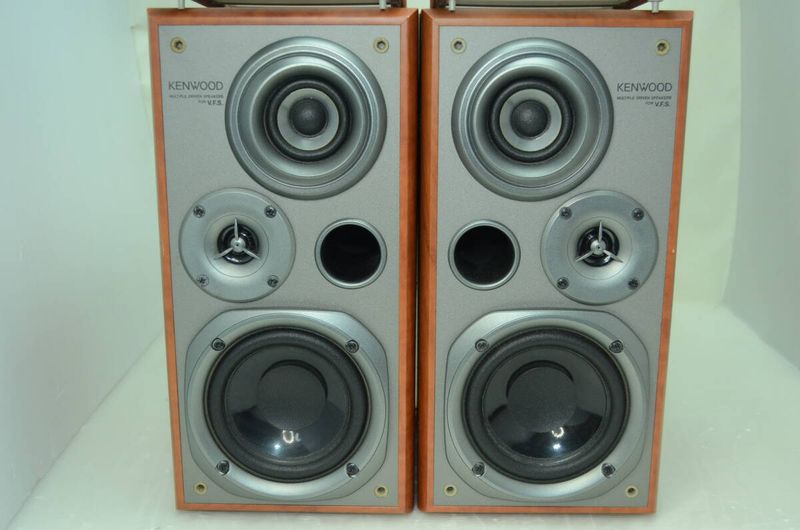

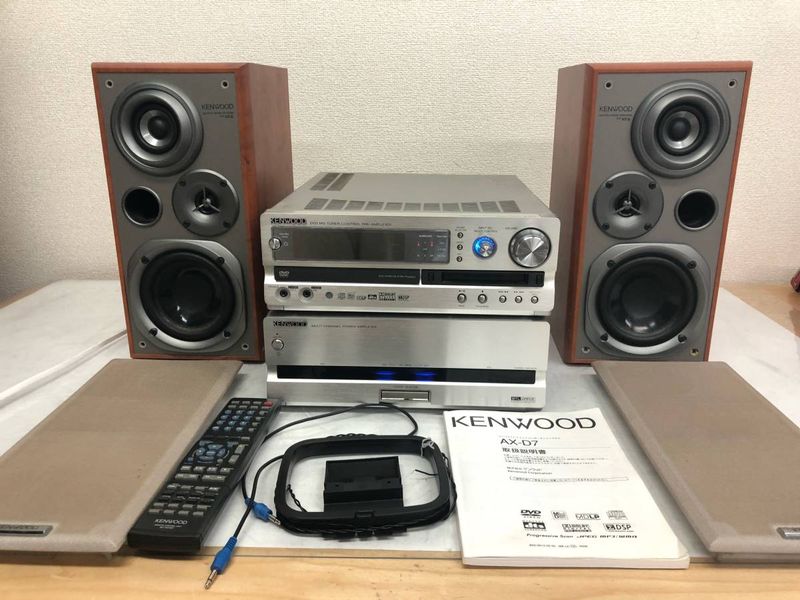

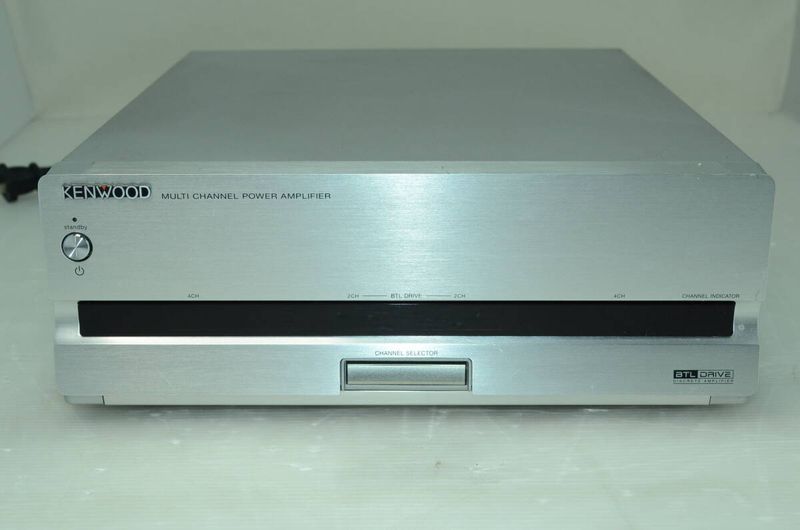

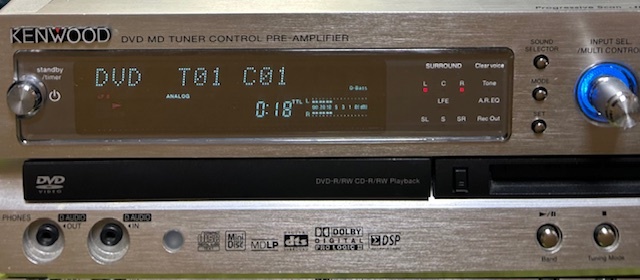

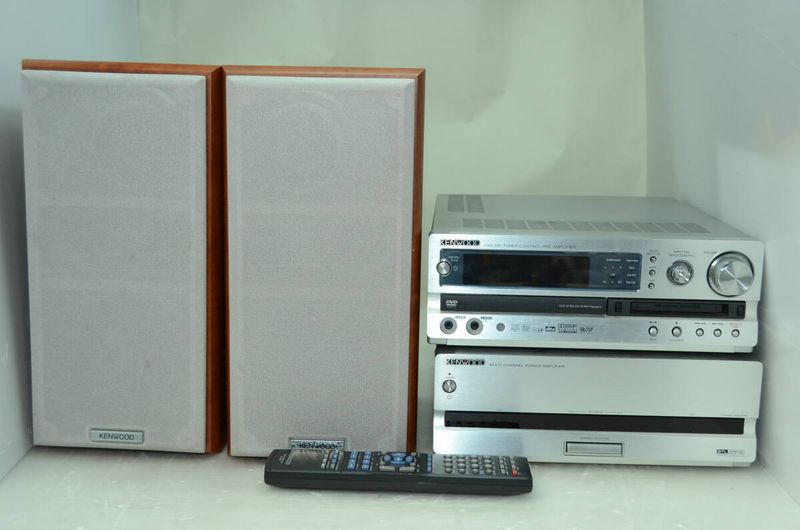

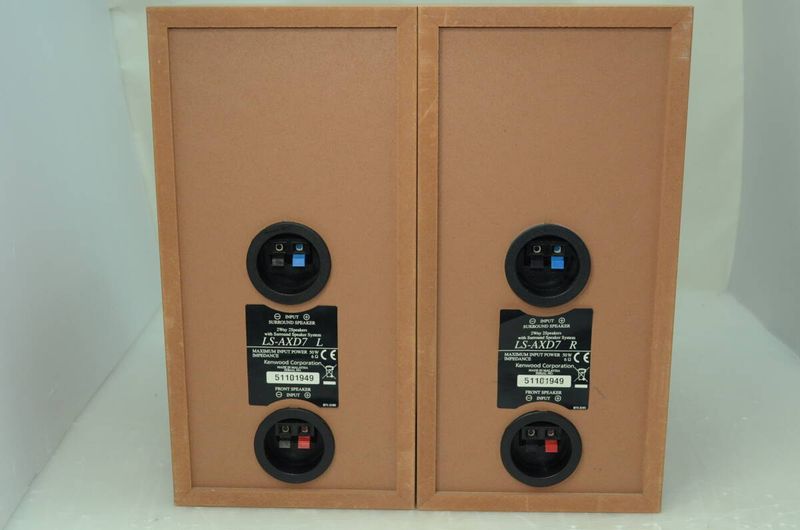

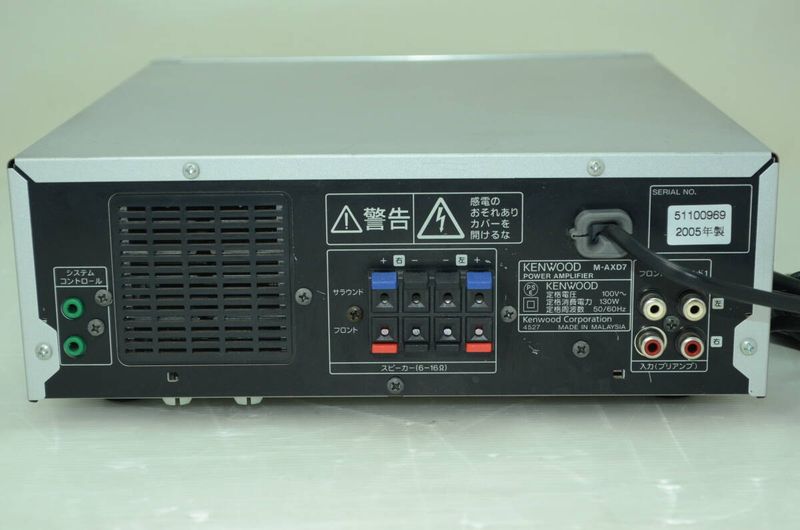

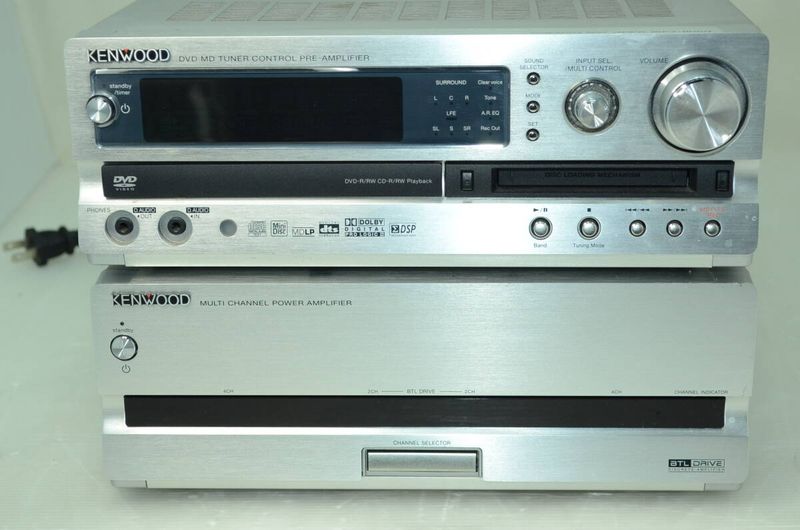

The AX-D7 system is comprised of the C-AXD7 DVD/MD pre-amp, M-AXD7 Amplifier and LS-AXD7 speaker. It comes in two colors: gold (N) and silver (S).
It can connect to the Kenwood HD20GA7 [*] Kenwood HD20GA7 (MiniDisc Wiki mirror) [*] and portable memory audio players M1GB5 [*] M1GB5 (MiniDisc Wiki mirror) [*] and M512B5. [*] M512B5. (MiniDisc Wiki mirror) [*]
You can synchronize music recorded on CD and MD to the M1GB5 and M512B5 without using a PC.
- VFS III realistic surround playback with just the front speakers
- Auto Room EQ
- MP3/WMA/JPEG playback
- Supports playback of DVD-R/RW, DVD+R/RW, and VCD discs
- AM: 531kHz to 1629kHz
- FM: 76MHz-90MHz
Max power: 50 W + 50 W（JEITA、6 Ω）
S/N ratio: 105 dB (JEITA)
Total harmonic strain rate: 0.0025% (1 kHz, 19 W, 6 Ω)

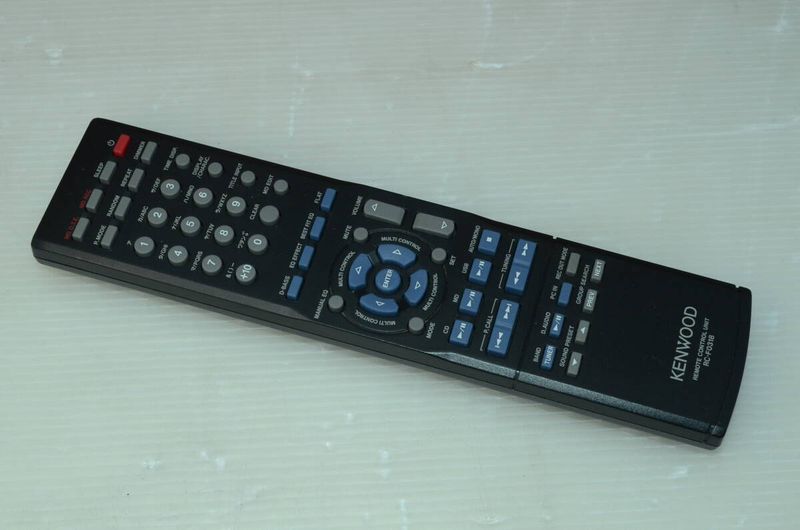

Remote: RC-F0318
Content adapted from: Kenwood News Release Page [*] Kenwood News Release Page (MiniDisc Wiki mirror) [*], Kenwood Product Page [*] av.watch [*]
Manuals
AX-D7 Japanese User Manual
AX-7 English User Manual
