Kenwood RX-760MD
| Name | RX-760MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 1999/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-Din 178 (W) x 50 (H) x 160 (D) mm |
| Weight | 1800 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥42 000 | |
| - | |
| Inputs | |
| Outputs | |
| Control |

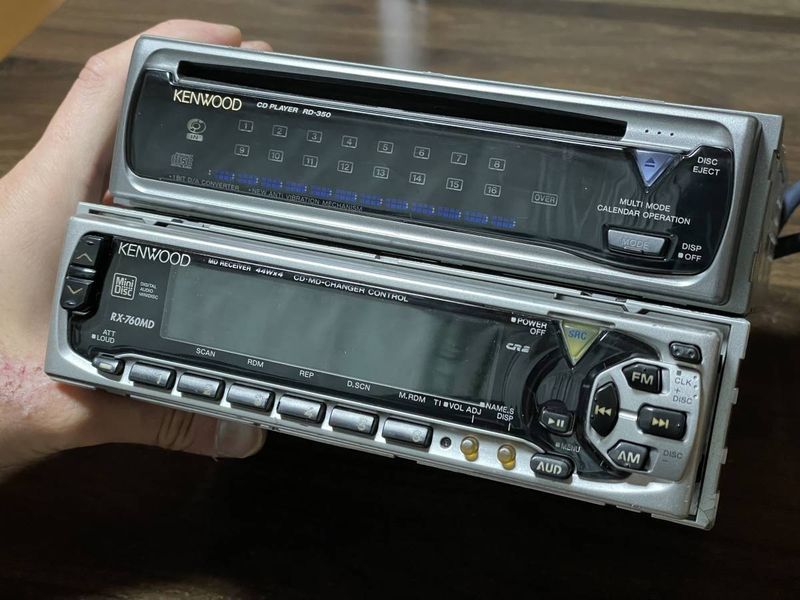

“RX-760MD” is a MD-equipped receiver of the RX component series. Equipped with an ultra-high power amplifier of 44W x 4ch, which is the best in its class. In addition, the use of a flip-down panel, which is often used in high-end machines, creates a sense of luxury, and enables a larger display area, greatly enhancing fashionability.
Supports MD kana title.
“RX-760MD” [MD Department]
- Frequency response: 20Hz to 20kHz (±2dB)
- S/N ratio: 90dB (1kHz)
- Dynamic range: 90dB
- Stereo Separation: 85dB
[FM section]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[AM section]
- Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ
[Audio part]
- Maximum output: 44W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1800mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
- Mass: 1,800g
Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]
