Kenwood RX-680MD
| Name | RX-680MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2001/03 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 1-DIN 178W x 50H x 160Dmm |
| Weight | 1300 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥31 500 | |
| - | |
| Inputs | |
| Outputs | |
| Control |
- Built-in NEW dB equalizer
- Built-in speaker selector
- 3 band tone control
- CD changer control function
- Supports AUX input
- Clock/date & memo display function (32 characters x 30 days)
- Remote control compatible (separately sold remote control: KCA-R7/RC600)
- Equipped with 1 pre-out (rear)
- Built-in 45W x 4 high power amplifier
[MD Department] Frequency response: 20Hz to 20kHz (±2dB) S/N ratio: 90dB (1kHz) Dynamic range: 90dB Stereo Separation: 85dB (1kHz)
[FM Department]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
- Practical sensitivity: 9.3dBf (0.8μV/75Ω)
- Frequency response: 30Hz to 15kHz (±3.0dB)
- Stereo Separation: 40dB (1kHz)
[AM Department]
- Receiving frequency range: 522kHz to 1629kHz (9kHz steps)
- Sensitivity: 28dBμ (25μV)
[Audio part]
- Maximum output: 45W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level: 1800mV
[Common Department]
- Power supply voltage: 14.4V (11-16V)
- Maximum consumption current: 10A
- Embedded dimensions: 178W x 50H x 160Dmm
- Mass: 1.3kg

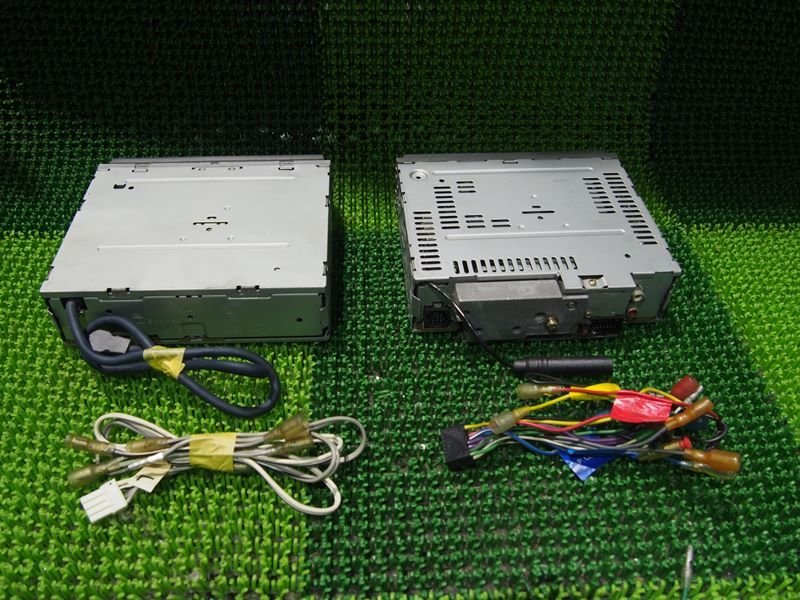

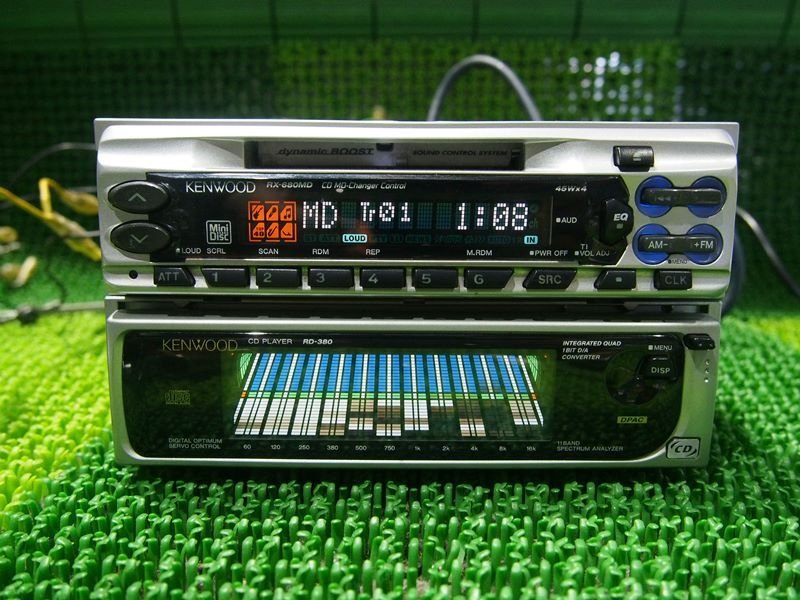

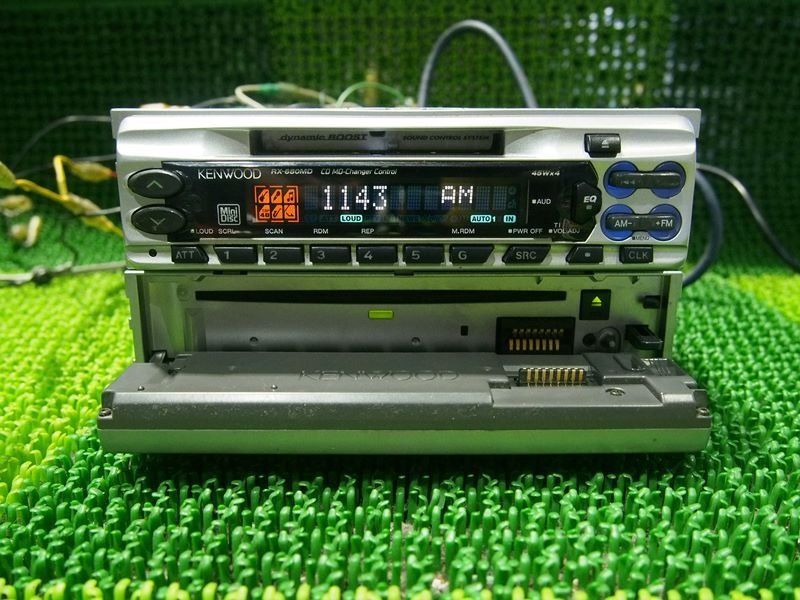

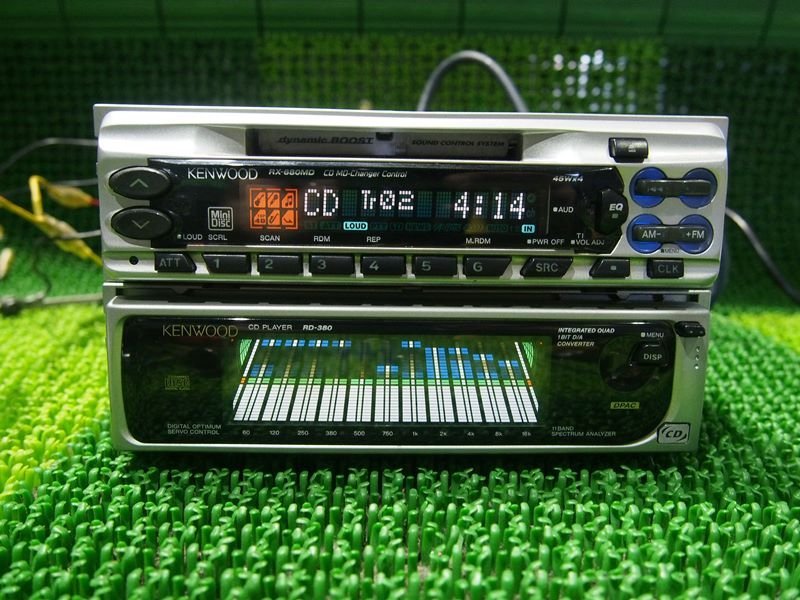

Seems to have been commonly paired with an RD-360 CD player as visualizer + CD player.
Content adapted from: Kenwood Press Release [*] Kenwood Product Page [*] Kenwood Product Page (MiniDisc Wiki mirror) [*] phileweb.com [*]
Manuals
Repair
Photos
