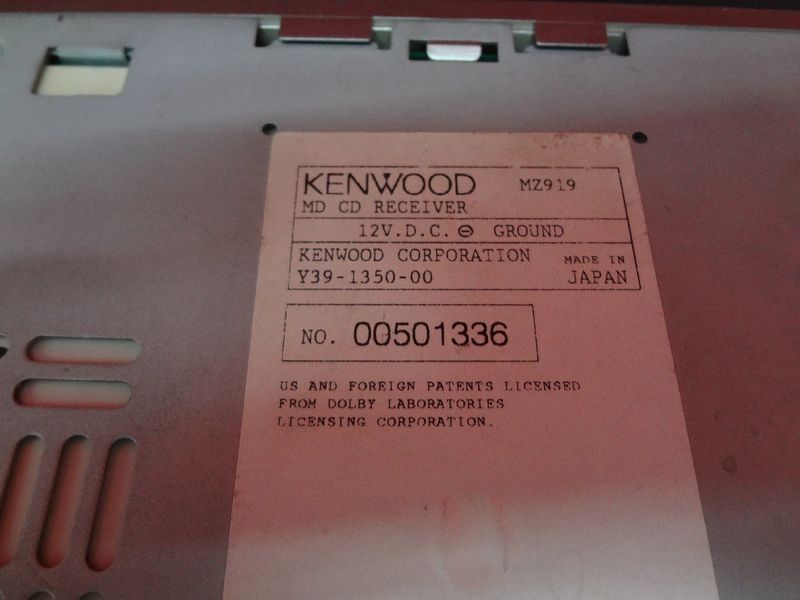

Kenwood MZ919

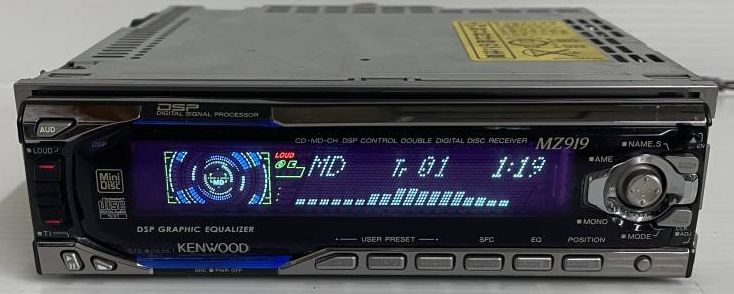

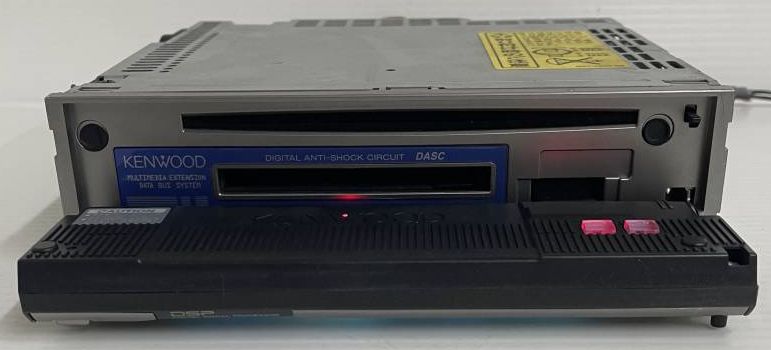

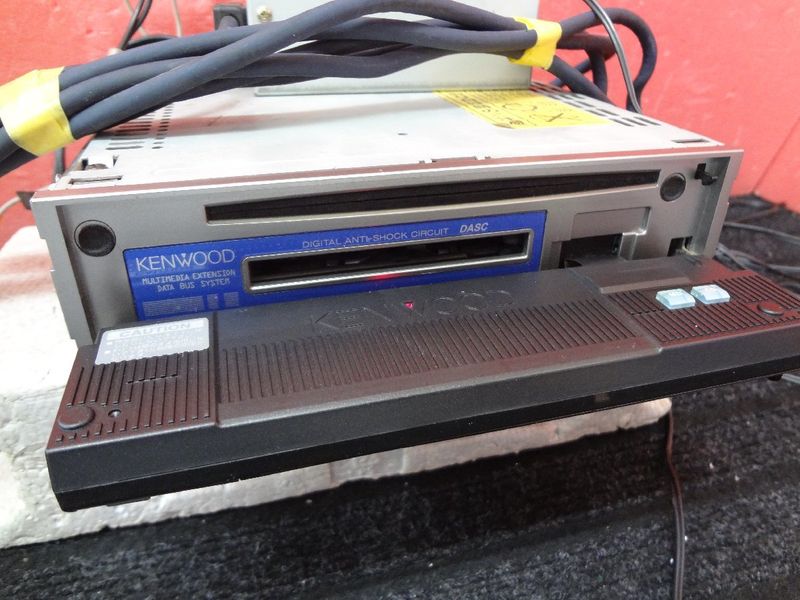

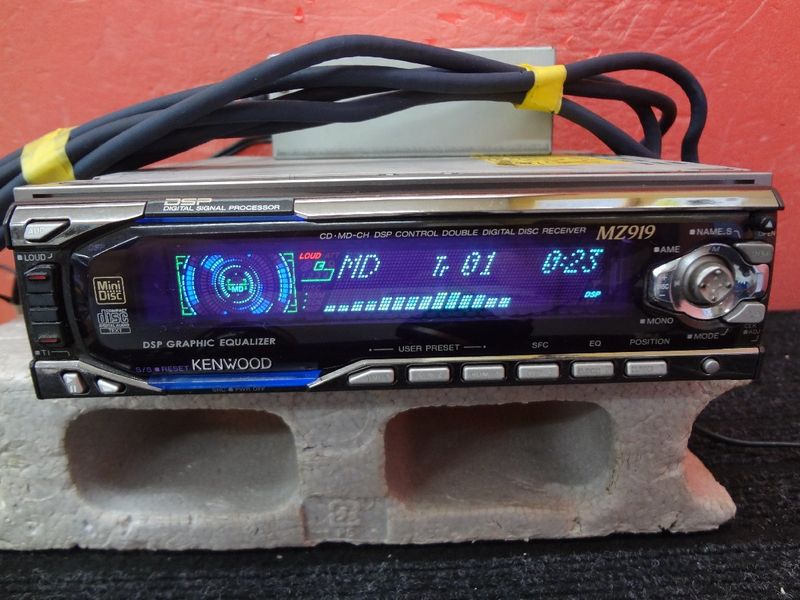

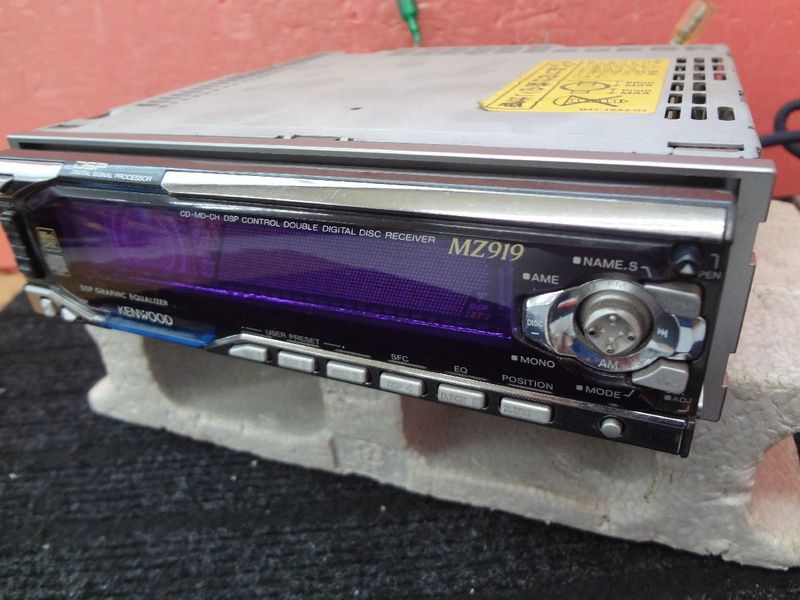

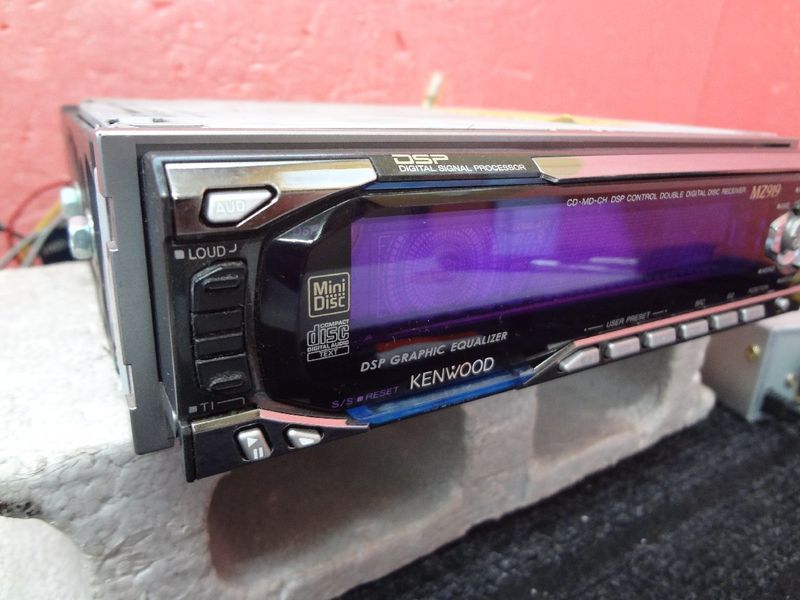

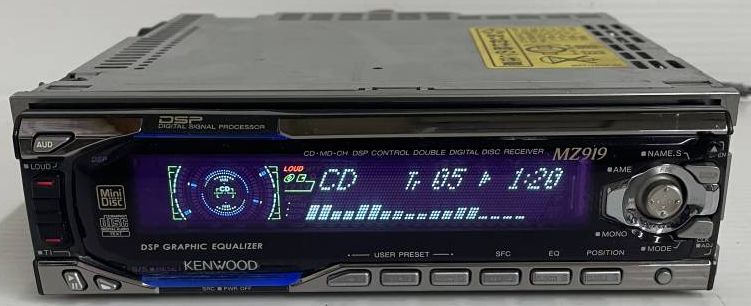

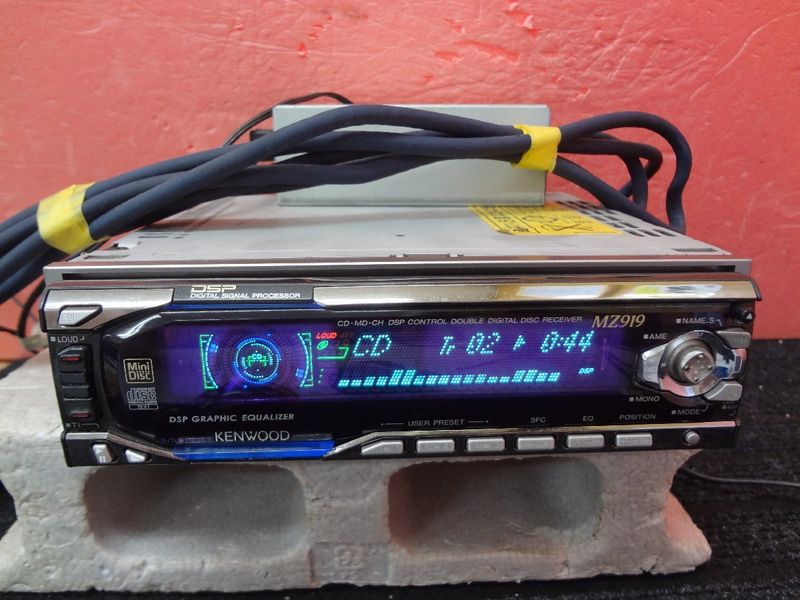

MD/CD receiver achieves ultra-high-density mounting by mounting a thin MD mechanism and a thin CD mechanism in a 1DIN size housing. Focusing on the appearance when it fits on the dashboard, we have reduced the protrusion on the front to the same size as other 1DIN sizes. Equipped with a “3 mode font” function that allows you to select from 3 types of display fonts. A multifunctional full-dot FL tube is used for the display, enabling beautiful and precise display. In addition, it is equipped with DSP/EQ to expand the enjoyment of listening to music in the car. Equipped with a 45W x 4ch ultra-high power amplifier, a hybrid IC “System E's PRO” that reduces sound distortion, and a separate power IC. Achieved best-in-class sound quality.

Kenwood units from this era use a ribbon cable to connect the faceplate, it is known to wear out and break with use.

[MD department]

• Frequency response: 20Hz to 20kHz (±1dB)
• S/N ratio: 90dB (1kHz)
• Dynamic range: 90dB
• Stereo Separation: 85dB

[CD section]

• Frequency response: 10Hz to 20kHz (±1dB)
• S/N ratio: 93dB (1kHz)
• Dynamic range: 93dB
• Stereo Separation: 85dB

[FM section]

• Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

• Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[EQ section]

• Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
• Variable range: ±12dB

[Audio part]

• Maximum output: 45W x 4
• Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)

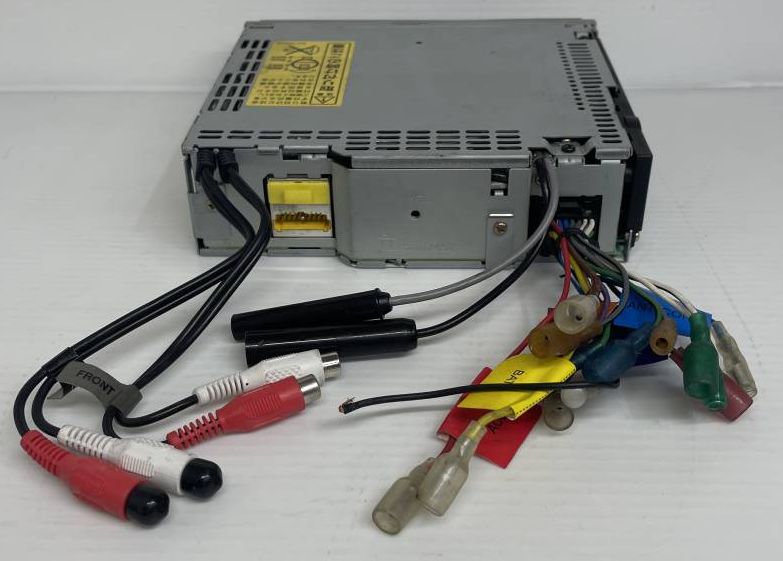

• Pre-out level: 1500mV (FM/10kΩ)

[Common part]

• Power supply voltage: 14.4V (11 to 16V)
• Maximum current consumption: 10A

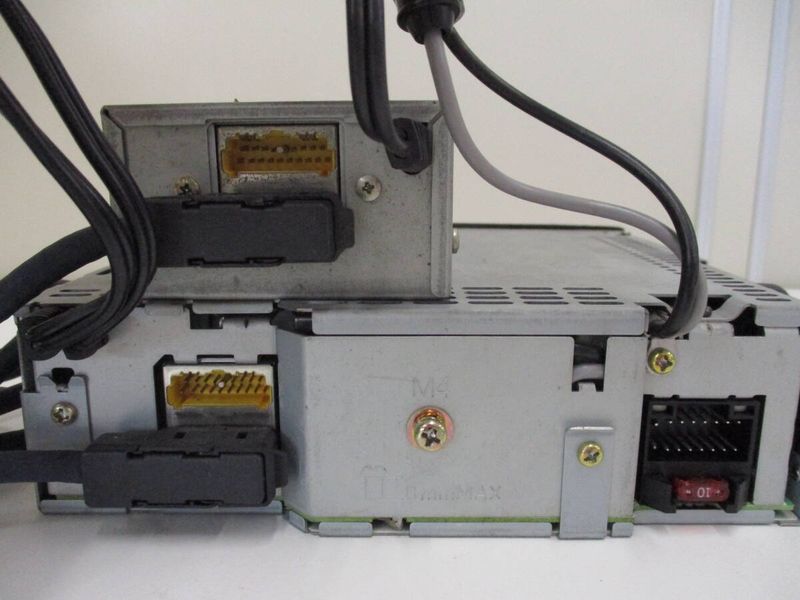

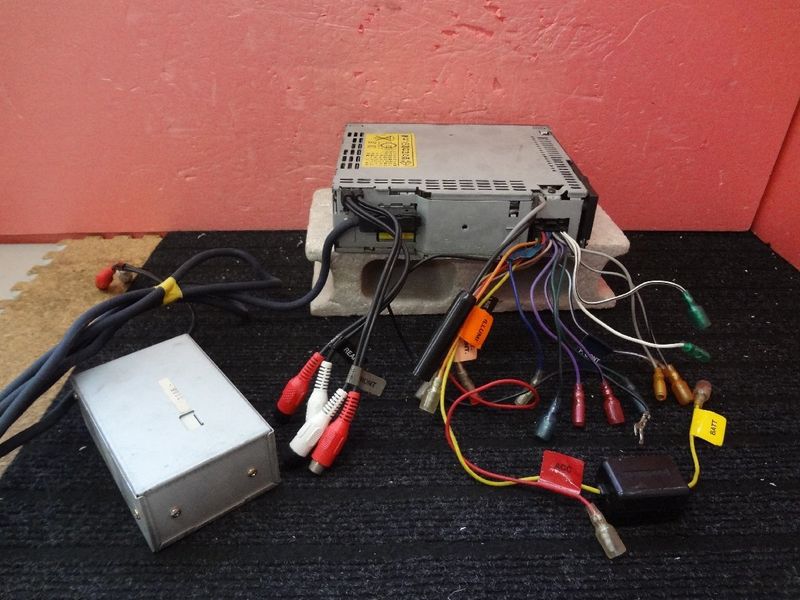

• Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm (body) 110 (W) x 40 (H) x 70 (D) mm (hideaway part)
• Mass: 1.6 kg (body) 0.31 kg (hideaway part)

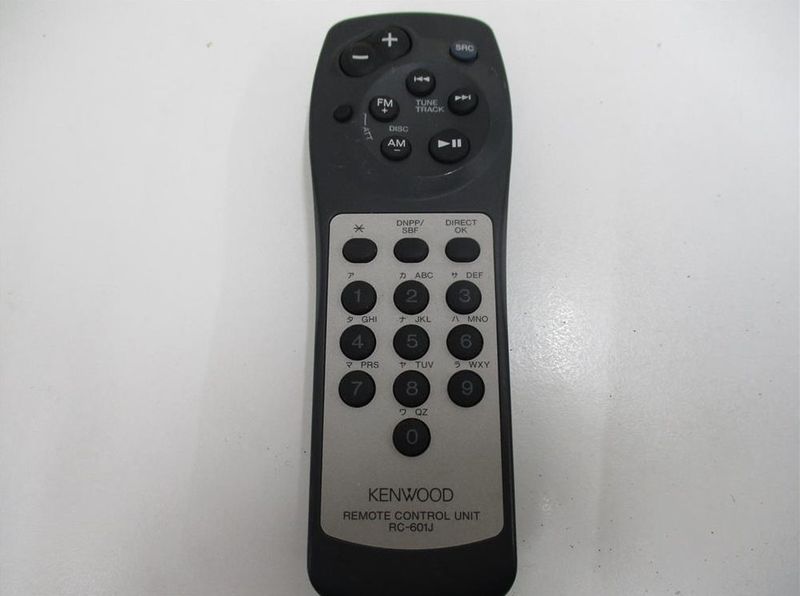

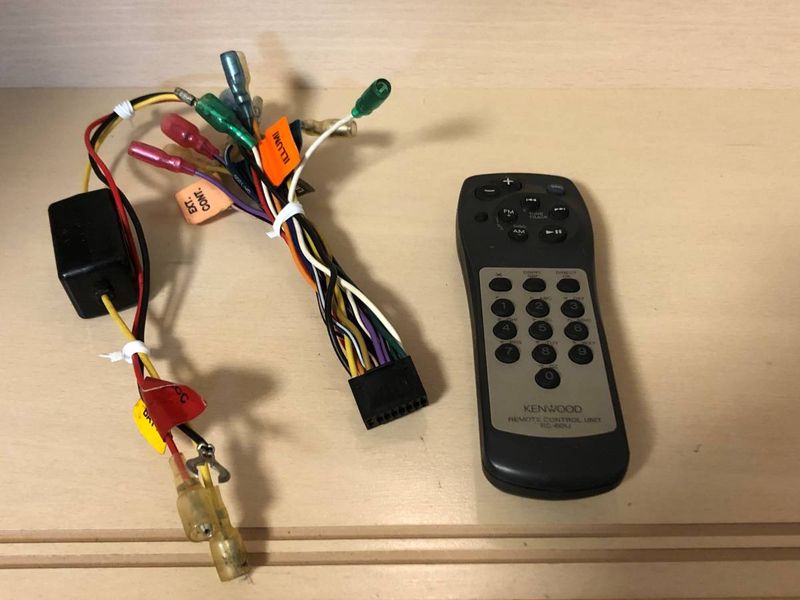

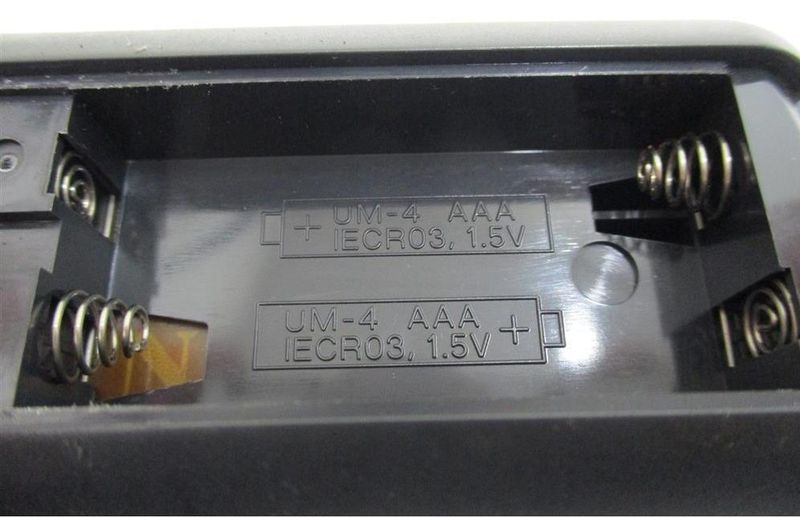

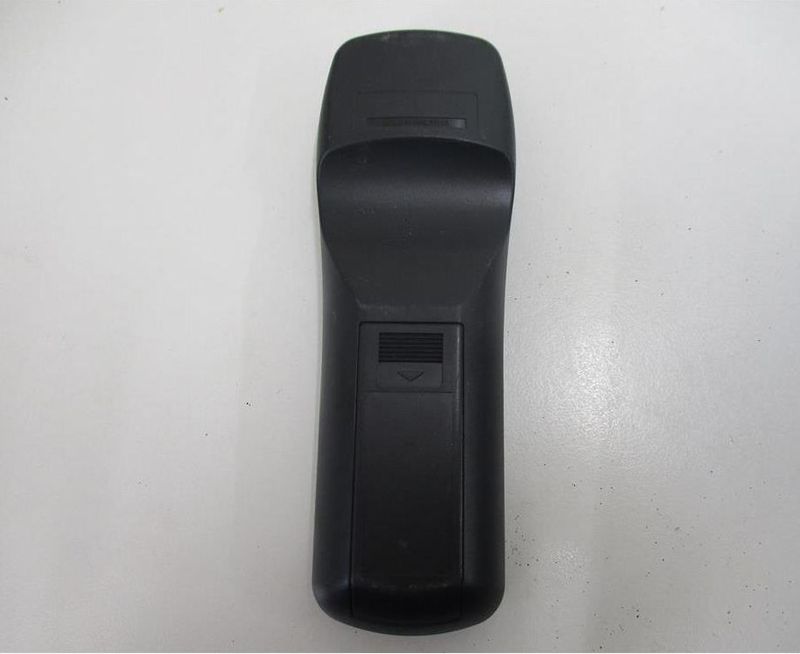

remote: RC-601J

Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]
