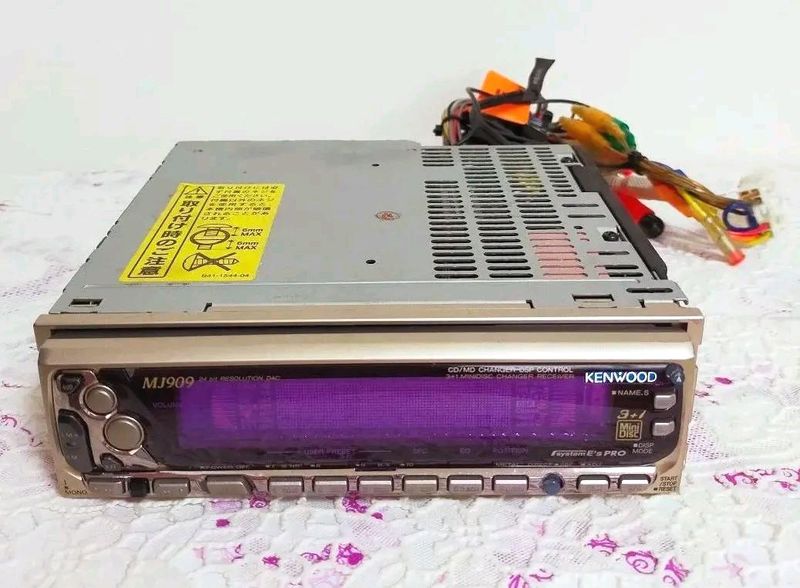

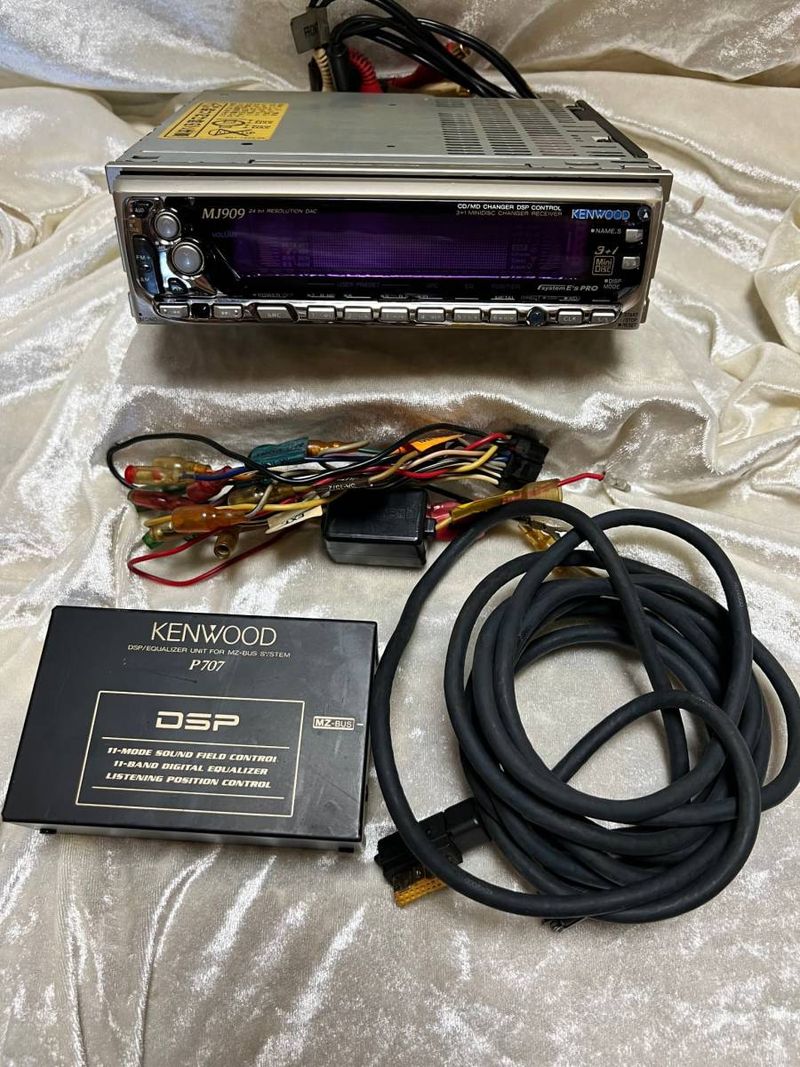

Kenwood MJ909

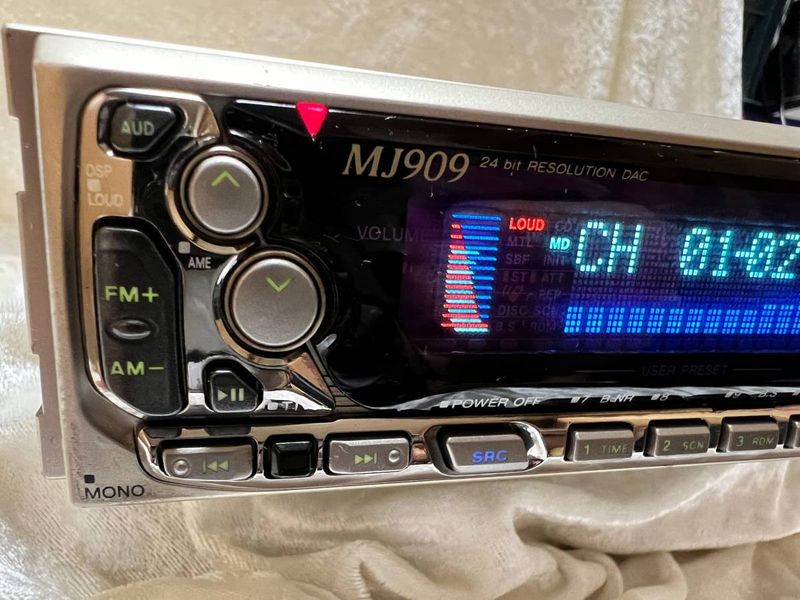

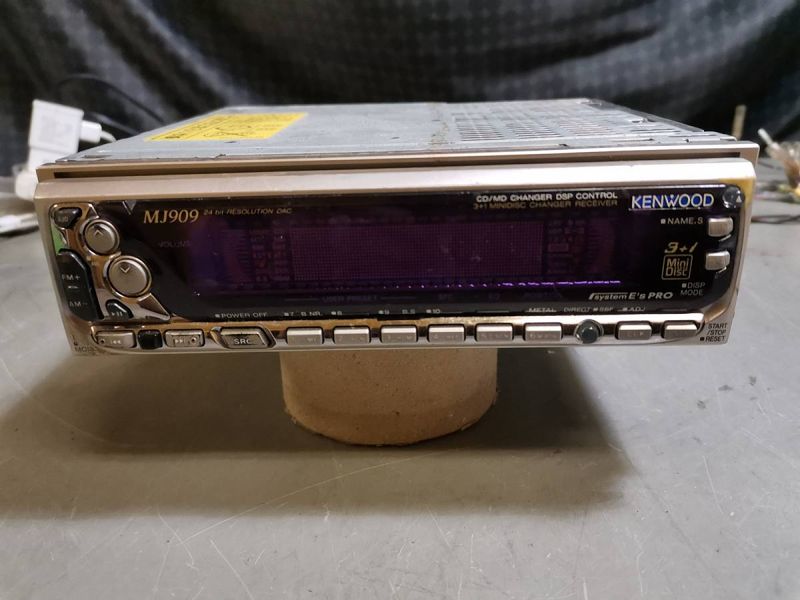

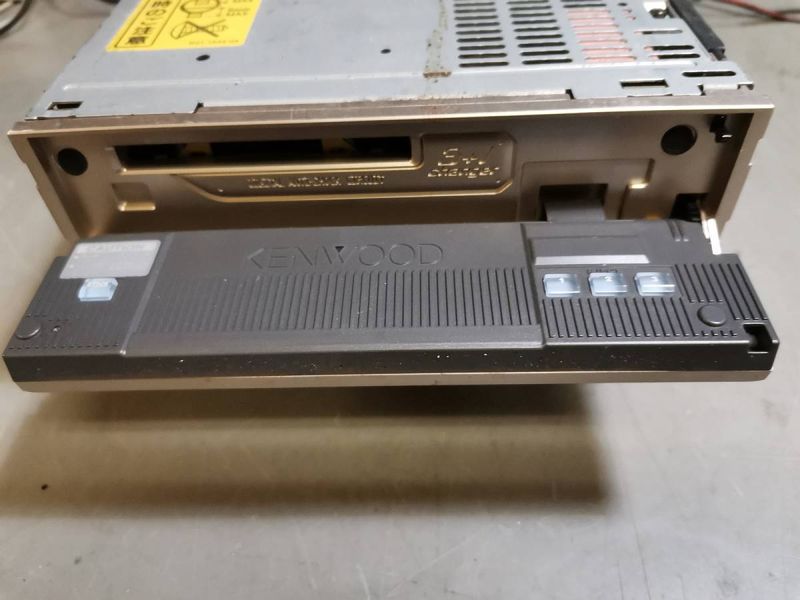

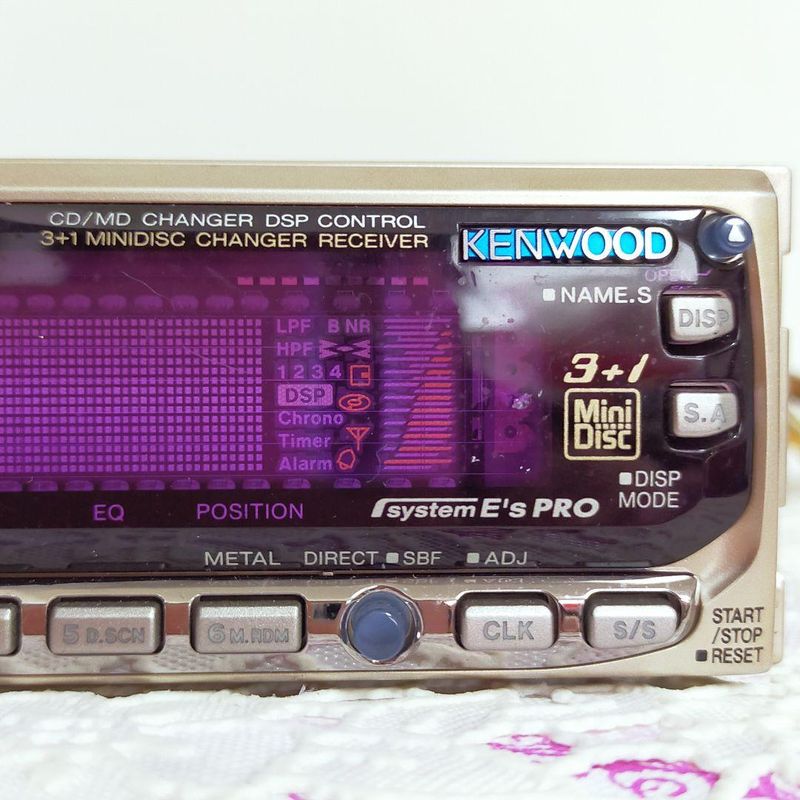

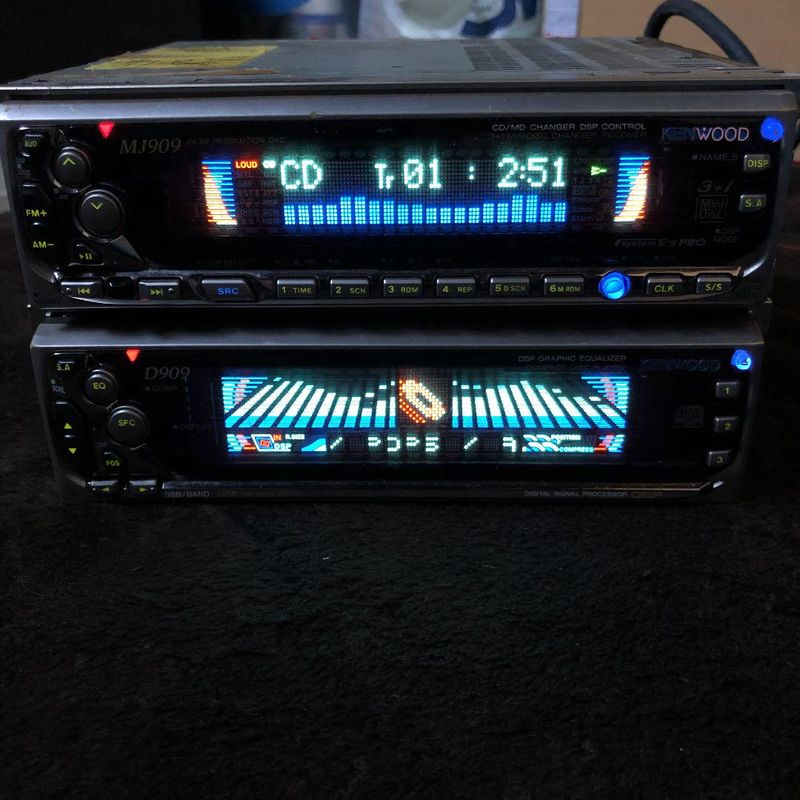

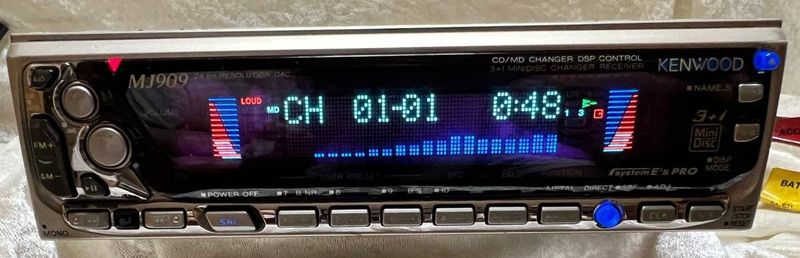

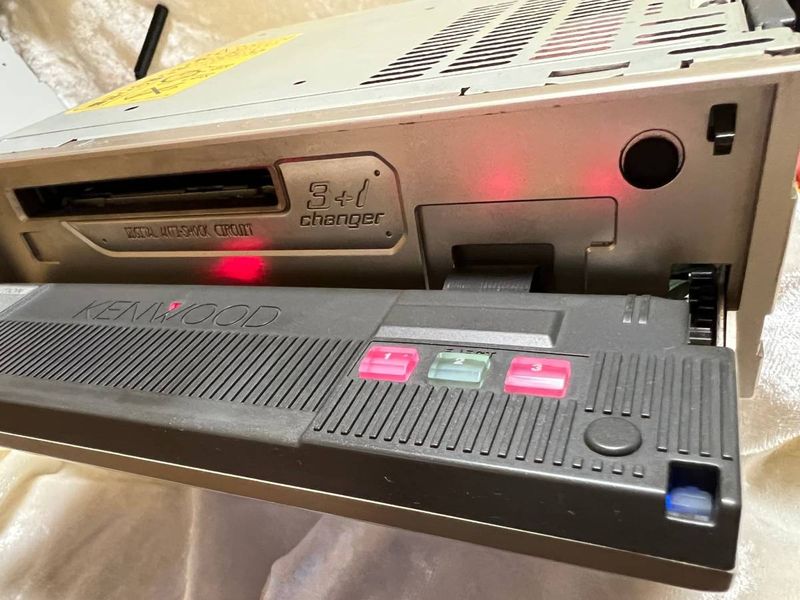

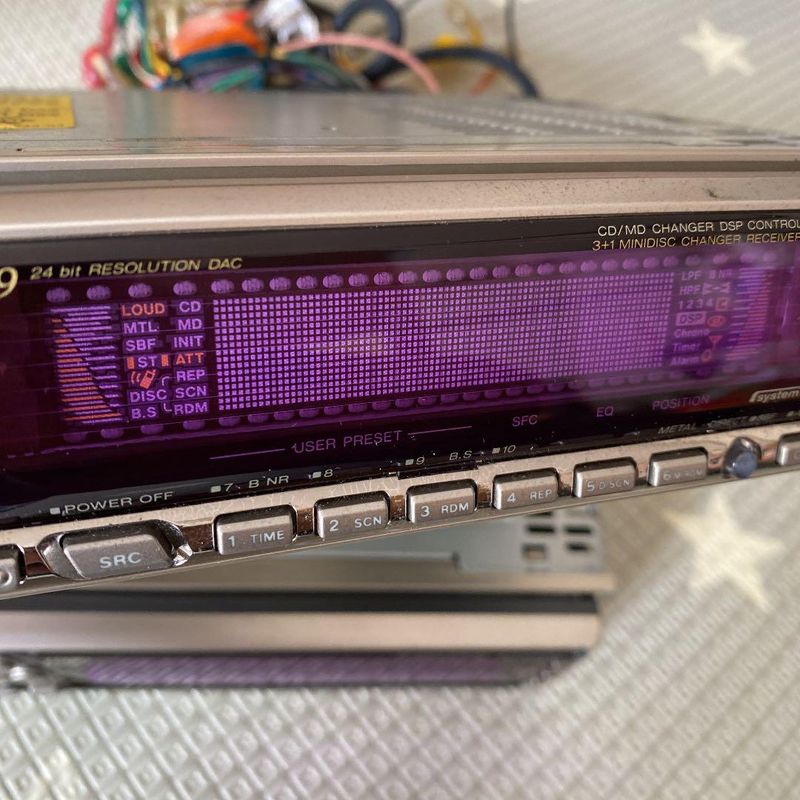

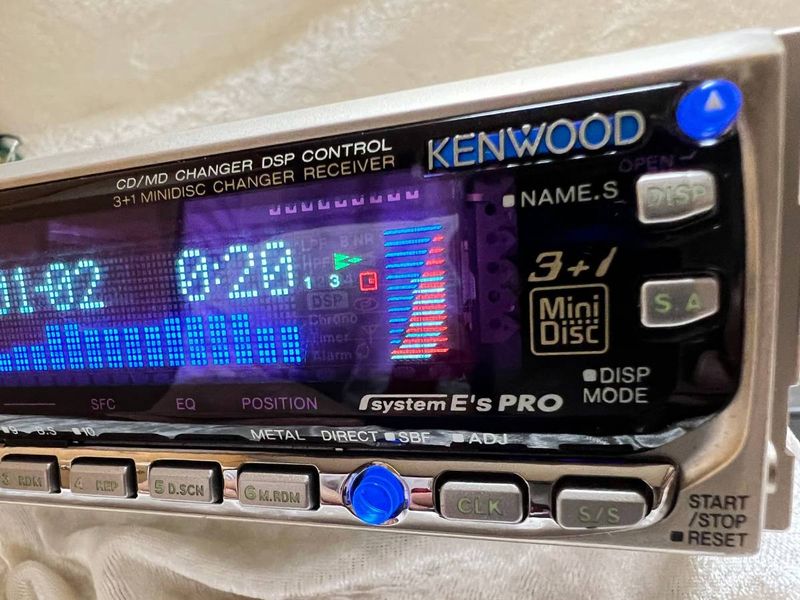

with a bank-type 3+1MD changer in a 1DIN size housing. In addition to enjoying up to 3 MDs as a changer, you can use it as a single MD player by inserting an add-on MD. The display uses a multi-functional full-dot FL tube. Divided into upper and lower tiers, display with variations. The MJ909 has separate ATRAC and DAC circuit configurations, and is equipped with a newly developed “advanced multi-bit DAC” that incorporates the latest technology, which is unusual for car audio MD. It enables 24-bit processing that achieves sound quality comparable to high-quality MD home audio. The newly developed hybrid IC “System E's PRO”, which further improves the functions of “System E's”, twin stabilized power supplies, and an ultra-high power amplifier of 44W x 4ch, achieves the best sound quality in this class

[MD Department]

• Frequency response: 20Hz to 20kHz (±1dB)
• S/N ratio: 98dB (1kHz)
• Dynamic range: 98dB
• Stereo Separation: 92dB

[FM section]

• Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)

[AM section]

• Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ

[Audio part]

• Maximum output: 44W x 4
• Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)

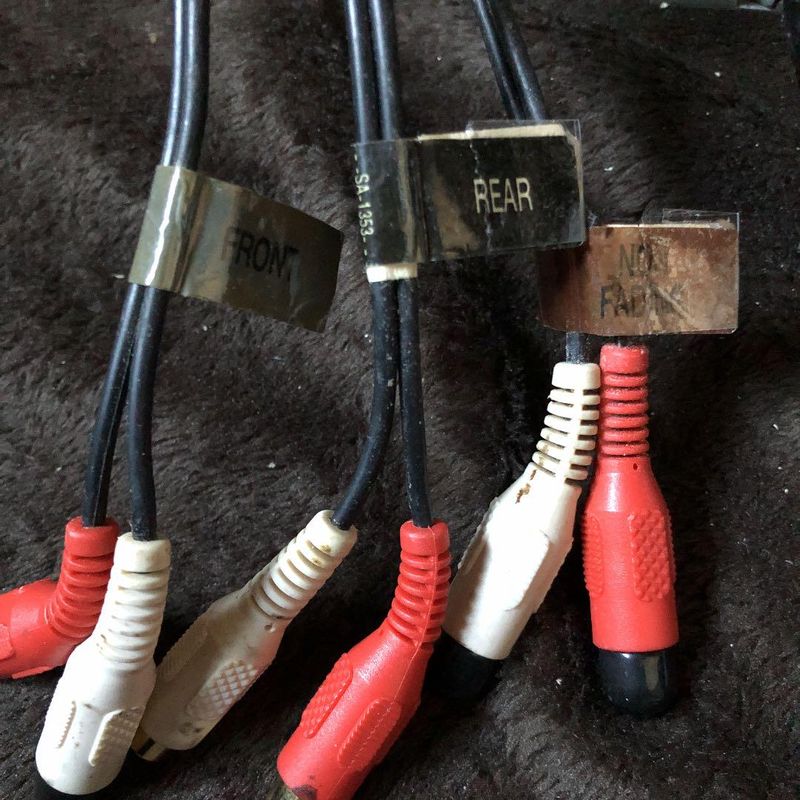

• Pre-out level: 1500mV (FM/10kΩ)

[Common part]

• Power supply voltage: 14.4V (11 to 16V)
• Maximum current consumption: 10A
• Embedded dimensions: 178 (W) x 50 (H) x 160 (D) mm
• Mass: 1,700g

Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]
