Kenwood K-WD01
| Name | K-WD01 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2004/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178W x 100H x 155Dmm |
| Weight | 2100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥85 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |
KENWOOD K-WD01
MD part Frequency characteristic
- 20Hz to 20kHz (± 1dB)
- S / N ratio 95dB (1kHz)
- Dynamic range 90dB
- Stereo separation 90dB
Audio part
- Maximum output 40W x 4
- Rated output 26W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level 1.8V (FM / 10kΩ)
- Pre-out details Front LR, rear LR, subwoofer LR
Content adapted from: Kenwood's site [*] Kenwood Press Release [*] Kenwood Press Release (MiniDisc Wiki mirror) [*]
Manuals
KENWOOD K-WD01 Manual
Repair

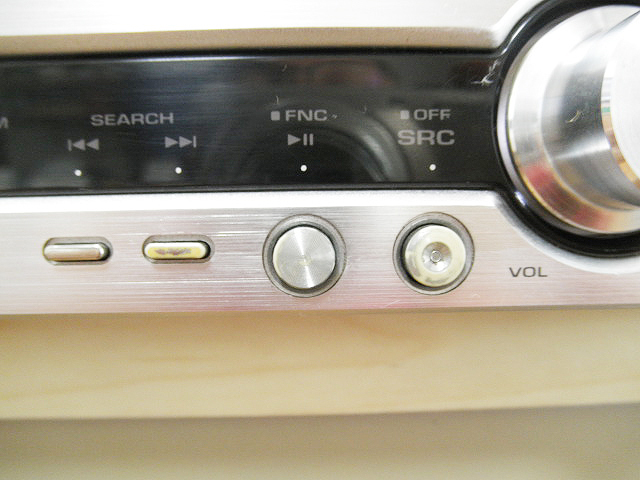

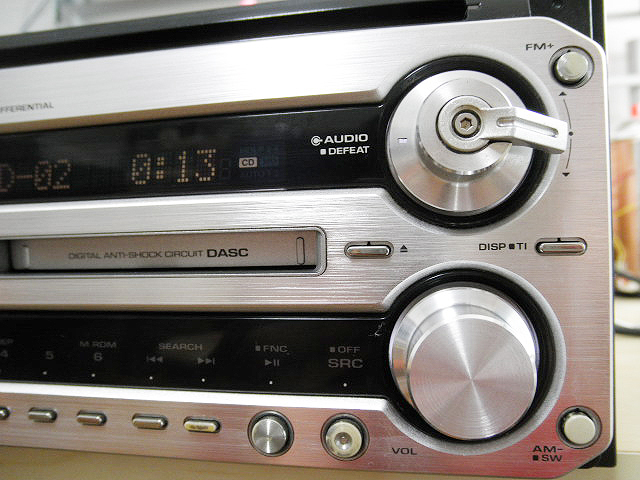

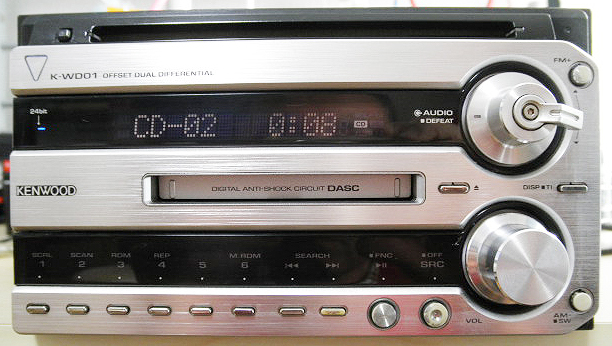

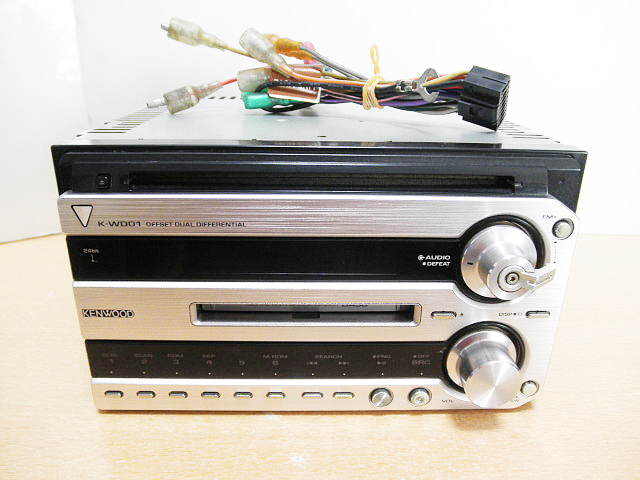

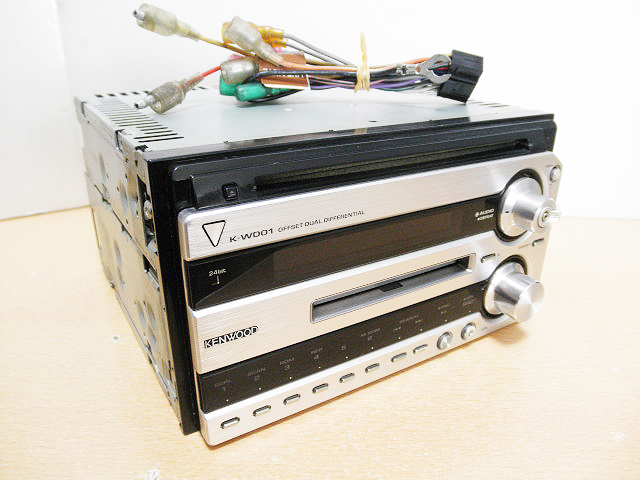

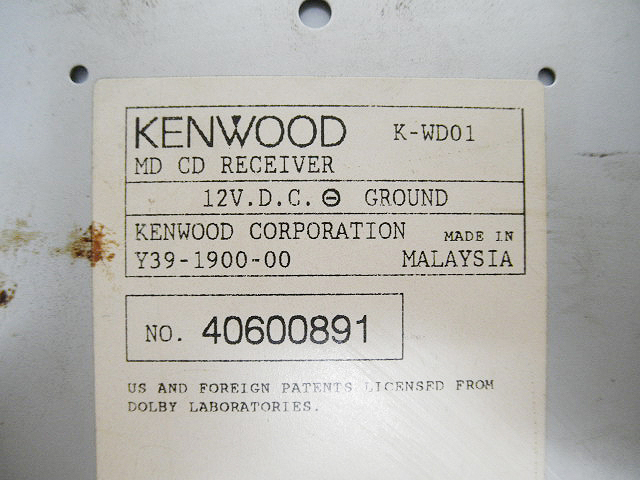

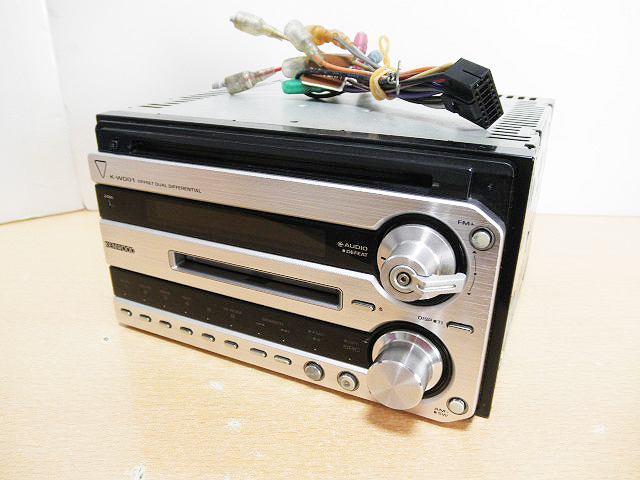

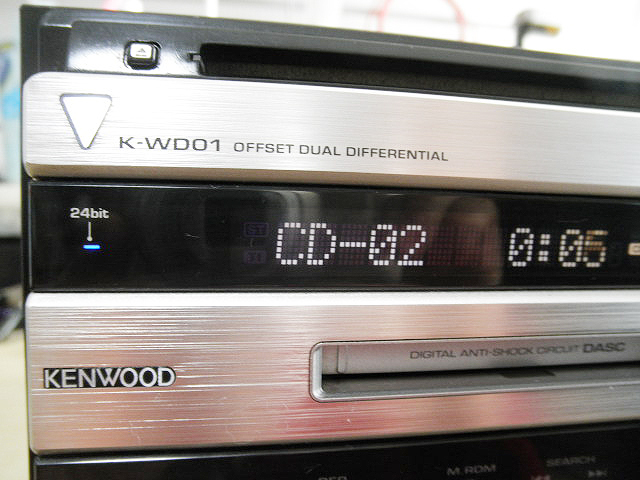

Photos
