Kenwood f-MD77
| Name | F-MD77 |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/02 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 1 DIN 178 x 159 x 50mm |
| Weight | 1.4kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥52 500 | |
| - | |
| Inputs | RCA in |
| Outputs | RCA out, Speaker amplifier |
| Control |
MDLP compatible MD receiver. MD version of the 2002 second gen “feass” releases by Kenwood. The f-MD77 upgraded on the previous generation with a 4 shade Multi-color 3D moving picture display, 2-Color button settings and general build quality improvements. Problems stated in the f-MD7 repair section are no longer present on the f-MD77 and future models. Equipped with a 13 pin terminal and an RCA Auxiliary Input.
[General features]
- MDLP compatible MD receiver

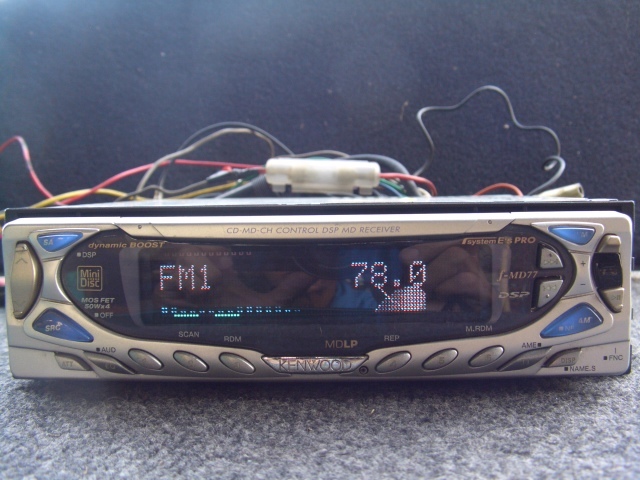

- Multi-color 3D moving picture display
- 2-color button settings
- Name input function
- Electronic Volume, Balance and Fader Audio Control
- 3-Band EQ settings
- EASY DSP built-in
- Equipped with three-mode security function
- Equipped with AUX input terminal
- DISC Changer Control Function
- 2Pre OUT (F, R/Non FAD)
- 3STATE NAVI Mute
- MOS-FET 50W x 4 with built-in amplifier
- Equipped with System E's PRO
- Equipped with Multi-Task LSI Type Q
- Infrared Remote Control Unit
[MD Department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 90dB (1kHz)
- Dynamic range: 90dB
- Stereo Separation: 85dB
[FM Department]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz step)
[AM Department]
- Receiving frequency range: 522kHz to 1629kHz (9kHz step)
[Audio Department]
- Maximum power: 50W×4
- Rated power: 30W x 4 (4Ω, 1kHz, 10% THD)
- Pre-out level: 1800mV (MD/10kΩ
Content adapted from: Kenwood News Release Page [*] av.watch [*] webcg news [*]
