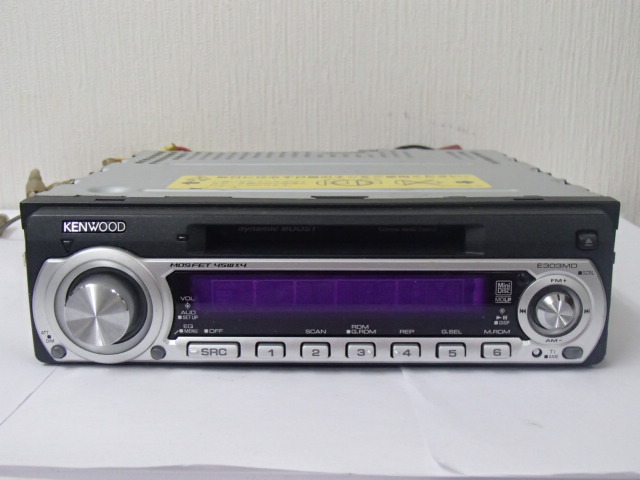

Kenwood E303MD
| Name | E303MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/01 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 1 DIN |
| Weight | 1.1kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥26 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |
The unit comes with Japan FM band:
- FM: 76.0MHz-90.0MHz (100kHz step)
- AM: 522kHz to 1629kHz (9kHz step)
Power consumption at 12V (no speakers connected):
- Off (BAT+ACC connected): ~60mW (~5mA)
- Standby: ~6.24W (~0.52A)
- MD Play: ~9.00W (~0.75A) or up to ~12.00W (~1.0A) while TOC reading
- FM Tuner: ~6.24W (~0.52A)
- AM Tuner: ~6.48W (~0.54A)
- Test mode (all display segments are lit): ~6.24W (~0.52A)
Note: The display dim on/off doesn't visibly affect current consumption.

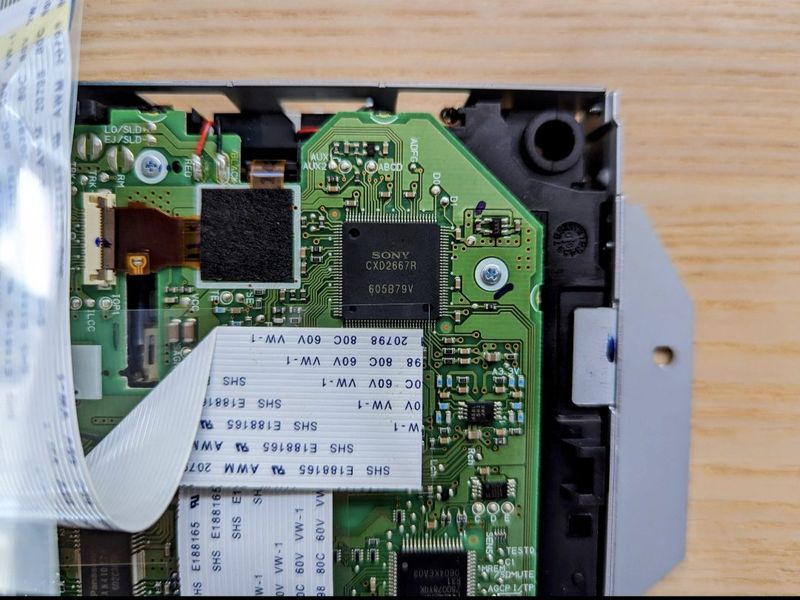

ATRAC IC: CXD2667R
Content adapted from: Kenwood News Release Page [*] av.watch [*]
Manuals
- E303MD User Manual (Japanese)
- E303MD User Manual (English, machine-translated)
- KDC-3031A Service Manual mentions E303MD

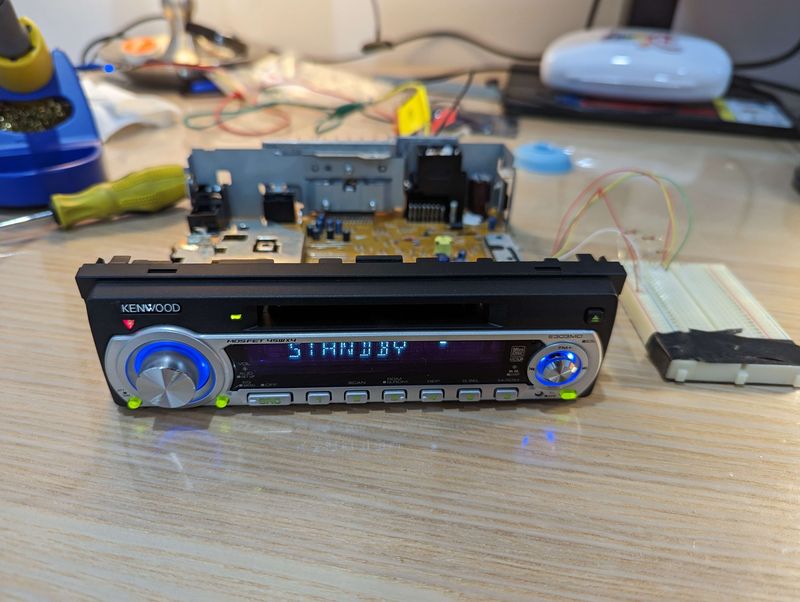

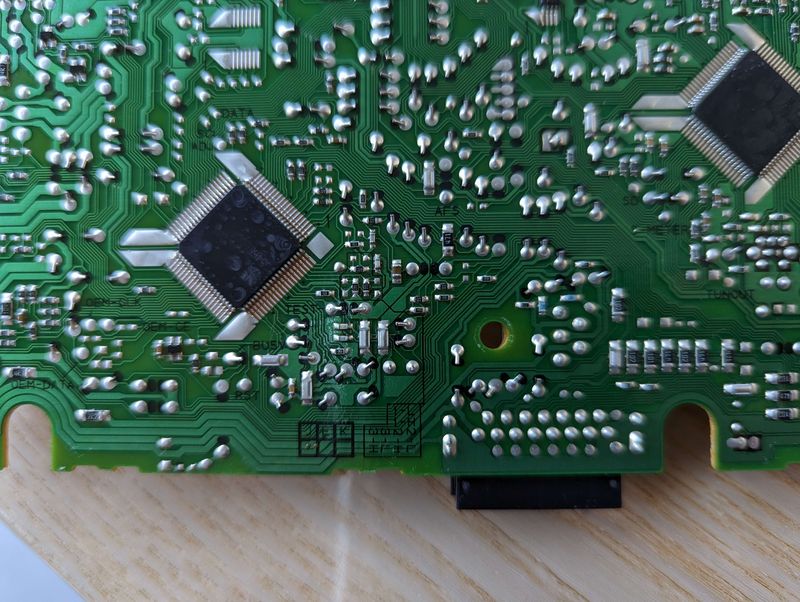

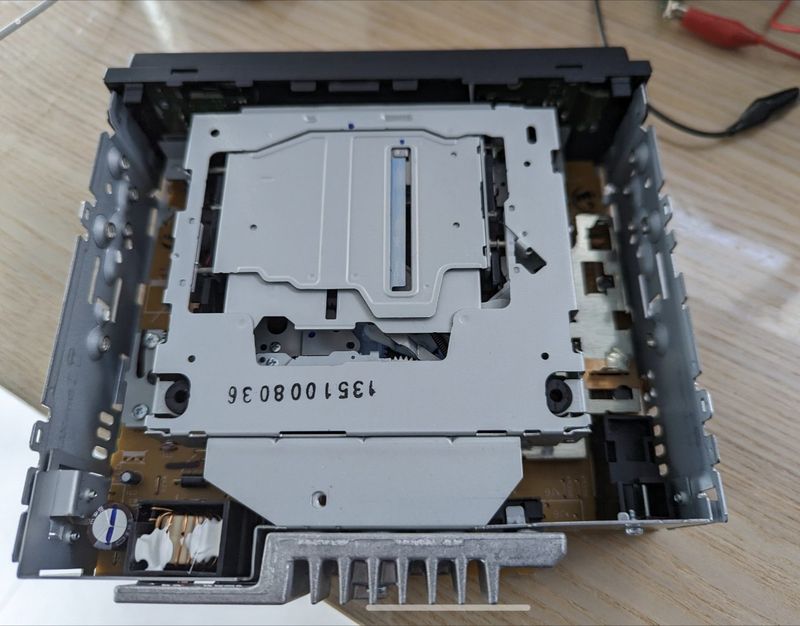

- E303MD teardown confirmed the main PCB matches the one from above Service Manual
Repair
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email.
