Kenwood E212MD
| Name | E212MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 178W × 50H × 160Dmm |
| Weight | 1100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥25 200 | |
| - | |
| Inputs | |
| Outputs | Speaker amplifier |
| Control |

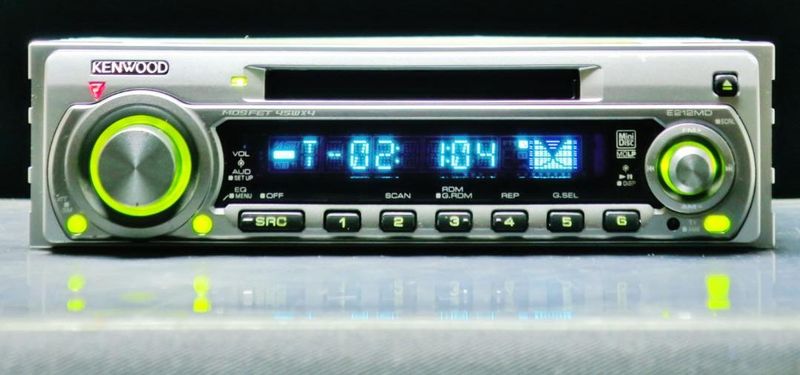

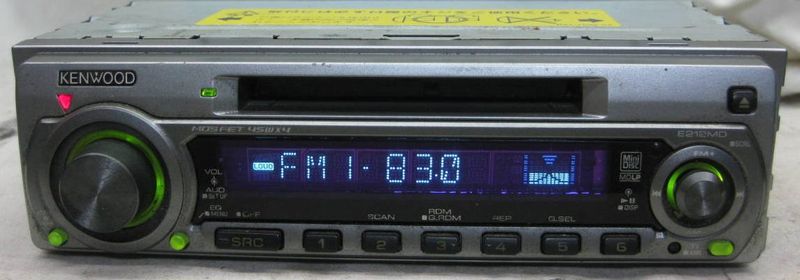

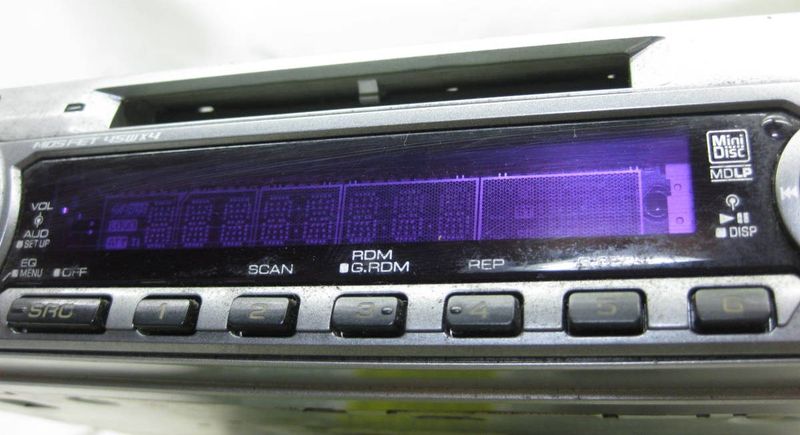

E212MD - silver face, E212MDU - gray face. 1DIN size MD receiver that supports MDLP / NetMD. The maximum output of the amplifier is 45W x 4ch, and the rated output is 28W x 4ch (at 4Ω). It also has a built-in FM / AM tuner. “DB equalizer” and “rotary encoder” are also installed, but “Supreme” is not installed.
[MD part]
- Frequency characteristics 20Hz to 20kHZ (± 2dB)
- S / N ratio 90dB (1kHz)
- Dynamic range 90dB
- Stereo separation 85dB
[FM part]
- Reception frequency range 76.0MHz-90.0MHz (100kHz step)
- Practical sensitivity 9.3dBf (0.8μV / 75Ω)
- Frequency characteristics 30Hz-15kHz ( ± 3.0dB)
- Stereo separation 40dB (1kHz)
[AM part]
- Reception frequency range 522kHz to 1629kHz (9kHz step)
- Sensitivity 28dBμ (25μV)
[Audio part]
- Maximum output 45W x 4
- Rated output 28W x 4 (4Ω) , 1kHz, 10% THD or less)
[Common part]
- Power supply voltage 14.4V (11 ~ 16V)
- Maximum current consumption 10A
- Embedded size 178W × 50H × 160Dmm
- Mass 1.1kg
Content adapted from: AV Watch [*] Kenwood Press Release [*]
