Kenwood DPX-990MD
| Name | DPX-990MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 1998/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 178 × 100 × 155 mm |
| Weight | 3000 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥126 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |
kenwood dpx-990md
[MD player part]
- Digital filter: 8 times oversampling
- D/A converter: 1bit
- Frequency characteristics: 20Hz - 20kHz (±1dB)
- S/N ratio: 80dB (1kHz)
[CD player part]
- Digital filter: 8 times oversampling D/A converter: 1bit Frequency characteristics: 10Hz - 20kHz (±1dB) S/N ratio: 93dB (1kHz)
[Tuner part]
- Receiving frequency range: FM 76.0MHz - 90.0MHz (100kHz steps ), AM 522kHz to 1,629kHz (9kHz steps)
[DSP/EQ section]
- Equalizer center frequency band: 60, 120, 250, 500, 1k, 2k, 4k, 8k, 16kHz
[Audio section]
- Maximum output: 40W x 4
- Rated output: 25W×4 (4Ω, 30Hz～20kHz, 1%THD)
[Common section]
- Power supply voltage: 14.4V (11～16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178(W)× 100(H)×160(D)mm Weight: 3.0kg
Content adapted from: Kenwood Press Release [*]
Manuals
Kenwood DPX-990MD User Manual JP
Repair

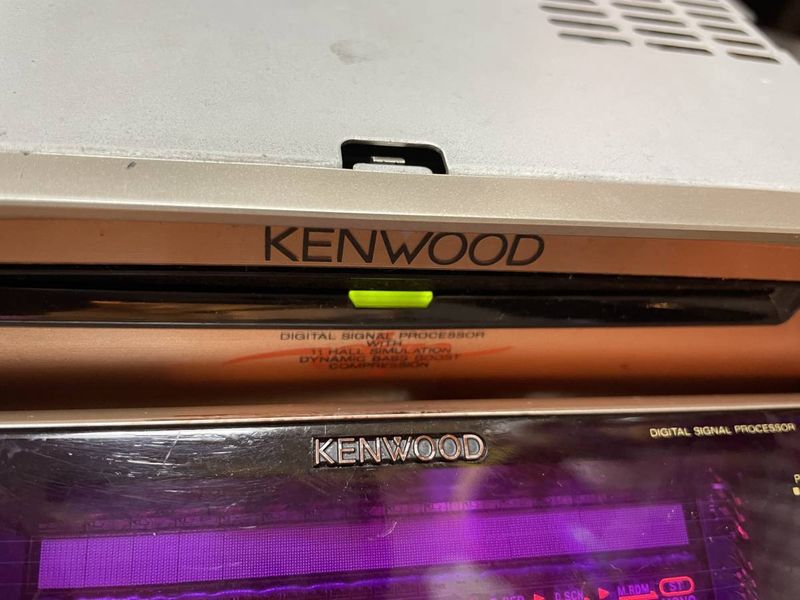

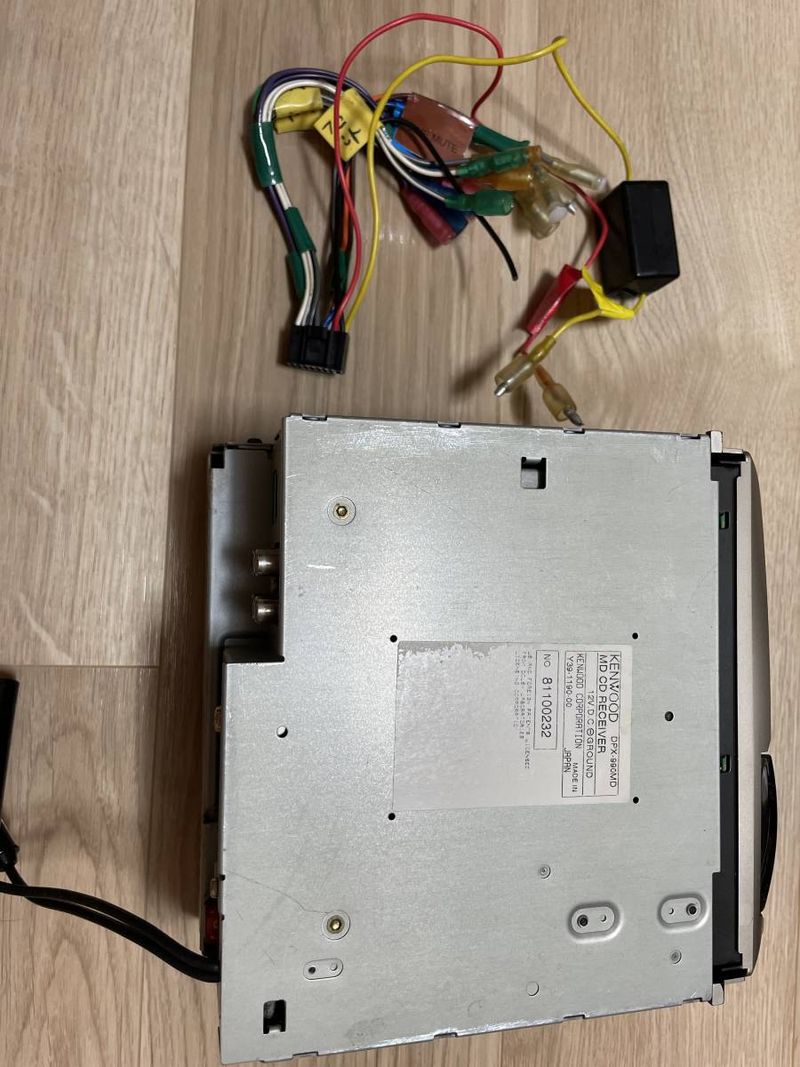

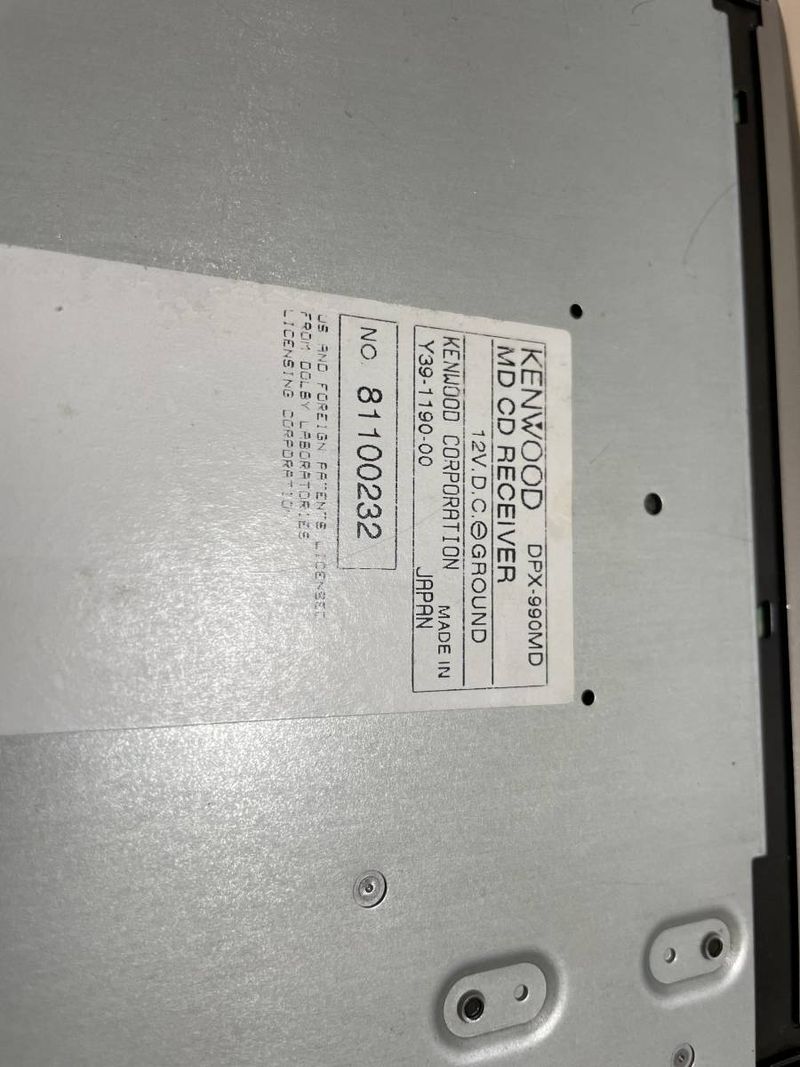

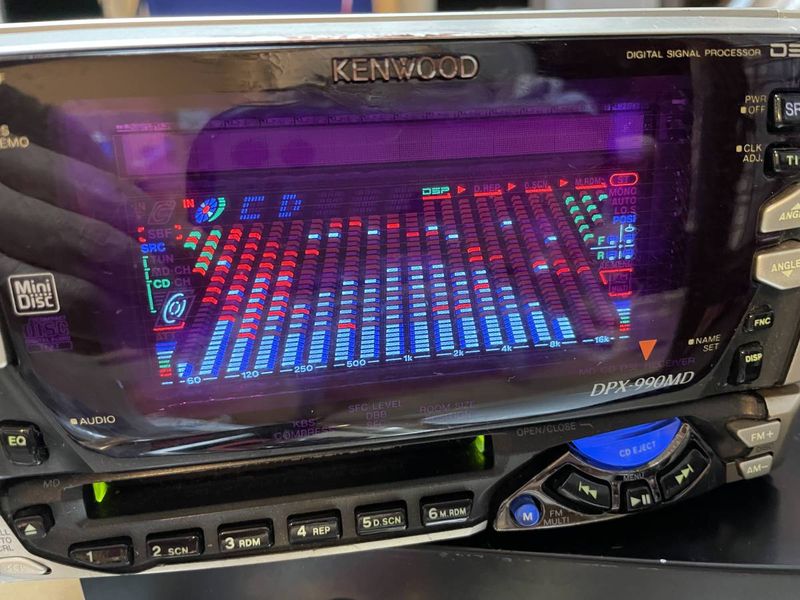

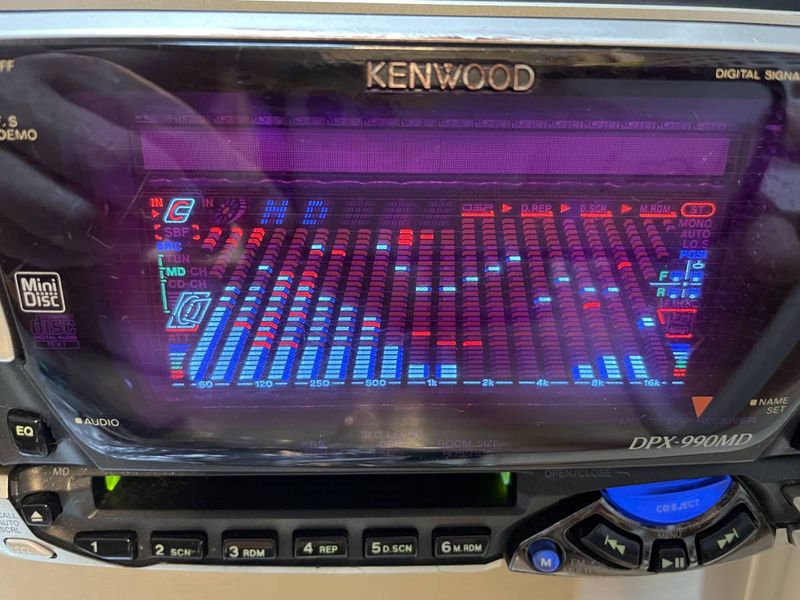

Photos
