Kenwood DPX-8200WMP
| Name | DPX-8200WMP |
|---|---|
| Manufacturer | Kenwood |
| Released | 2002/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 2-Din 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 2800 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥84 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |
Kenwood 8200WMP. There seems to be a Gathers branded variant (DPX-8200WMPH) probably made for Honda OEM.
The DPX-8200WMP is a model in which the 9200WMP 16-gradation organic EL display is changed to an 8-gradation FL display. In addition, SFC is omitted in 6 patterns.
Taken from the MD pickup (x92-4570-00) manual:
- Laser GaAIAs (λ=790±20nm)
- Digital Filter 8 Times Over Sampling
- D/A Converter 1 Bit
- Frequency Response 20Hz~20kHz (±2dB)
- T.H.D. 0.02% (1kHz)
- S/N Ratio 95dB (1kHz)
- Dynamic range 93dB
- Channel Separation 85dB
- Spindle Speed 950~450rpm
Uses the CXA2523AR and CXD2667R for decoding.
Content adapted from: Kenwood press release [*] Kenwood press release (MiniDisc Wiki mirror) [*] av.watch [*]
Manuals
Kenwood DPX-8030MD User Manual ENG (should be equivalent)
Kenwood DPX-8030MD Service Manual (Partial)
Repair
Photos

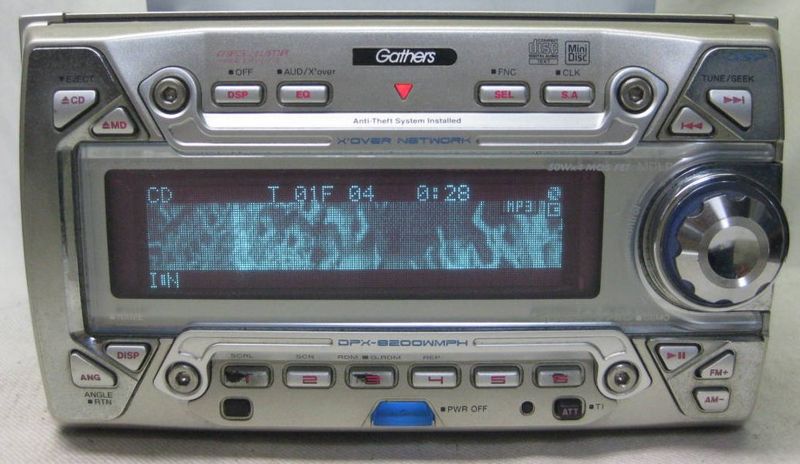

Gathers DPX-8200WMPH:
Have photos or data to add? Edit the page! We do not accept contributions via email.
