Kenwood DPX-8100MJi
| Name | DPX-8100MJi |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 3300 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥94 500 | |
| - | |
| Inputs | |
| Outputs | |
| Control |

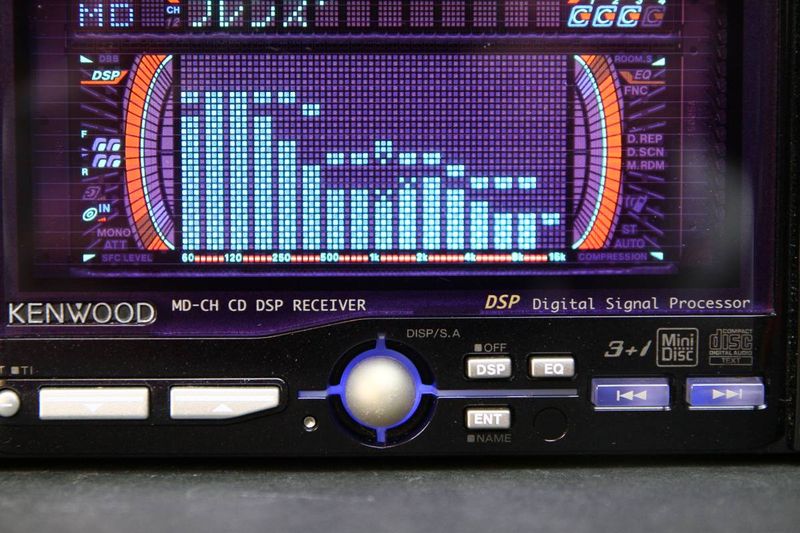

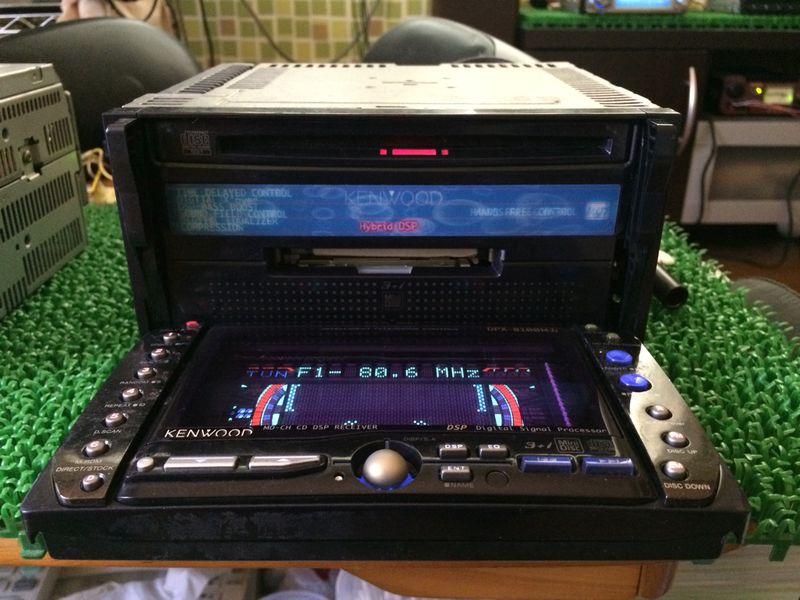

“DPX-8100MJi” is an MD changer/CD receiver that uses an electric full open panel system. The large display, unique to 2DIN, is equipped with a beautiful “hyper cross light display” that alternately arranges the luminescent colors of the spectrum analyzer display tube. In addition, like the DPX - 9100MJi, it has a built-in mobile phone hands-free function that can automatically receive calls . .

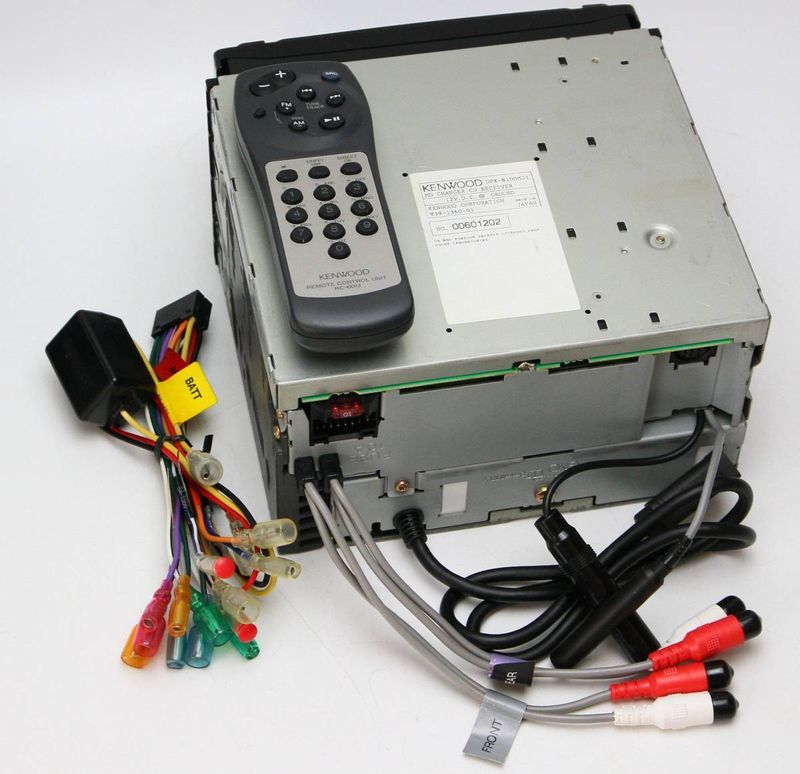

Equipped with a newly developed high-performance pickup and high-precision servo circuit, it can also read music signals recorded not only on CD-R but also on CD-RW *2 . The 2DIN size body is equipped with a bank-type 3+1 in-dash MD changer that allows you to enjoy up to 3 MDs as a changer. . Equipped with “Digital Direct” that directly inputs digital signals to the DSP for high-quality CD/MD playback. Digital sound quality is further improved by reducing the number of signal conversions. Equipped with a hybrid DSP that allows you to enjoy a variety of sound qualities, and a built-in 47W x 4ch ultra-high power amplifier. Includes remote control.
*1: CA-HF100 (for normal mobile phones) and CA-HF200 (for cdmaOne), both 5,000 yen, excluding tax *2: MP3 data playback is not supported.
[MD department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 93dB (1kHz)
- Dynamic range: 93dB
- Stereo Separation: 85dB
[CD section]
- Frequency response: 10Hz to 20kHz (±1dB)
- S/N ratio: 95dB (1kHz)
- Dynamic range: 95dB
- Stereo Separation: 88dB
[FM section]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[AM section]
- Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ
[EQ section]
- Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
- Variable range: ±12dB
[Audio part]
- Maximum output: 47W x 4
- Rated output: 29W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1500mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
- Mass: 3.3kg
Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]
Manuals
Kenwood DPX-8100MJi User Manual JP
Repair

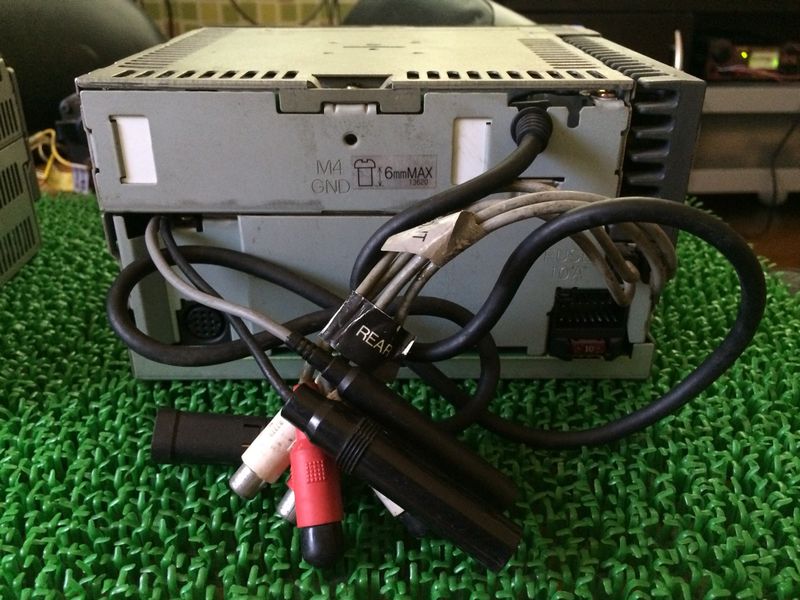

Photos
