Kenwood DPX-8000MJ
| Name | DPX-8000MJ |
|---|---|
| Manufacturer | Kenwood |
| Released | 1999/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-DIN 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 3100 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥105 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |

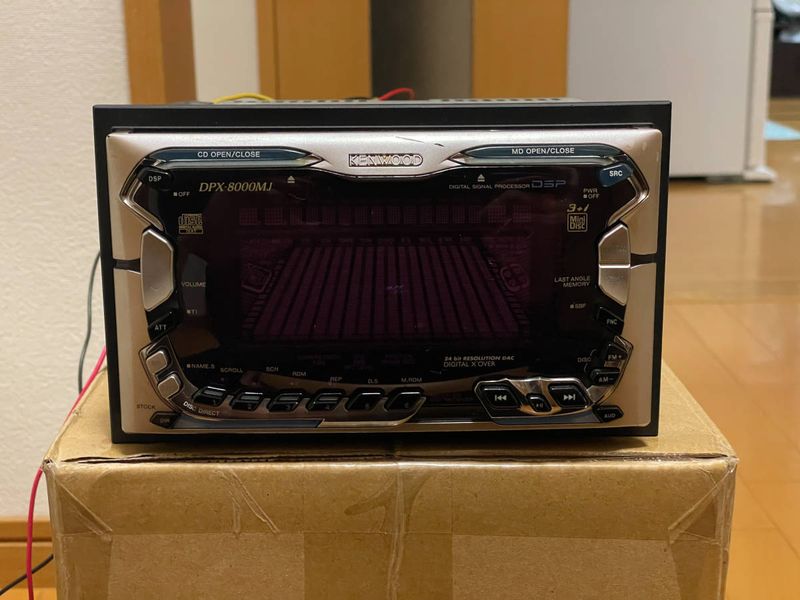

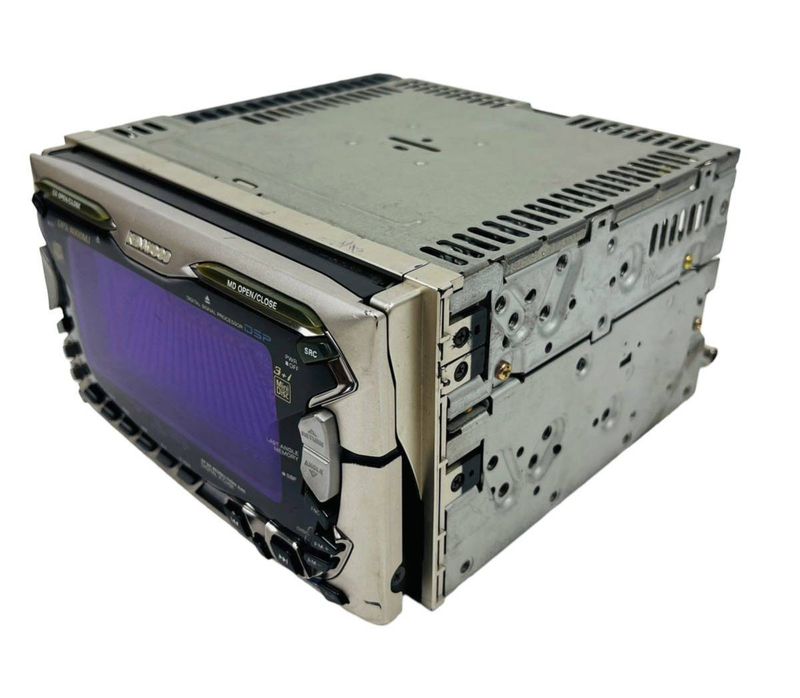

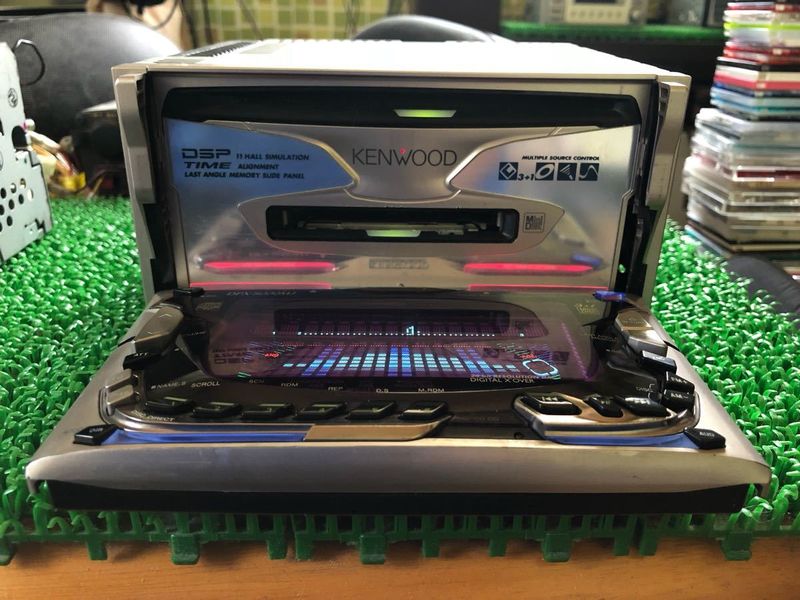

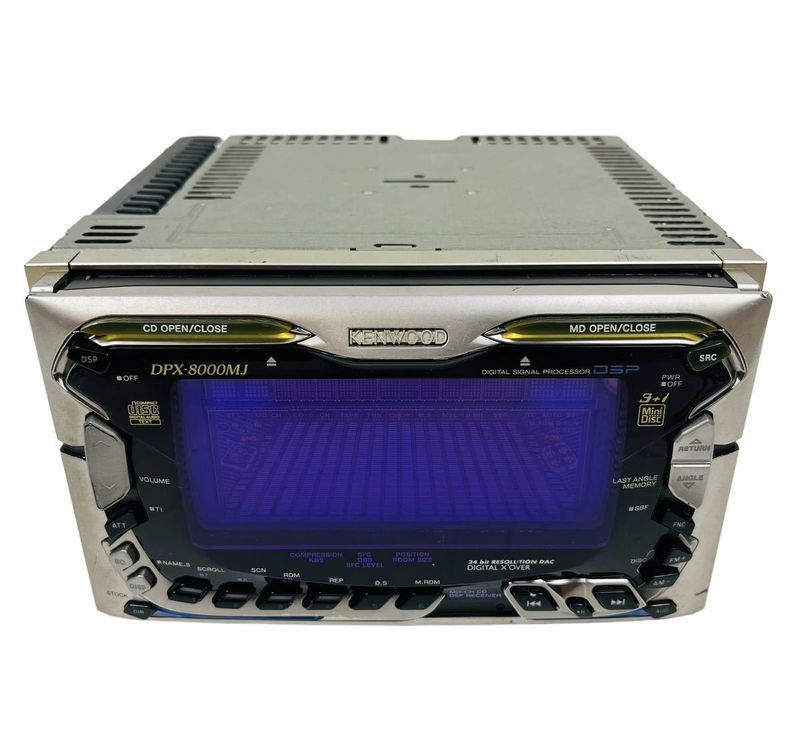

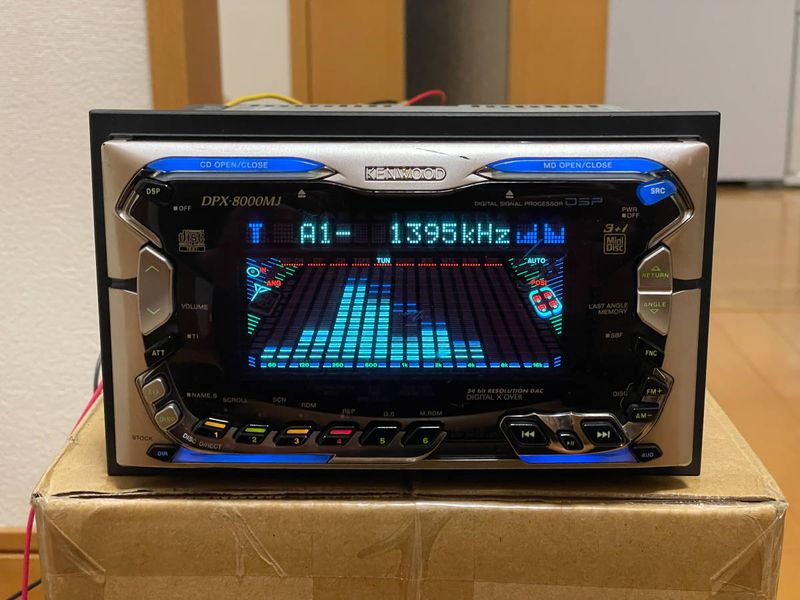

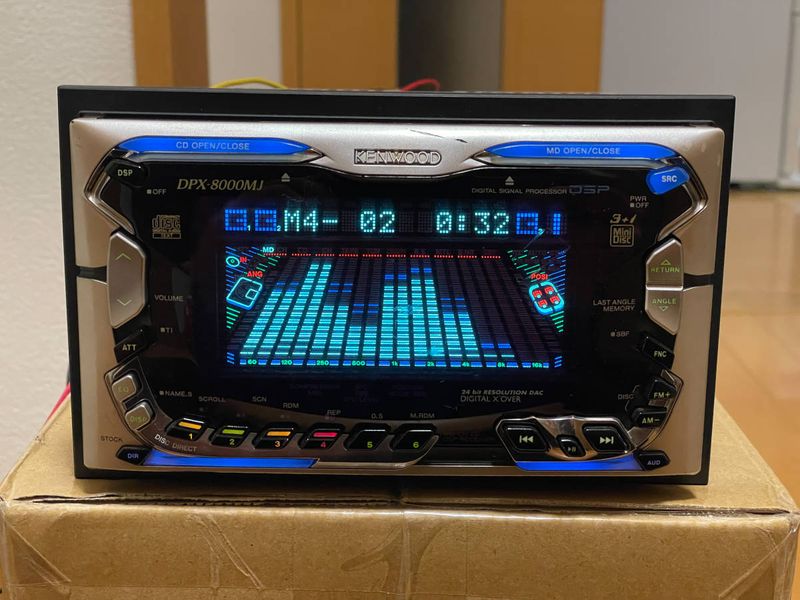

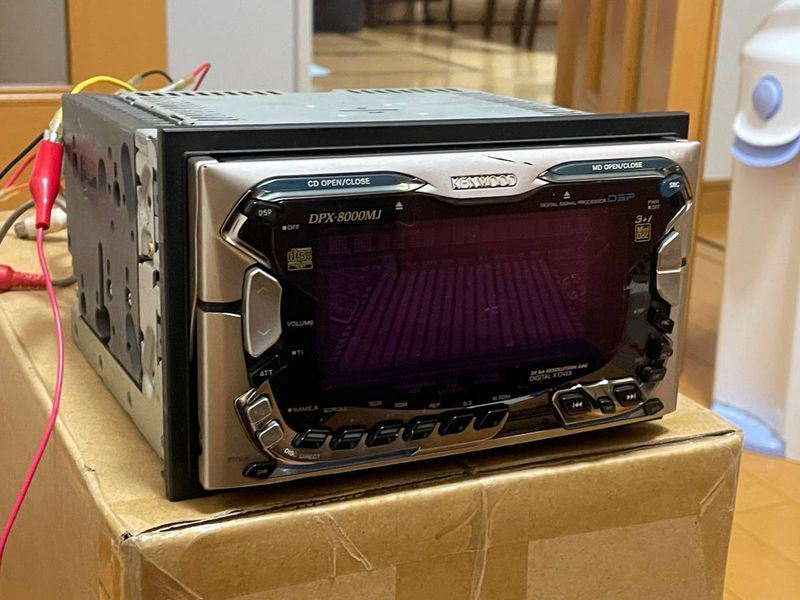

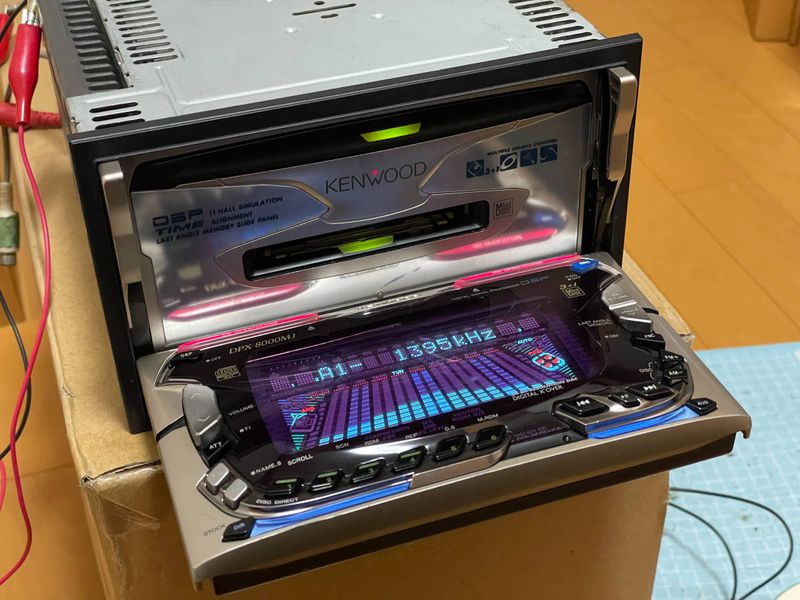

The Kenwood DPX-8000MJ MD is a MD changer/CD receiver that uses an electric full open panel system. The bank system 3+1MD changer is carried in the main body of 2DIN size. Equipped with a newly developed “advanced multi-bit DAC” that incorporates the latest technology for MD playback. It enables high-quality 24-bit MD playback
[CD section]
- Frequency response: 10Hz to 20kHz (±1dB)
- S/N ratio: 93dB (1kHz)
- Dynamic range: 93dB
- Stereo Separation: 85dB
[MD department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 100dB (1kHz)
- Dynamic range: 96dB
- Stereo Separation: 90dB
[FM section]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[AM section]
- Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ
[EQ section]
- Equalizer center frequency: 60,120,250,500,1k,2k,4k,8k,16kHz
- Variable range: ±12dB
[Audio part]
- Maximum output: 44W x 4
- Rated output: 28W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1500mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
- Mass: 3.1kg
Content adapted from: Kenwood Press Release [*] Kenwood Press Release (MiniDisc Wiki mirror) [*]
Manuals
Repair

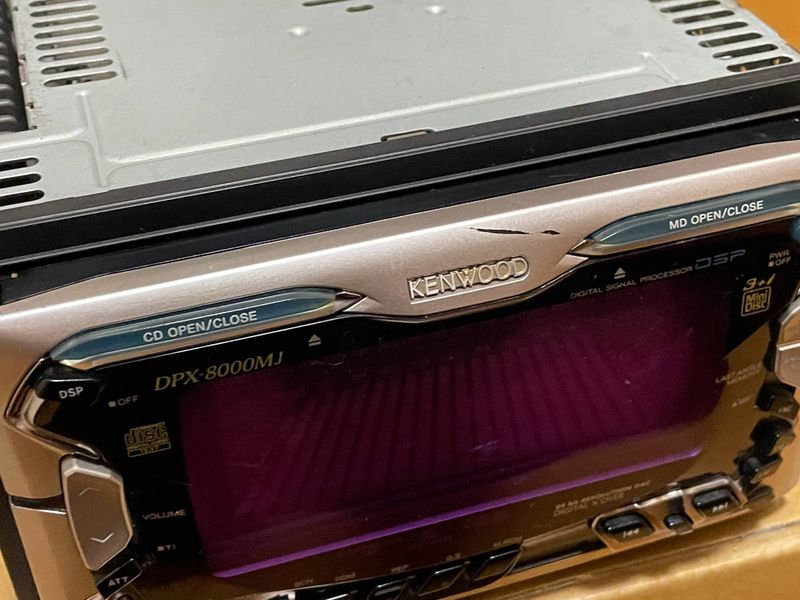

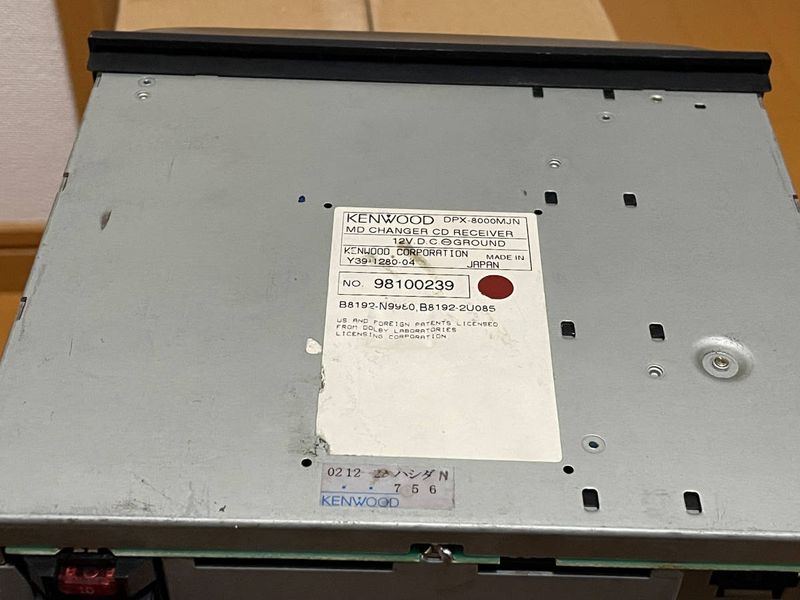

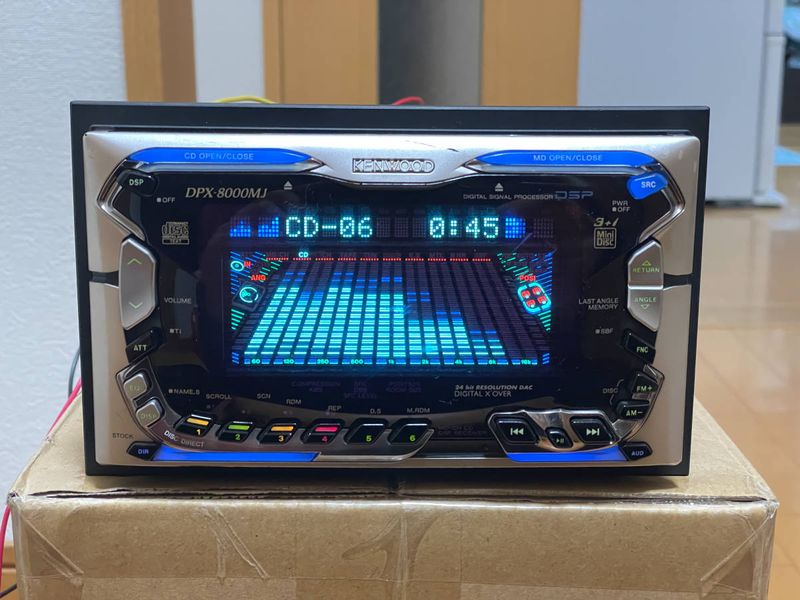

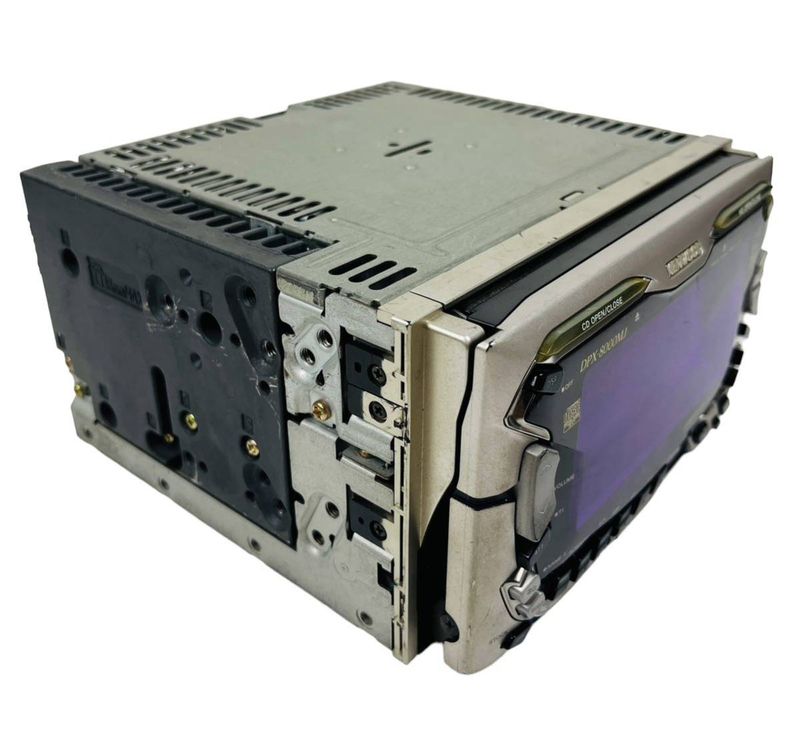

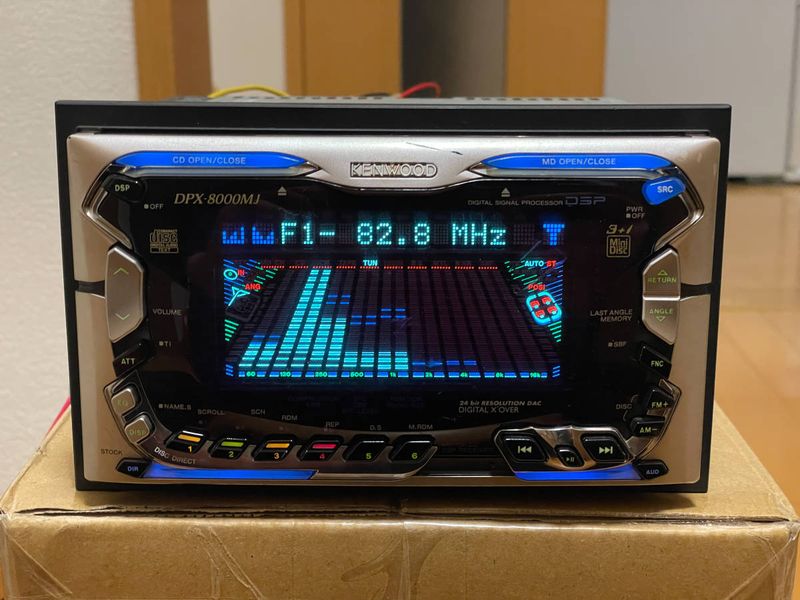

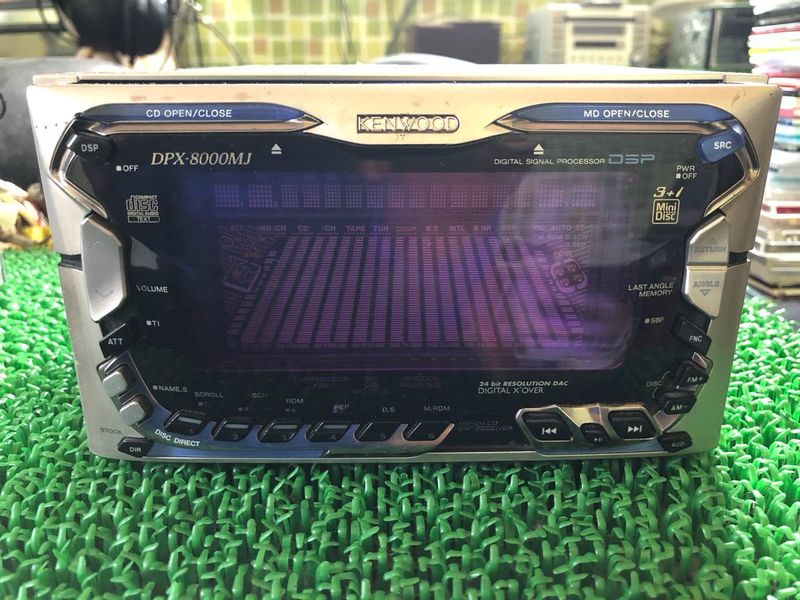

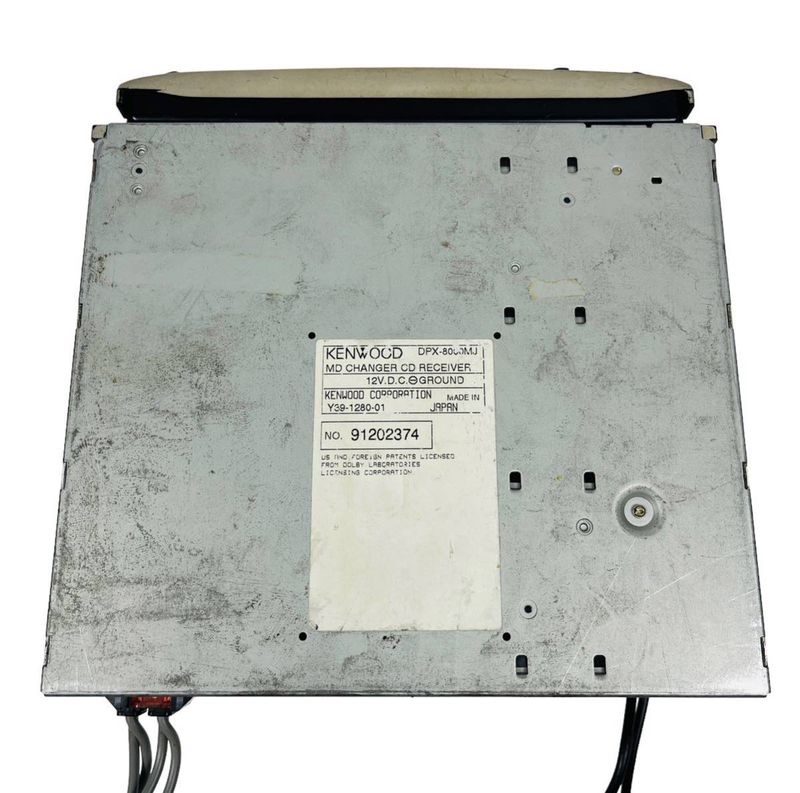

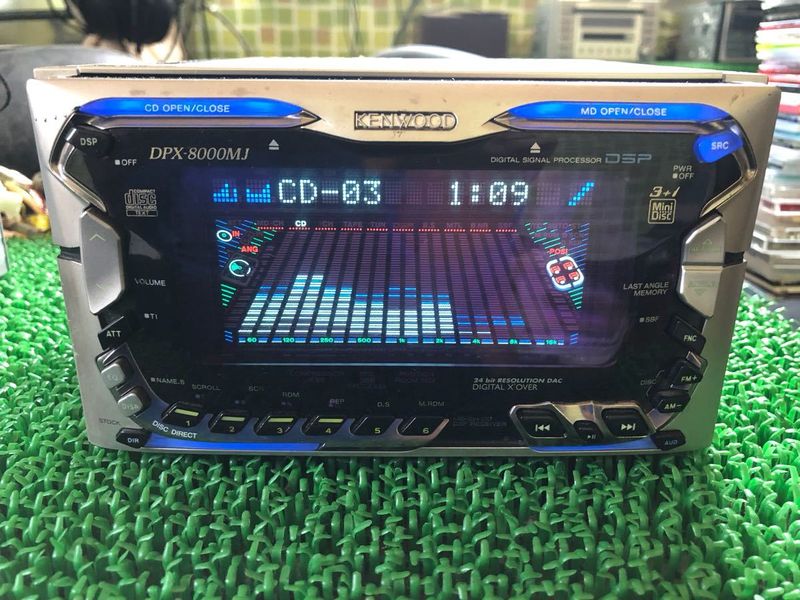

Photos
