Kenwood DPX-770MD

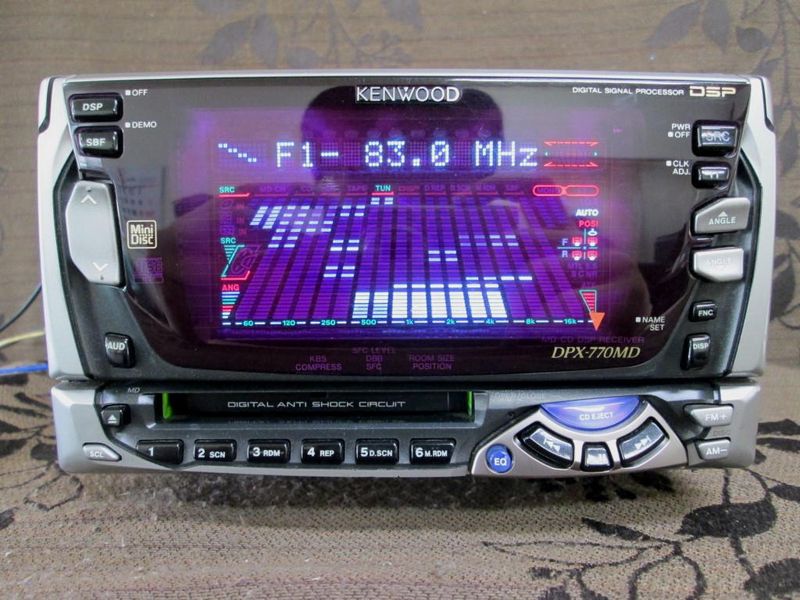

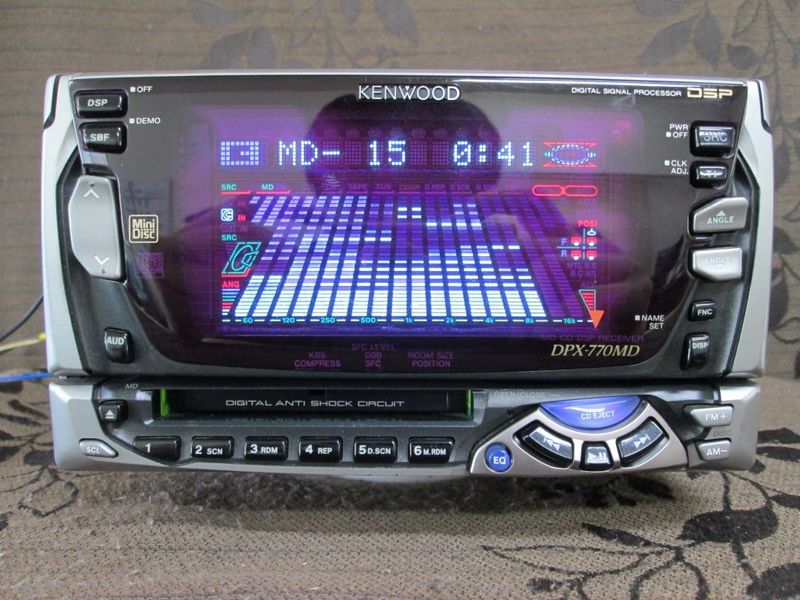

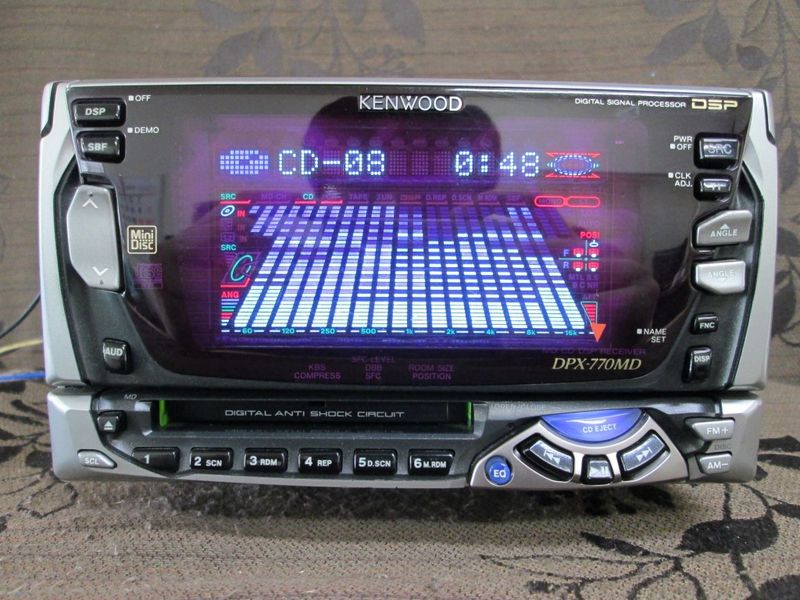

This is a new full-auto slide panel type MD/CD receiver that achieves unique operation by adopting a thin structure “H2 (Half Height) MD mechanism”. Equipped with a “cross light display” that develops a novel and vivid display by mixing blue and white spectrum analyzers. In addition to adopting a logical flow construction structure, the hybrid IC “System E's” is installed to achieve high-quality sound reproduction. Furthermore, it is equipped with a DSP capable of hall simulation in 11 modes and a 9-band equalizer. Supports CD text. Equipped with a 13-step display brightness adjustment function. Built-in 40W x 4ch high power amplifier.

[MD player part]

• Digital filter: 8 times oversampling
• D/A converter: 1bit
• Frequency characteristics: 20Hz - 20kHz (±1dB)
• S/N ratio: 80dB (1kHz)

[CD player part]

• Digital filter: 8 times oversampling D/A converter: 1bit
• Frequency characteristics: 10Hz - 20kHz (±1dB)
• S/N ratio: 93dB (1kHz)

[Tuner part]

• Receiving frequency range: FM 76.0MHz - 90.0MHz (100kHz steps )
• AM 522kHz to 1,629kHz (9kHz steps)

[DSP/EQ section]

• Equalizer center frequency band: 60, 120, 250, 500, 1k, 2k, 4k, 8k, 16kHz

[Audio section]

• Maximum output: 40W x 4
• Rated output: 25W×4 (4Ω, 30Hz～20kHz, 1%THD)

[Common part]

• Power supply voltage: 14.4V (11～16V)
• Maximum current consumption: 10A
• Embedded size: 178(W)× 100(H) x 160(D)mm Mass: 3.0kg

Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]

Kenwood DPX-770MD User Manual JP
