Kenwood DPX-7100MDi
| Name | DPX-7100MDi |
|---|---|
| Manufacturer | Kenwood |
| Released | 2000/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-DIN 178 (W) x 100 (H) x 155 (D) mm |
| Weight | 2900 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥73 500 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control |

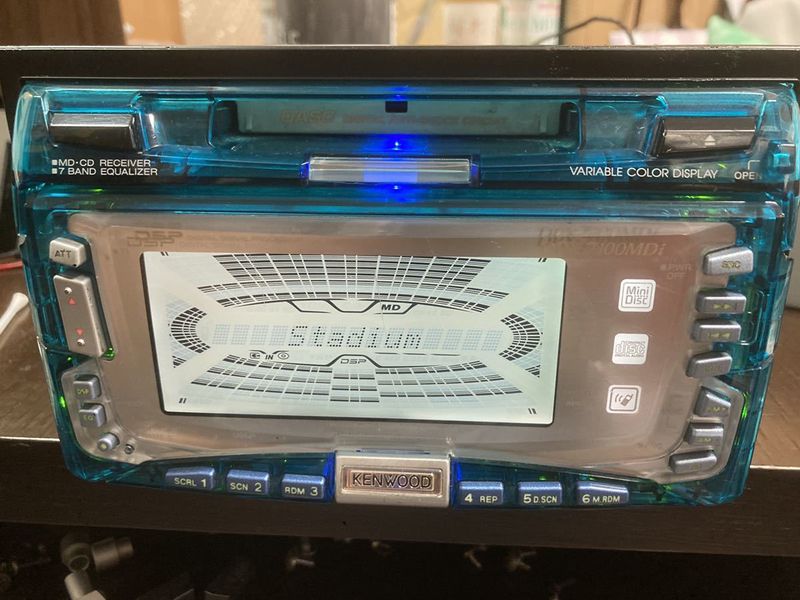

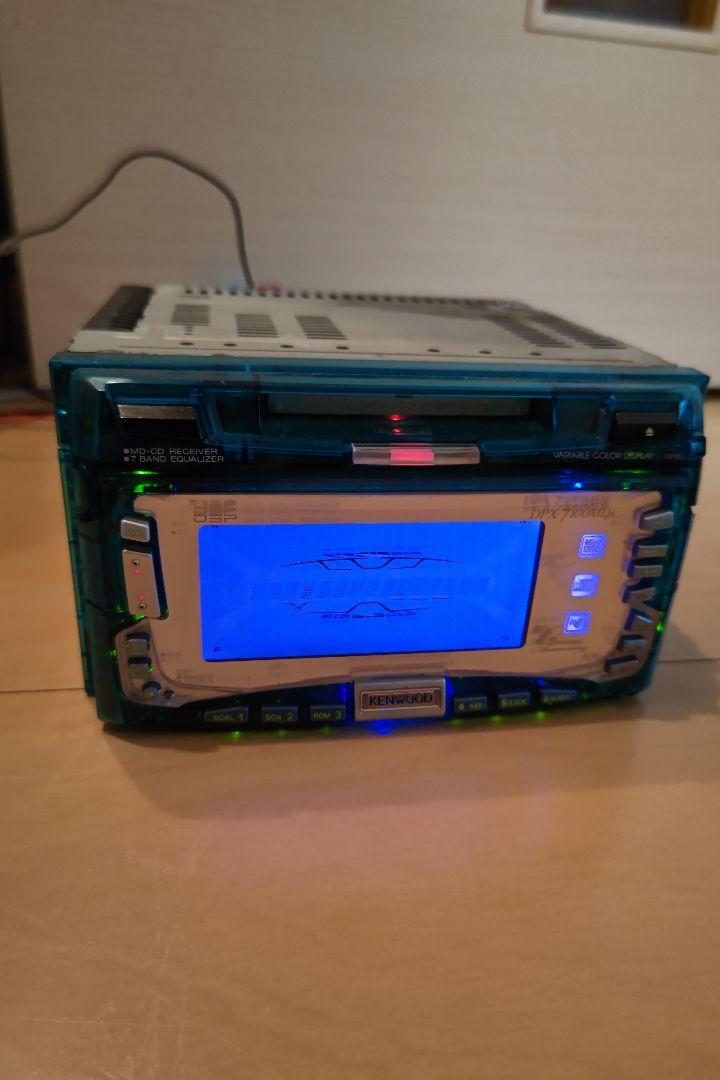

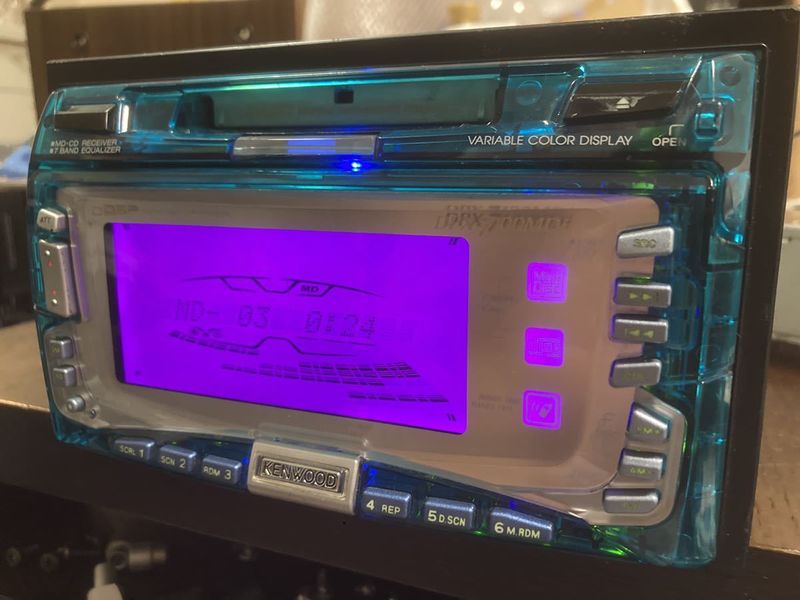

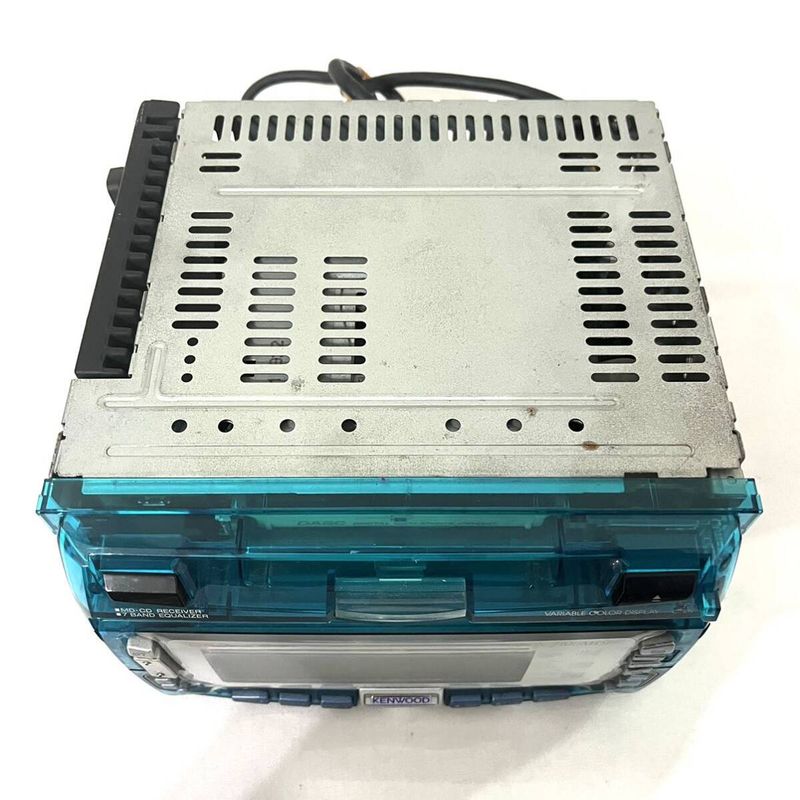

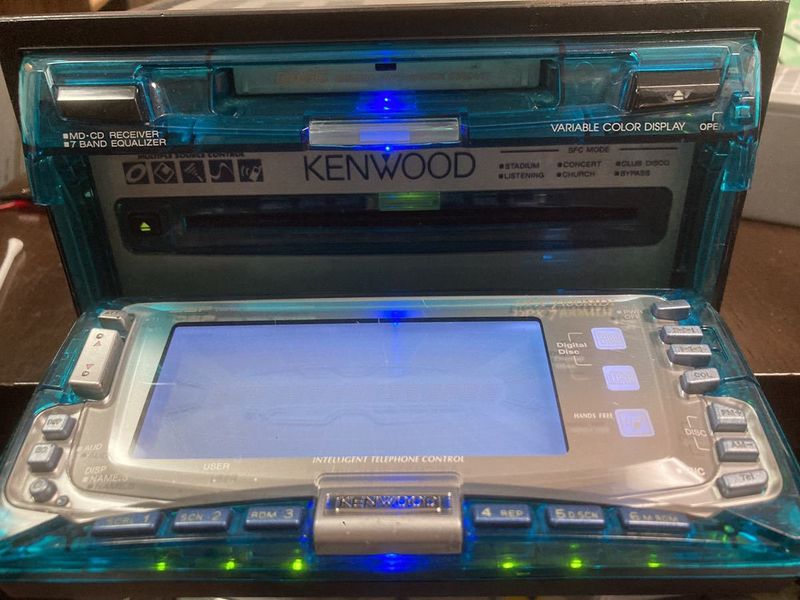

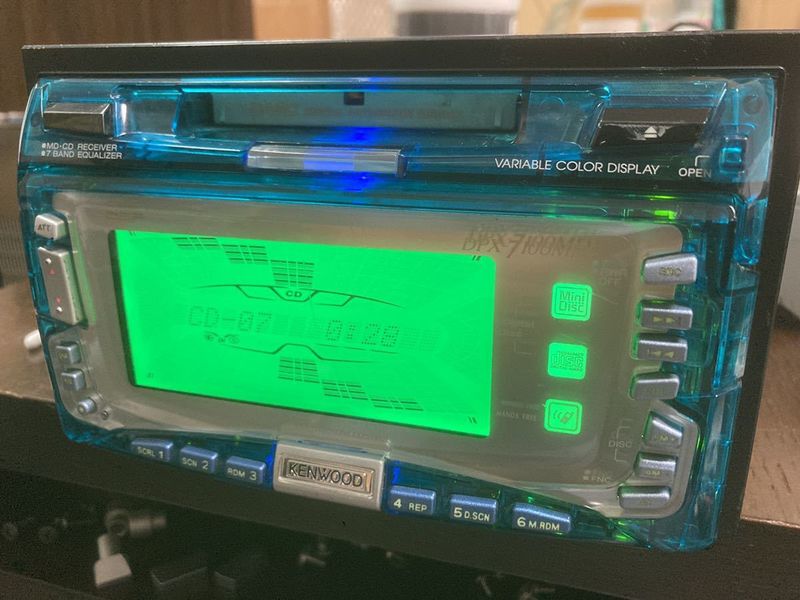

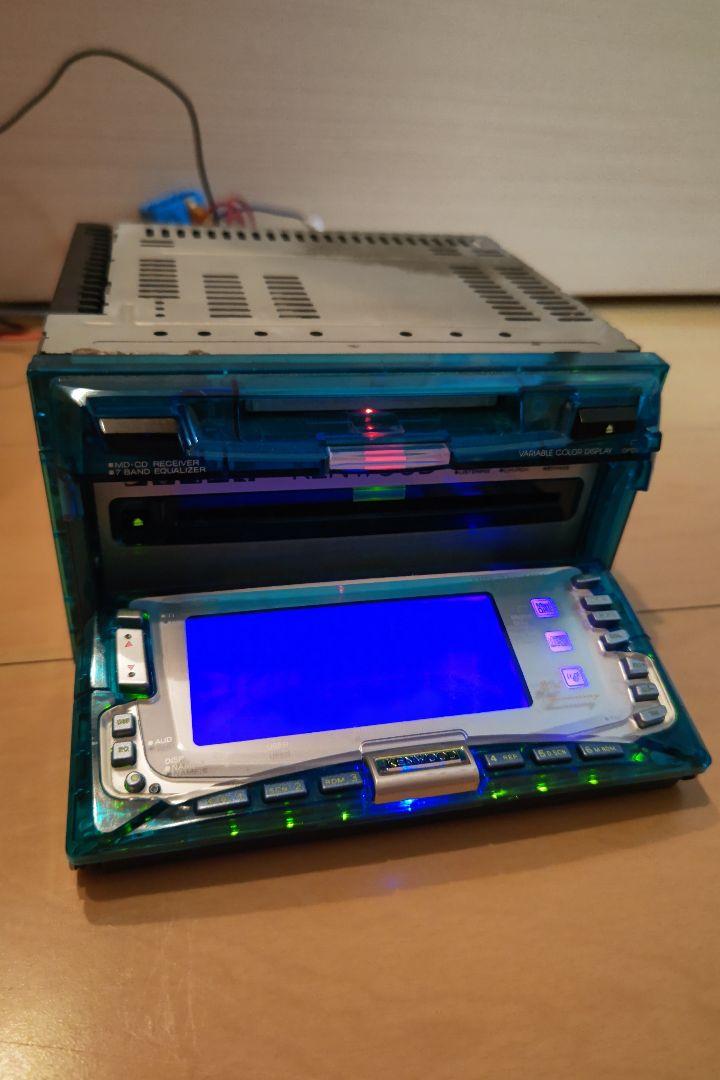

Kenwood DPX-7100MDi was released as a 20th anniversary special edition and is equipped with a backlight “variable color display” that changes to 10 colors in a blue skeleton body. See also the DPX-7010MD. The display color can be selected from 10 colors, and a variable color display that can change the display color in order is also possible. In addition, like the DPX-9100MJi, it has a built-in mobile phone hands-free function that can automatically receive calls, and by using an optional hands-free kit with a microphone *1 , a full-fledged fusion of car audio and mobile phone is realized.
Equipped with a newly developed high-performance pickup and high-precision servo circuit, it can read music signals recorded not only on CD-R but also on CD-RW *2 . Equipped with 6-hole simulation preset DSP and 7-band 5-mode preset equalizer, you can easily enjoy realistic DSP sound. Built-in 47W x 4ch super high power amplifier.
*1: CA-HF100 (for normal mobile phones) and CA-HF200 (for cdmaOne), both 5,000 yen, excluding tax *2: MP3 data playback is not supported.
[MD department]
- Frequency response: 20Hz to 20kHz (±1dB)
- S/N ratio: 90dB (1kHz)
- Dynamic range: 90dB
- Stereo Separation: 85dB
[CD section]
- Frequency response: 10Hz to 20kHz (±1dB)
- S/N ratio: 93dB (1kHz)
- Dynamic range: 93dB
- Stereo Separation: 85dB
[FM section]
- Receiving frequency range: 76.0MHz to 90.0MHz (100kHz steps)
[AM section]
- Receiving frequency range: 522kHz to 1629kHz (9kHz steps) Sensitivity: 28dBμ
[EQ section]
- Equalizer center frequency: 60, 160, 400, 1k, 2k, 6k, 16kHz
- Variable range: ±12dB
[Audio part]
- Maximum output: 47W x 4
- Rated output: 29W x 4 (4Ω, 1kHz, 10%THD)
- Pre-out level: 1500mV (FM/10kΩ)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178 (W) x 100 (H) x 155 (D) mm
- Mass: 2.9kg
Content adapted from: Kenwood Press Release [*] Kenwood Press Release (MiniDisc Wiki mirror) [*] yodobashi.com [*]
Manuals
Kenwood DPX-7100MDi User Manual JP (poor quality scan)
