Kenwood DPX-660MD
| Name | DPX-660MD / DPX-660MDH |
|---|---|
| Manufacturer | Kenwood |
| Released | 1998/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178(W)×100(H)×155(D)mm |
| Weight | 2900 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥84 000 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control |

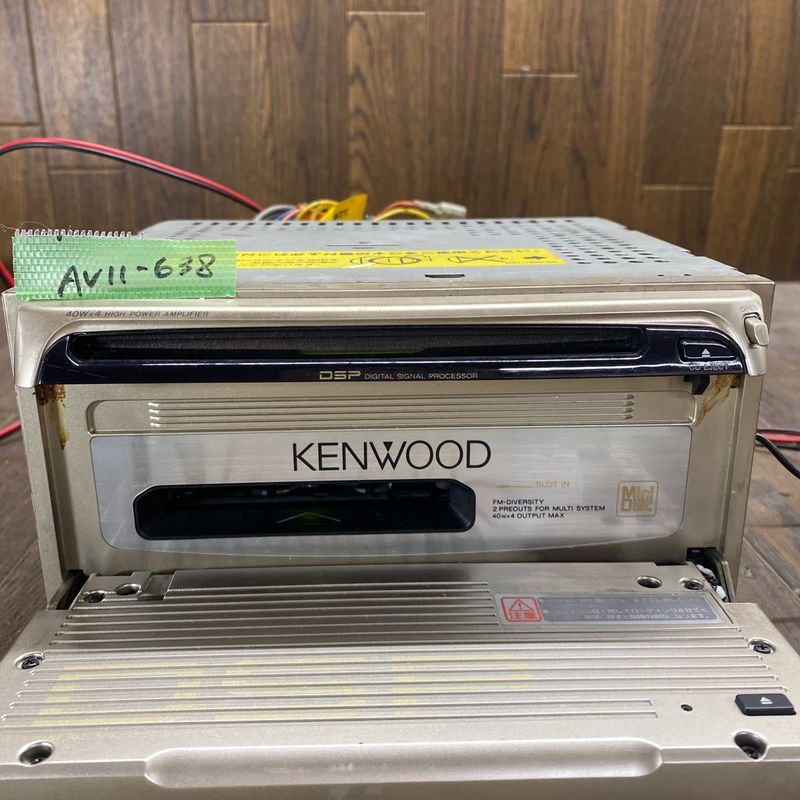

Kenwood DPX-660MD / DPX-660MDH. A flip-down panel type MD/CD receiver equipped with a wide display panel. Equipped with a 9-pattern spectrum analyzer display that enhances the visual effect with a variety of expressions. Equipped with a DSP capable of hall simulation in 6 modes and an equalizer with 4 types of preset patterns. Equipped with two RCA output terminals. Equipped with a dimmer adjustment function that can adjust the brightness at dimming in two steps. Built-in 40W x 4ch high power amplifier.
[MD player part]
- Digital filter: 8 times oversampling
- D/A converter: 1bit
- Frequency characteristics: 20Hz - 20kHz (±1dB)
- S/N ratio: 80dB (1kHz)
[CD player part]
- Digital filter: 8 times oversampling D/A converter: 1bit
- Frequency characteristics: 10Hz - 20kHz (±1dB)
- S/N ratio: 93dB (1kHz)
[Tuner part]
- Receiving frequency range: FM 76.0MHz - 90.0MHz (100kHz steps )
- AM 522kHz to 1,629kHz (9kHz steps)
[Audio part]
- Maximum output: 40W x 4
- Rated output: 25W x 4 (4Ω, 30Hz to 20kHz, 1%THD)
[Common part]
- Power supply voltage: 14.4V (11 to 16V)
- Maximum current consumption: 10A
- Embedded dimensions: 178(W)×100(H)×155(D)mm
- Weight: 2.9kg
Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*]
