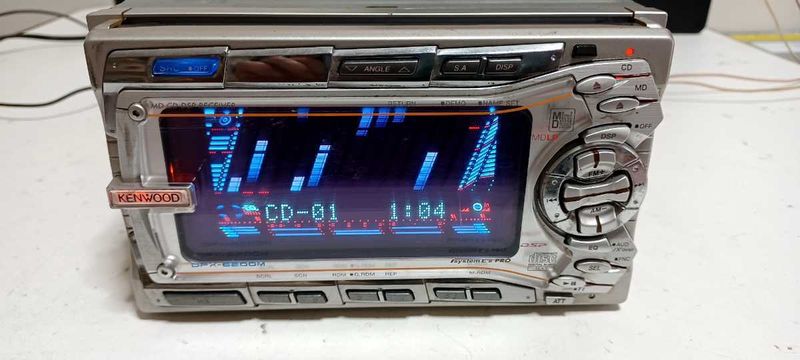

Kenwood DPX-6200M

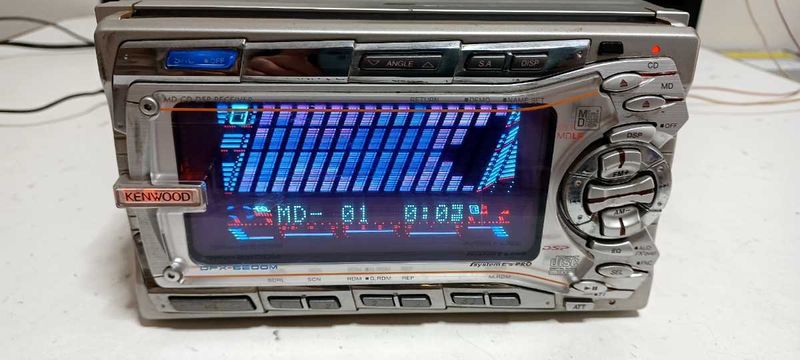

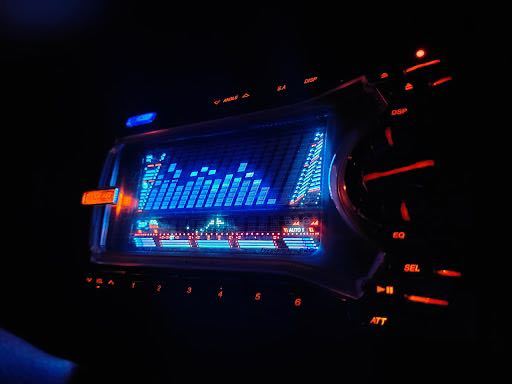

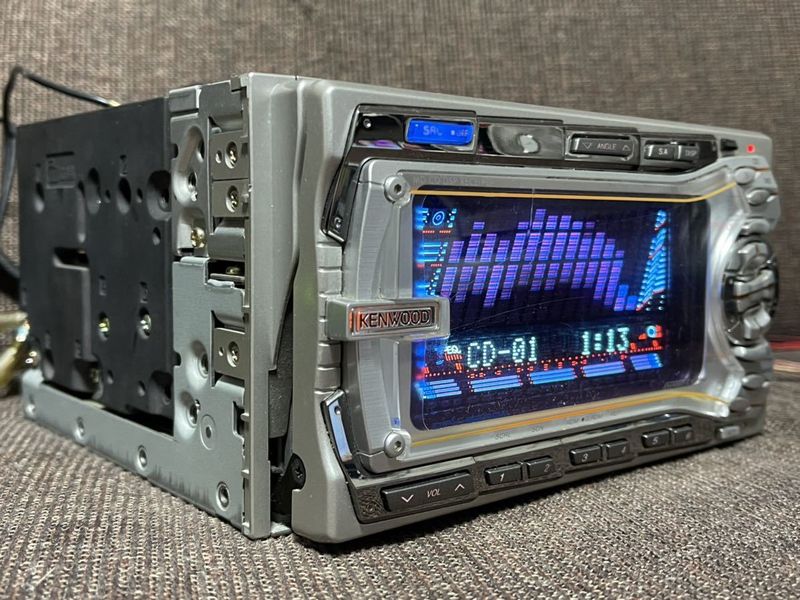

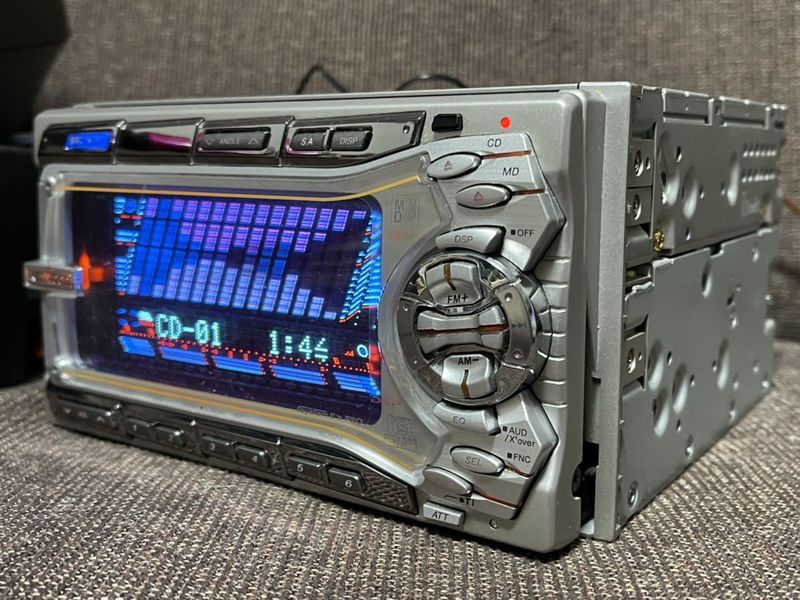

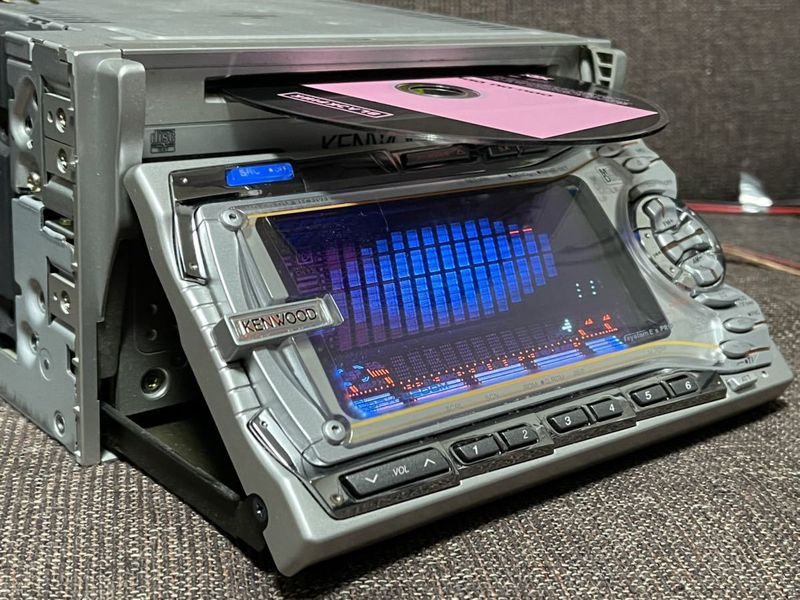

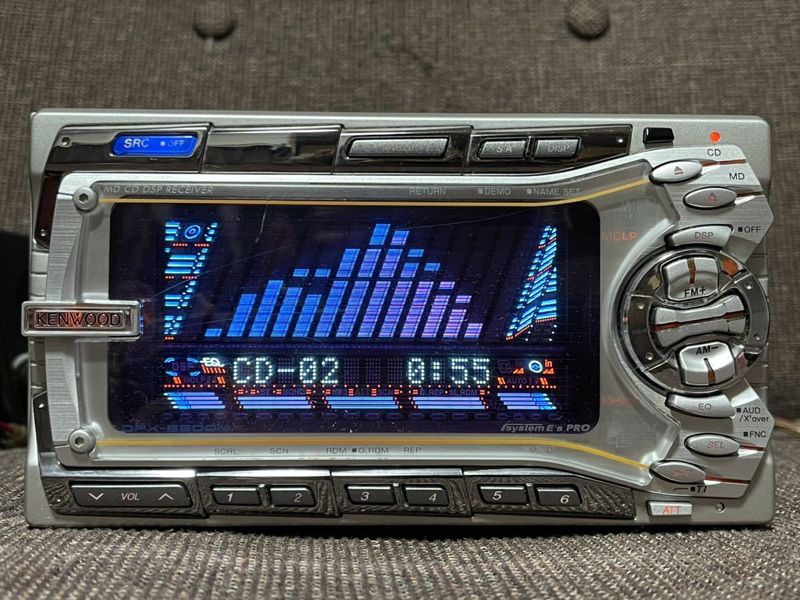

Equipped with the industry's first color gradation FL Display A new spectrum analyzer with RGB emission 8-gradation color gradation display has been realized. A spectrum analyzer that can be freely selected from 9 types of graphics creates a glossy display.

Built-in DSP / EQ A variety of sound field effects can be obtained with 6 patterns of SFC (Hall Simulation). In addition, the 7-band graphic equalizer with center frequency (60, 160, 400, 1k, 2k, 6k, 16kHZ) provides vivid visual effects, and users can preset 5 patterns of Rock, Pops, Dance, Vocal, and Flat. You can add 3 preset patterns.

Equipped with “System E's PRO” FRONT / REAR High-pass filter can be set independently. Furthermore, the low-pass filter, phase, and GAIN can be set for the Non-fedder output.

Other features

• MDLP compatible

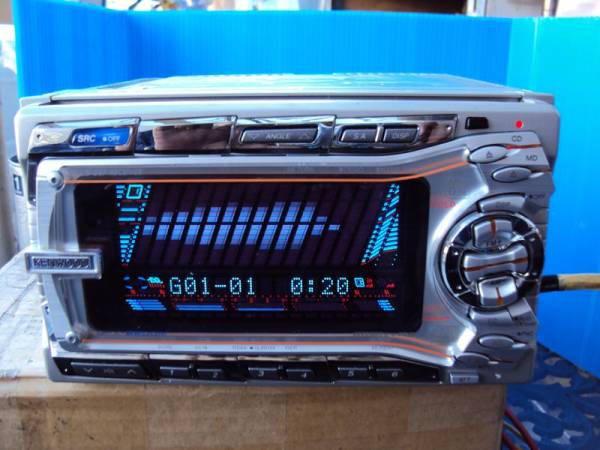

• Supports MD group management function
• Equipped with anti-theft function
• 47W x 4 built-in amplifier installed
• Supports CD-R / RW playback
• Remote control compatible

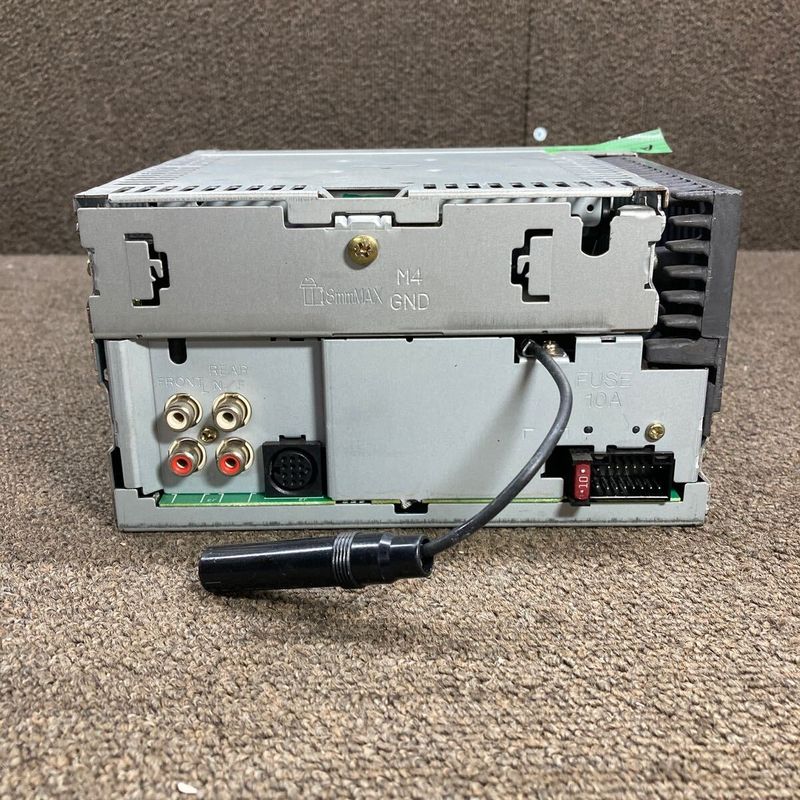

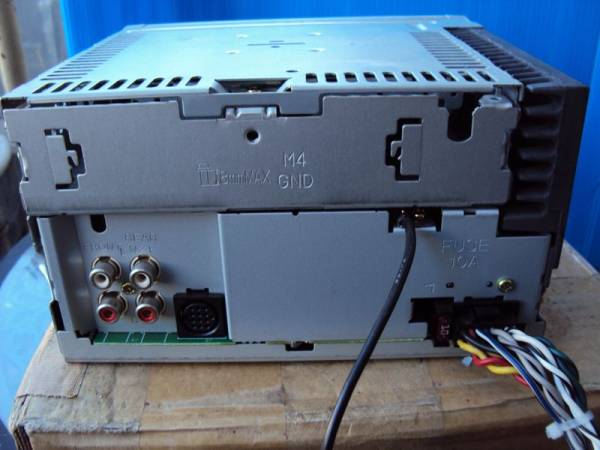

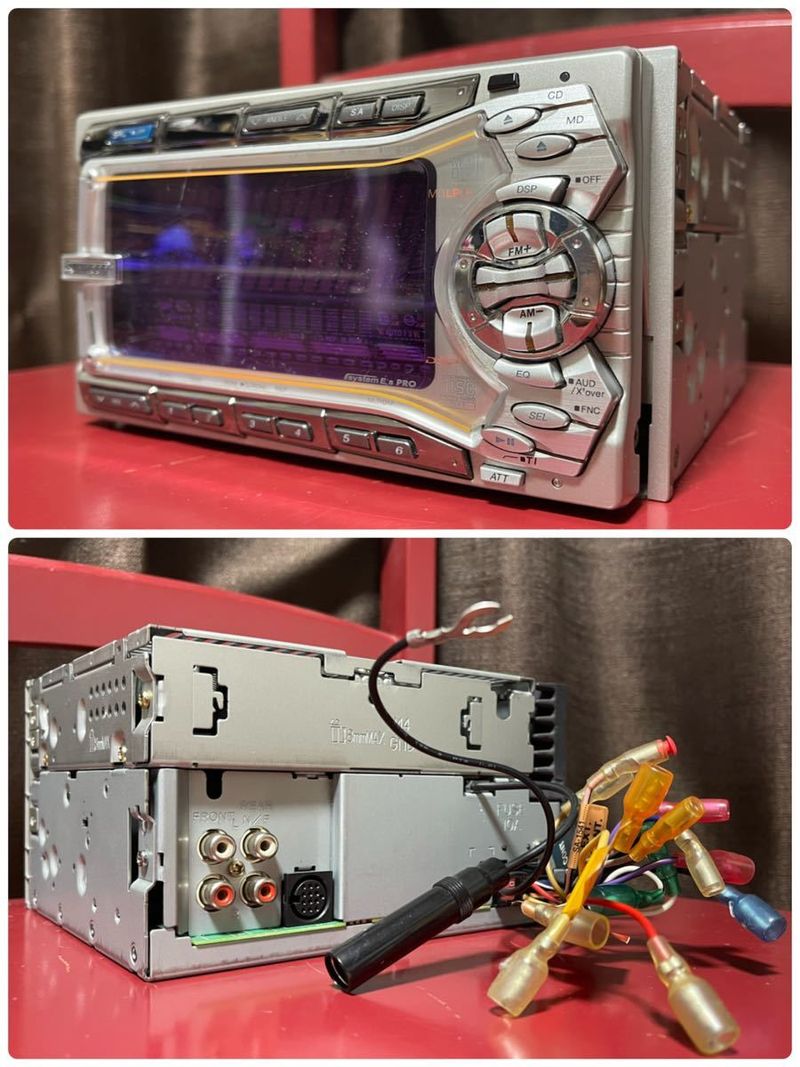

• RCA 2PRE OUT output

[MD part]

• Frequency characteristics: 20Hz-20kHz (± 1dB)
• S / N ratio: 93dB (1kHz)
• Dynamic range: 90dB
• Stereo separation: 85dB

[CD part]

• Frequency characteristics: 10Hz-20kHz (± 1dB)
• S / N ratio: 105dB (1kHz)
• Dynamic range: 95dB
• Stereo separation: 85dB

[FM section]

• Reception frequency range: 76.0MHz-90.0MHz (100kHz step)

[EQ section]

• Equalizer center frequency: 60, 160, 400, 1k, 2k, 6k, 16kHz
• Variable range: ± 12 dB

[Audio section]

• Maximum output: 47W x 4
• Rated output: 29W x 4 (4Ω, 1kHz, 10% THD)
• Pre-out level: 1800mV (FM / 10kΩ)
