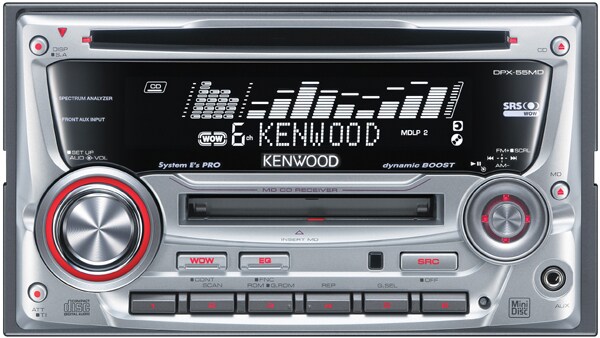

Kenwood DPX-55MD

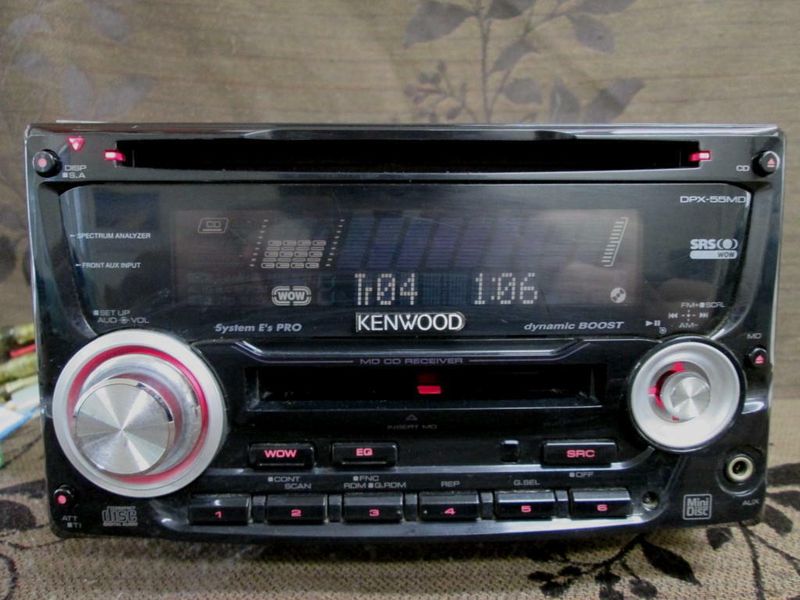

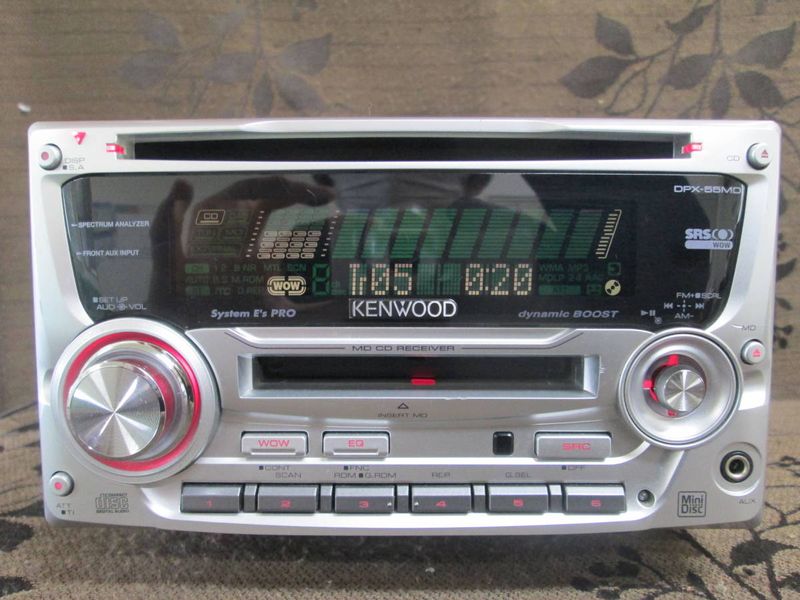

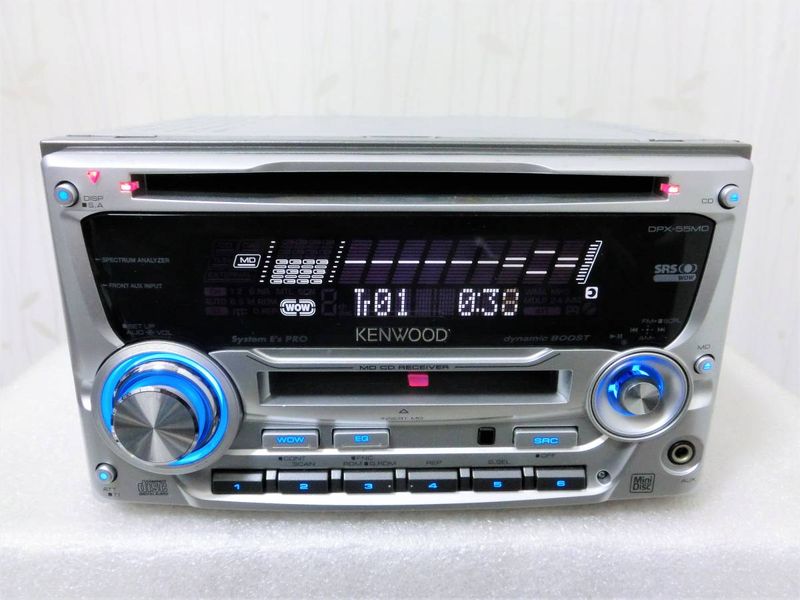

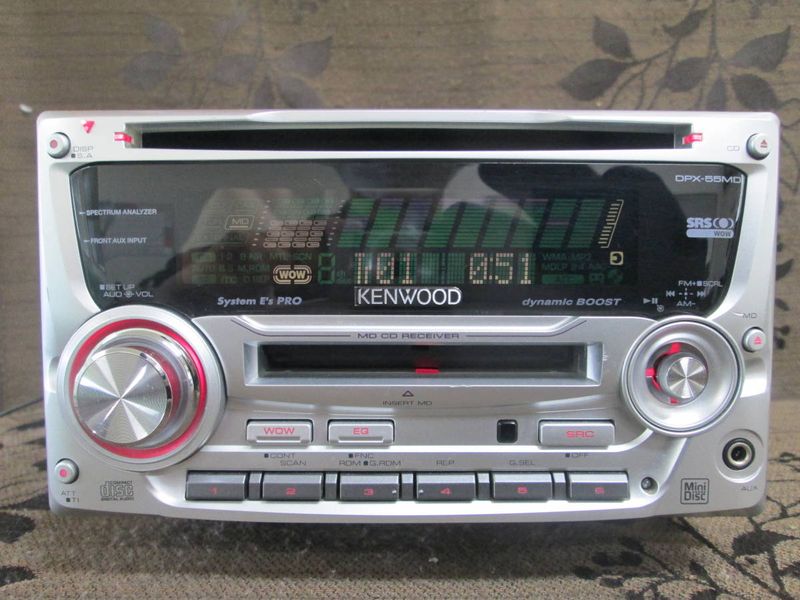

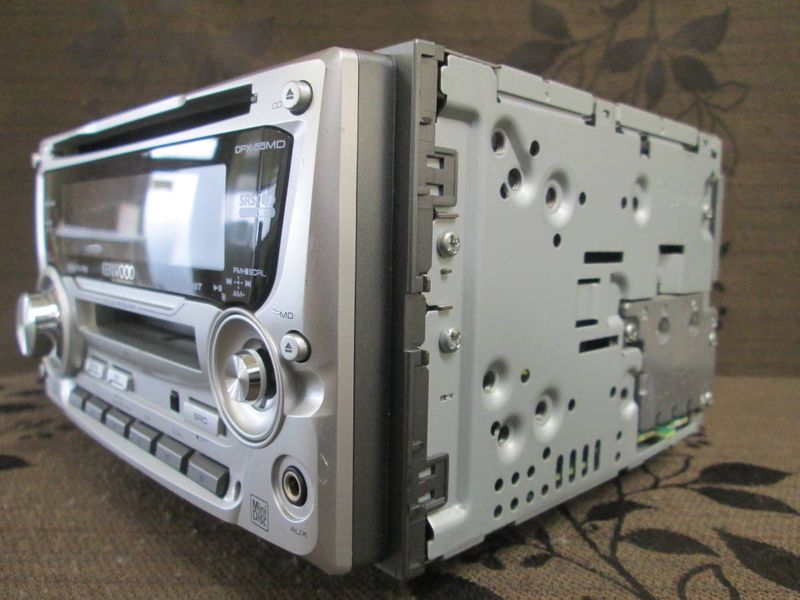

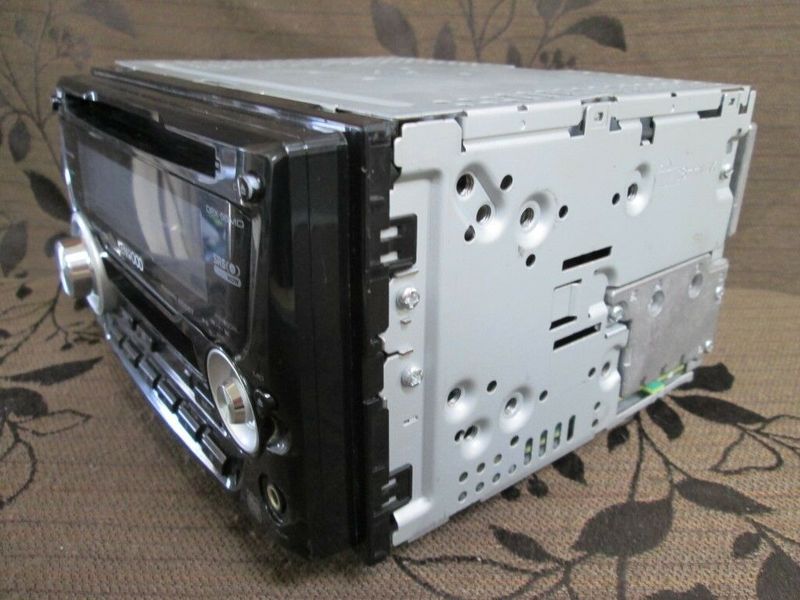

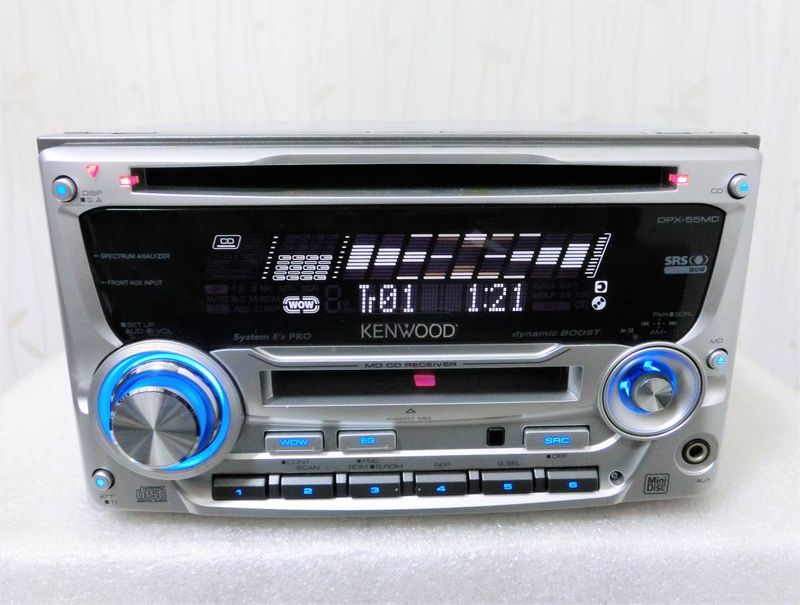

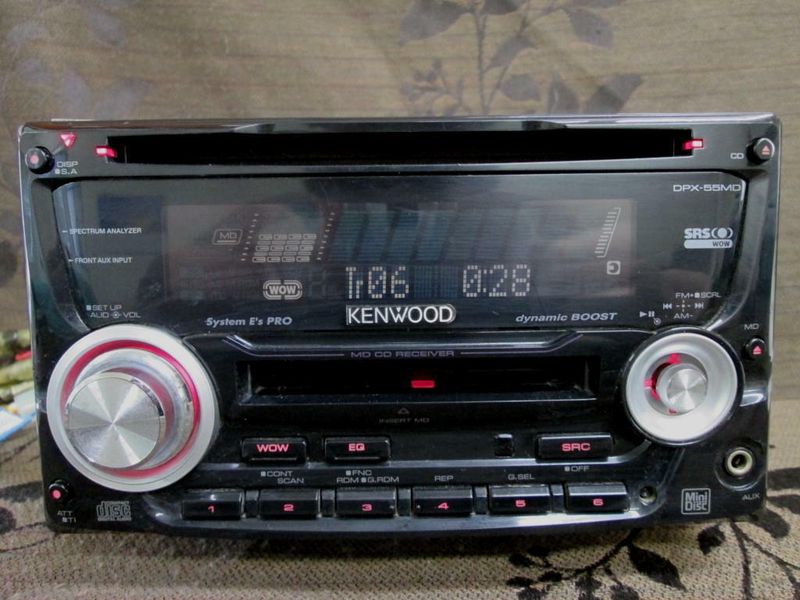

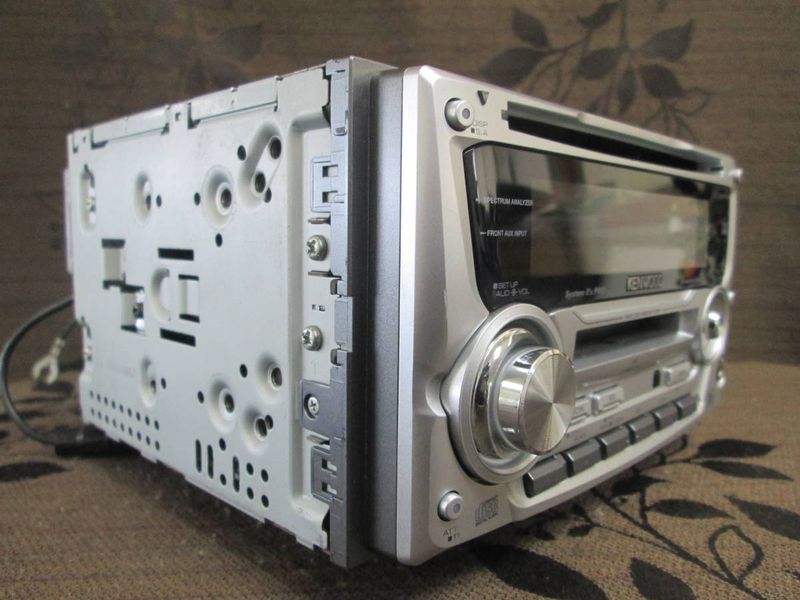

Kenwood DPX-55MD (Black) Kenwood DPX-55MDS (Silver)

A CD receiver that has a stereo mini AUX input on the front and can be used by connecting to a portable audio player. In addition to the CD, it has a built-in AM / FM tuner, and the amplifier output is up to 50W x 4ch.

The equalizer is equipped with “dB Equalizer PRO” equipped with 6 types of presets and user modes. In user mode, the front / rear sound quality can be adjusted, and the optimum sound field can be set.

“DPX-66MD” is a model that supports CD-R / RW playback with MP3 / WMA / AAC files recorded. Also equipped with a unique sound quality correction function “Supreme” that plays compressed music with high sound quality. It also supports music CD and MD playback.

“DPX-55MD” is a simple model that supports only CD / MD playback in addition to AUX input and radio. Two models, black and silver (S), are available as body colors. “DPX-44” will be a model that supports cassette playback instead of MD.

DPX-55MD / 55MDS

[MD part]

• Frequency characteristics: 20Hz to 20kHz (± 1dB)
• S / N ratio: 90dB (1kHz)
• Dynamic range: 90dB

[CD part]

Frequency characteristics: 10Hz to 20kHz (± 1dB)

• S / N ratio : 105dB (1kHz)
• Dynamic range: 93dB

[FM part] Reception frequency range: 76.0MHz to 90.0MHz (100kHz step)

• Practical sensitivity: 9.3dBf (0.8μV / 75Ω)
• Frequency characteristics: 30Hz to 15kHz (± 3.0dB) )
• Stereo separation: 30dB (1kHz)
• Equalizer center frequency: 40,50,60,70,80,100,120,150,500,1k, 1.5k, 2k, 10k, 12.5k, 15k, 17.5kHz
• Variable range: ± 12dB [Audio section]
• Maximum output: 50W x 4
• Rated output: 30W x 4 (4Ω, 1kHz, 10% THD or less) [Common Part]
• Power supply voltage: 14.4V (11 to 16V)
• Maximum current consumption: 10A

Content adapted from: Kenwood DPX-55MD [*] Kenwood Press Release [*]

Kenwood DPX-55MD User Manual JP
