Kenwood DPX-066MD
| Name | DPX-066MD |
|---|---|
| Manufacturer | Kenwood |
| Released | 2005/12 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 2-Din 178W×100H×155Dmm |
| Weight | 1900 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥44 100 | |
| - | |
| Inputs | 3.5mm line in (analog-only), CD |
| Outputs | |
| Control |
Compatible with iPod® interface unit “KCA-iP500” (msrp: 10,500 yen)
MP3/WMA/AAC compatible
Equipped with “Supreme” proprietary technology that reproduces compressed music with sound quality approaching that of a CD (DPX-066MD).
- Supreme is a proprietary band interpolation technology that uses digital technology to reproduce the high frequencies that are lost when music data is compressed. Generates natural sound by estimating frequency components above 14-16kHz that are cut during compression. This allows you to enjoy compressed music data with sound quality approaching that of a CD.
Equipped with SRS WOW
- “SRS WOW” is a completely new audio processor that combines the three technologies of “SRS 3D”, “SRS TruBass” and “SRS FOCUS”. “SRS 3D” builds a natural surround space without discomfort anywhere in the vehicle, and “SRS TruBass” realizes powerful deep bass reproduction that does not depend on the speaker's playback capacity. “SRS FOCUS” creates an ideal sound field space on the dashboard regardless of where the speakers are installed. By fusing these three technologies, we solve problems such as sound muffled and sound image localization, and create an ideal vehicle interior space where every seat is in the best position for sound.
[MD part]
- Frequency characteristics 20Hz - 20kHz (±1dB) ・S/N ratio 90dB (1kHz) ・Dynamic range 90dB
[CD part]
- Frequency characteristics 10Hz - 20kHz (±1dB)
- S/ N ratio 105dB (1kHz) Dynamic range 93dB MP3 decoding MPEG-1/2 Audio Layer-3 compliant WMA decoding Windows Media TM Audio compliant AAC decoding AAC-LC “m4a” file
[FM part]
- Receiving frequency range 76.0MHz ~ 90.0MHz (100kHz step)
- Practical sensitivity 9.3dBf (0.8μV/75Ω)
- Frequency response 30Hz - 15kHz (±3.0dB)
- Stereo separation 40dB (1kHz)
[AM section]
- Reception frequency range 522kHz - 1629kHz (9kHz ) step) Sensitivity 28dBμ
[EQ]
- Equalizer center frequency 40, 50, 60, 70, 80, 100, 120, 150, 500, 1k, 1.5k, 2k, 10k, 12.5k, 15k, 17.5kHz Variable range ± 12dB
[Audio section]
- Maximum output 50W x 4, rated output 30W x 4 (4Ω, 1kHz, 10%THD)
- pre-out level 2.0V (FM/10kΩ)
- pre-out detail rear L, R/subwoofer switching
[common part]
- power supply voltage 14.4V (11 ~16V)
- Maximum current consumption 10A
- Embedded dimensions 178W×100H×155Dmm
- Weight 1.9kg
Content adapted from: Kenwood Press Release (archived) [*] Kenwood Press Release (archived) (MiniDisc Wiki mirror) [*] av.watch [*] ascii.jp [*]
Manuals
Kenwood DPX-066MD User Manual JP
Repair

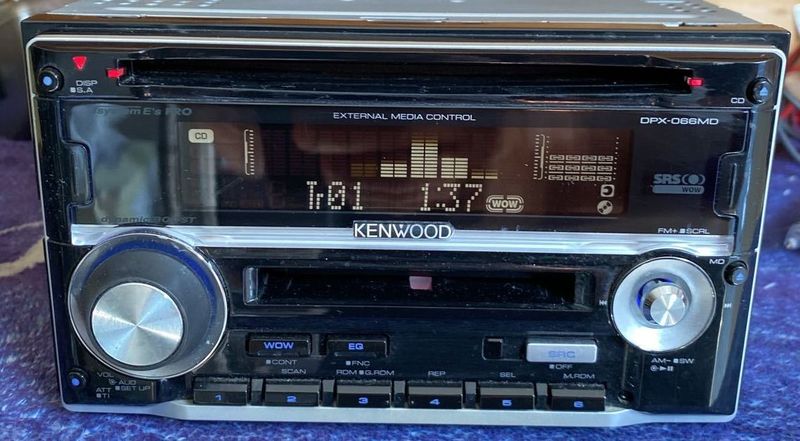

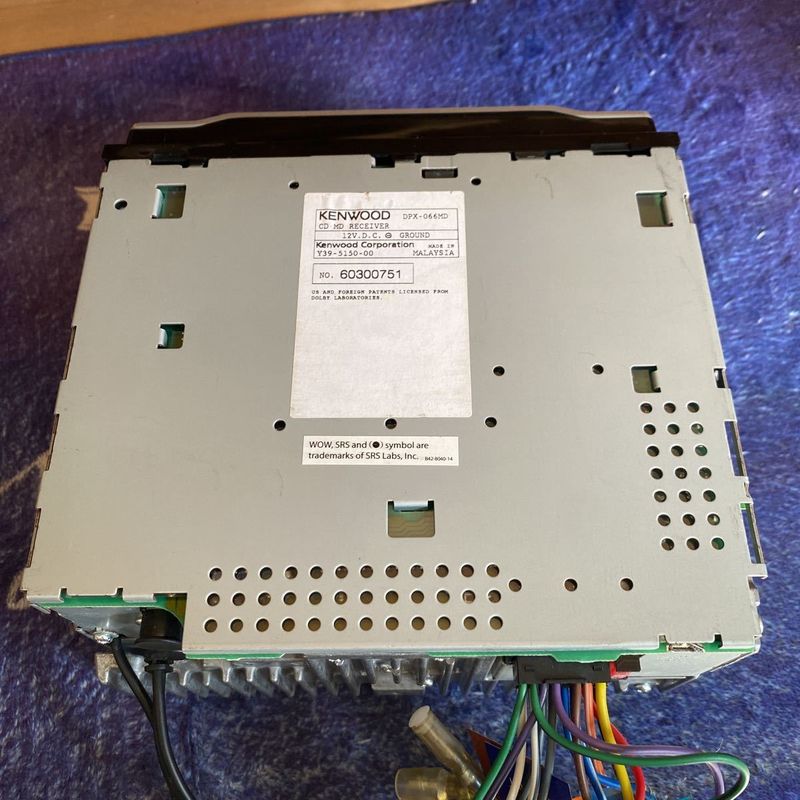

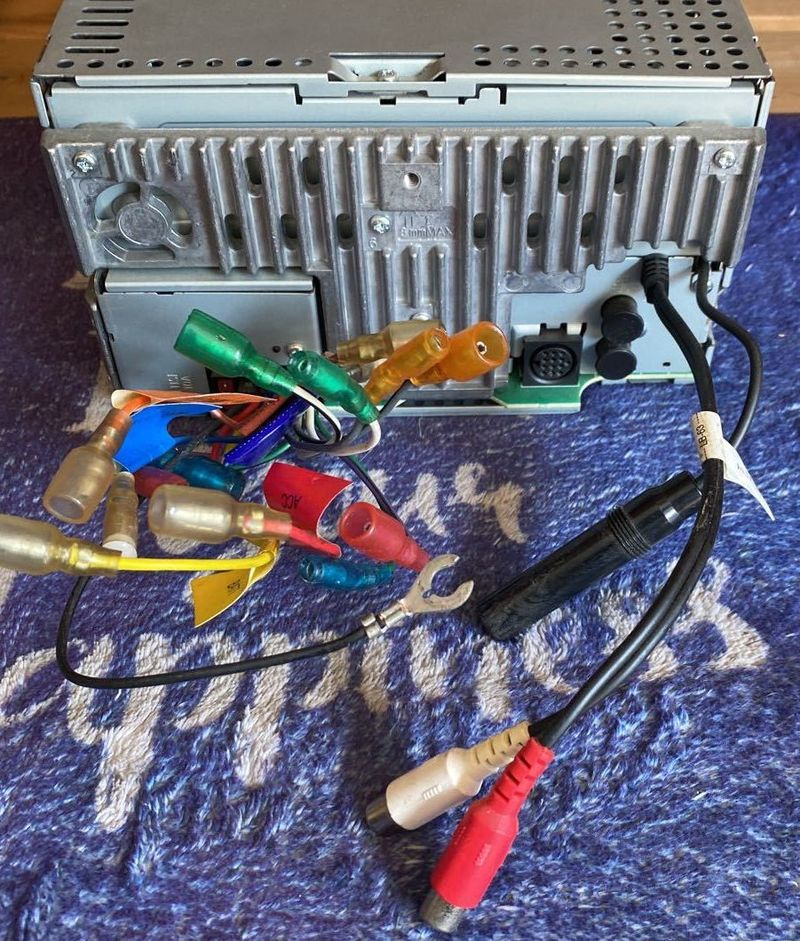

Photos
