Eclipse AVN7703D
| Name | AVN7703D |
|---|---|
| Manufacturer | Eclipse |
| Released | 2003/07 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 180 (W) x 100 (H) x 165 (D) mm |
| Weight | 3700 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥275 000 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |
<Navigation function>
* “Hyper Virtual Town Map” that reproduces the 3D building of the city map of 1,149 areas in transparent display * “Scroll direction display” that displays place names in four directions, north, south, east, and west from the center of the map * “Easy View Text” that changes the font size according to the sense of distance and makes the information easier to read * “Administrative district painting” that changes the background color of the map according to the scale for each city, ward, town, and village * Achieves 3 media / 3 level support by connecting the built-in FM-VICS and 2 media VICS unit (sold separately: VIX103 for AVN7703D only, VIX102 for other models)
<Audio function>
Can be connected to a CD autochanger (sold separately: E5502CDC, E7707NAC) and MD autochanger (sold separately: E3308MDC) Equipped with “50W x 4” high power amplifier
<Others>
Rear seat monitor (E805RM [*]) Compatible with “10-key remote control” that can be operated from the rear seat (sold separately: RMC101) Includes “Film TV Antenna” “Back eye camera” can be connected (sold separately: BEC103) “ETC” connection possible (sold separately: ETC101)
Content adapted from: Denso-Ten Press Release [*]
Manuals
Eclipse AVN7703D Audio Manual JP
Eclipse AVN7703D Quick Manual JP
Repair

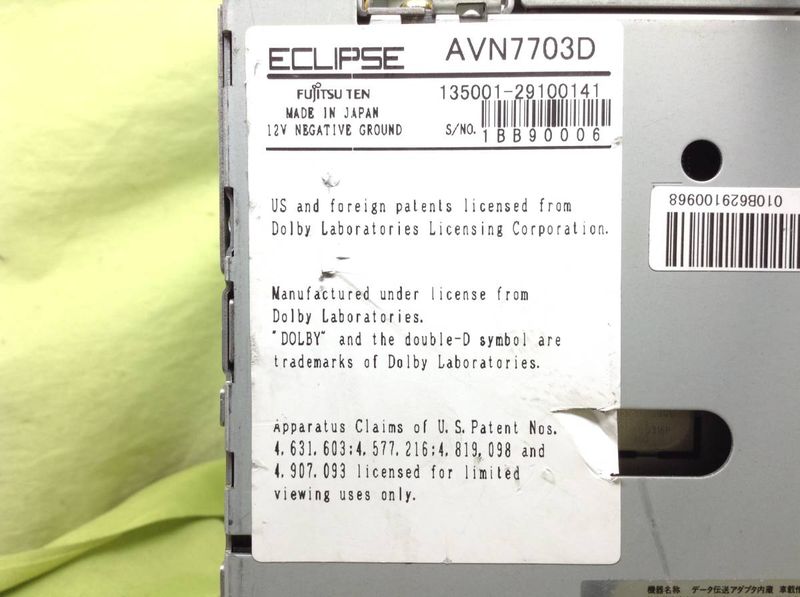

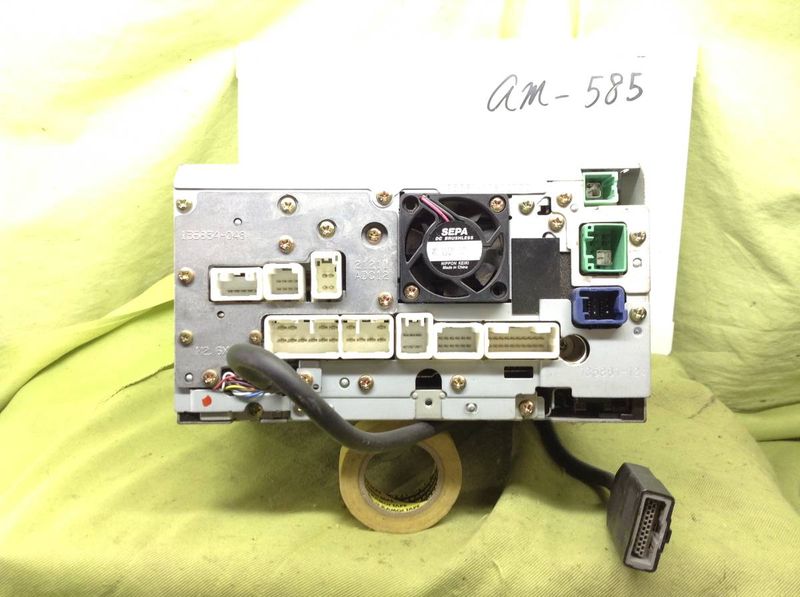

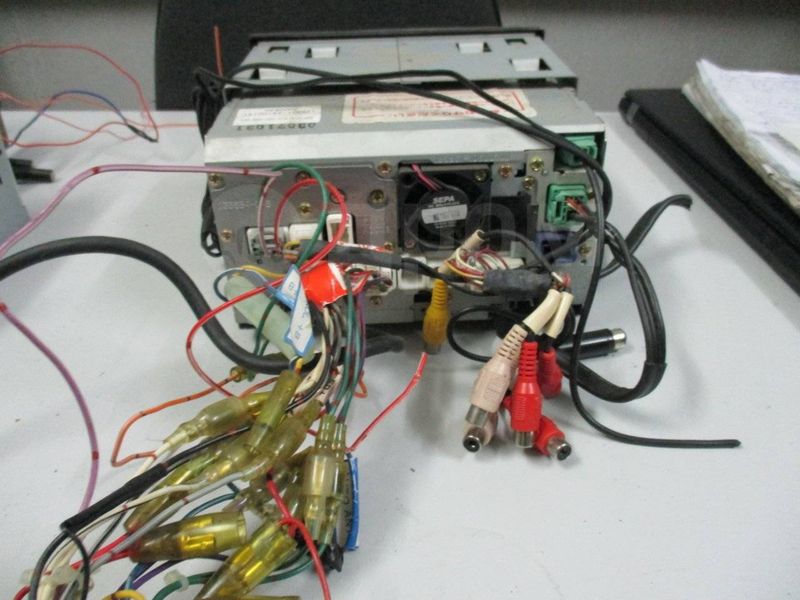

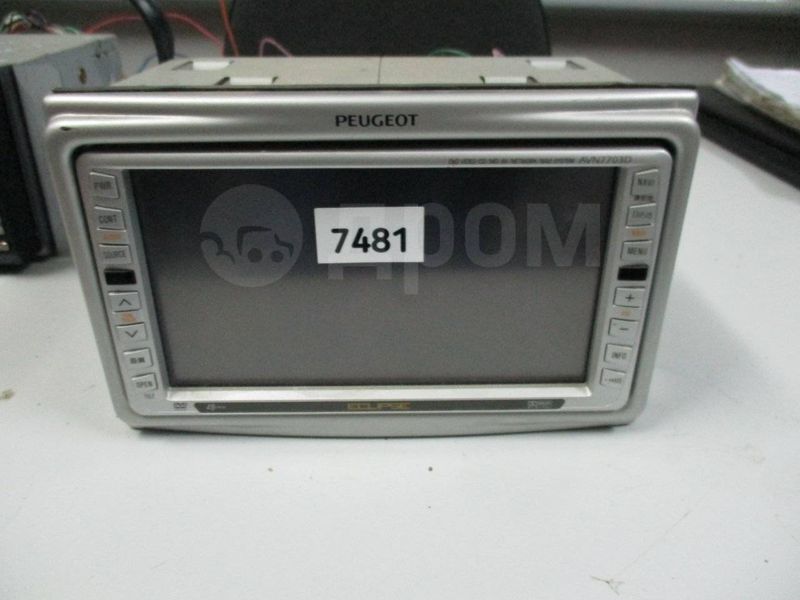

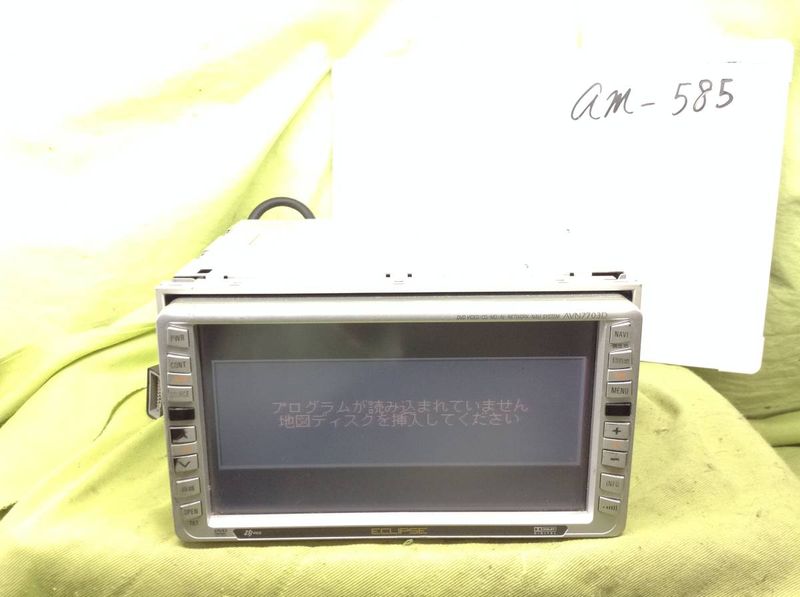

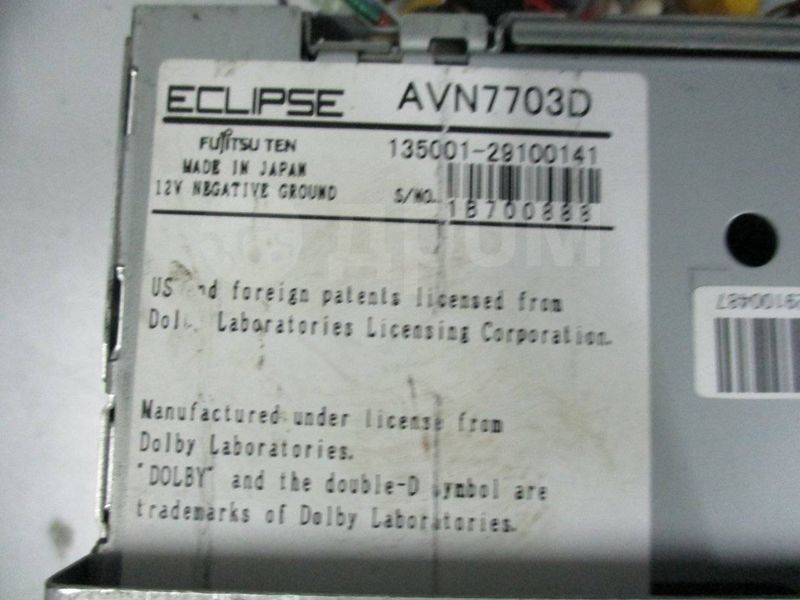

Photos
