Denon DN-M991R
| Name | DN-M991R |
|---|---|
| Manufacturer | Denon |
| Released | 1999/05 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 144 x 133 x 427mm |
| Weight | 5.8kg |
| ATRAC ver | 4 |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 120 |
| Power cable | |
| Price (launch) | $2 300 |
| - | |
| Inputs | XLR in, Digital optical (TOSLINK) |
| Outputs | XLR out, Digital optical (TOSLINK) |
| Control | PS/2 keyboard, RS-232 serial |
Professional recorder.

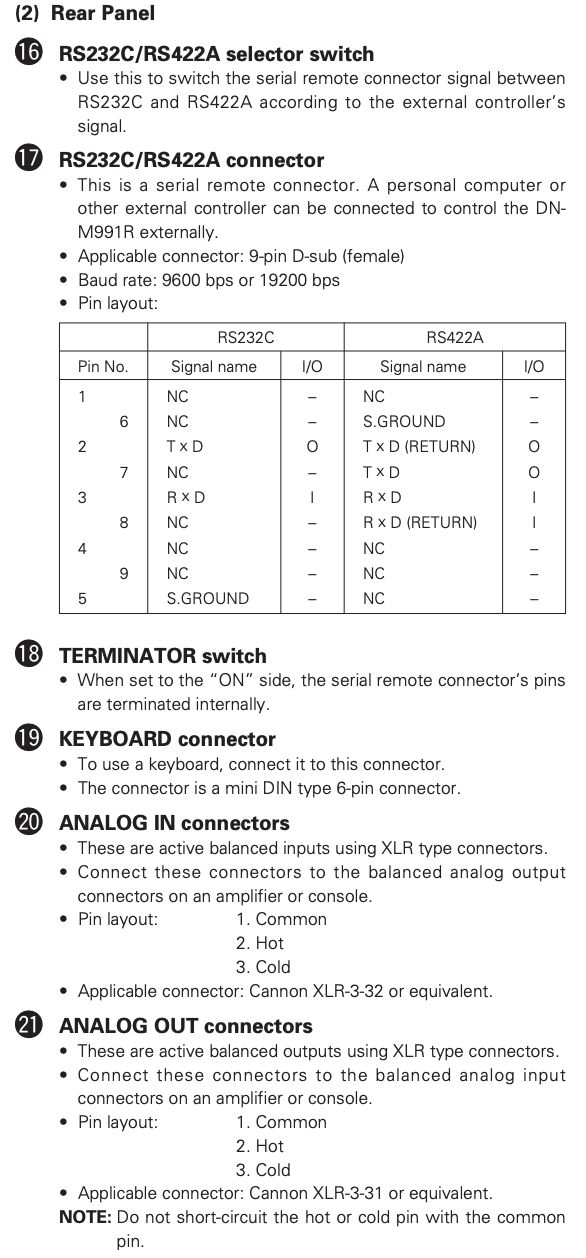

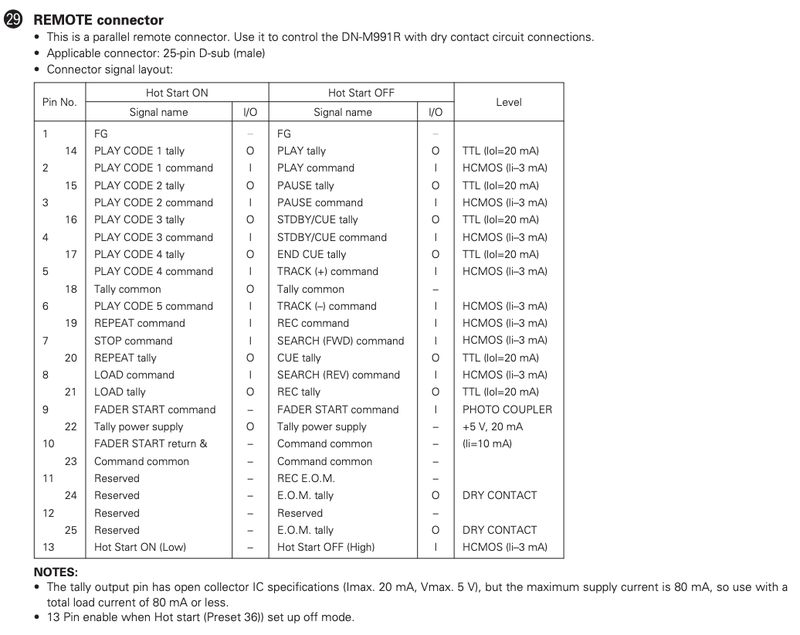

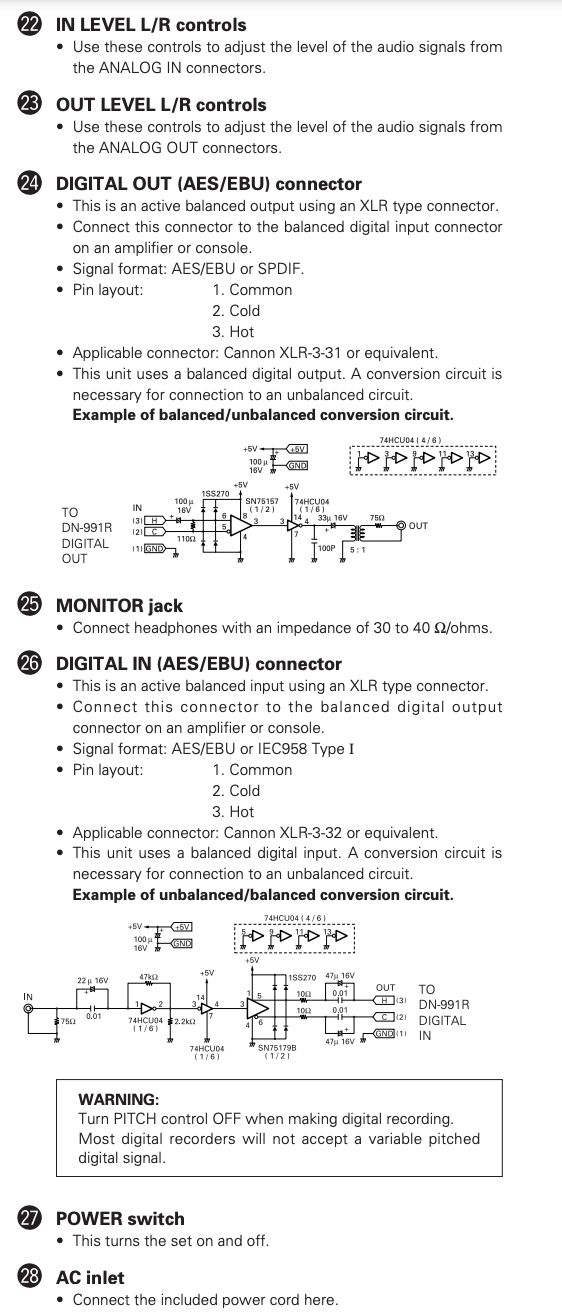

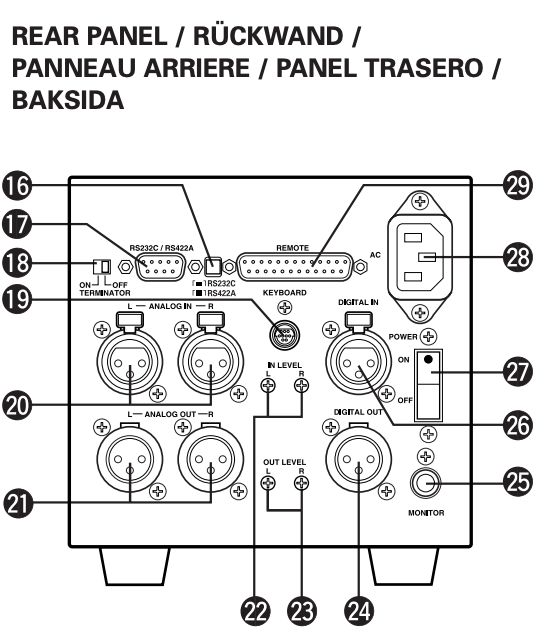

Inputs are rather complicated and don't fit into wiki formatting, so the back panel image and breakdown are included below, more detail can be found in the manual.
Content adapted from: DN-M991R Minidisc.org page [*] Denon Product Page [*] Denon Product Page (MiniDisc Wiki mirror) [*] Harmony Central (Internet Archive link) [*] Harmony Central (Internet Archive link) (MiniDisc Wiki mirror) [*]
Manuals
DN-M991R User Manual
DN-M991R Supplementary Manual
DN-M991R Service Manual
Photos
Have photos or data to add? Edit the page! We do not accept contributions via email..
