Denon DN-1100R
| Name | DN-1100R |
|---|---|
| Manufacturer | Denon |
| Released | 1996/06 |
| Device type | pro |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 482x88x252mm |
| Weight | 5300 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 100, 120, 100-230 |
| Power cable | |
| Price (launch) | |
| - | |

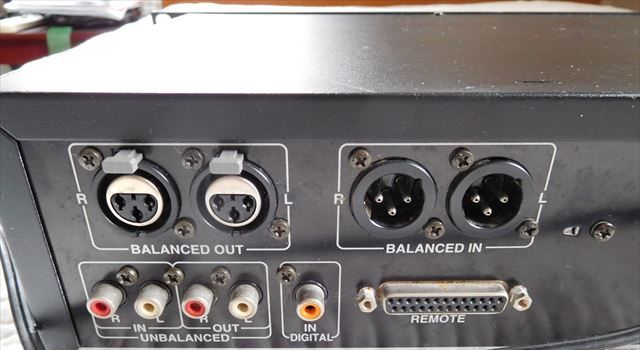

| Inputs | RCA in, XLR in, Digital coaxial |
| Outputs | RCA out, XLR out |
| Control |
DENON DN-1100R
Playback Performance:
- Frequency Response: 20 Hz to 20 kHz
- THD: 0.012% or less (@ 1 kHz, max. level)
- S/N Ratio: > 90 dB (@ 1 kHz, max. level, “A”
- Weighted
- Channel Separation: > 86 dB (@ 1 kHz, max. level)
Record/Play Performance:
- Frequency Response: 20 Hz to 20 kHz
- THD: 0.02% or less (@ 1 kHz, max. level)
- S/N Ratio: > 82 dB (@ 1 kHz, max. level, “A”
- Weighted
- Channel Separation: > 80 dB (@ 1 kHz, max. level)
Content adapted from: Minidisc.org [*] rfspec [*] rfspec (MiniDisc Wiki mirror) [*]
Manuals
Repair
Russian repair video I8kAMp9Nbgc
Photos
