Denon DMD-1300 / DMD-1550G
| Name | DMD-1300 / DMD-1550G |
|---|---|
| Manufacturer | Denon |
| Released | 1998/09 |
| Device type | deck |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 434 x 100 x 285mm |
| Weight | |
| ATRAC ver | Sharp 6 |
| Power cable | AC |
| Price (launch) | $799 |
| ¥69 800 | |
| - | |

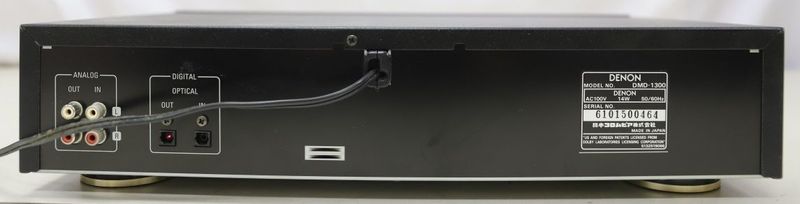

| Inputs | RCA in, Digital optical (TOSLINK) |
| Outputs | RCA out, Digital optical (TOSLINK) |
| Control |

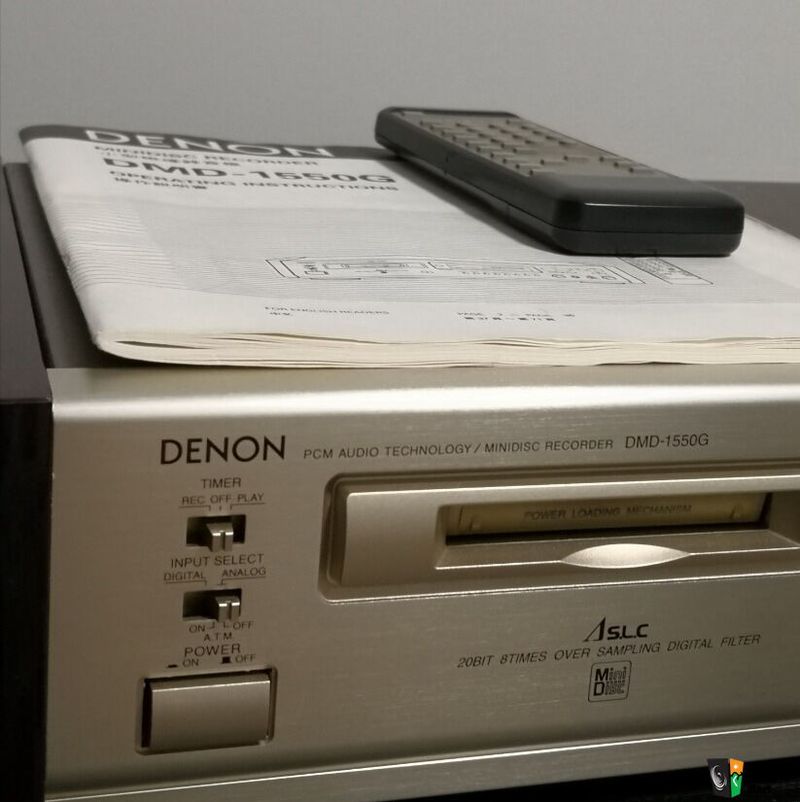

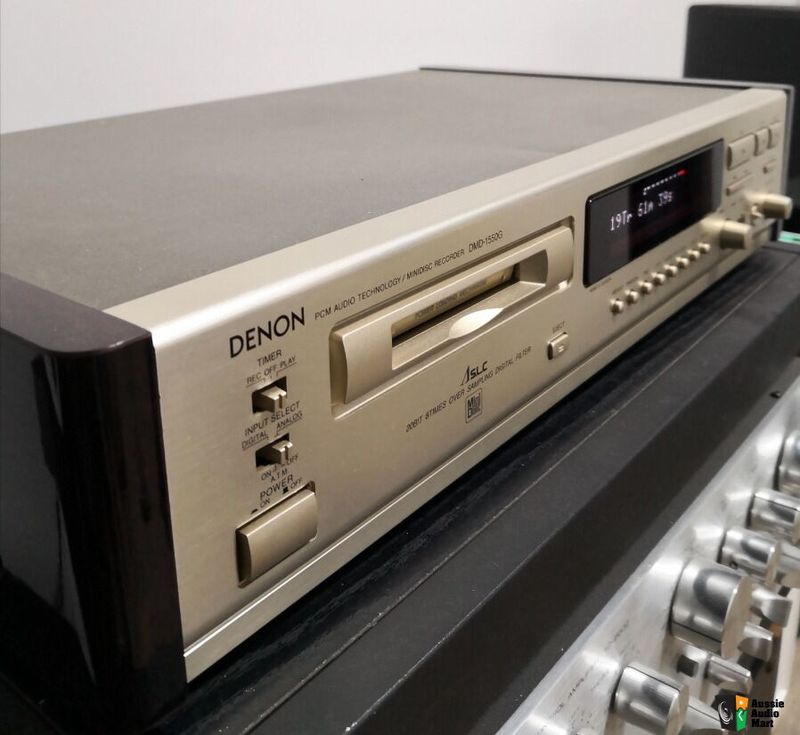

Denon DMD-1550G (1300 with Gold with wooden side panels)
Features: Sampling rate converter (always in effect, circumventing input jitter and time base problems). Sigma-Delta ADC with 64X oversampling. Divide, combine, move, erase (60ms positional accuracy), but no rehearse function. Program, repeat and random play modes.
Comments: German Stereo Magazine: First home recorder that has no Sony parts. Contains Sharp MD drive and Sharp single chip ATRAC/sample rate converter circuit equivalent to Sony's ATRAC 4. Sounds nearly as good as the Sony MDS-JA3ES but costs only about half as much.
Specs: S/N 105dB (playback), Dynamic range 96dB. 16W.
ATRAC IC for DMD-1550G: LR37643 (page 22) LR37545 (page 36) The service manual lists both part#'s at different points.
Sharp ATRAC 6
Optical Block: 937 0159 213 (denon part#)
Content adapted from: Minidisc.org Page [*] audio-heritage.jp [*] (claims release date was around 1996)

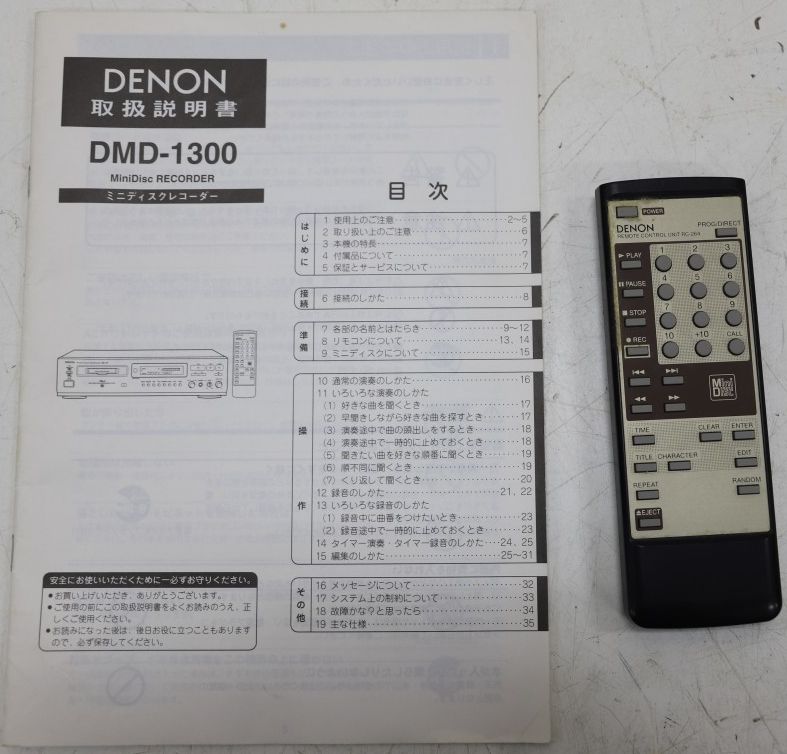

Manuals
dmd-1300 Sale advertising
Denon DMD 1300 / 1550G service manual
Repair
Photos
