Denon D-MA5DV
| Name | D-MA5DV |
|---|---|
| Manufacturer | Denon |
| Released | 2003/09 |
| Device type | bookshelf |
| Recorder | Recorder |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 210 x 145 x 336mm (main unit) |
| Weight | 6500 (main unit) |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | No |
| Voltage | 100 |
| Power cable | AC |
| Price (launch) | |
| ¥80 000 | |
| - | |
| Inputs | RCA in, Digital optical (TOSLINK), CD |
| Outputs | 3.5mm headphone, RCA out, Digital optical (TOSLINK), Speaker amplifier |
| Control | USB Type-B |

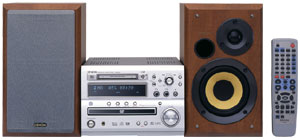

Denon D-MA5DV is Denon's 2003 DVD/MD/Tuner bookshelf system. Model#'s D-MA5DV-S (silver), D-MA5DV-K (black) and D-MX7700DV (different speaker system [*])
- Progressive scan
- 5.1 Dolby Digital and DTS support
- FM freq. range: 76.0 - 108.0 MHz
- AM freq. range: 522 - 1629 kHz
- Inputs: TAPE, AUX, Optical Digital, USB
- Outputs: TAPE, AUX, 3.1ch, Headphone, Optical Digital
- Video Outs: D2, S-Video, Composite
- Zoom function
- DVD-Video, CD-R/RW, JPEG, MP3, VideoCD & PhotoCD (Kodak & Fuji) support
- 10-key Cellphone-style titling
- S.D.B. = Super Dynamic Bass
- Can record MDs via analog to defeat SCMS
- 2 modes on EQ: CINEMA & MUSIC
- MDLP
- Group function
- Up to 4x CD–>MD dubbing
One user claimed that ejecting the MD made it shoot out a meter [*]
Content adapted from: Denon Press Release [*] Denon Press Release (MiniDisc Wiki mirror) [*] av.web [*] Phileweb.com [*]
Manuals
Denon D-MA5DV User Manual JP
