Aisin AW Multimedia Station
| Name | RNS-JP3 |
|---|---|
| Manufacturer | Aisin AW |
| Released | 2004/05 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | W 179 X H 110 X D 159Mmm |
| Weight | 3.3kg |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥230 000 | |
| - | |
| Inputs | CD |
| Outputs | Speaker amplifier |
| Control |

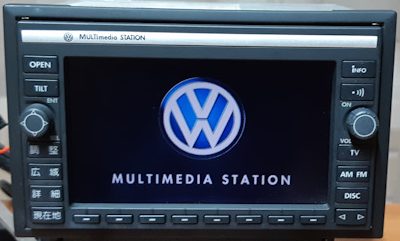

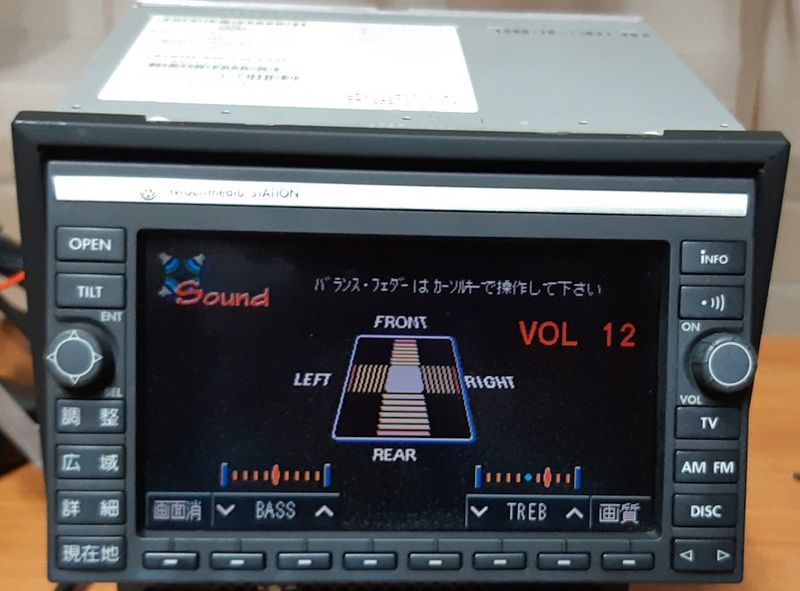

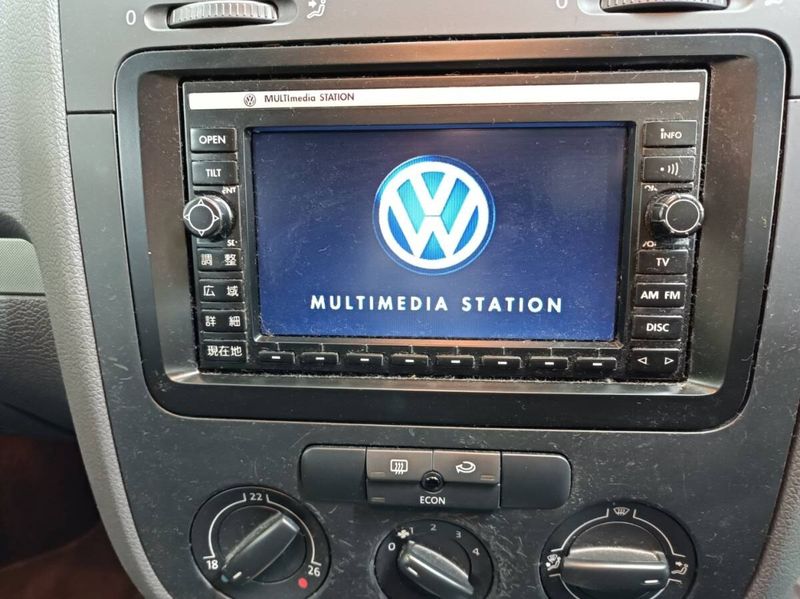

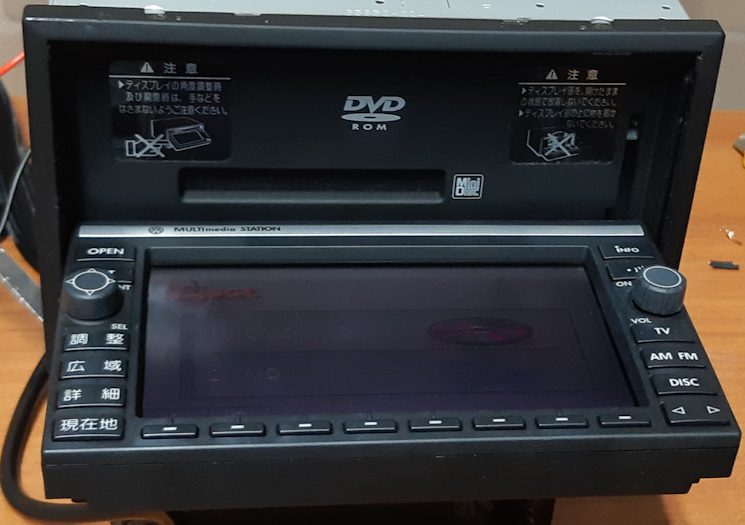

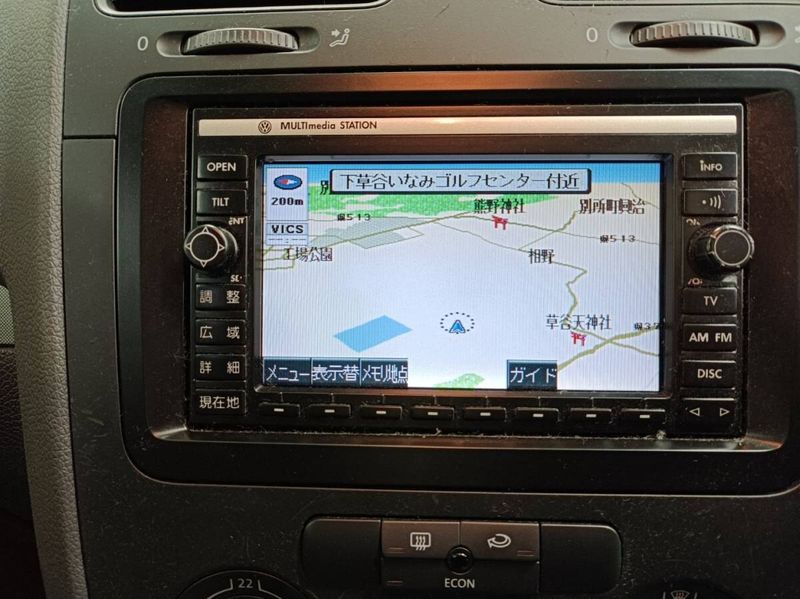

VW Multimedia Station - RNS-JP3 found in “Polo,” “Golf Wagon,” and “Bora” and later others such as the Passat

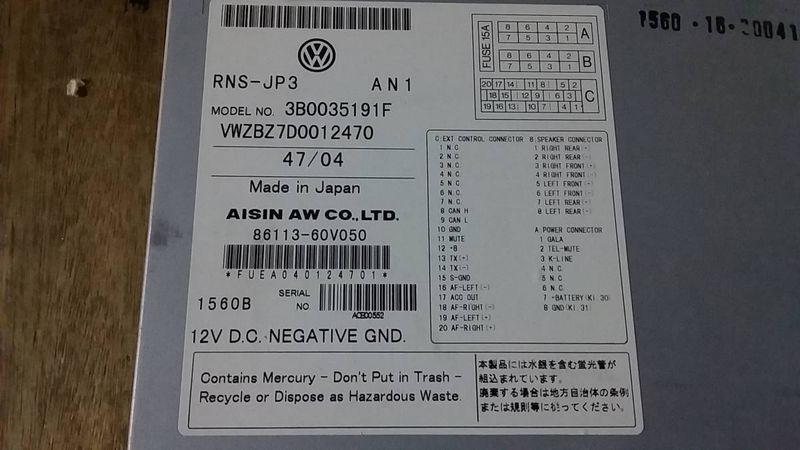

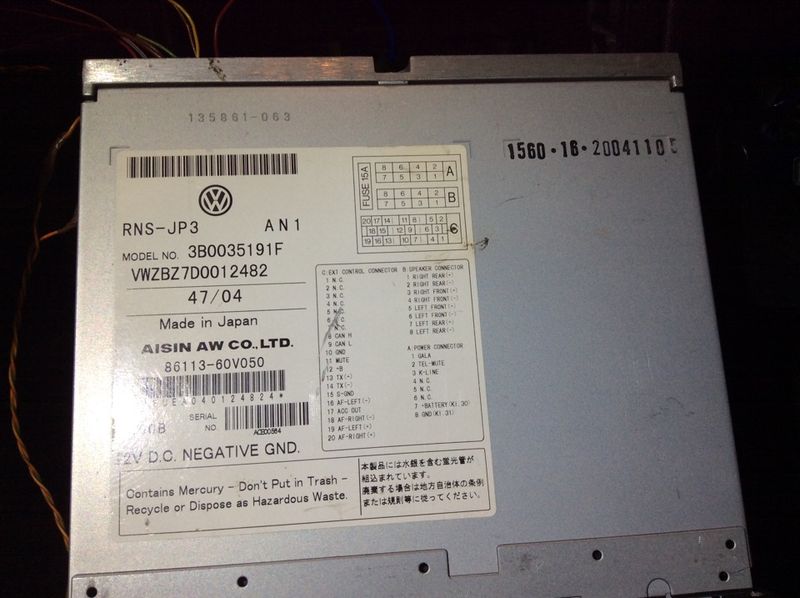

VW Part# 3B0 035 191 F

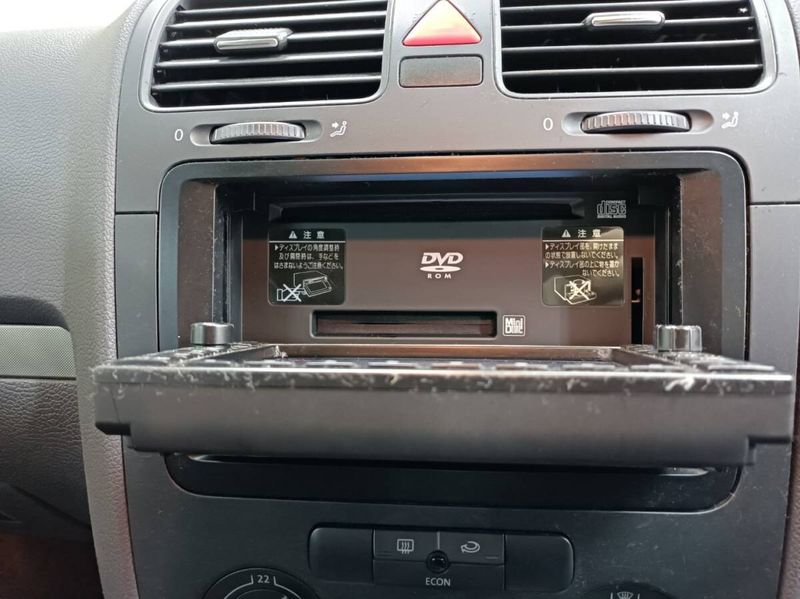

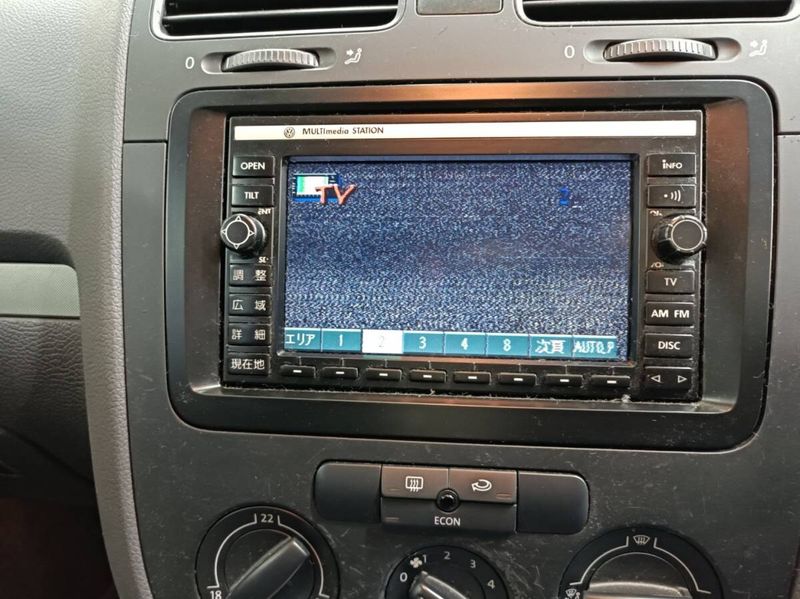

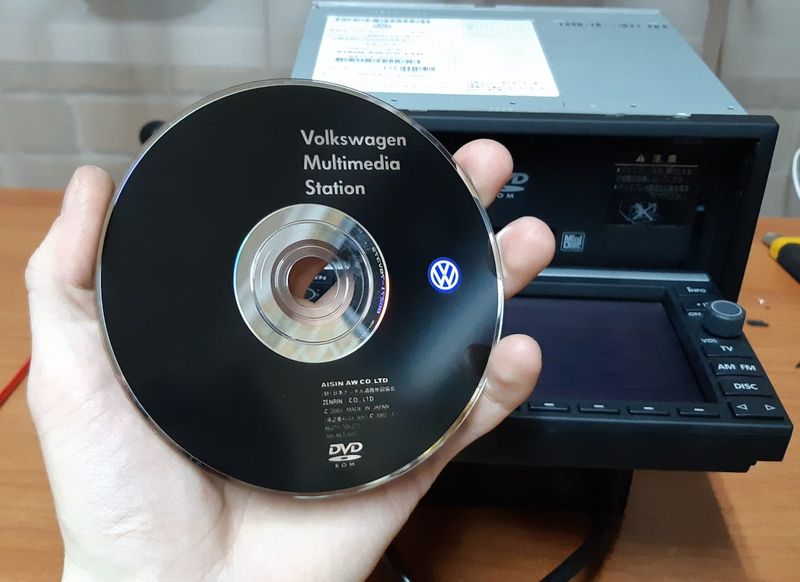

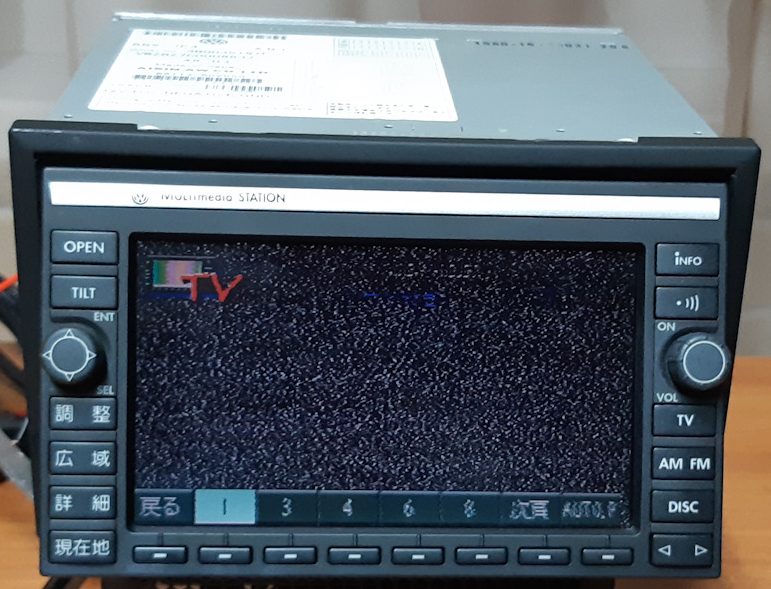

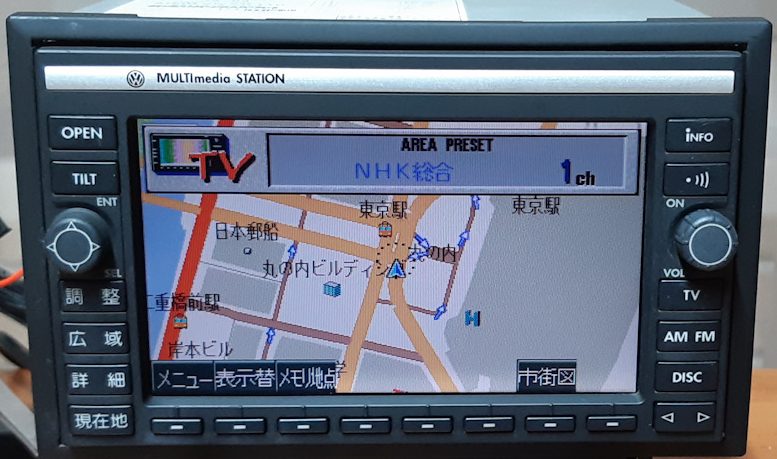

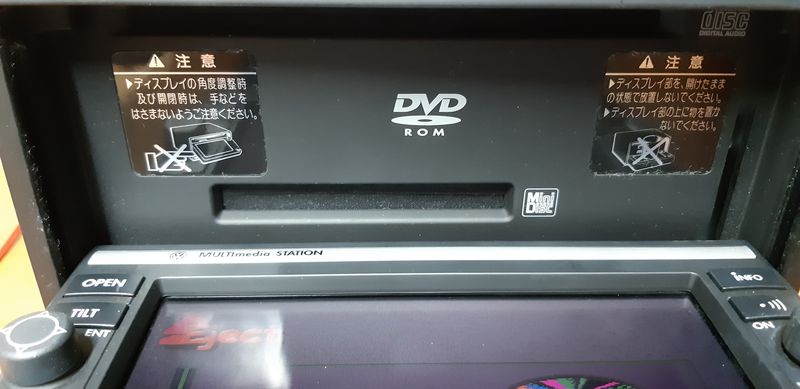

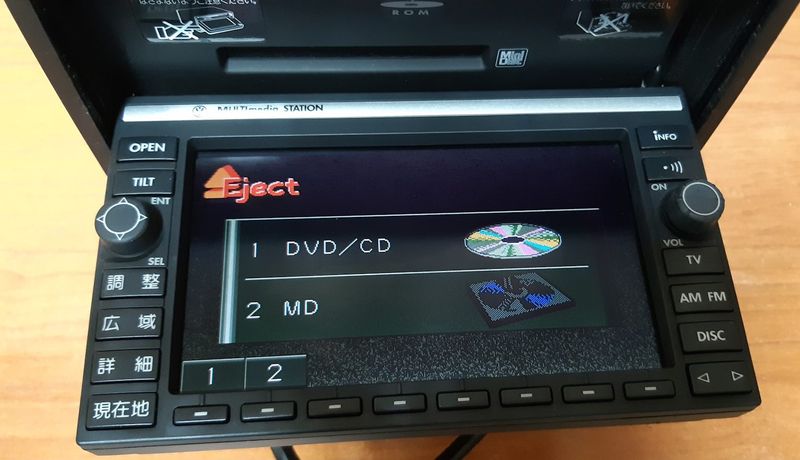

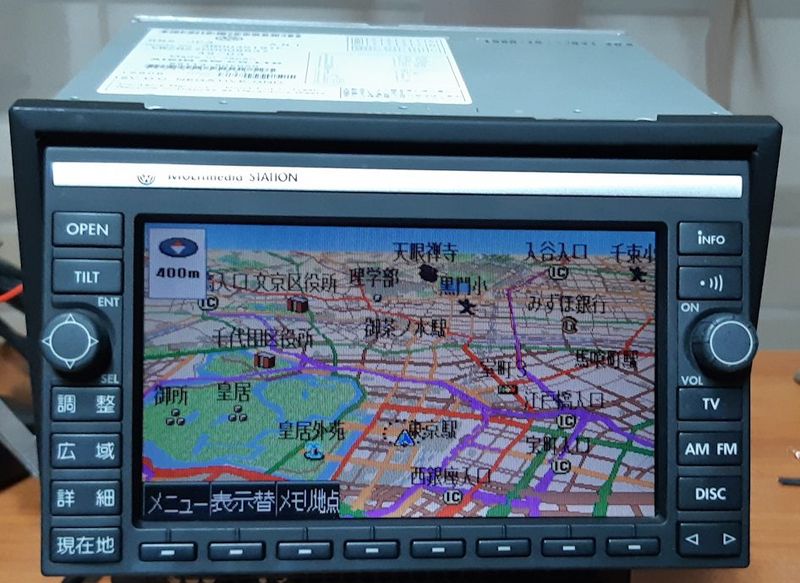

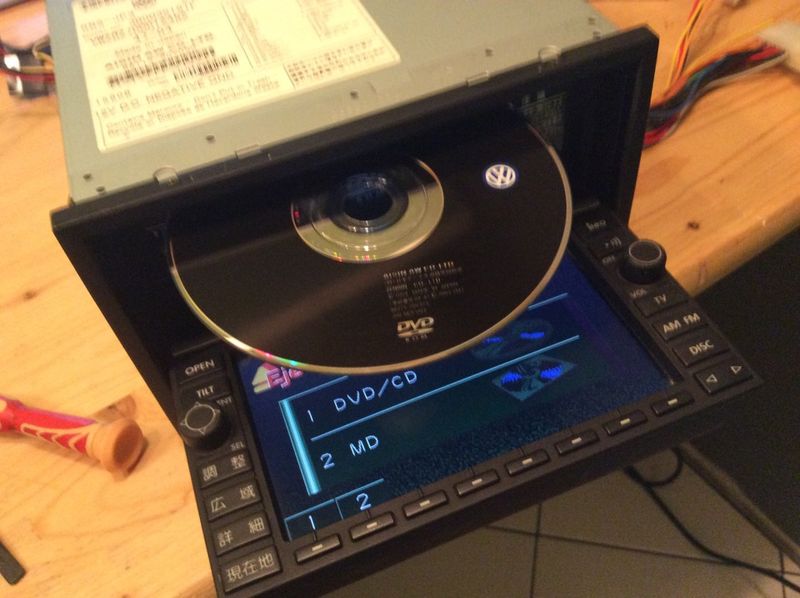

Supports DVD-Rom only for GPS use (no video playback), though it can play audio CD's. Has a Broadcast TV Tuner.

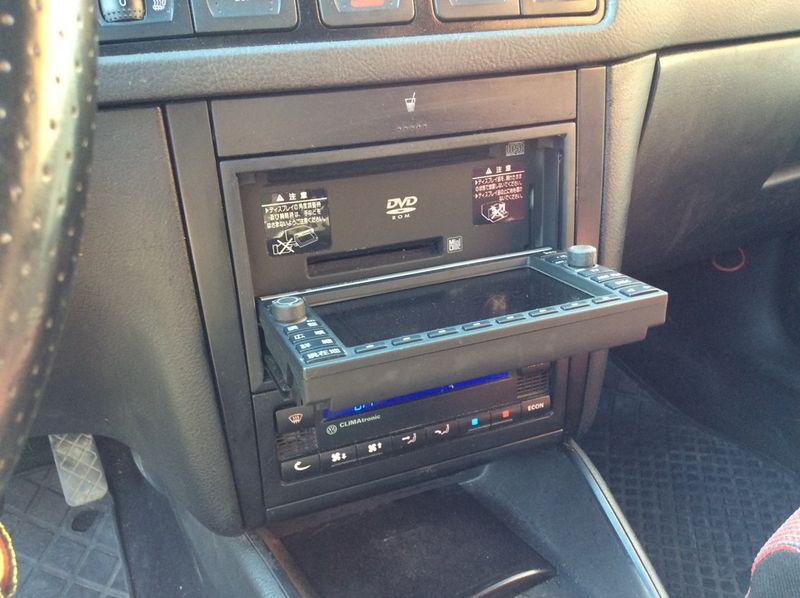

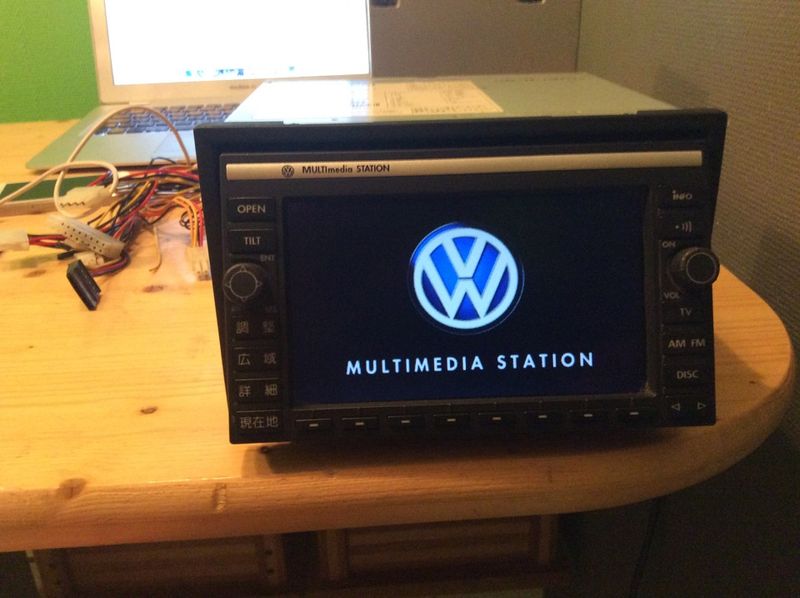

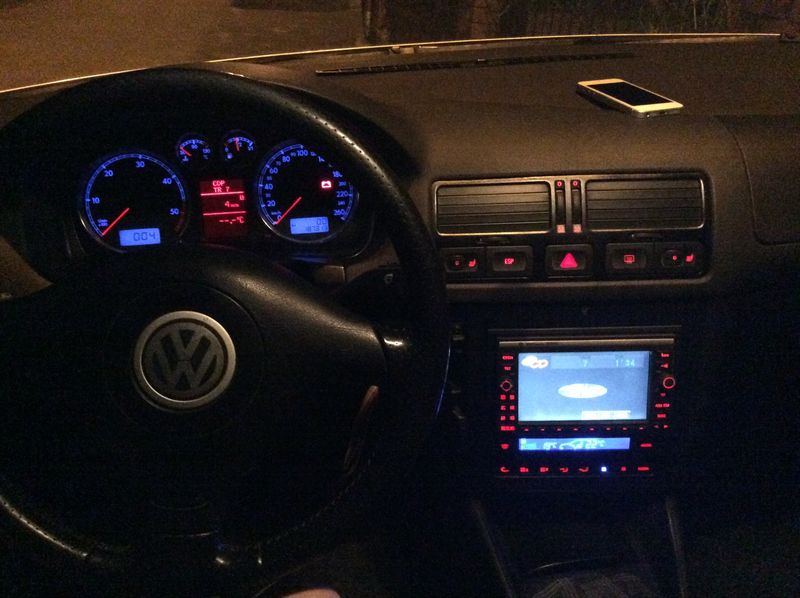

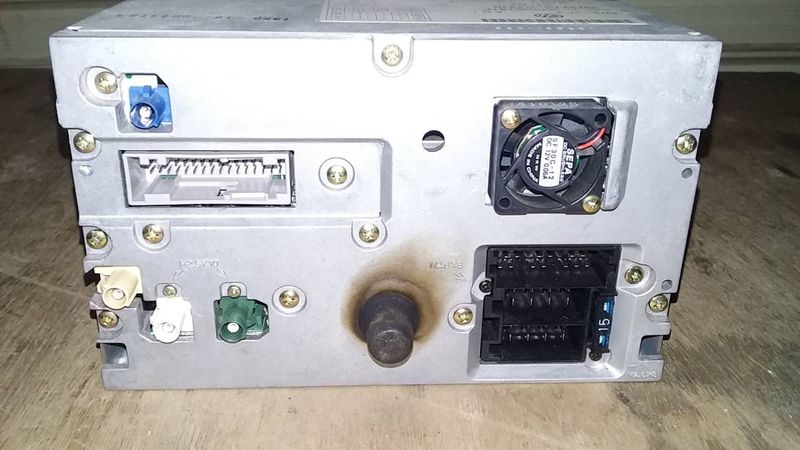

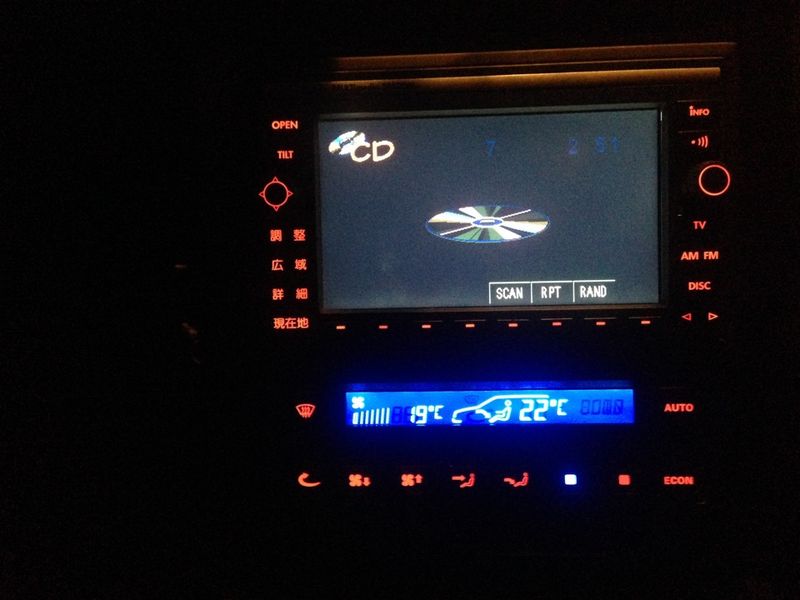

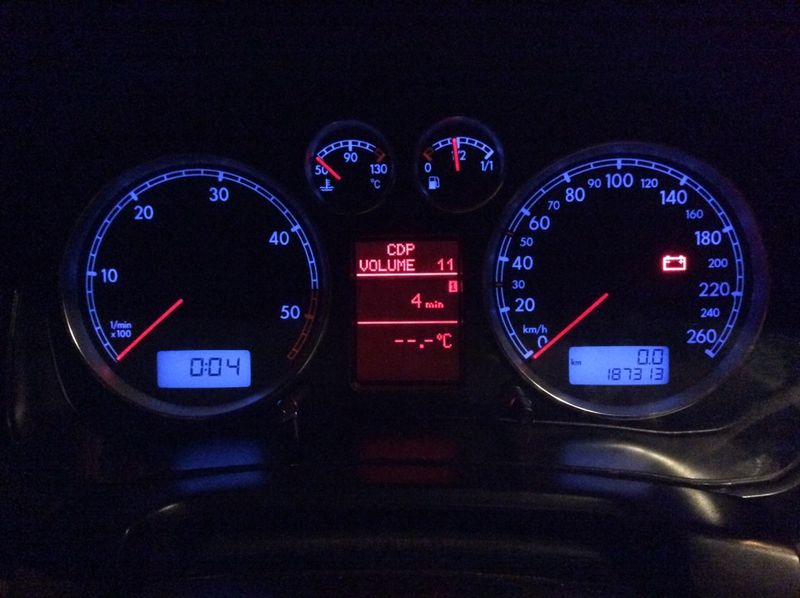

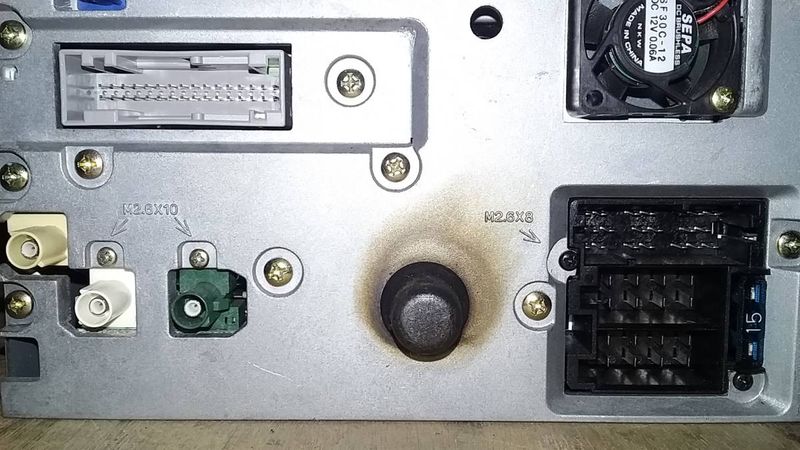

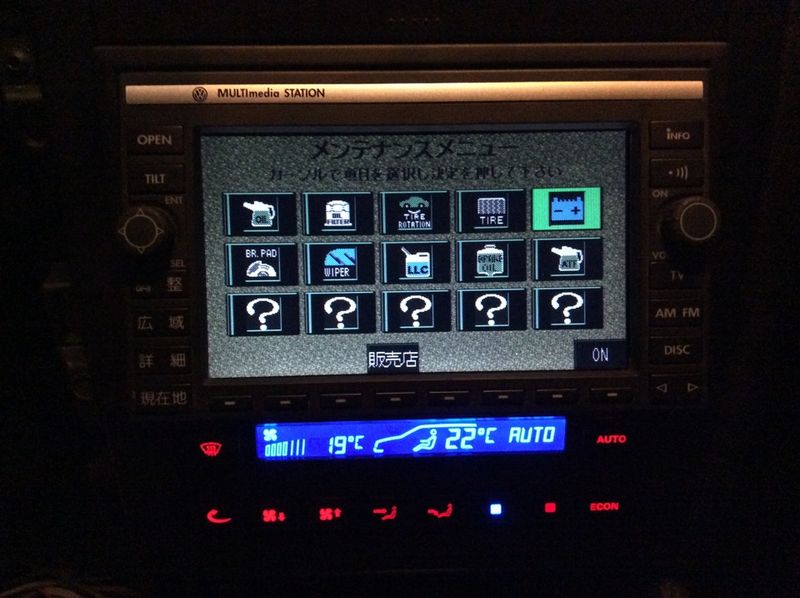

Translated from a Russian blog about installing the unit in a MKIV Jetta: “I wired the can from 8 and 9 pins of the mafon, to 8 and 9 pins (CAN COMFORT) of the green tidy pad. Everything worked, but not immediately, first it was necessary to disable MultiMFA. The backlight and display of information on the screen have earned …”
Specs:
- VHF: 1-12, UHF: 13-62
- Screen type: TFT thin film transistor
- Screen size: 5.8inch wide (16:9) 127.2 x 71.8 x 150mm
- Pixels:280,800 (vertical 234 x horizontal 1200)
- Operating temp: -20C ~ +65C
CD:
- THD 0.3% (1khz, 0dB, 0.5W output)
- S/N: 80dB
- Dynamic range: 72dB (1khz)
MD:
- THD 0.3% (1khz, 0dB, 0.5W output)
- SN:85dB (1khz)
FM/AM:
- FM: 76-90MHz (FM 12dB (IHF)) Frequency response: 30~15,000Hz. Stereo Separation: 35dB (1kHz)
- AM: 522-1629kHz (AM22uV SN: 20dB)
Common:
- Rated output: 15W x 4 (1khz, 142) (EIAJ)
- Maximum output: 20W x 4 (14.4V)
- 4ohm
- DC 13.2V (10-16V)
- Current consumption: 1Watt x 4 outputs approx 5A
- Max current consumption: 10A
Content adapted from: response.jp [*] 2001 announcement for a different unit that may or may not have MD [*]
