Clarion MAX950HD
| Name | MAX950HD |
|---|---|
| Manufacturer | Clarion |
| Released | 2005/06 |
| Device type | auto |
| Recorder | Player |
| MDLP | Yes |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes |
| Dimensions | 172 (W) x 100 (H) x 184 (D) mm |
| Weight | 3600 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | $2 385 |
| ¥275 100 | |
| - | |
| Inputs | CD |
| Outputs | |
| Control |

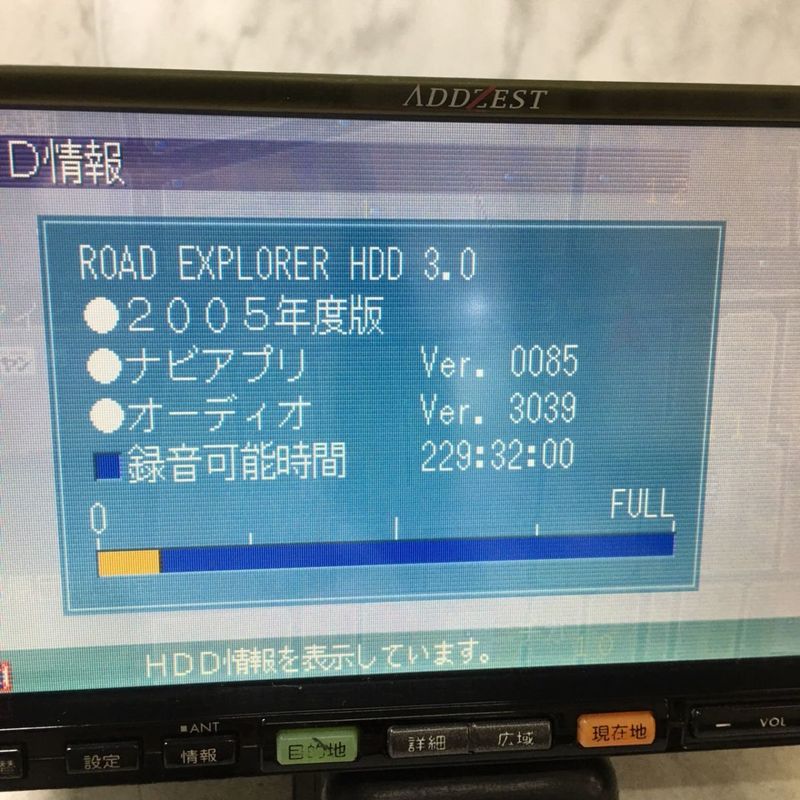

The Music Catcher function allows the user to record up to 4,000 songs from CD to the 30GB hard disk at 4x to 7x speed. In addition, the “music catcher function” allows recording from radio, TV, MD to the built-in HDD with the analog recording function.
Supports: DVD Video, DVD-Audio, CD, MP3 CD, MD, Memory Stick (MP3), AM / FM, TV.

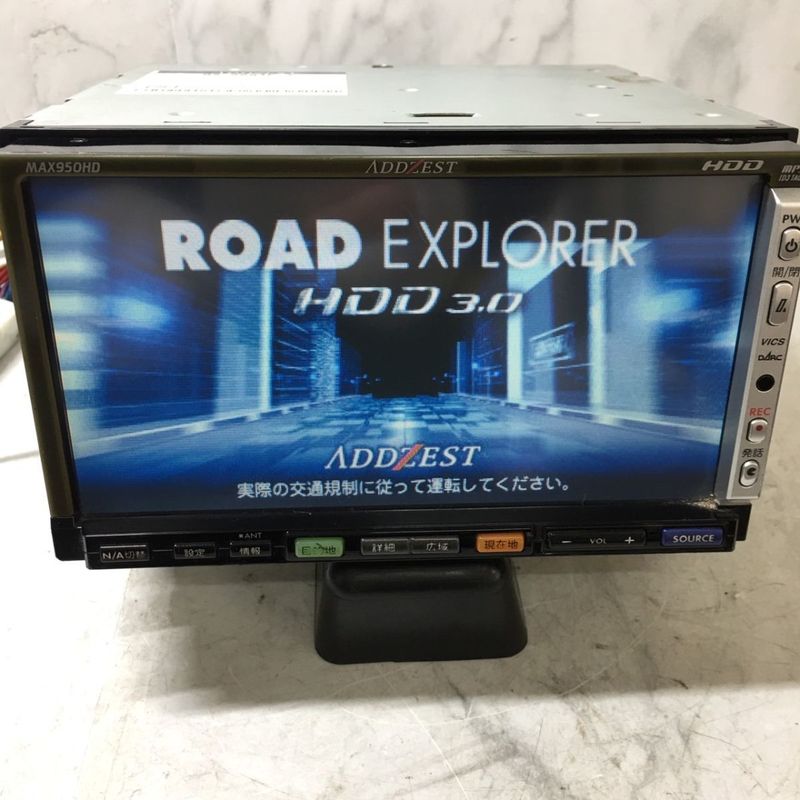

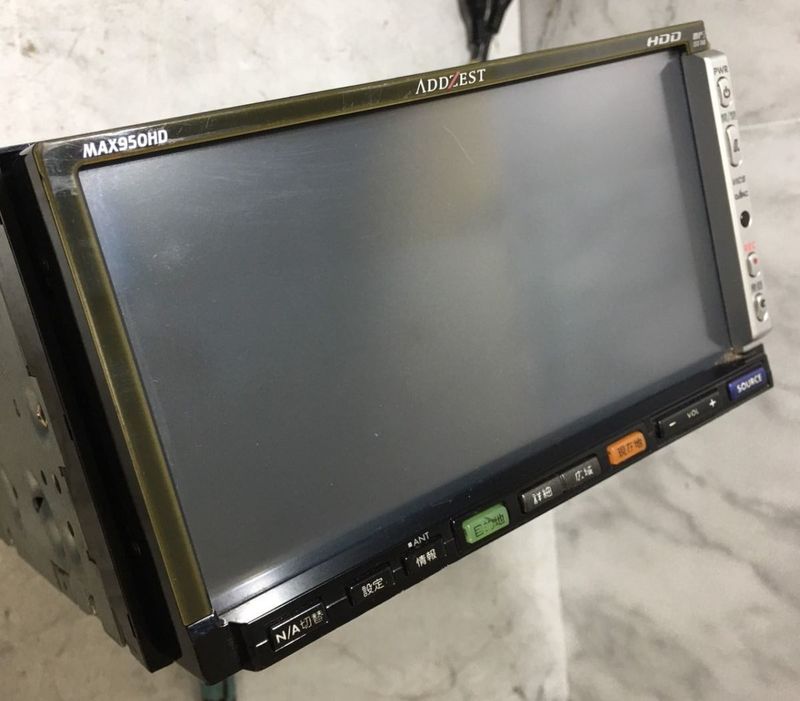

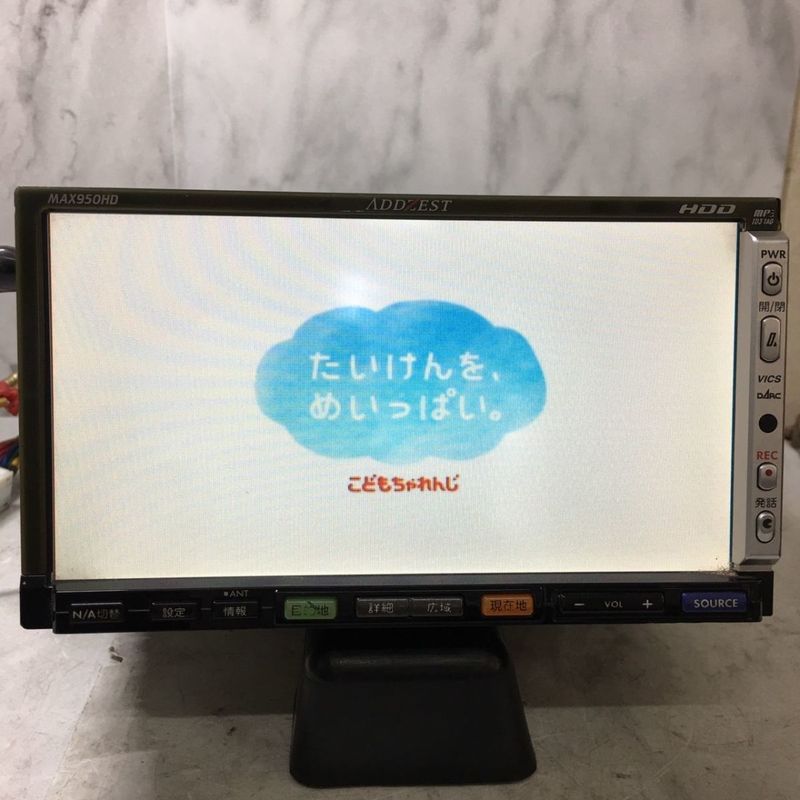

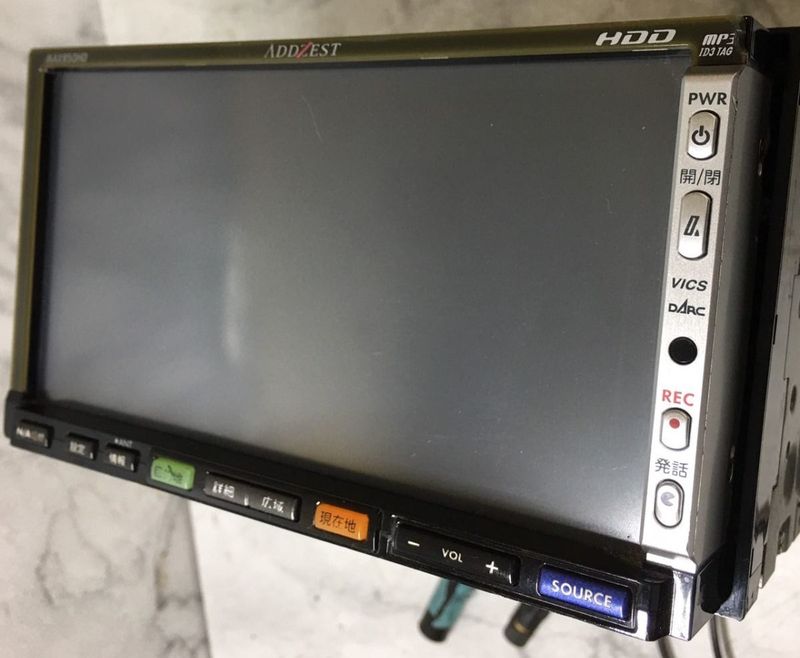

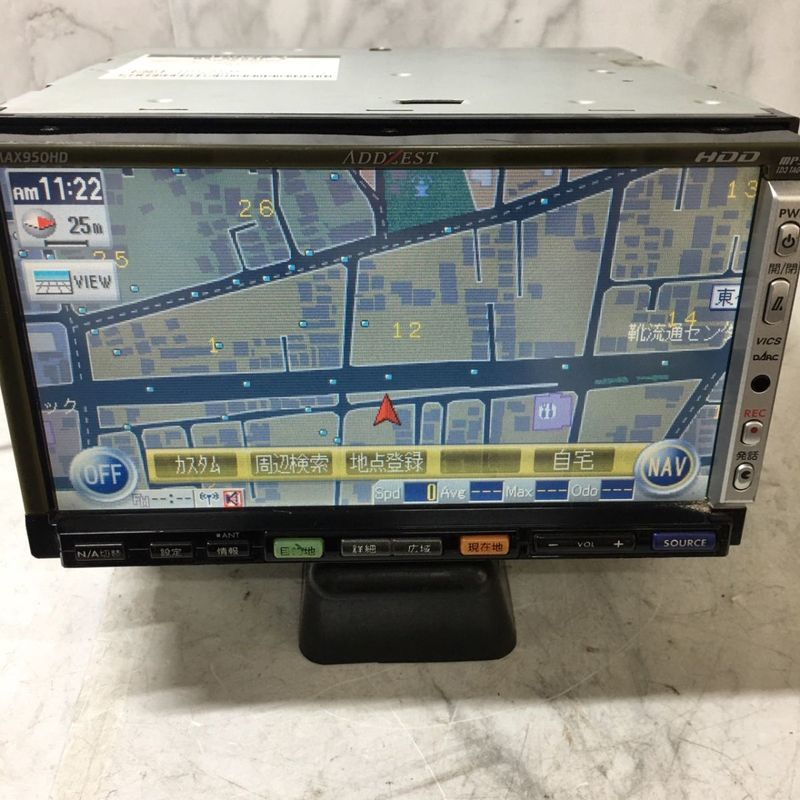

Screen: 7-inch TFT Touch panel (480 x 234). It also supports a 2nd screen, the “rear seat 2 zone” which can display a separate video to the front screen.

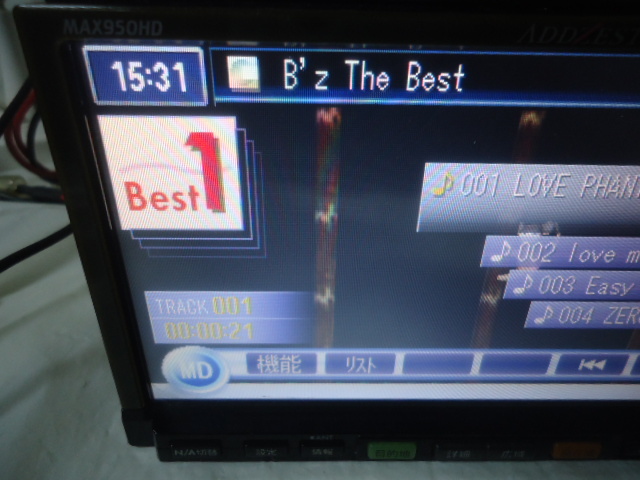

MD player section
Frequency characteristic: 20Hz-20kHz (EIAJ)
SN ratio: 90dB (EIAJ)
Dynamic range: 85dB or more
Total harmonic distortion: 0.04% (1kHz)
Audio part: Rated output: 16W x 4 (10%, 4Ω) Maximum output: 50W x 4 (EIAJ)
Power-supply voltage: DC14.4V - Negative grounding Current consumption: Approximately 4.2A (at 1W output)
Accessories:

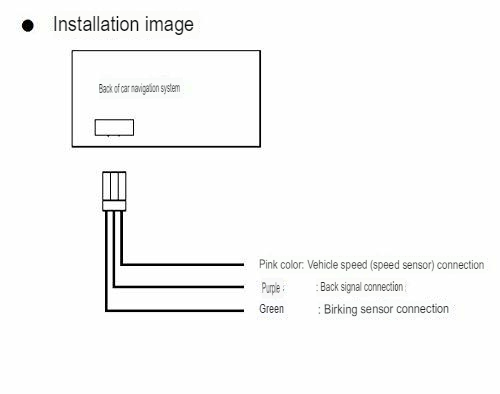

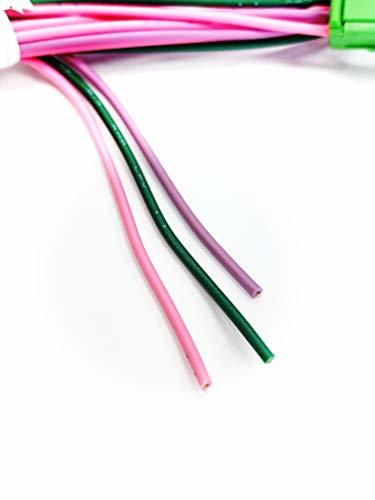

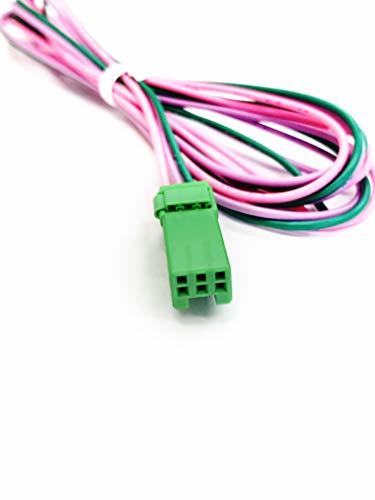

- Parking brake / VSS cable: CSBP-01-3P
- Rearview Camera: CCA-644-500
- iPod: EA1250A / EM-1280U - Supported iPods are 3rd generation or later, and iPod mini/photo.

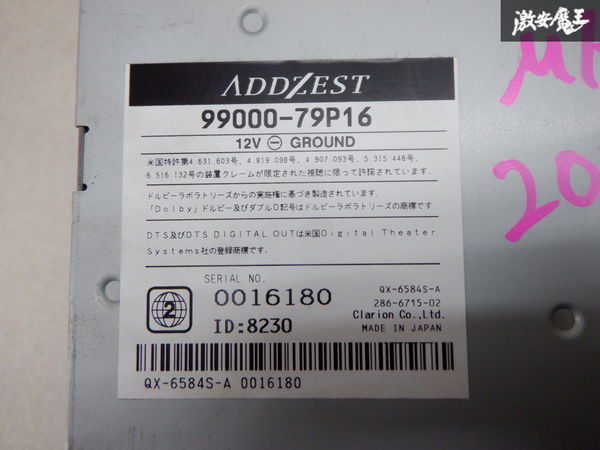

The part# 99000-79P16 is on some of them, probably a Suziku part#.
Content adapted from: Clarion News Release [*] av.watch [*]
Manuals
MAX950HD User Manual ENG
MAX950HD User Manual JP
MAX950HD Installation Guide JP
Repair
Photos
