Alpine MDA-W779JB
| Name | MDA-W779JB |
|---|---|
| Manufacturer | Alpine |
| Released | 1999/10 |
| Device type | auto |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | Yes - 76-90Mhz |
| Dimensions | 2-Din W 178 × H 100 × D 155mm |
| Weight | 2500 |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | |
| Voltage | 12 |
| Power cable | |
| Price (launch) | |
| ¥99 800 | |
| - | |

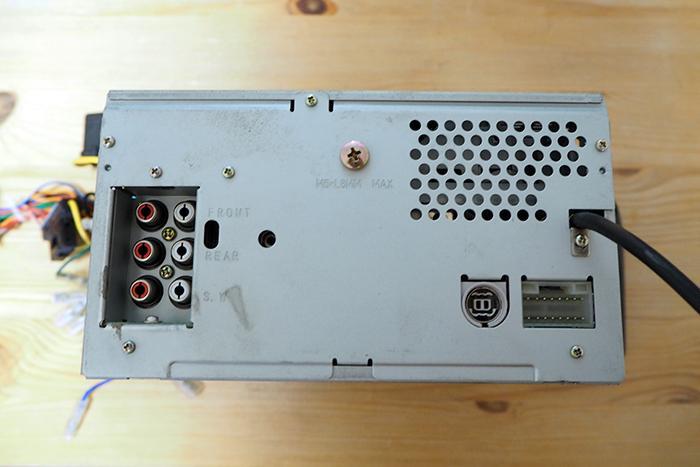

| Inputs | CD |
| Outputs | Speaker amplifier |
| Control |

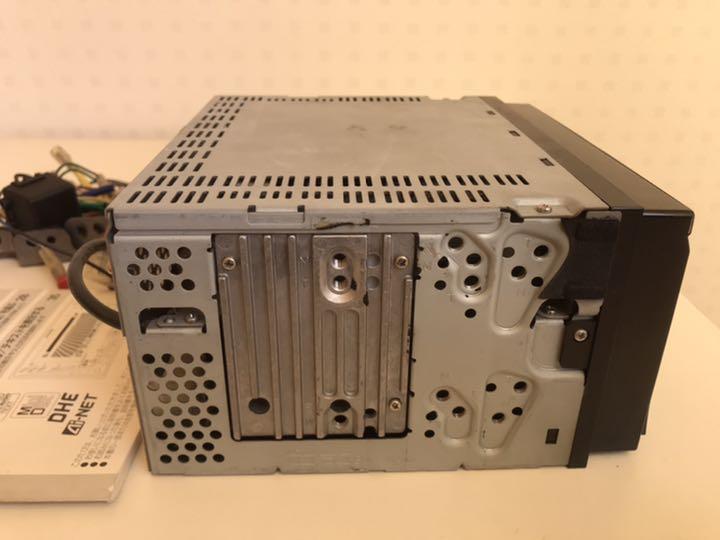

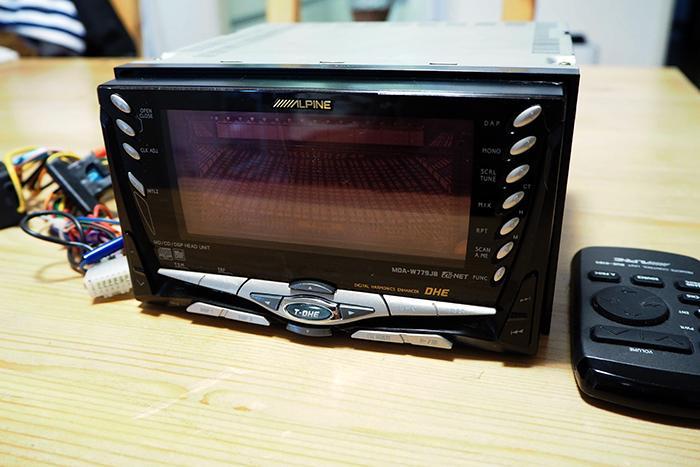

Alpine MDA-W779JB. The W779JB is equipped with “DHE Fine” which allows for even more detailed sound expression, and “DHE Powered” which further powers up deep bass. Separate and independent layouts for power supply and audio circuits with a copper encased power supply box.

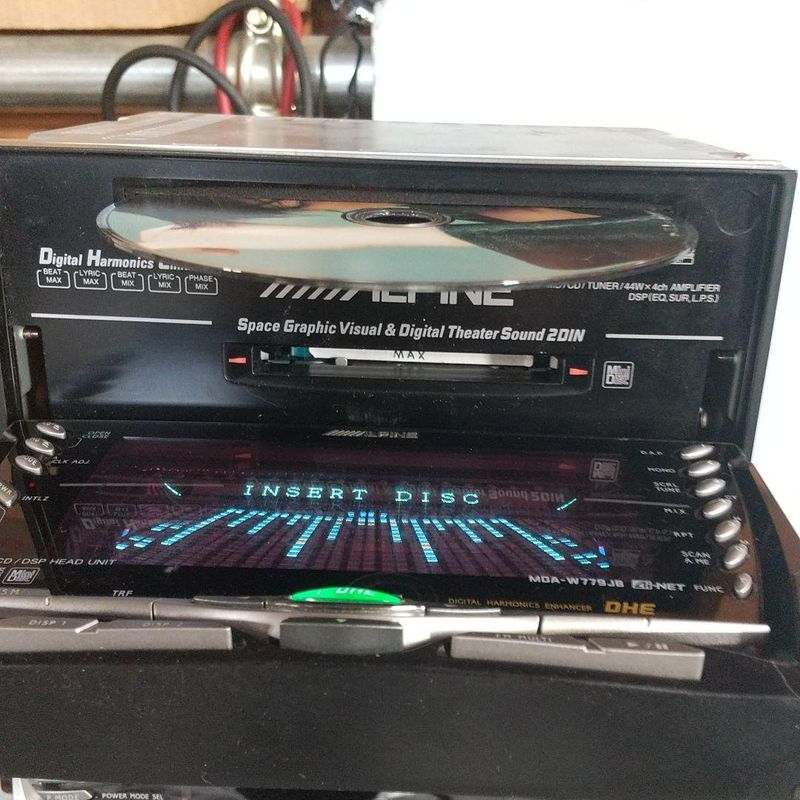

MD/CD player with:
- MD/CD kanji title display
- DHE DHE (Digital Harmonics Enhancer)
- T-DHE (Theatre Sound DHE)
- DSP
- 7 Band EQ (…63Hz/160Hz/400Hz/1kHz/2.5kHz/6.3kHz/16kHz（each± 10dB）)

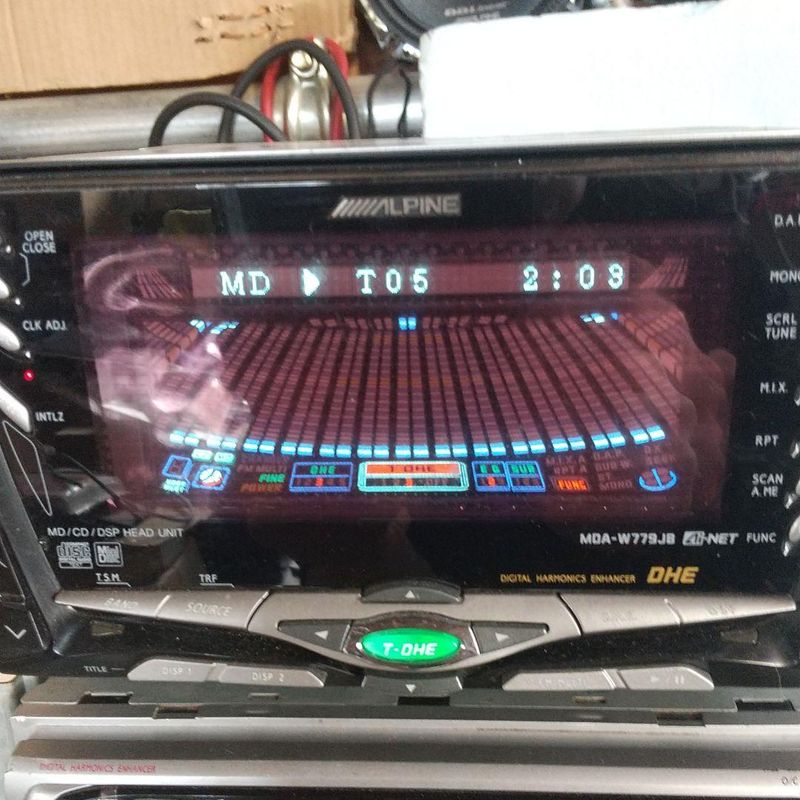

- Equipped with “Glide Wing”, an advanced and smart display action
- FM character multiplexing (FM teletext broadcasting can be displayed)
Equipped with a newly developed MD mechanism with improved reliability and durability due to its excellent heat dissipation effect (10 to 15 degrees Celsius compared to the conventional model).
Equipped with a “new optical CD pickup” that is smaller and lighter and has improved reliability.
MD S/N: 105dB. Dynamic Range: 90dB.
CD S/N: 105dB. Dynamic Range: 93dB. Channel Separation: 86dB.

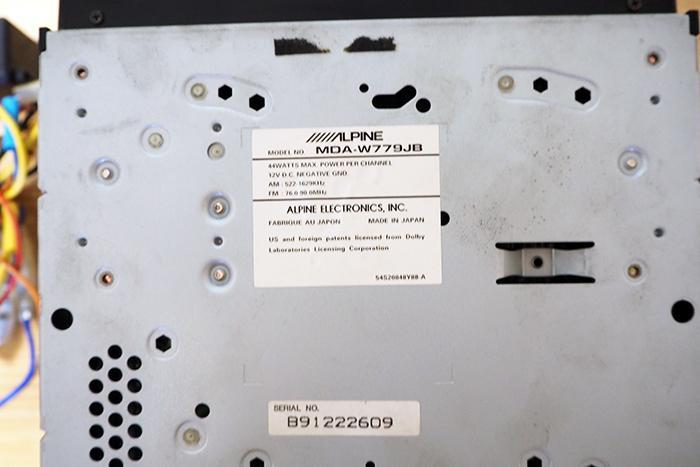

44W × 4ch amplifier

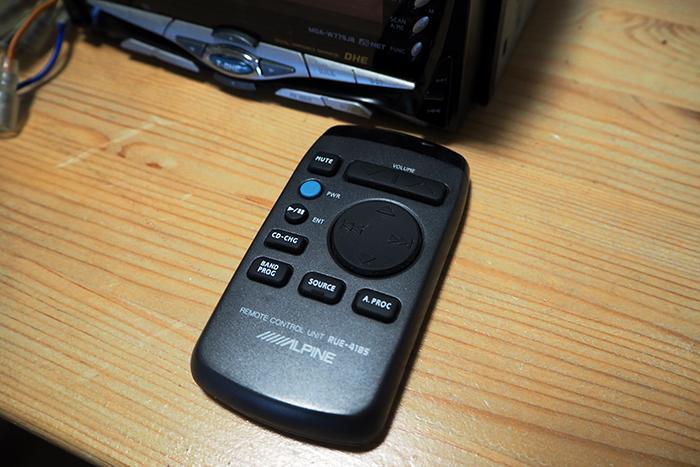

Remote part#: RUE-4185
Content adapted from: Alpine announcement/press release [*] Alpine announcement/press release (MiniDisc Wiki mirror) [*] Alpine MDA-W779JB [*]
Manuals
MDA-W779JB Owners Manual JP.pdf
MDA-W779JB Installation Manual.pdf
Repair
Demo: n0WDJRUB5jI

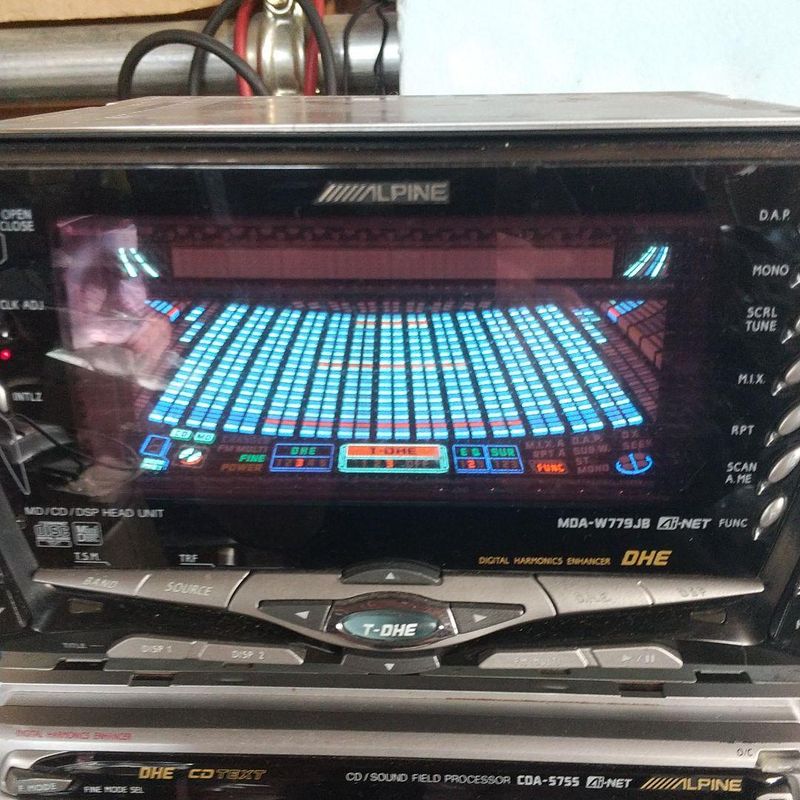

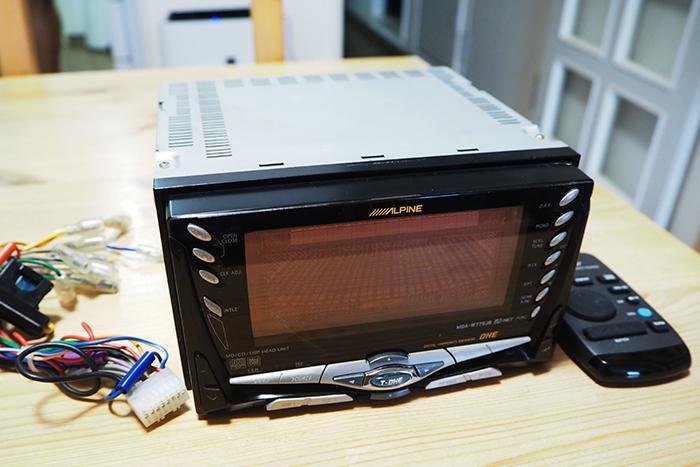

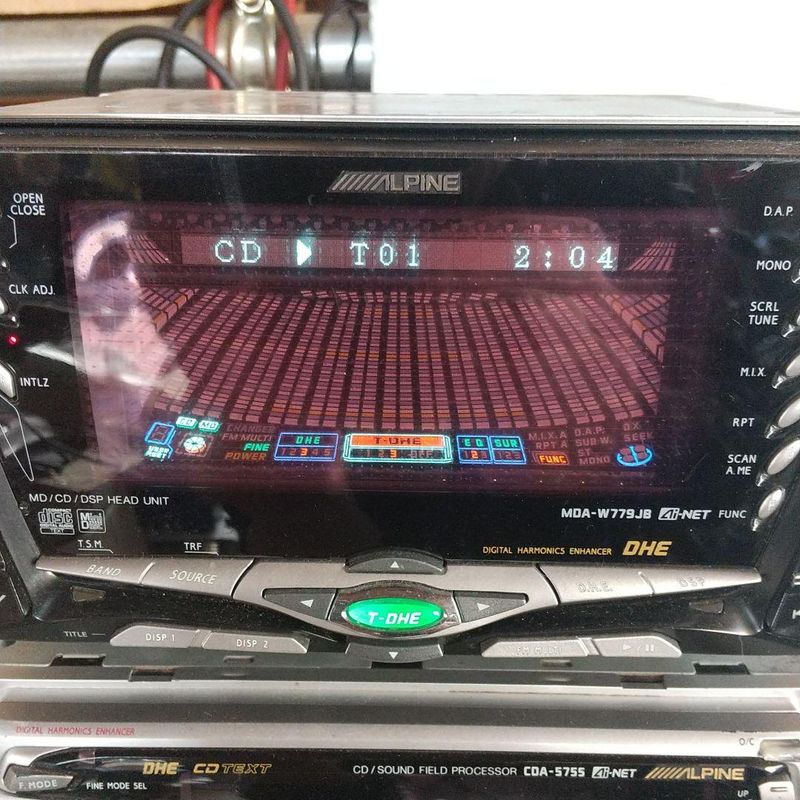

Photos
