Aiwa AM-HX70
| Name | AM-HX70 |
|---|---|
| Manufacturer | Aiwa |
| Released | 2000/09 |
| Device type | portable |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 71.6W x 77.7D x 13.5H mm |
| Weight | 85g |
| ATRAC ver | |
| Battery | |
| Battery notes | |

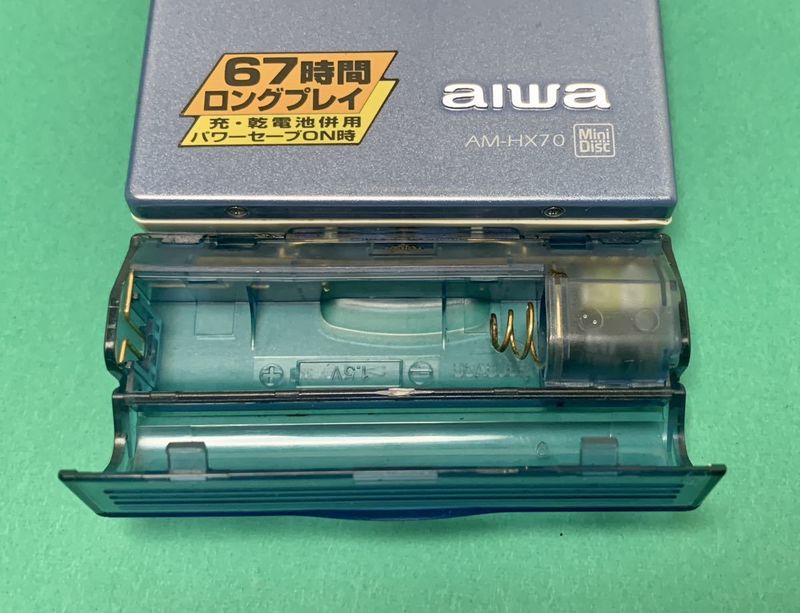

| Sidecar (depr) | 1xAA |
| Voltage | 1.2 |
| Power cable | |
| Price (launch) | |
| ¥27 800 | |
| - | |
| Inputs | |
| Outputs | 3.5mm headphone |
| Control |

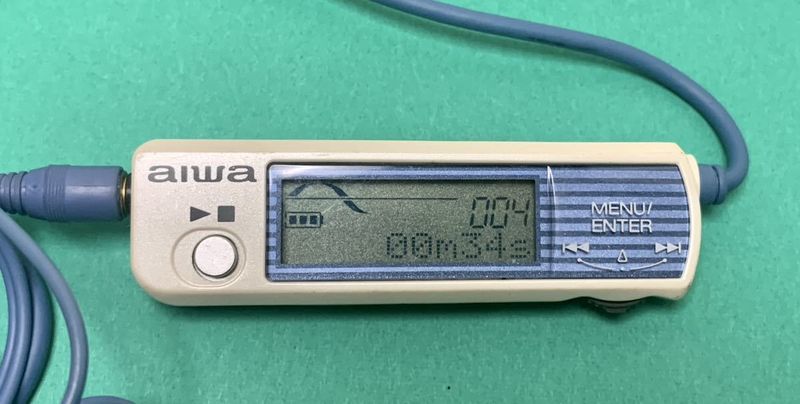

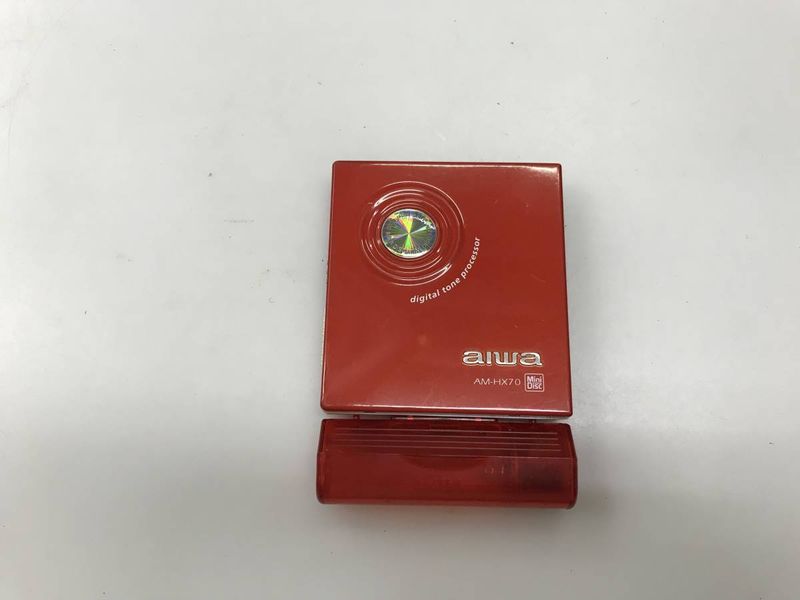

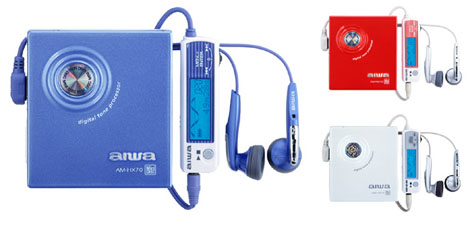

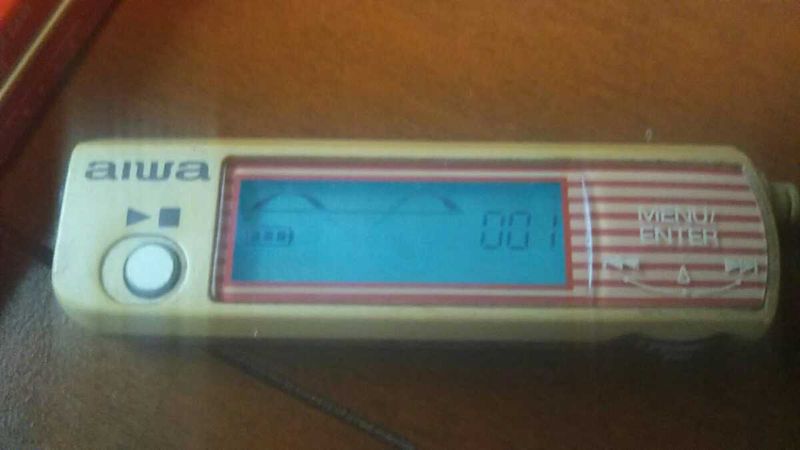

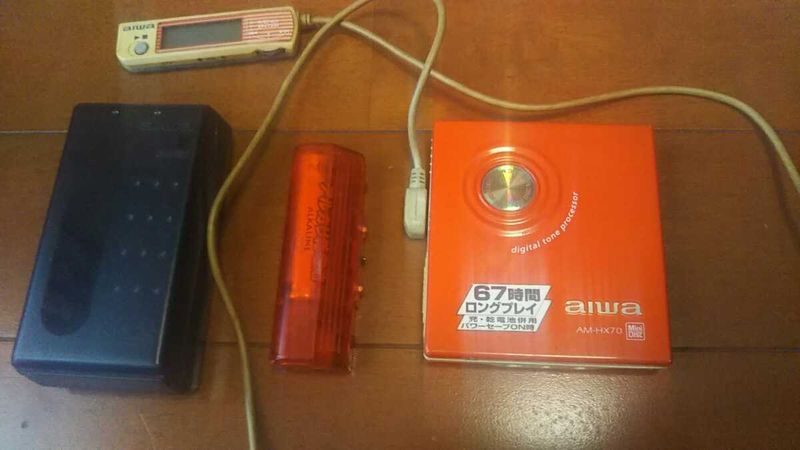

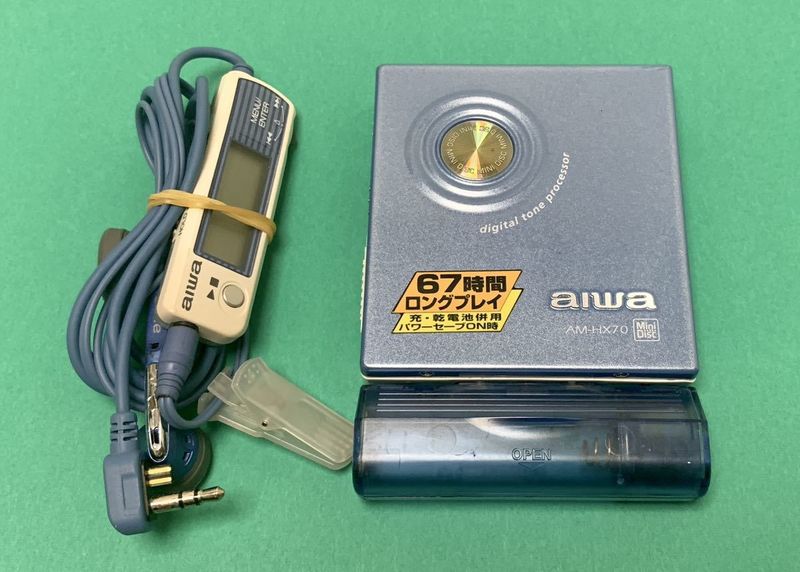

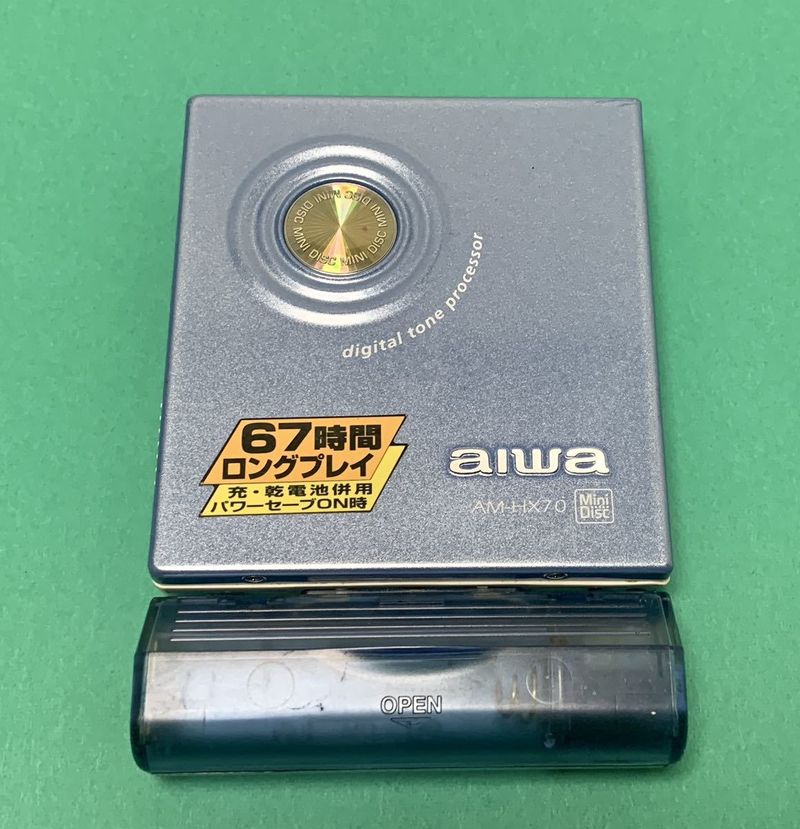

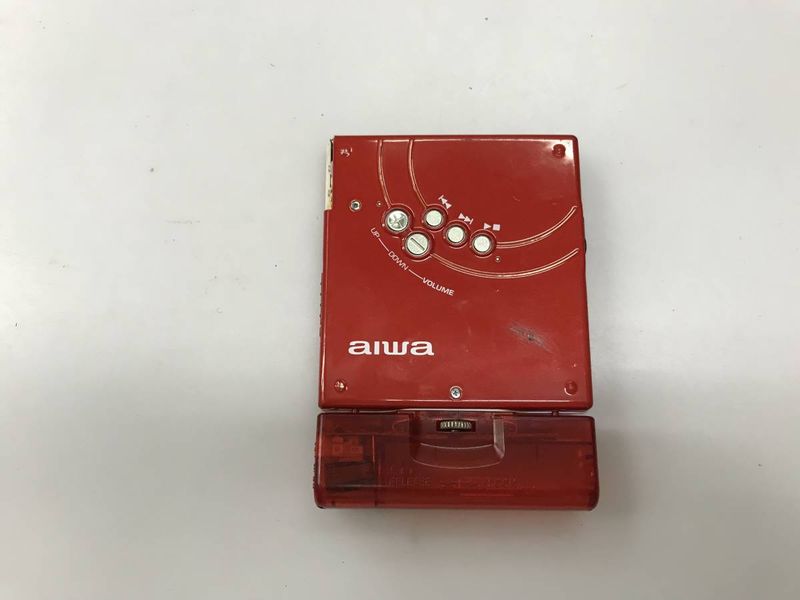

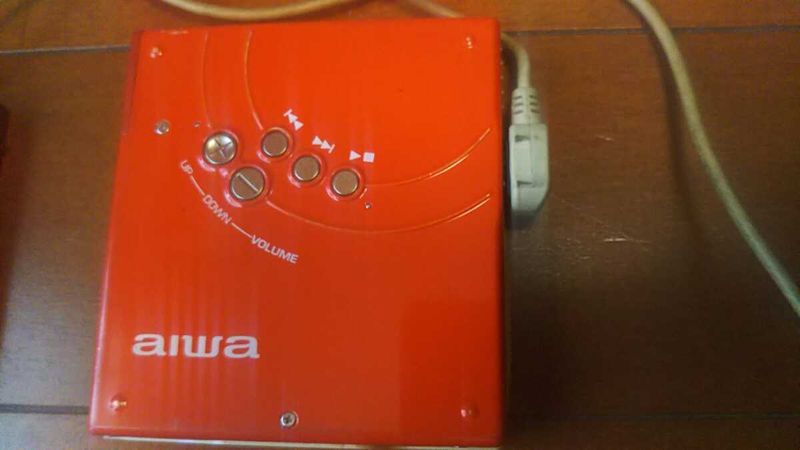

Japanese Domestic Market only unit. Originally offered in Blue, Red, and White with matching remote. Later expanded to include Orange, Pink and possibly others.

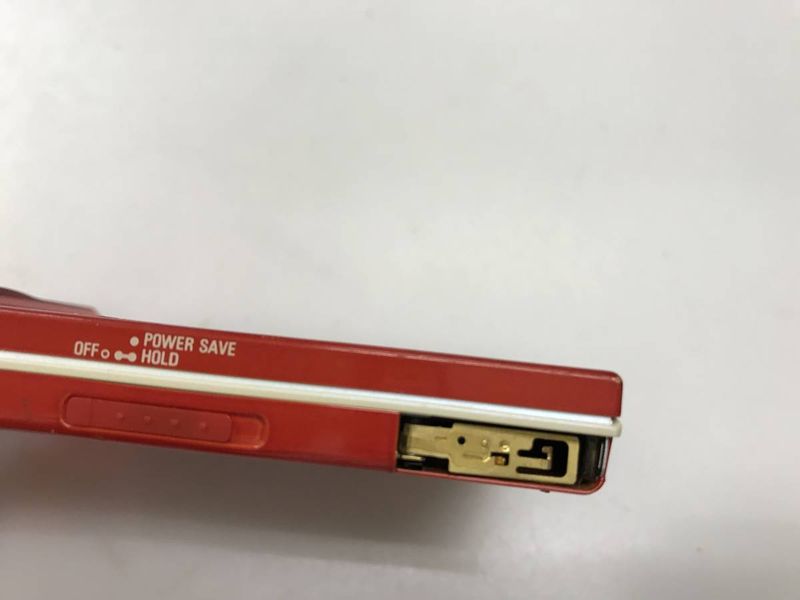

Features: Power-save function extends battery life (see battery table below). 25-track programmable playback function, digital tone processor (bass/treble control), 40-second anti-shock memory, and several alarm functions. A “sentence repeat” mode will loop a portion of audio that has at least half-second moments of silence at each end, supposedly this feature is useful when learning another language and using MiniDisc.
Specs: 8mW per channel.
Content adapted from: Minidisc.org page [*] Aiwa Press Release [*] Aiwa Press Release (MiniDisc Wiki mirror) [*]
Manuals
AM-HX70 Service manual
Repair
Photos
