Aiwa AM-F5
| Name | AM-F5 |
|---|---|
| Manufacturer | Aiwa |
| Released | 1997/12 |
| Device type | portable |
| Recorder | Recorder |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | |
| Dimensions | 97x21.6x77.6mm |
| Weight | 189g, 216g w/batt |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | 3xAA |
| Voltage | 4.5 |
| Power cable | |
| Price (launch) | |
| ¥45 000 | |
| - | |
| Inputs | 3.5mm line in (optical multi), Digital optical (TOSLINK) |
| Outputs | 3.5mm headphone |
| Control |

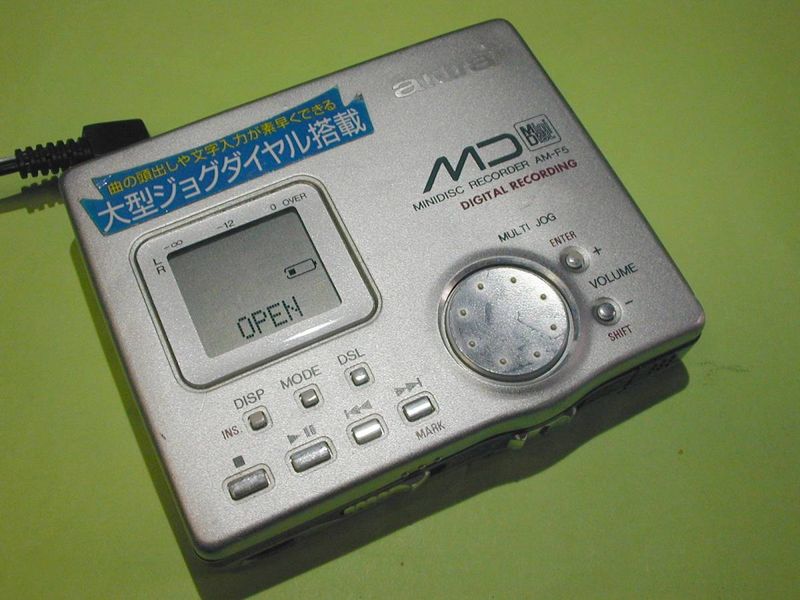

- Jog dial on the main body and remote, allowing easy character entry and disc operation (the volume knob doubles as the jog dial on the remote).
- Divide rehearsal mode (allows fine tuning of divide point with jog dial).
- Provides syncho recording from digital and analog sources.
- Sampling rate converter.
- Stereo/mono recording.
- Normal and 2X speed playback.
- Time mark function makes track marks every 5 minutes.
- Date and time stamp recording.
- Program (25 tracks), repeat, random, play modes.
- Resume function (restarts play from stopped place).
- 3 position battery level indicator.
- Auto and manual recording level controls, manual recording level can be changed while recording is underway.
- Silver color.
- One point stereo mic included.

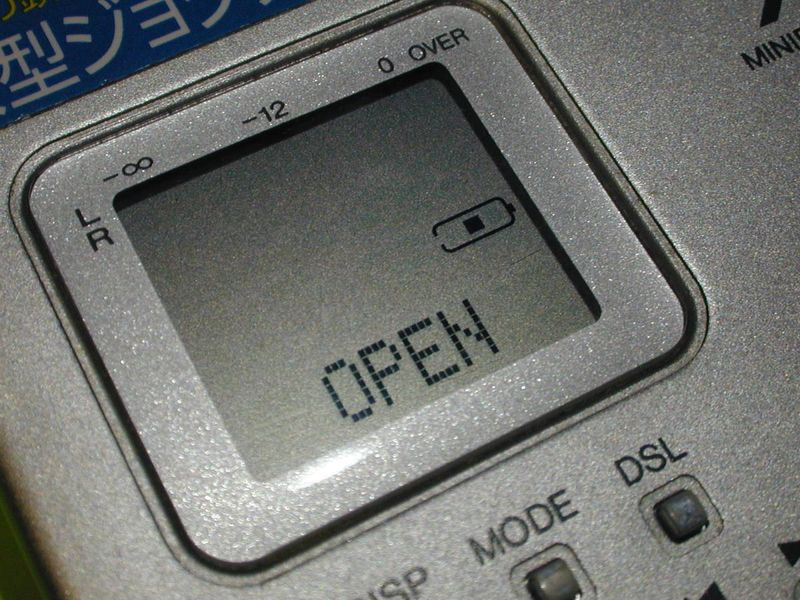

- Separate L/R recording level meters.
- AM-F5 remote does not contain LCD.
headphone output: 10mW+10mW

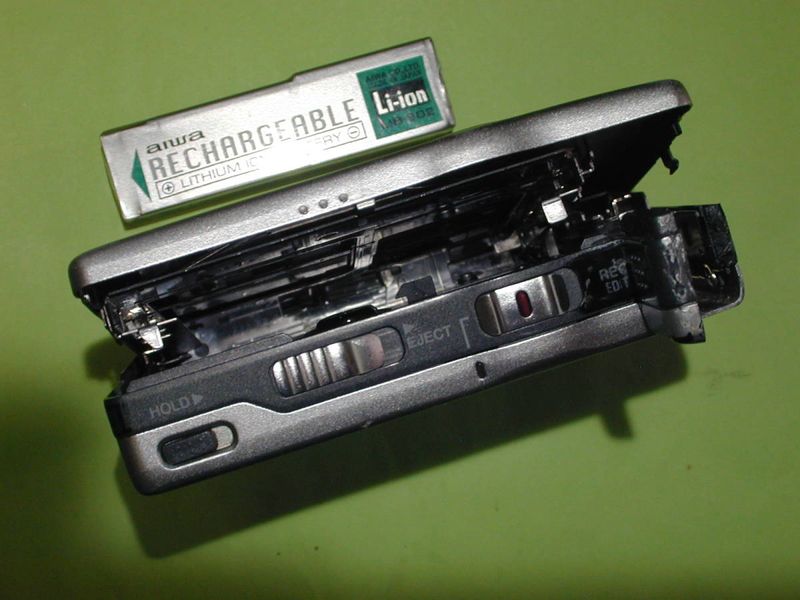

Differences from Sony MZ-R50: 10 second (Aiwa) vs. 40 second (Sony) shock memory. Sony button layouts are simpler. Sony has LCD remote. Aiwa allows manual recording levels to be changed without pausing the machine. Aiwa has recording level meters for both channels. Different batteries. Aiwa has smaller appearance. Both machines use clamshell (not slot in) disc loading.
Variants: AM-F7 model is nearly identical to AM-F5. It adds a backlit remote (plus firmware changes to drive it) and a few bug fixes.
MD Mechanism: 7ZG-1 R1 Type: AHE
Optical Pickup:
ATRAC IC: CXD2652R
Content adapted from: Aiwa Press Release [*] Aiwa Press Release (MiniDisc Wiki mirror) [*] Minidisc.org page [*] Nick Boyde's page [*] Aiwa Germany's page [*] Aiwa Germany's page (MiniDisc Wiki mirror) [*]
Manuals
HTML manual / scan on Minidisc.org [*]
Aiwa AM-F5 Service Manual (incomplete)
Some reverse engineering of the remote [*] Some reverse engineering of the remote (MiniDisc Wiki mirror) [*]
Repair

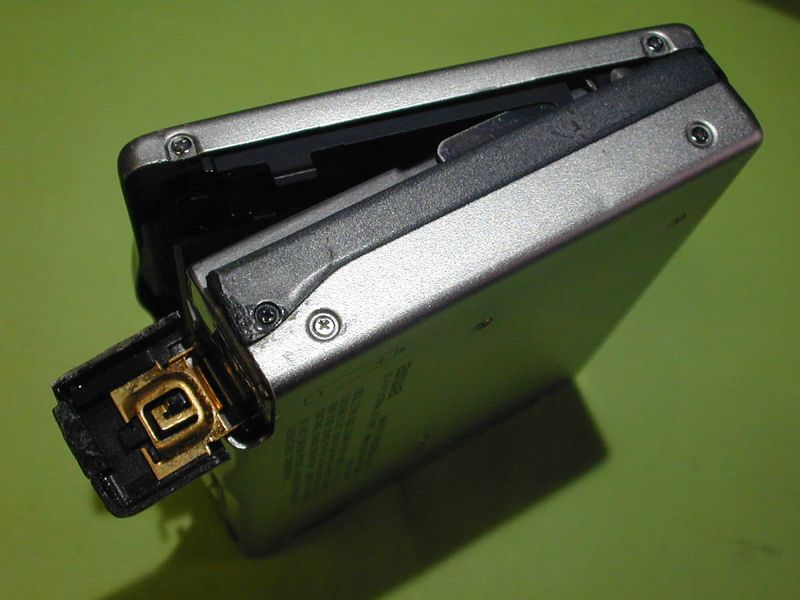

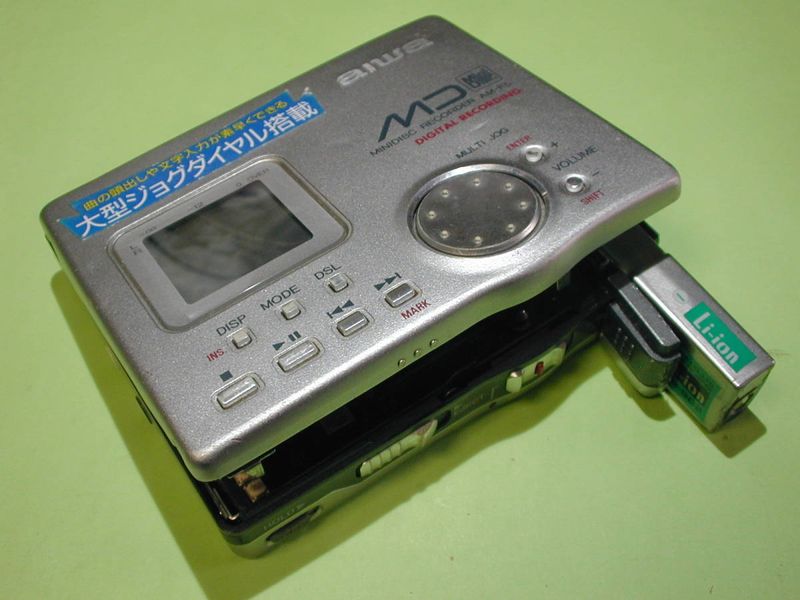

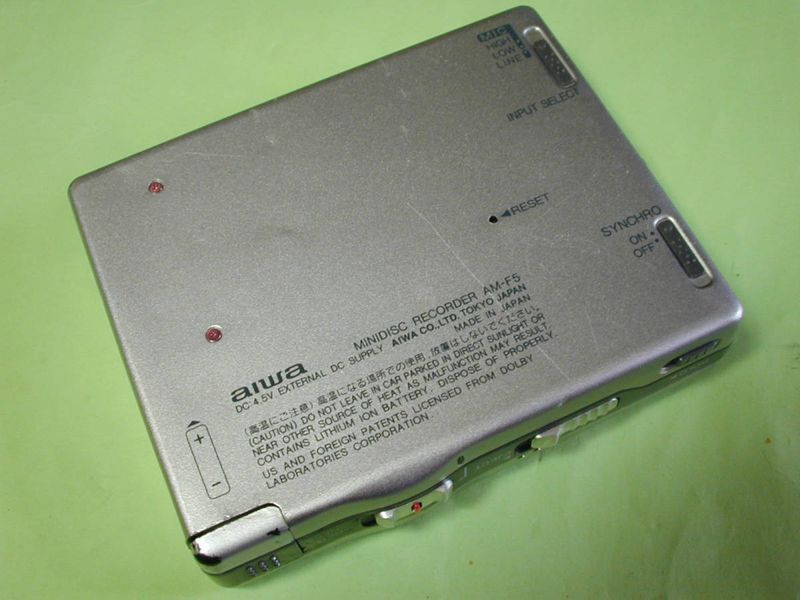

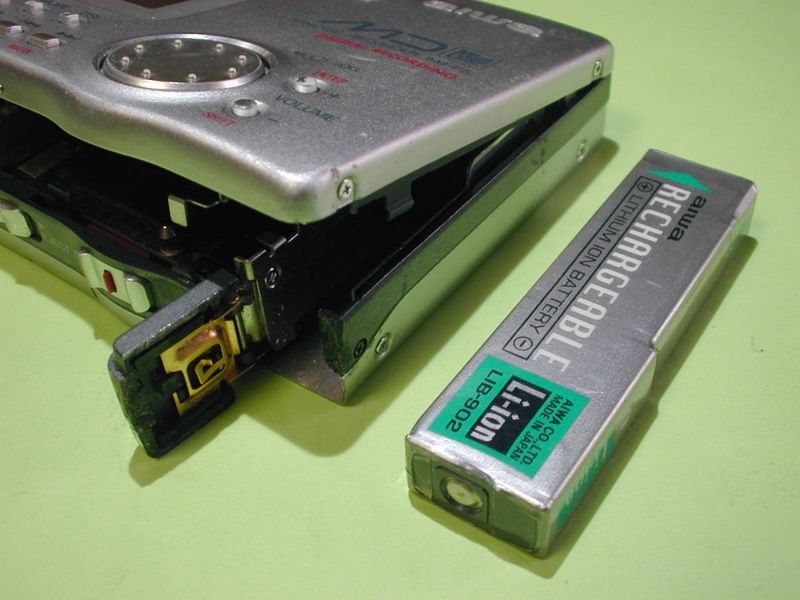

Photos
