Aiwa AM-CL33
| Name | AM-CL33 |
|---|---|
| Manufacturer | Aiwa |
| Released | 2000/07 |
| Device type | portable |
| Recorder | Player |
| MDLP | No |
| NetMD | No |
| Hi-MD | No |
| Radio | No |
| Dimensions | 80(W) x 82.8(D) x 20.4(H) mm |
| Weight | 110g |
| ATRAC ver | |
| Battery | |
| Battery notes | |
| Sidecar (depr) | 1xAA |
| Voltage | 1.2, 1.5, 100 |
| Power cable | AC |
| Price (launch) | |
| ¥25 800 | |
| - | |
| Inputs | |
| Outputs | 3.5mm headphone |
| Control |

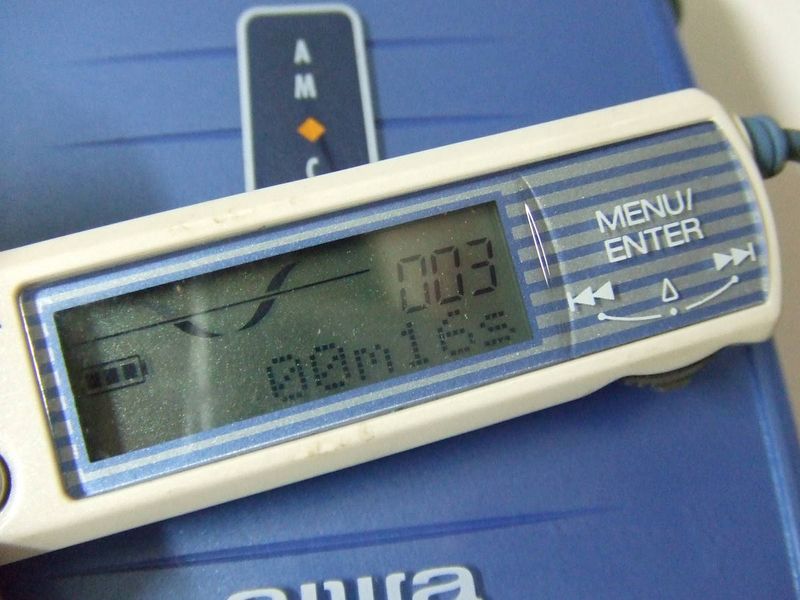

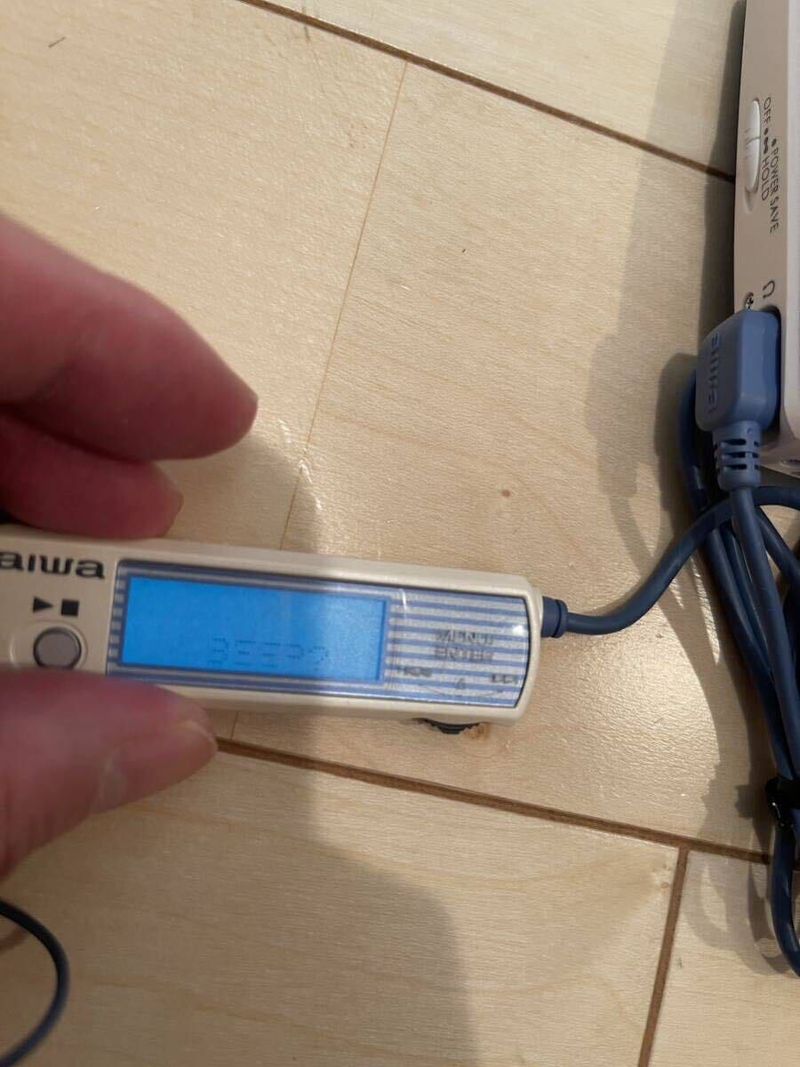

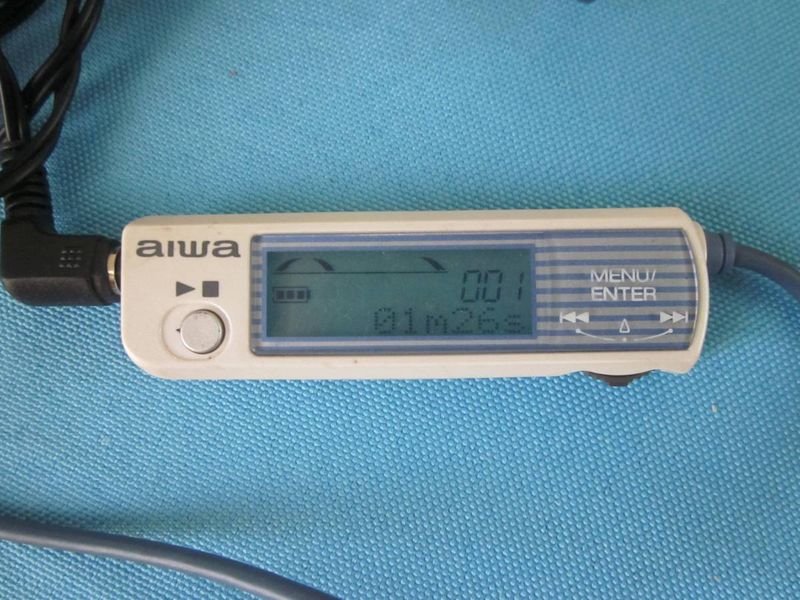

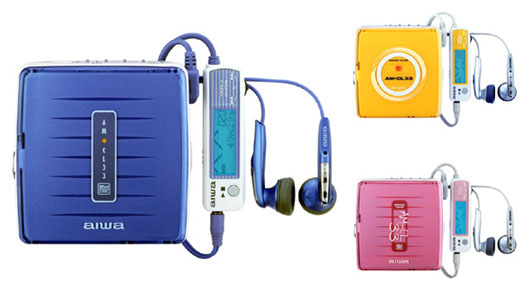

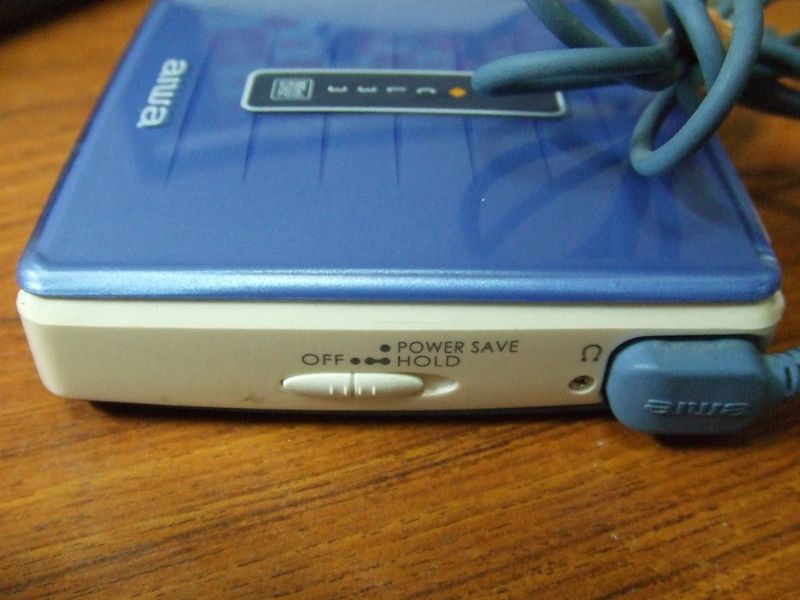

Features: Available in three colors, power save feature allows unit to run for an extended period of time, backlit LCD remote control, alarm function, 40-second skip protection, three step base boost.
Battery Life:
Play Recharge
20 hr 70 min - NiMH
35 hr - AA x 1
60 hr - Both
Note: No Mains pin on the case, battery charger required to charge.
Maximum output level 8 mW + 8 mW (16 Ω) Battery charger part# RB-M02 K (AC 240 V, 50 Hz)
Optical Block: KMS-330A
Content adapted from: Minidisc.org page [*], Just-MD page [*] Aiwa Press Release [*] Aiwa Press Release (MiniDisc Wiki mirror) [*]
Manuals
AM-CL33 Service Manual
Repair
(repair links go here)

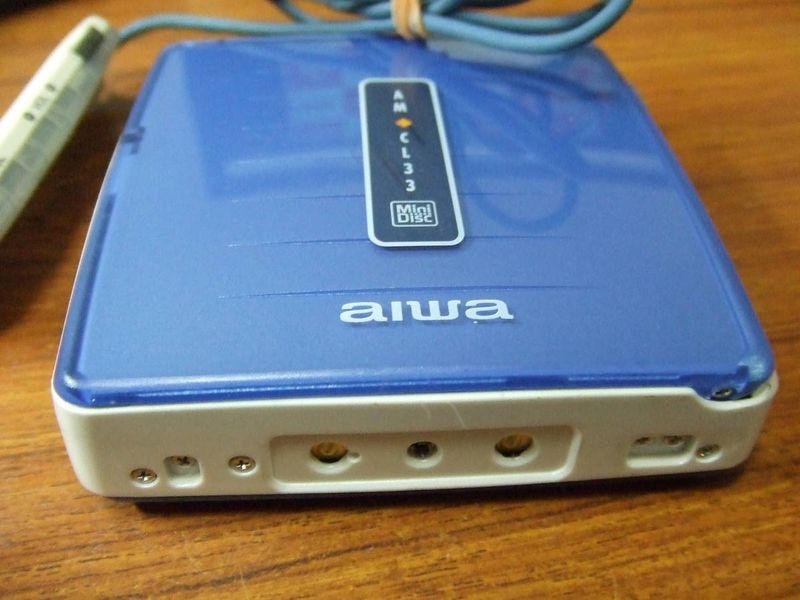

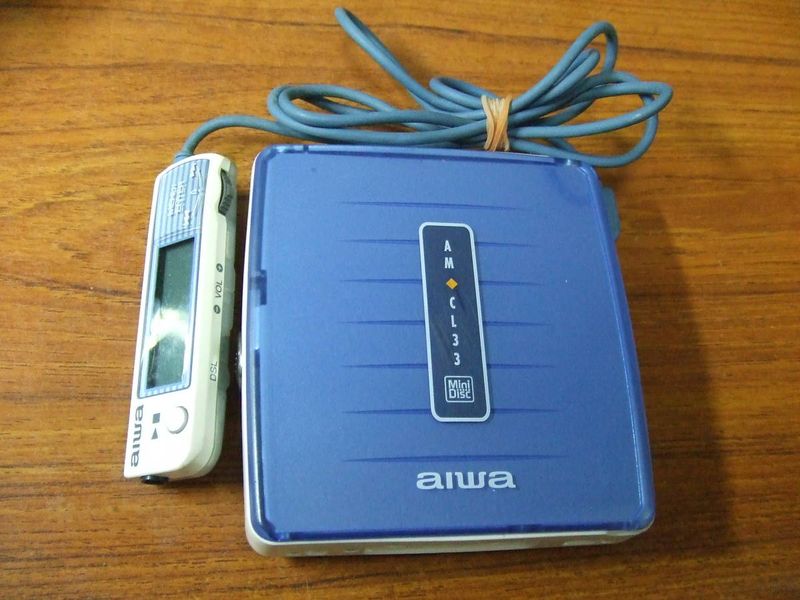

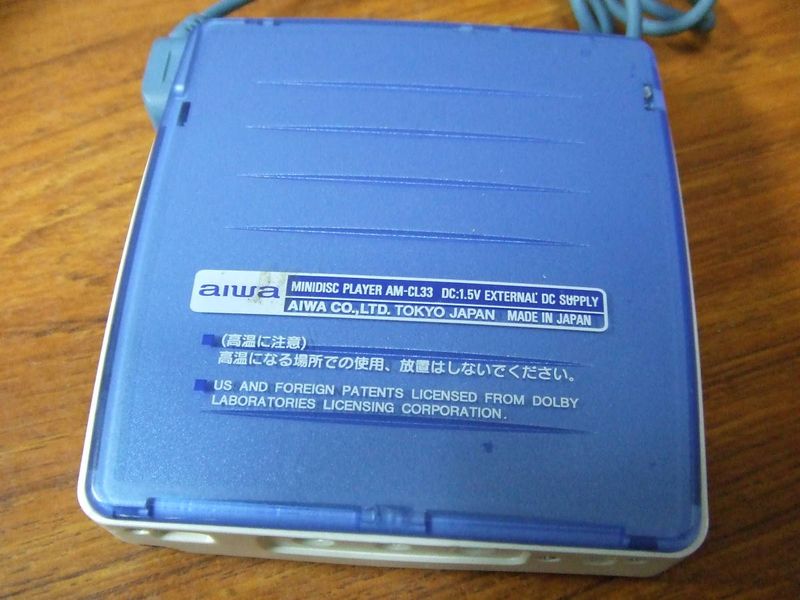

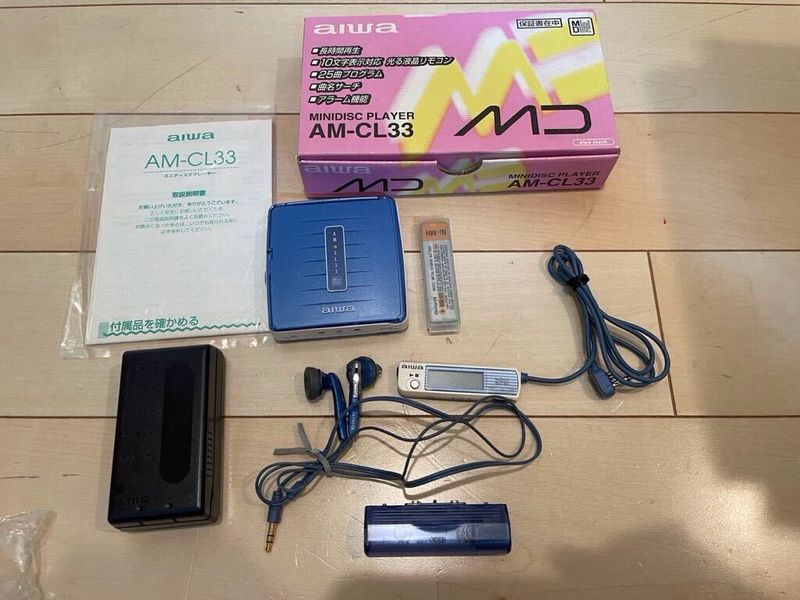

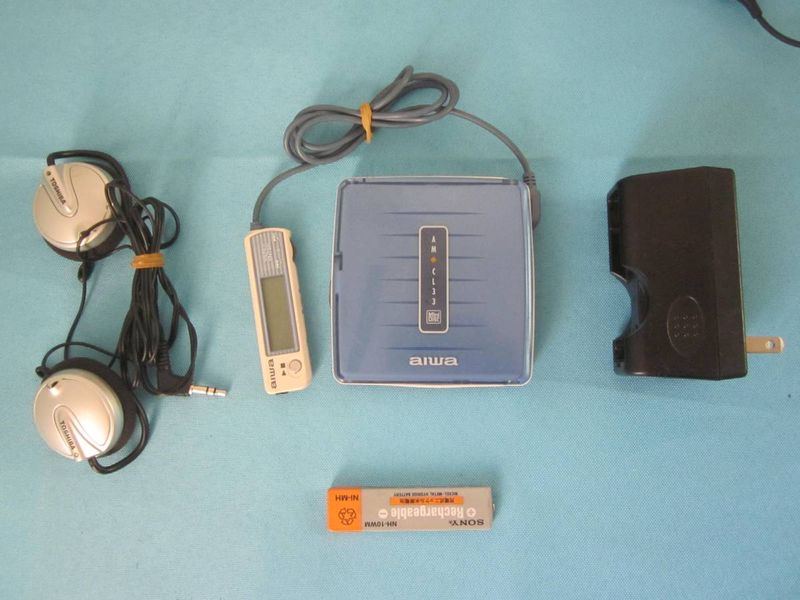

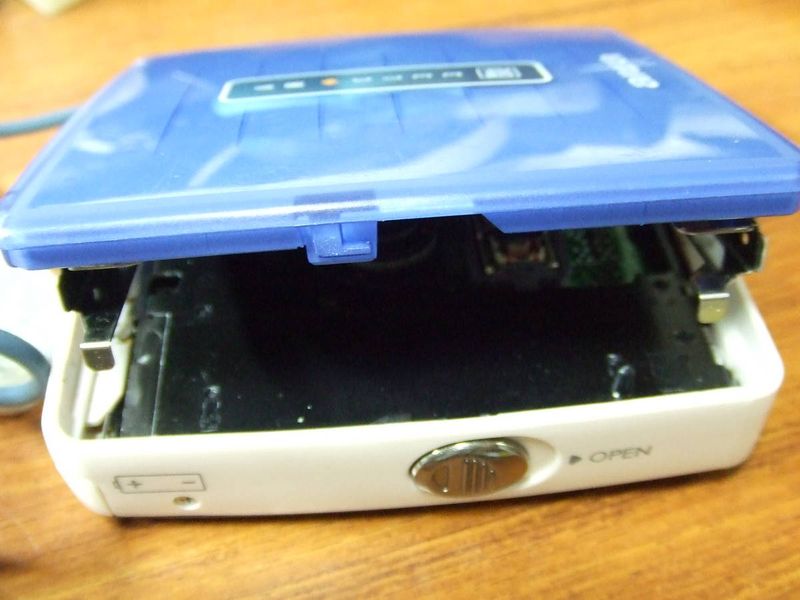

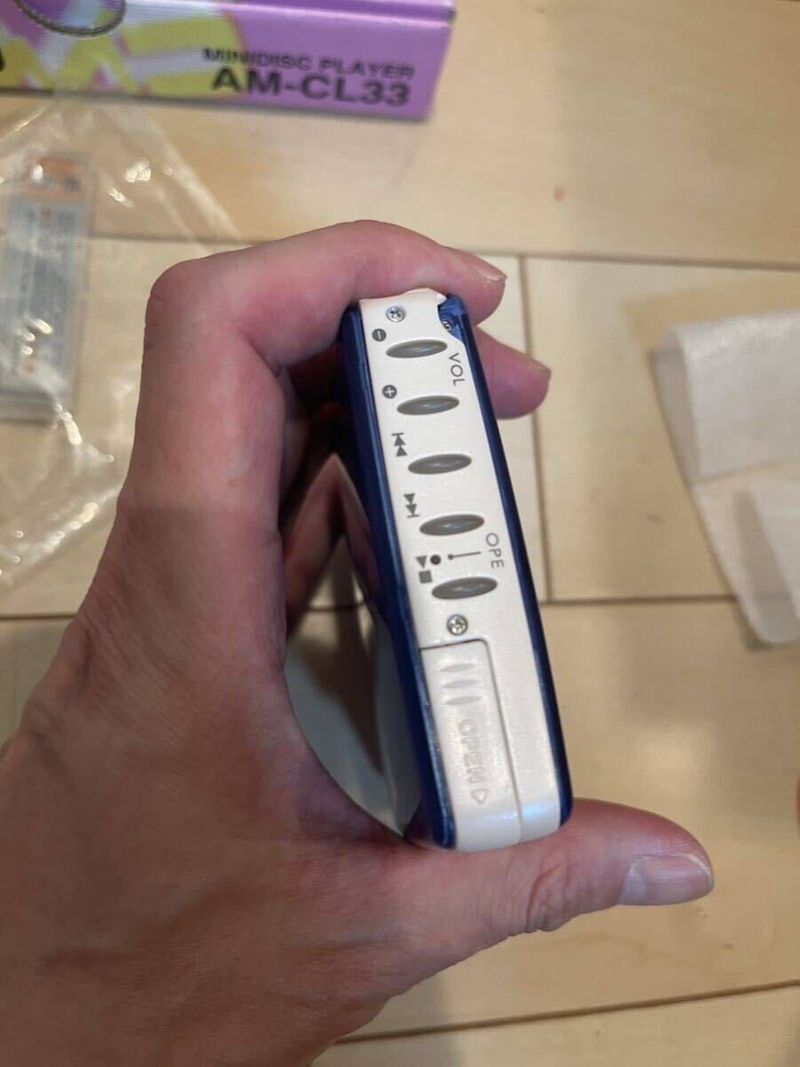

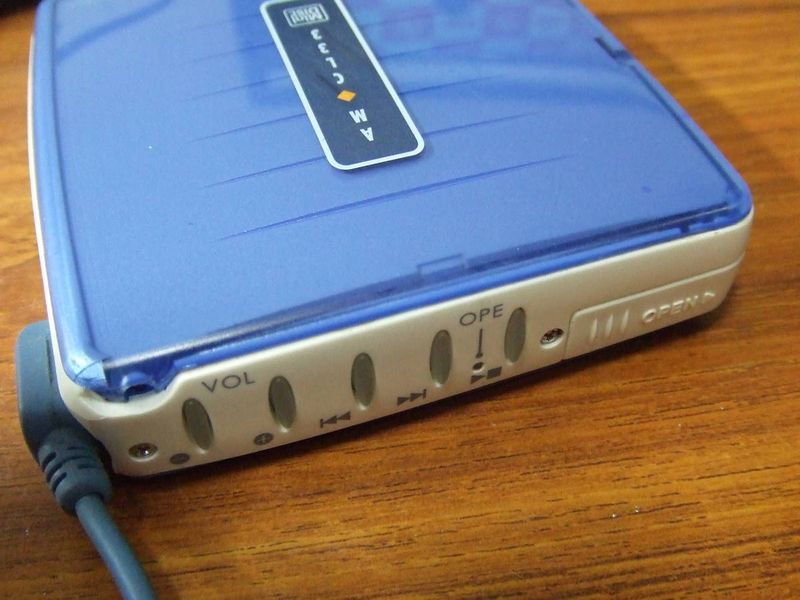

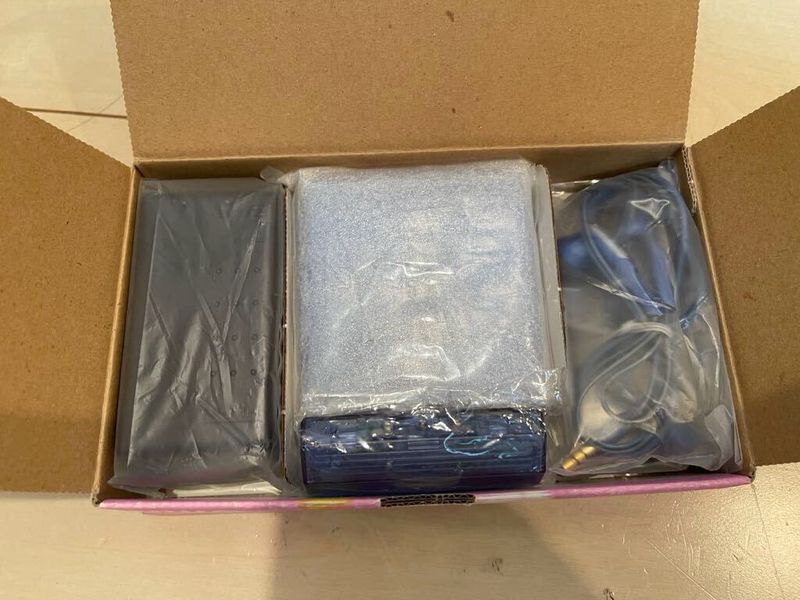

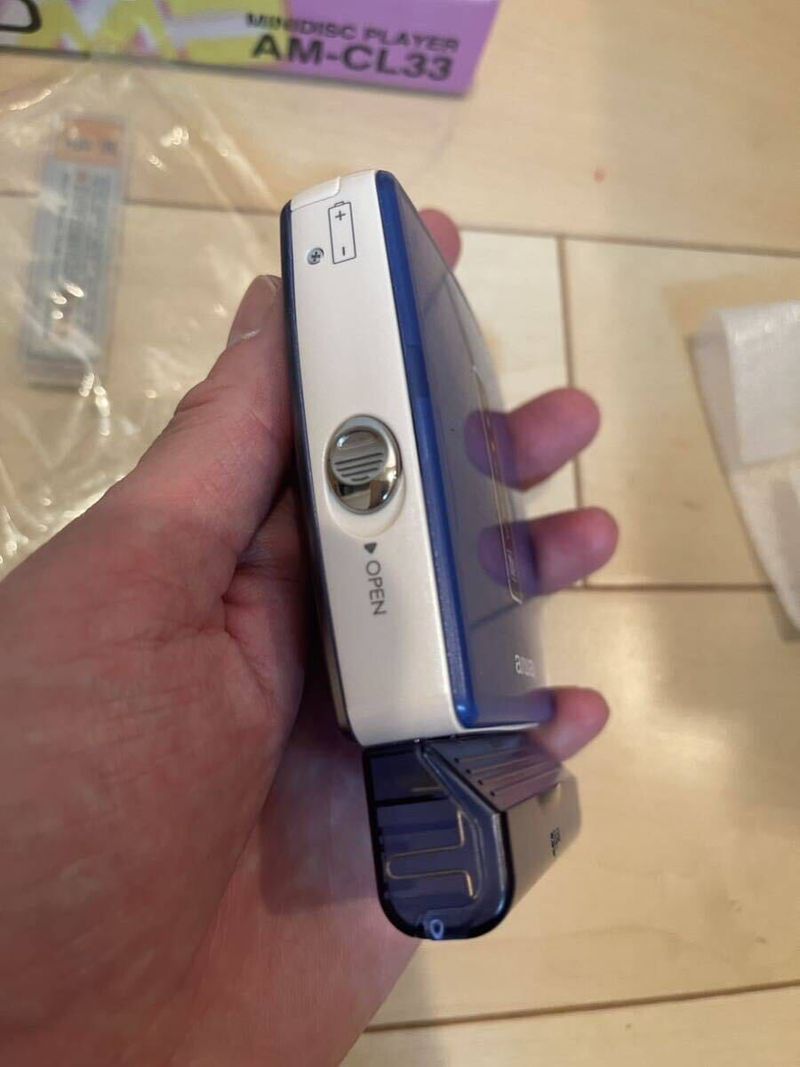

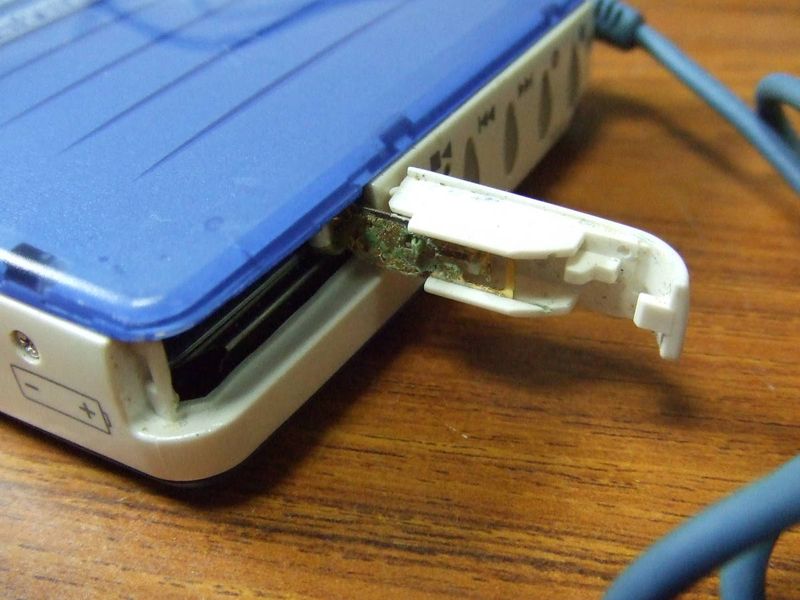

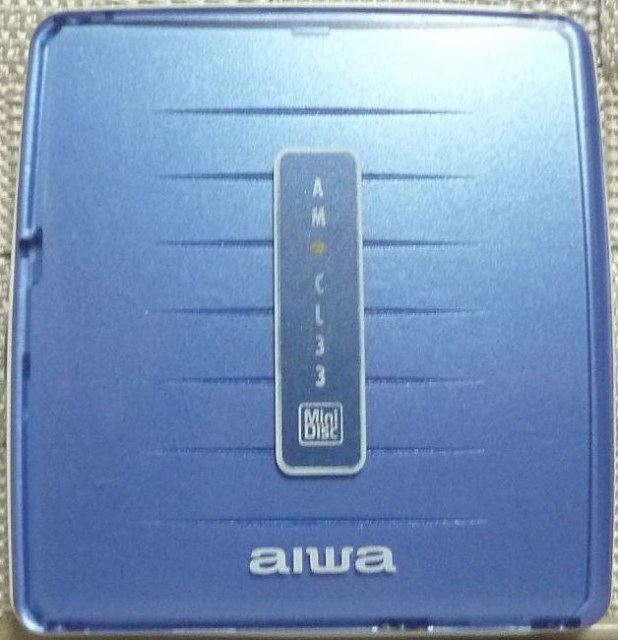

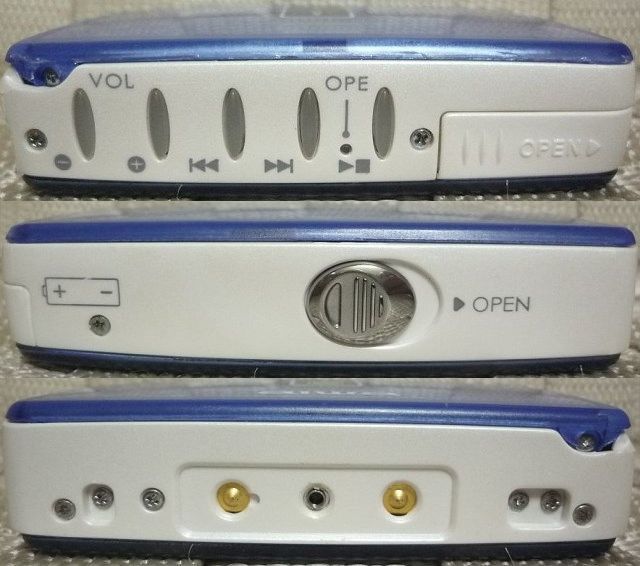

Photos
